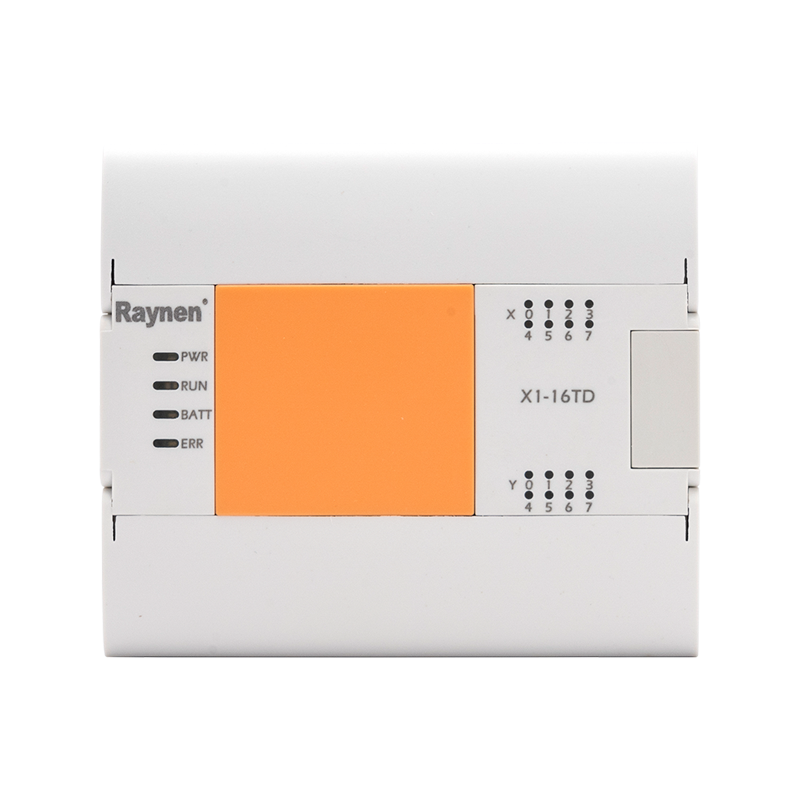

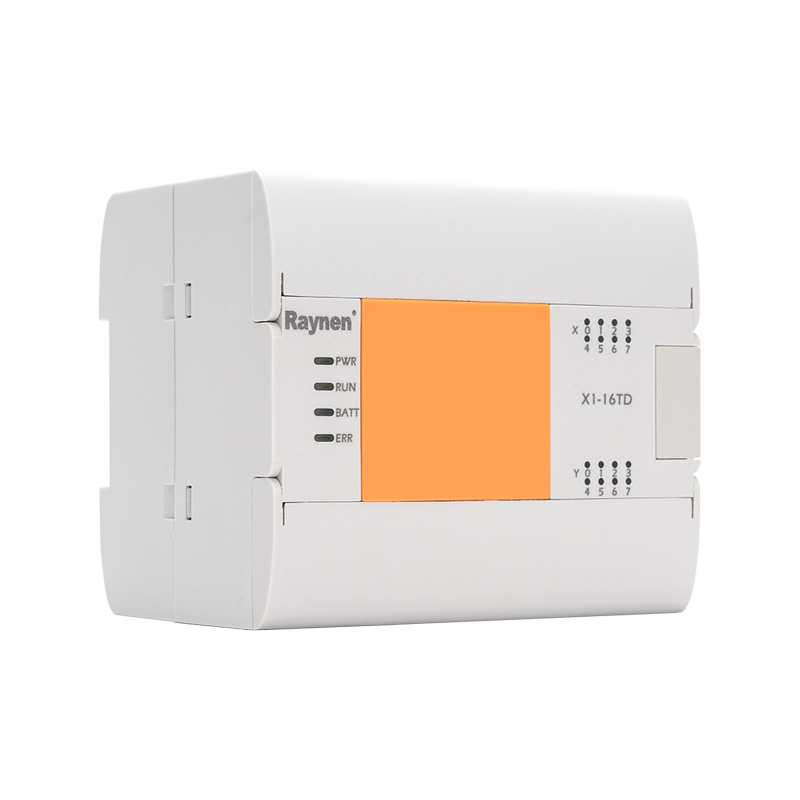

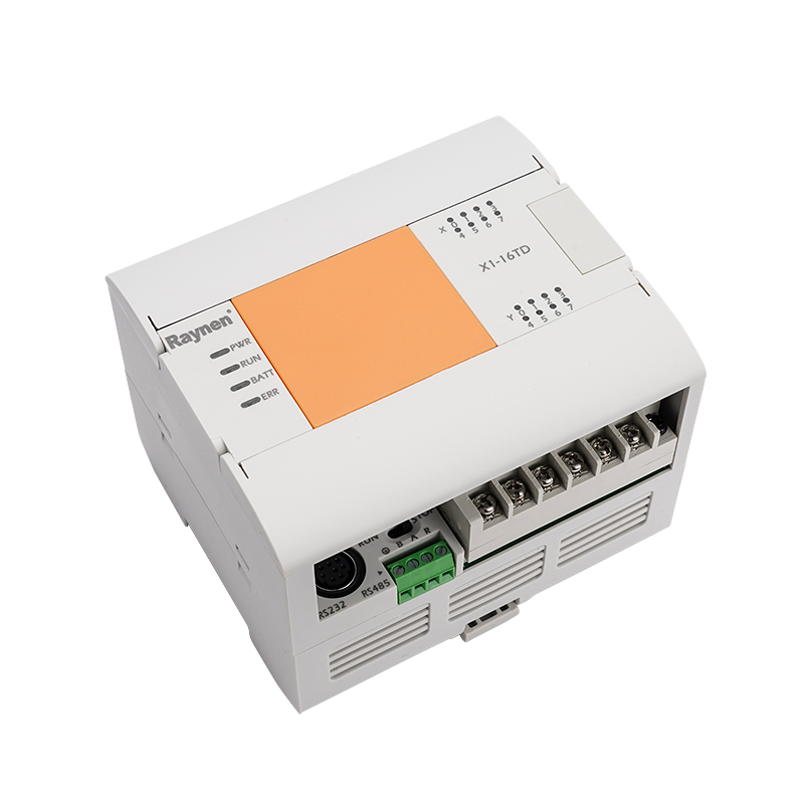

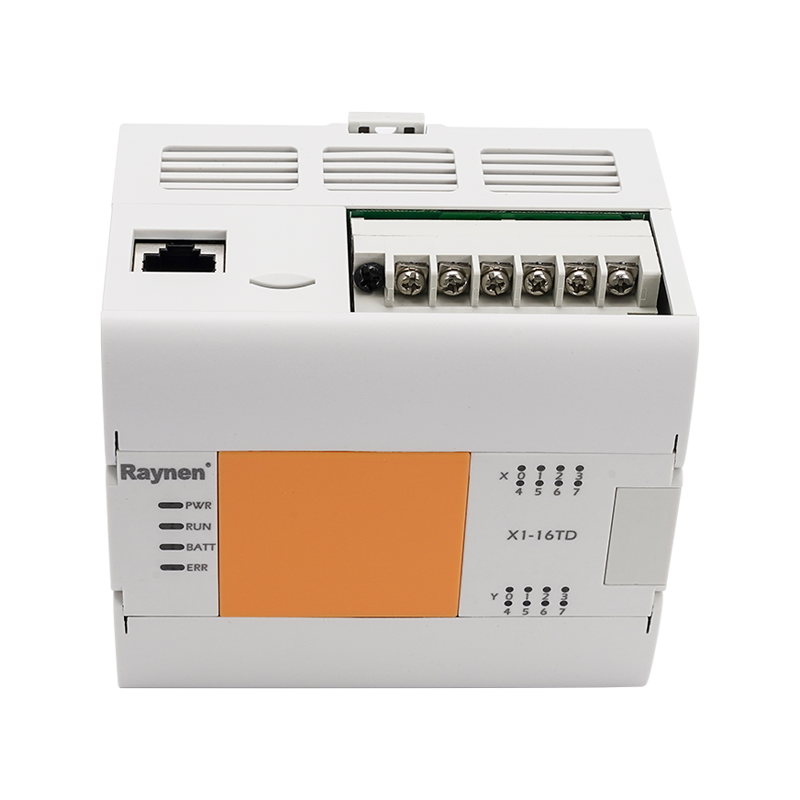

X1 Economic PLC

X series PLC is a powerful motion control functional PLC independently developed and designed. Including X1 economic PLC, X2 standard PLC, X3 enhanced PLC, X5 motion control PLC, X6 bus PLC, X relay PLC and expansion module, BD board. The X series PLC integrates the needs of the industry, responds to the individual needs of customers, enhances the advantages of expansion capabilities, and is the choice for control systems such as OEM equipment, small projects, and Internet of Things smart devices.

Get A Quote

Download

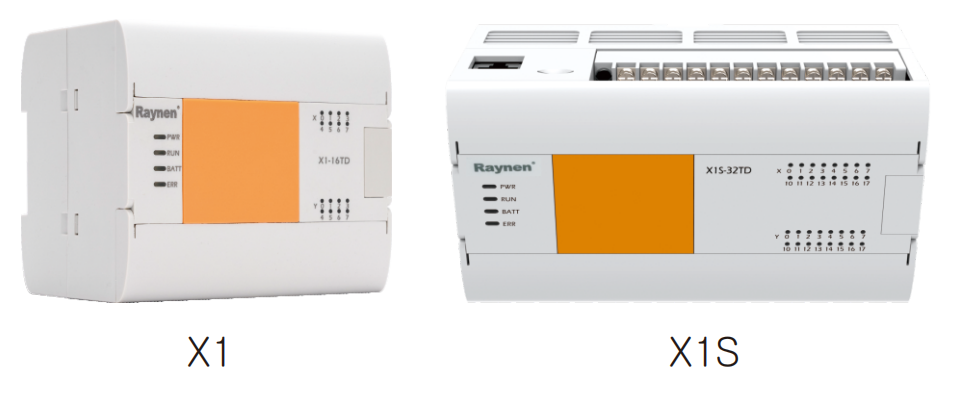

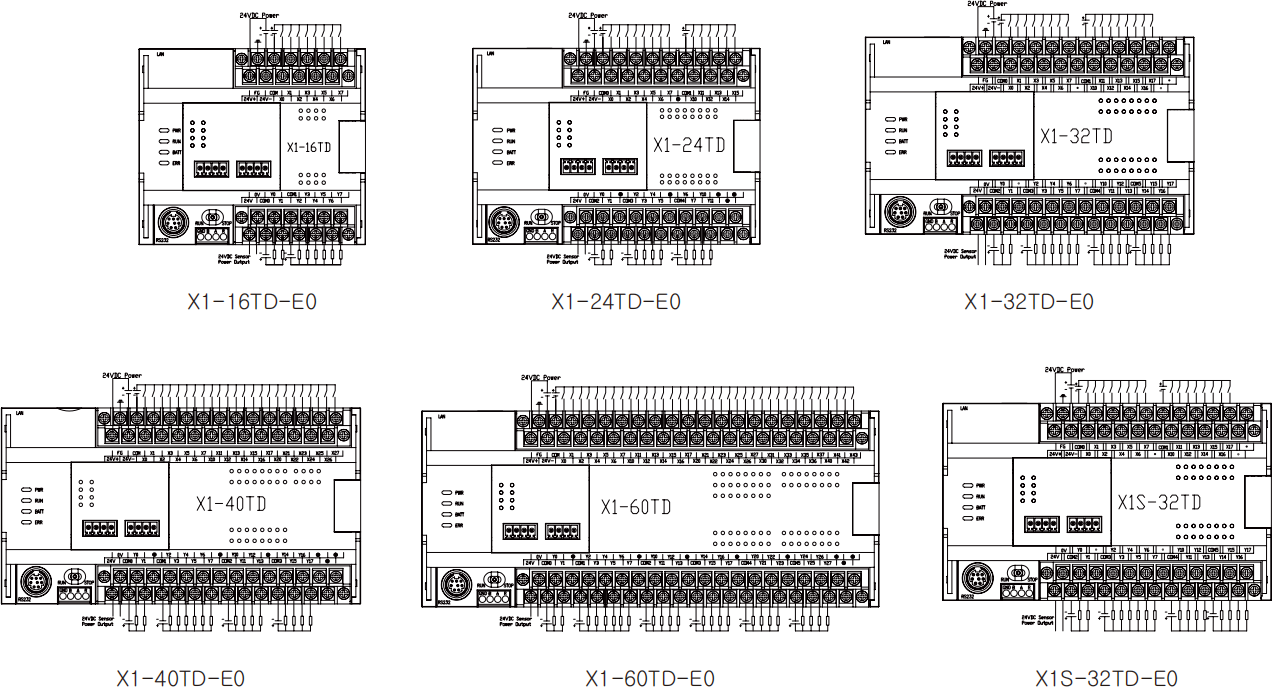

X1(S) series summary

With pulse output, high-speed counting and other simple motion control functions;

Real-time clock, power outage data is permanently stored;

Supports one BD expansion board, but does not support template expansion.

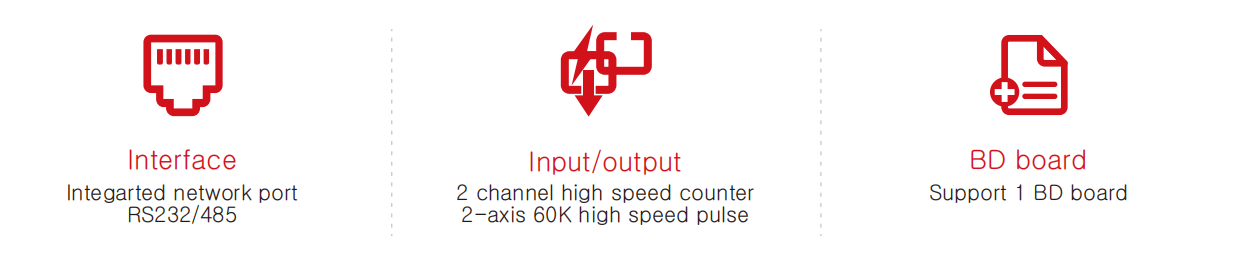

Advantage

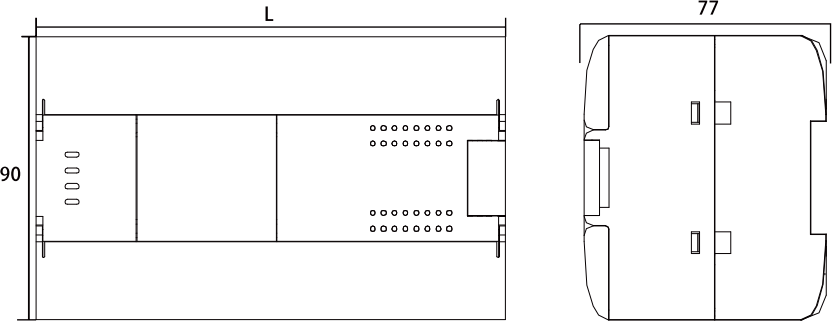

X1 series parameter

Item	Power Specifications
	X1-16TD	X1-24TD	X1-32TD	X1-40TD	X1-60TD
	X1S-16TD	X1S-24TD	X1S-32TD	X1S-40TD	X1S-60TD
Power consumption	6W	7W	8W	9W	11W
Power supply voltage	DC24V
Power supply voltage range	DC20.4~28.8V
Permitted instantaneous power failure time	For transient power outages below 5ms, the operation will continue
Power supply fuse	60V 2A
Surge current	12A, 0.5ms Below/28.8V DC
DC24V power supply	Below 300mA
Working environment temperature	-10℃~60℃(horizontal installation), -10℃~50℃(vertical installation)
Transportation environment temperature	-20℃~80℃
Ambient relative humidity	5~95%, non-condensing(RH level 2, conform IEC61131-2)
Protection level	IP20
Electromagnetic compatibility	Noise suppression, conform to EC61000-6-2
Mechanical level (vibration)	IEC60068, Part2-6/10up58Hz
Withstand voltage	AC1.5KV 1 min, Between each terminal and the ground terminal
	AC500V 1 min, Between each terminal and the ground terminal
Insulation resistance	After measuring with a DC500V insulation resistance meter, it is more than 5MΩ between each terminal and the ground terminal
Grounding	Type D grounding(grounding resistance: less than 100Ω), do not allow common grounding with the strong current system
Usage environment	No corrosive, flammable gas, conductive dust (dust)is not serious
Usage altitude	2000M Below(Can not be used in the environment of pressure to above atmospheric pressure, otherwise it may occur)

Item		Power Specifications
		X1-16TD	X1-24TD	X1-32TD	X1-40TD	X1-60TD
		X1S-16TD	X1S-24TD	X1S-32TD	X1S-40TD	X1S-60TD
Input number		8	14	16	24	36
High speed number		signal phase 60KHz(2 way)AB phase 30KHz(1 way)
Input connect type		Removable terminal block(M3 screw)
Input type		Sink type/source Type
Input signal voltage		DC power: DC20.4V~28.8V
Input impedance	X0-X2	2.4K
	X3 above	5.6K
ON input inductance current	X0-X2	5mA above
	X3 above	2.4mA above
OFF Input inductance current		1mA below
Input response time		No more than 4.5ms
Input signal form		No voltage contact input
		Sink input: NPN open-collector transistor
Input loop isolation		Source input: PNP open-collector transistor
		Optocoupler isolation
Display of input actions		The LED on the panel lights up when the optocoupler is driven

Item		Power Specifications
		X1-16TD	X1-24TD	X1-32TD	X1-40TD	X1-60TD
		X1S-16TD	X1S-24TD	X1S-32TD	X1S-40TD	X1S-60TD
Output number		8	10	16	20	24
Pulse frequency(Max)		Single terminal 2 shaft 60KHz
Output connect type		Removable terminal block(M3 Screw)
Output type		Transistor/drain output
External power supply		DC5~30V
Max load	Resistive load	0.5A/single point; 0.8A/4 point
	Inductive load	12W/DC24V
	Lamp load	High speed: 2W/DC24V, common: 5W/DC24V
Mid load		5mA(DC5～24V)
Open leakage current		0.1mA below/DC30V
on-resistance		High speed point 0.3Ω typical value(Max 0.6Ω)
Response time	OFF→ON	High speed: 10us below/10mA above(DC5~24V)
		Common: 0.2ms below/200mAabove(DC24V)
	ON→OFF	High speed: 10us below/10mA above(Dc5～24V)
		Common: 0.2msbelow/200mAabove(DC24V)
Loop isolation		Optocoupler isolation
Display of output actions		The LED on the panel lights up when the optocoupler is driven
Mask transmission distance		500M(common output)
unmasked transmission distance		150M(common output)

X1 series: software component resources

Item		Performance
Operational control mode		Method of repeatedly executing saved programs(dedicated LSI)with interrupt function
Input/output control mode		Batch processing mode(when executing END instruction), input and output refresh instruction, pulse capture function
Programming language		Relay symbol mode +step ladder mode(can be represented by SFC)
Real-time clock	Clock function	Build-in 2000-2099, The annual error is not more than +5 minutes/25℃
Program memory	Max memory capacity	32000 step can be set by parameters, write comments and file registers in the program memory
	Built-in memory capacity/model	32000 step/RAM memory, Password protected
	Write function In RUN	No
Instruction type	Basic instruction	27 types of Sequential control instructions, 2 types of step ladder diagram instructions
	Application instruction	218 kinds 497 type
Arithmetic processing speed	Basic command	0.065μs/instruction
Input/output number	Number of input points for extended usage	256 point	Total input and output points do not exceed 256 points
	Number of output points for extended usage	256 point
Input-output relay	Input relay	256 point	Input and output total 256 points
	Output relay	256 point
Auxiliary relay	Common	M0~M7679	7680 point	Common/retention Settings can be changed through parameters
	Retention	M500~M1023	524 point
State	Common	S0~S4095	4096 point	Common/retention Settings can be changed through parameters
	Retention	S500~S999	500 point	Common/retention Settings can be changed through parameters
Timer	100ms type	T0~T199	200 point	0.1~3276.7s
	10ms type	T200~T245	46 point	0.01~327.67s
	1ms Cumulative type	T246~T249	4 point	0.001~32.767S
	100ms Cumulative type	T250~T255	6 point	0.1~3276.7s
	1ms type	T256~T511	256 point
Counter	General increasing	C0~C99	100 point	0.001~32.767s
	(16-bit)[Changeable]			Common/retention Settings can be changed through parameters
	Retention increasing(16 bit)[changeable]	C100~C199	100 point
	Common duplexing	C200~C219	20 point	Common/retention Settings can be changed through parameters
	(32-bit)[Changeable]
	Retention duplexing(32 bit) [changeable]	C220~C255	36 point
Data register	Common	D0~D7999	8000 point	Common/retention Settings can be changed through parameters
	Retention	D200~511	312 point
Expansion register	Main control	P0~P1023	1024 point	CJ command、CALL command used
Ponter	Main control	NO~N7	8 point	MC command used
Nest	Main control	16 bit	-32, 768~+32, 767
State	10 Decimal Number(K)	32 bit	-2, 147, 483, 648~+2, 147, 483, 647
	16 hexadecimal number(H)	16 bit	0~FFFF
		32 bit	0~FFFFFFFF
	Real number (E)	32 bit	-3.40×10⁻³8~-1.17×10⁻, 1.17×10⁻~3.40×10³8
	Character string("")	Character string	Specify with characters in"I maximum of 32 half-corner characters can be used in a constant in an instruction
