X series PLC is a powerful motion control functional PLC independently developed and designed. Including X1 economic PLC, X2 standard PLC, X3 enhanced PLC, X5 motion control PLC, X6 bus PLC, X relay PLC and expansion module, BD board. The X series PLC integrates the needs of the industry, responds to the individual needs of customers, enhances the advantages of expansion capabilities, and is the choice for control systems such as OEM equipment, small projects, and Internet of Things smart devices.
X series expansion modules summary
X series PLC not only has powerful logic processing, data calculation, high-speed processing and other functions, but also has rich and diverse expansion modules, A/D, D/A conversion functions, input and output modules, analog modules, temperature modules, etc., making X series PLC widely used in process control systems such as temperature, flow, liquid level, and pressure.
Module performance parameters
| No | Order number | Product description |
| X series digital modules | ||

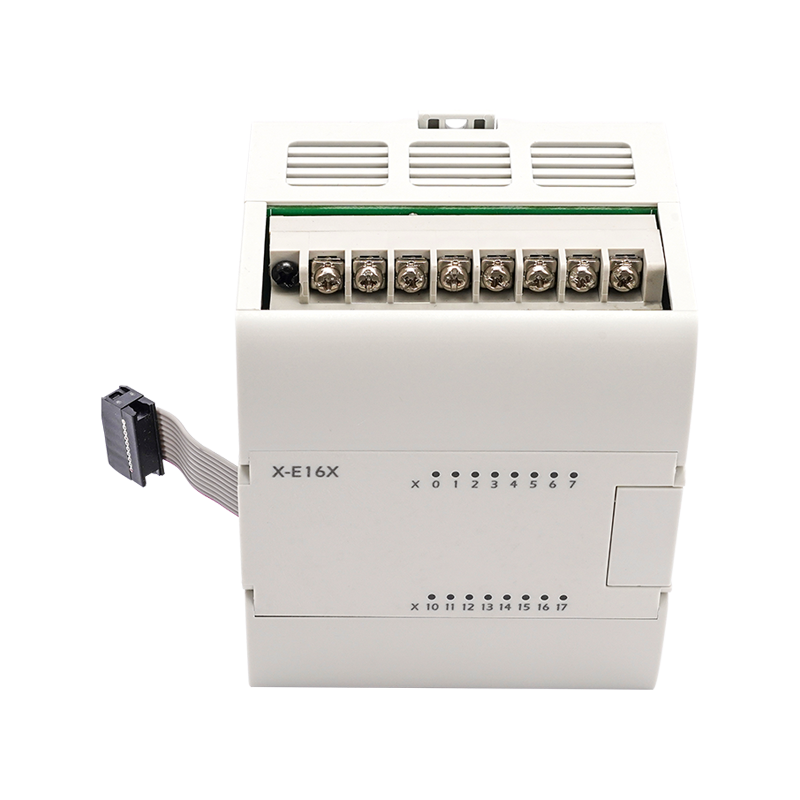

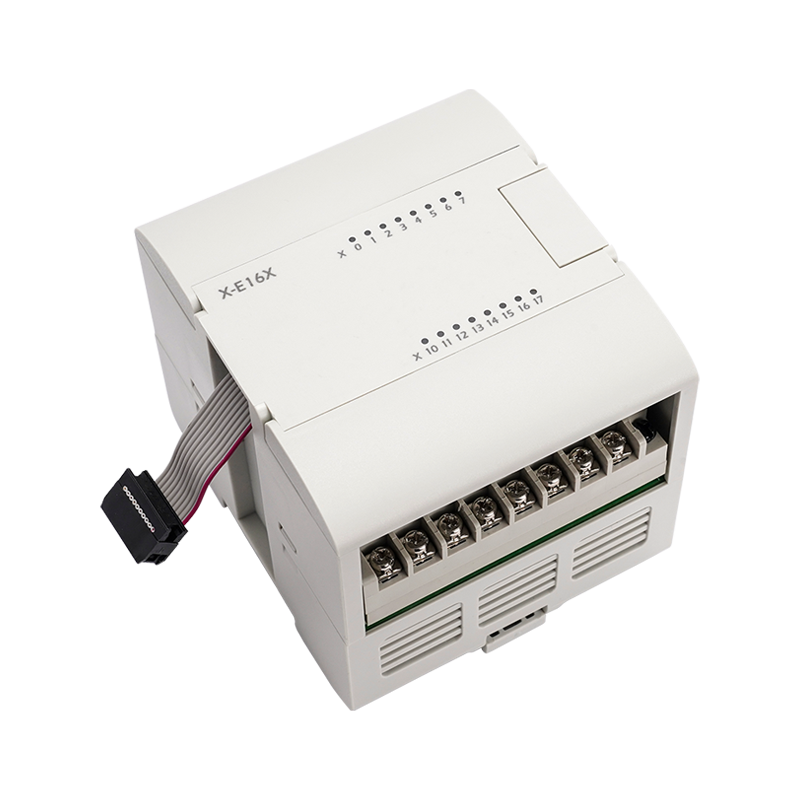

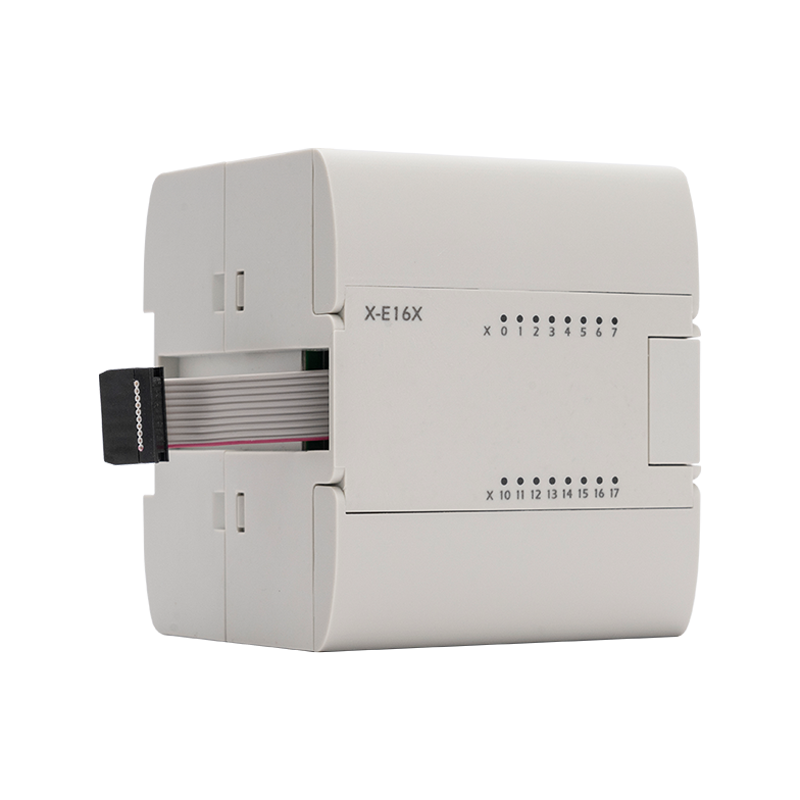

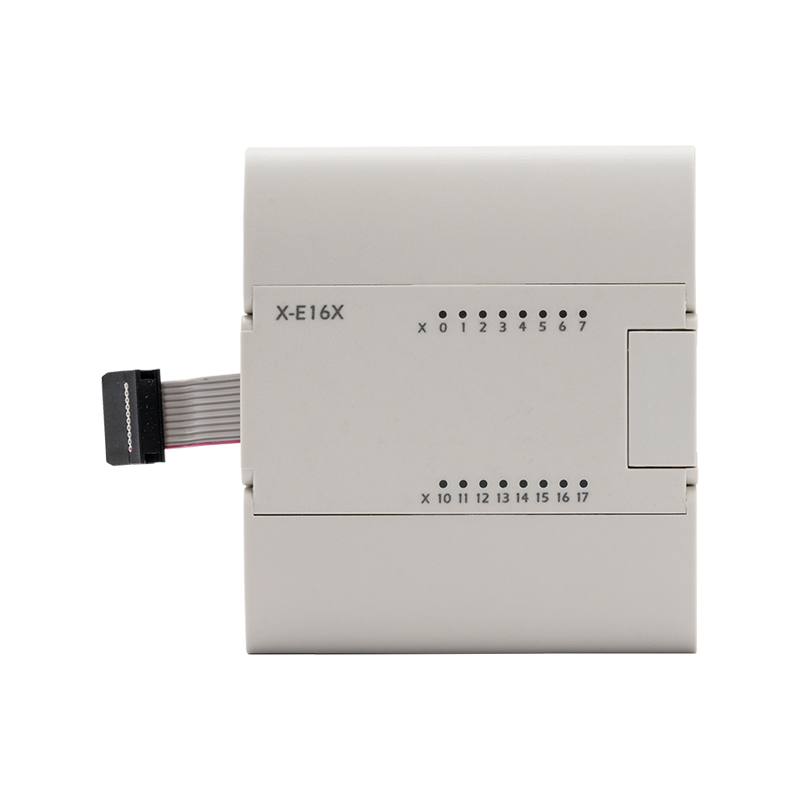

| 1 | X-E16X-00 | X series universal digital input expansion module, 16DI, 24VDC |
| 2 | X-E32X-00 | X series universal digital input expansion module, 32DI, 24VDC |

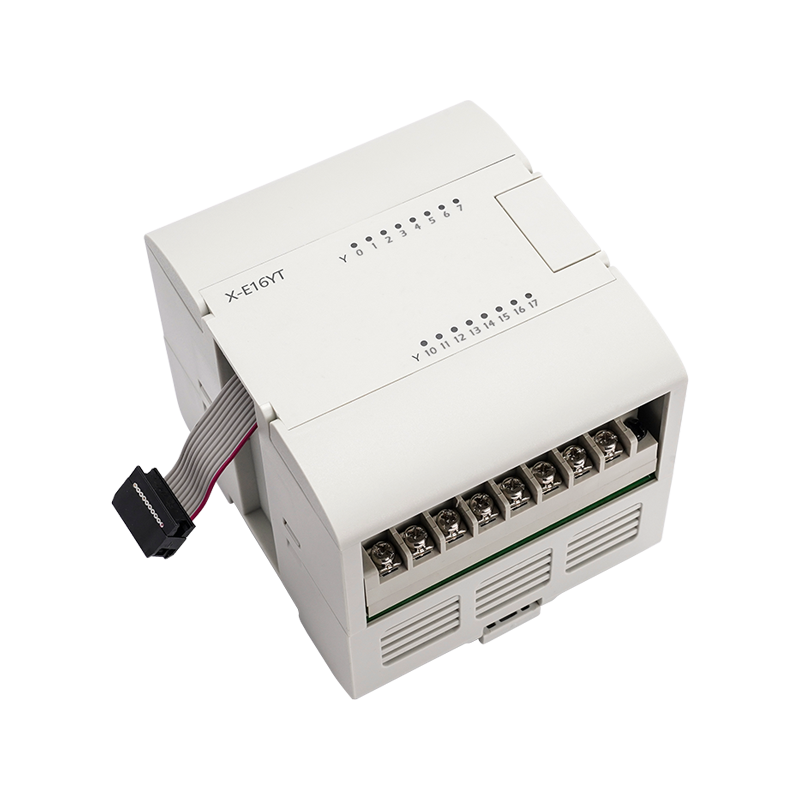

| 3 | X-E16YT-00 | X series universal digital output expansion module, 16DO, transistor |
| 4 | X-E16YR-00 | X series universal digital output expansion module, 16DO, relay |
| 5 | X-E32YT-00 | X series universal digital output expansion module, 32DO, transistor |

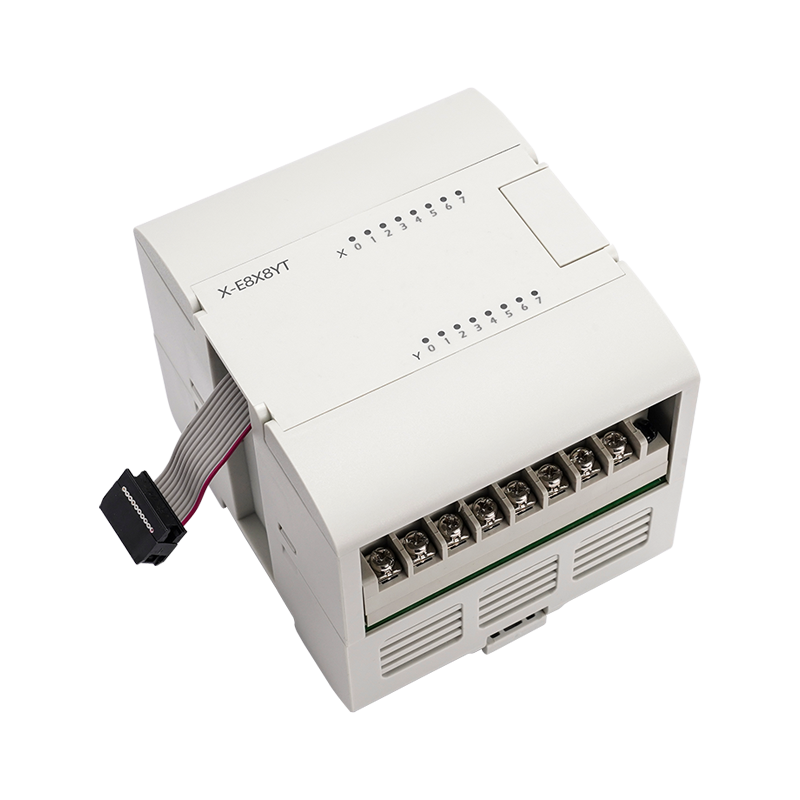

| 6 | X-E8X8YT-00 | X series universal digital hybrid expansion module, 8DI/8DO, transistor |
| 7 | X-E8X8YR-00 | X series universal digital hybrid expansion module, 8DI/8DO, relay |
| 8 | X-E16X16YT-00 | X series universal digital hybrid expansion module, 16DI/16DO, transistor |
| 9 | X-E16X16YR-00 | X series universal digital hybrid expansion module, 16DI/16DO, relay |
| X Series Analog Modules | ||

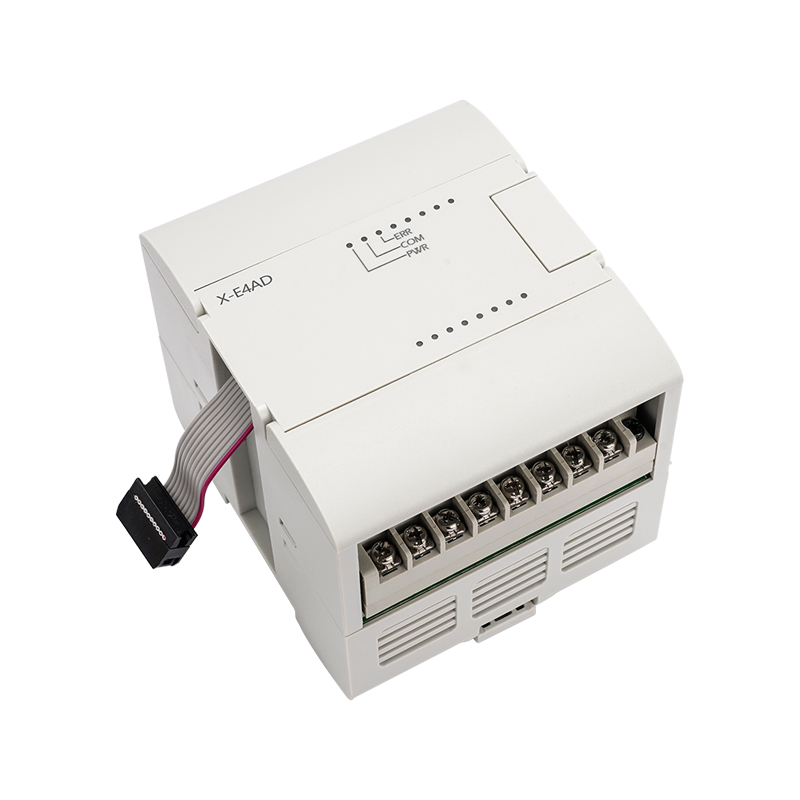

| 1 | X-E4AD-01 | X series universal analog input expansion module, 4AI, 16bit |

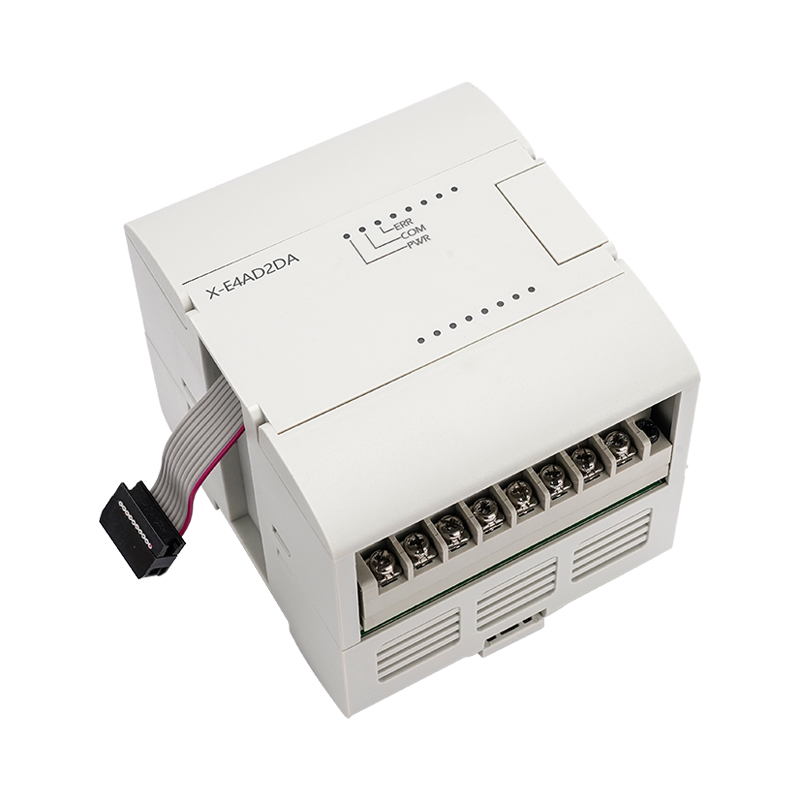

| 2 | X-E4AD2DA-01 | X series universal analog mixed expansion module, 4AI, 16bit; 2AO, 16bit voltage output/15bit current output |
| 3 | X-E8AD-00 | X series universal analog input expansion module, 8AI, 16bit |

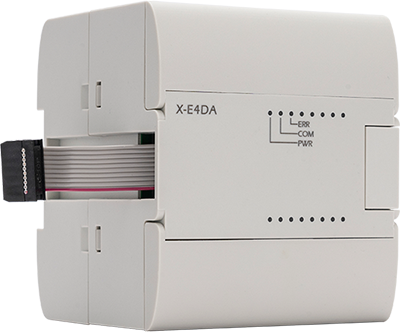

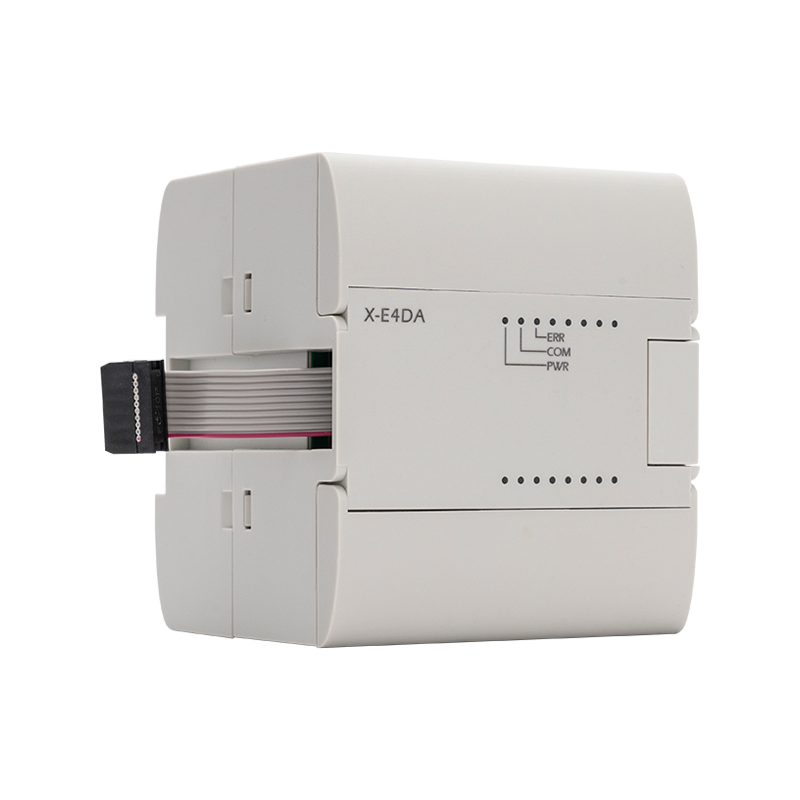

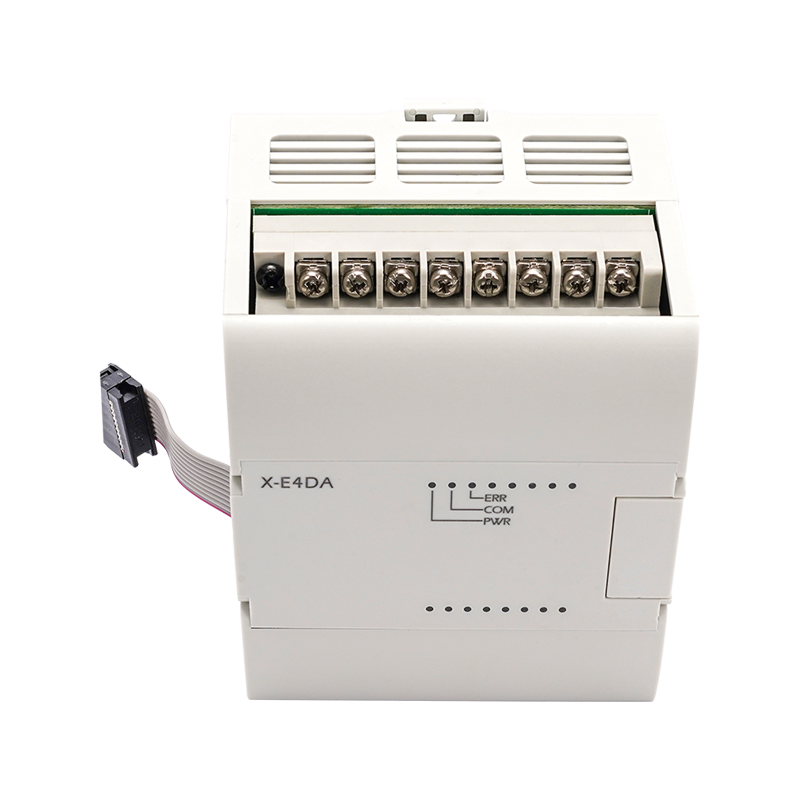

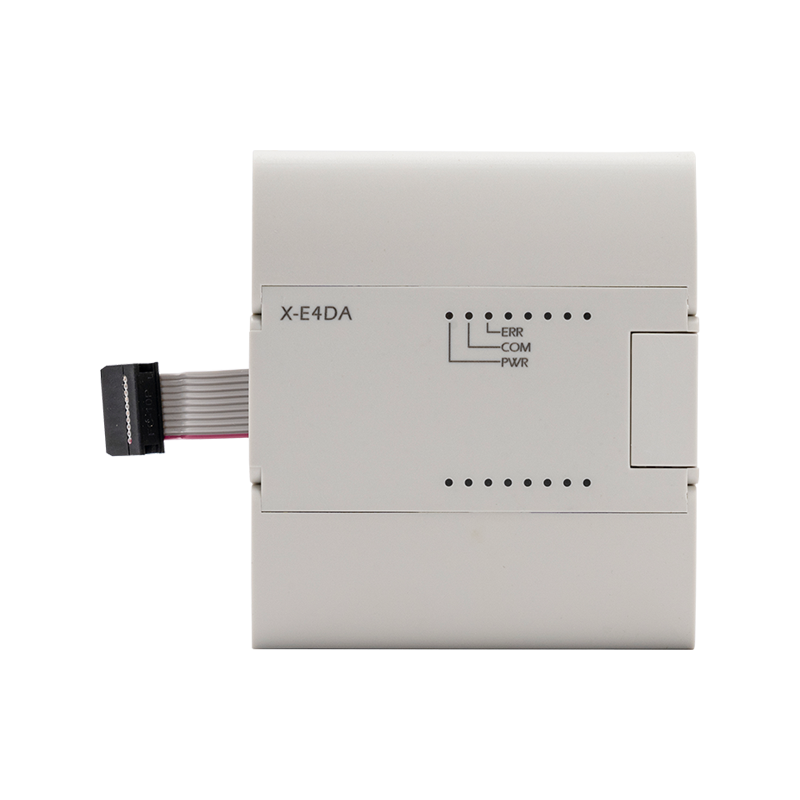

| 4 | X-E4DA-01 | X series universal analog output expansion module, 4AO, 16bit voltage output/15bit current output |

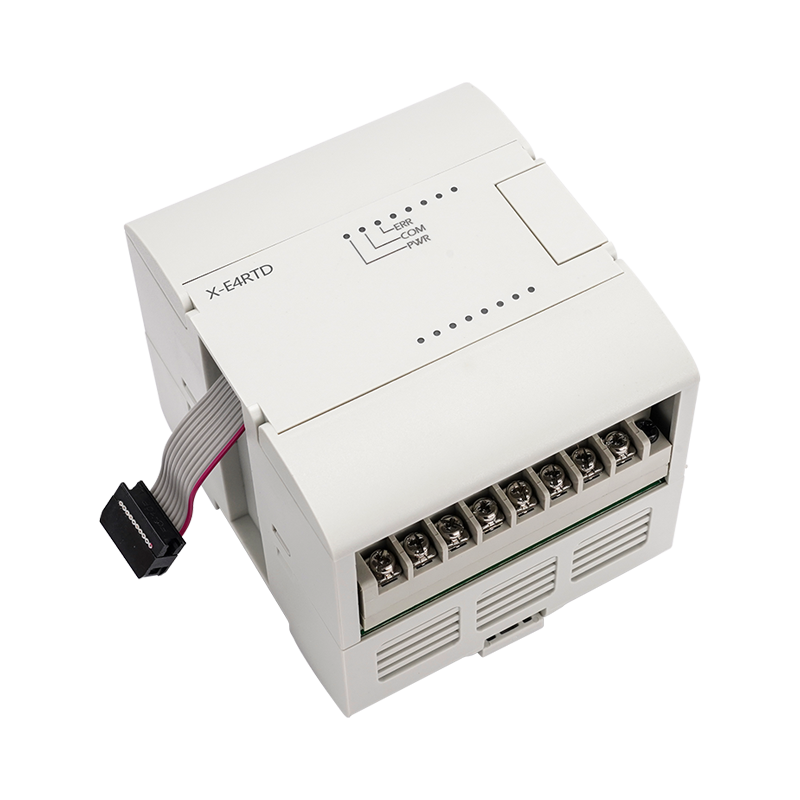

| 5 | X-E4RTD-00 | X series universal temperature control expansion module, channel thermal resistor×4, 16bit |
| 6 | X-E4TC-00 | X series universal temperature control expansion module, channel thermocouple×4, 16bit |
| 7 | X-E8TC-00 | X series universal temperature control expansion module, channel thermocouple×8, 16bit |

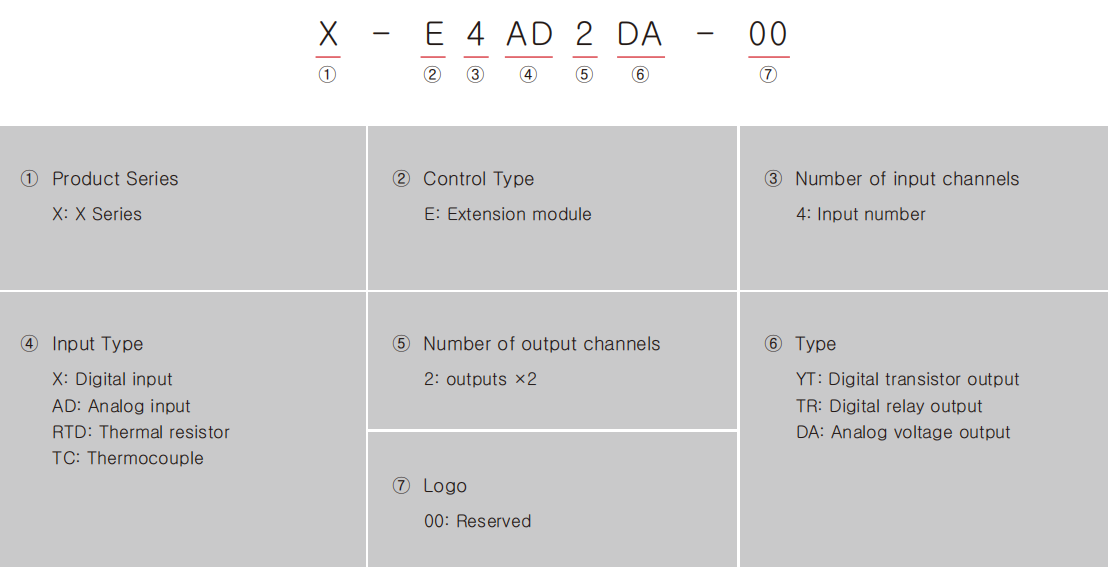

Model description

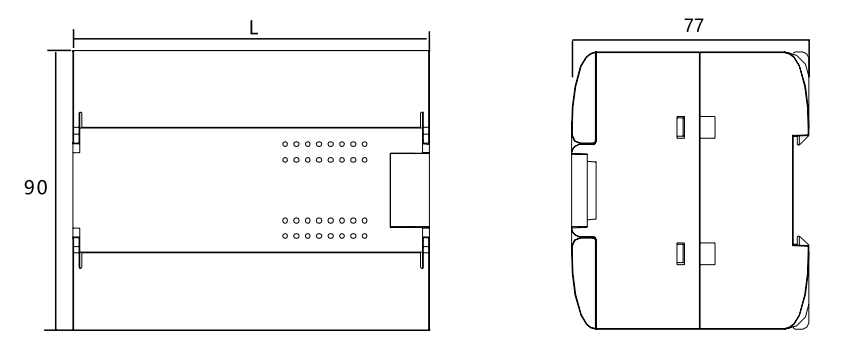

X series PLC expansion module dimension
| Product Order Number | L |
| 16 point | 80 |
| 32 point | 110 |
