- 18kw servo motor;
- 200mm flange;
- Rated speed 3500 rpm;
- Rated torque 37.3 N.m;
- Rated current 37.3A;
- 23-BIT optical encoder;
- 380V power supply
The MC2D high-performance 18kW AC servo motor is engineered for high-precision, stable, and efficient industrial automation applications, delivering reliable dynamic response and precise motion control for medium and heavy-duty automated equipment. It features a standard 200mm flange mounting structure, which ensures convenient installation, firm fixation and strong structural compatibility, perfectly matching most mainstream industrial mechanical structures and assembly standards.
Rated at 18kW power output and configured with a 3500rpm rated speed, the motor maintains stable torque output and continuous operating performance under long-term working conditions. It balances powerful driving capacity and smooth operation, effectively meeting the high-load and continuous operation demands of CNC machine tools, automated production lines, packaging equipment and other industrial scenarios.
Naming convention for the MC2D series
|
① Product series MC2: Servo motor |
② Inertia D: Medium inertia
|
⑤ Rated power 11K: 11kW 15K: 15kW 18K: 18kW 22K: 22kW
|
|
③ Voltage T: 380V |
④ Frame 20: 200 flange |
|
|
⑥ Rated speed C: 1500 rpm G: 3500 rpm D: 2000 rpm |
⑦ Encoder E1: 23-bit optical encoder |
⑧ Key/Oil seal / Brake B1: With key/oil seal, brake B2: With key/oil seal, No brake |
MC2D series servo motor parameters -200 flange
| Item | MC2D-T2018KG-□□□□ |
| Inertia level | Medium |
| Voltage (V) | 380V |
| Flange (mm) | 200 mm |
| Wiring type | Power cable:
terminal box
Encoder cable: aviation plug
|
| Rated power (kW) | 18kW |
| Rated torque (N · m) | 50 |
| Instantaneous maximum torque (N · m) | 126 |
| Rated current (Arms) | 37.7 |
| Instantaneous maximum current (Arms) | 98.0 |
| Rated speed (rpm) | 3500 |
| Maximum speed (rpm) | 6000 |
| Moment of inertia (kg · cm ²) | 98 |

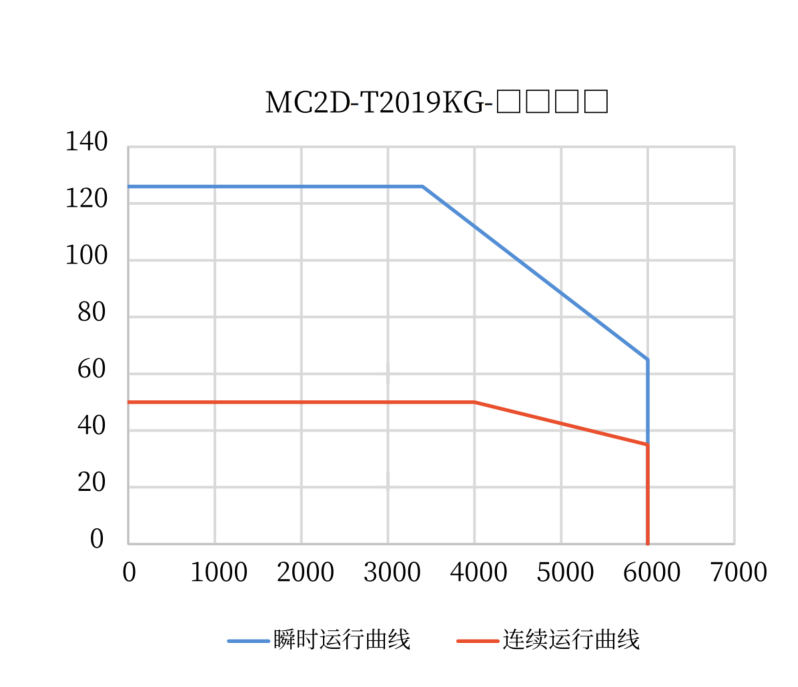

T-N Curve
| Item | MC2D-T2018KG-□□□□ |
|
X-axis: speed (rpm) Y-axis: torque (N.m) |
 |
| LL | 431 |
| LR | 82 |
| LA | 215 |
| LZ | 4- ∅ 14.5 |
| LH | 195 |
| LC | 200 |
| LE | 5 |
| S | 42 |
| LB | 180 |
| TP | M12×28 |
| LK | 56 |
| KH | 33 |
| KW | 12 |
| W | 12 |
| T | 8 |
| LG | 19 |
