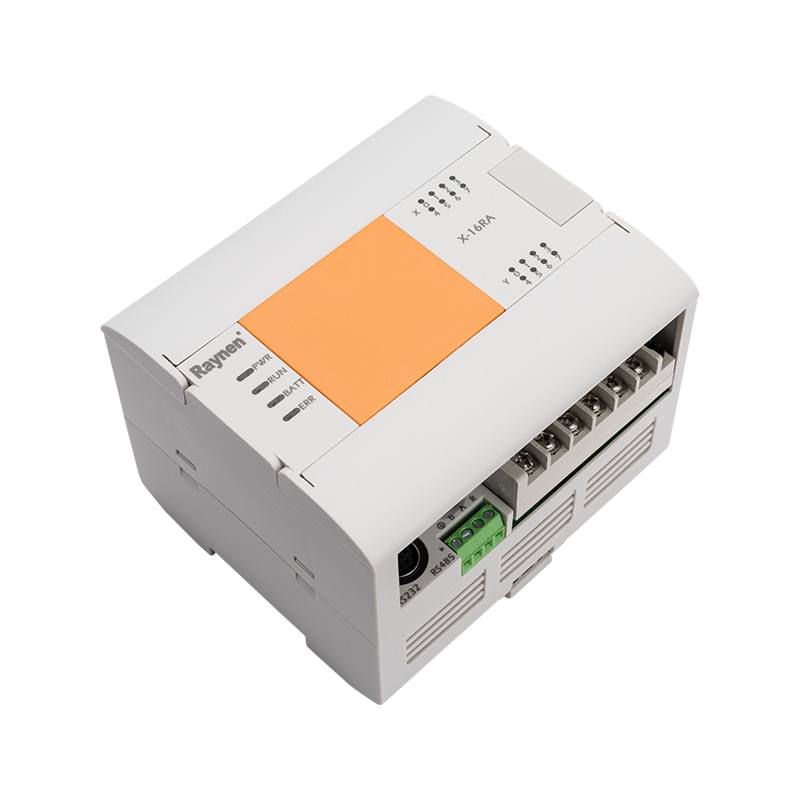

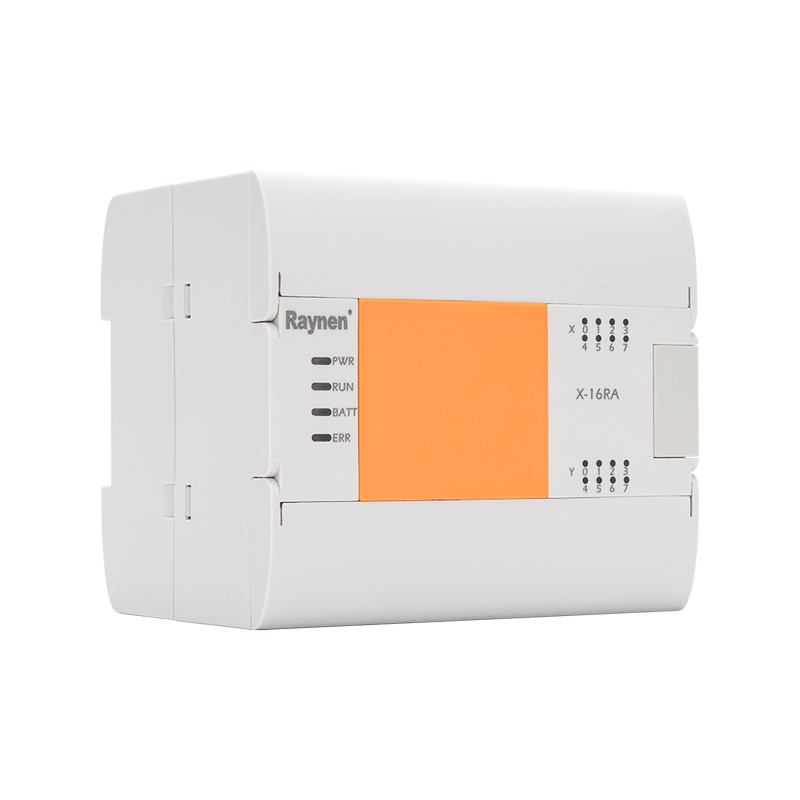

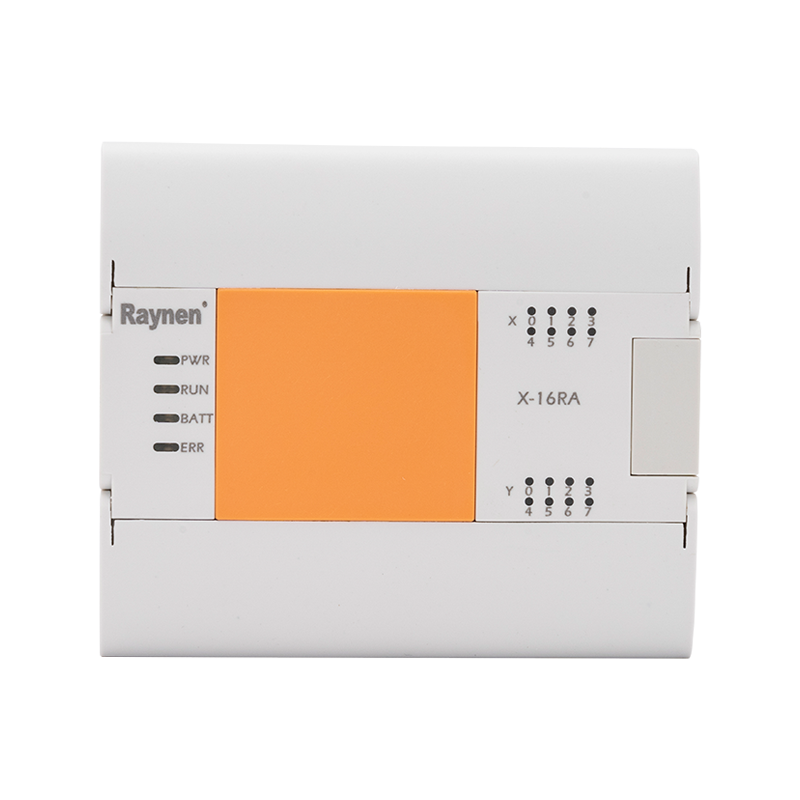

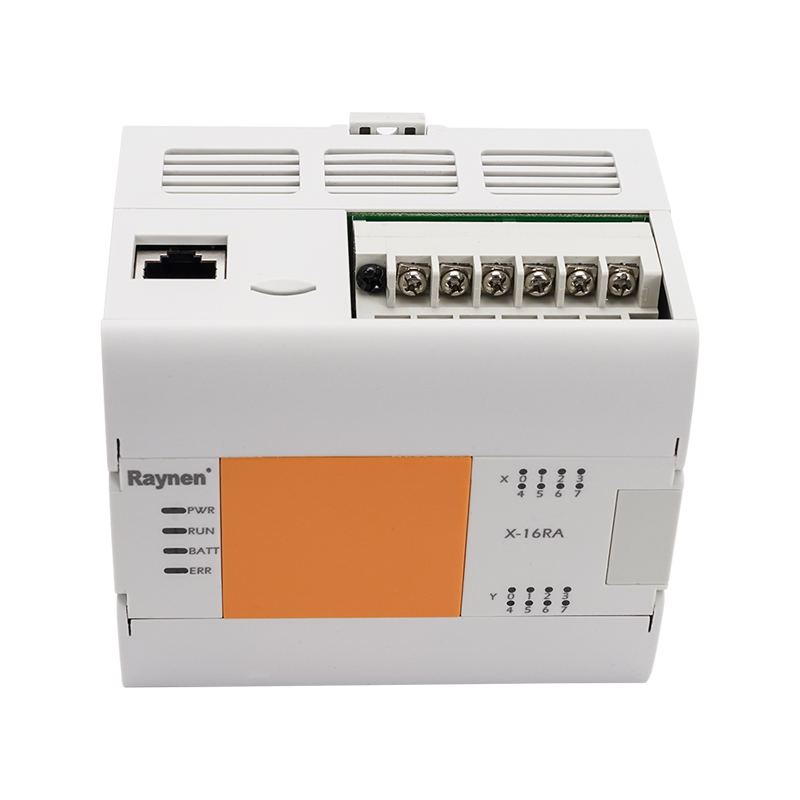

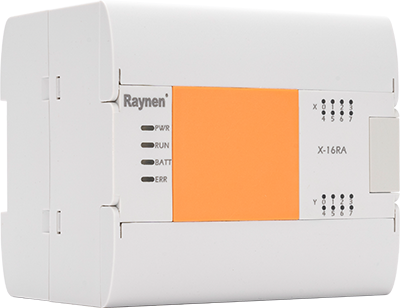

X series PLC is a powerful motion control functional PLC independently developed and designed. Including X1 economic PLC, X2 standard PLC, X3 enhanced PLC, X5 motion control PLC, X6 bus PLC, X relay PLC and expansion module, BD board. The X series PLC integrates the needs of the industry, responds to the individual needs of customers, enhances the advantages of expansion capabilities, and is the choice for control systems such as OEM equipment, small projects, and Internet of Things smart devices.
X series summary
With efficient data processing, three high-speed counting and other functions;
Real-time clock, power data permanently saved;
Support one BD board and max expand up to 7 modules.
Advantage
X series parameter
| Item | Power Specification | |||||
| X-16RA | X-24RA | X-32RA | X-40RA | X-60RA | ||
| Power consumption | 10W | 12W | 12W | 13W | 14W | |
| Working voltage | Minimum value | 100VAC | ||||
| Middle value | 220VAC | |||||
| Maximum value | 240VAC | |||||
| Limit input voltage | AC 85V~AC100V,AC 240V~AC264V | |||||
| Allow instantaneous power outage time | For transient power outages below 5ms, the operation will continue | |||||
| Power fuse | 60V 2A | |||||
| Impulse current | 12A, 0.5ms below/28.8V DC | |||||
| DC24V given power | 300mA below | |||||
| DC5V built-in power | 800mA below | |||||
| Item | Input Specifications | |||||
| X-16RA | X-24RA | X-32RA | X-40RA | X-60RA | ||
| Input number | 8 | 14 | 16 | 24 | 36 | |
| High-speed counter | single phase 200KHz [3 pc];AB phase 100KHz [3 pc] | |||||
| Input type | PNP/NPN | |||||
| Input signal voltage | DC source type: DC20.4V~28.8V | |||||
| Input impedance |
X0-X5 | 3.3K | ||||
| X6-X7 | 5.6K | 3.3K | ||||
| X10 above | 一 |
5.6K | ||||
| ON input inductance current |
X0-X5 | 5mA above | ||||
| X6-X7 | 4mA | 5mA above | ||||
| X10 above | 一 | 4 mA above | ||||
| OFF Input induced current | 1mA above | |||||
| Input response time | <4.5ms | |||||
| Input signal form | No voltage contact input | |||||
| Sink input: NPN open-collector transistor | ||||||
| Source input: PNP open-collector transistor | ||||||
| Input loop isolation | Optocoupler isolation | |||||
| Display of input actions | The LED on the panel lights up when the optocoupler is driven | |||||
| Item | Output specification | ||||
| X-16RA | X-24RA | X-32RA | X-40RA | X-60RA | |
| Output number | 8 | 14 | 16 | 16 | 24 |
| Output type | Dry contact | ||||
| Rated voltage | 220VAC | ||||
| Voltage range | 5~30VDC 5~250VAC | ||||
| Surge current(Max) | 5A 4s 10%Duty cycle | ||||
| Rated current per point(Max) | 2A | ||||
| Lamp Load [max] | 30W DC/200W AC | ||||
| Response time(24V,2K load) | 10ms | ||||
| on-resistance [connect point] | 0.22(Max when new) | ||||
| Pulse frequency [Max] | 1HZ | ||||
| Mechanical life cycle | 10000000(No load) | ||||
| Contact life | 100000(Rated load) | ||||
| shield | 500m(Normal output) | ||||
| un-shield | 150m(Normal output) | ||||
X series: software component resources
| Name | Content | Soft component type | Conten |
| X | 256 point | Bit element | X0~×377 |
| Y | 256 point | Bit element | Y0~Y377 |
| M | 7680 point | Bit element | M0~M7679 |
| SM | 512 point | Bit element | SM8000~SM8511 |
| S | 4096 point | Bit element | S0~S4095 |
| V | 8 point | Word element | V0~V7 |
| Z | 8 point | Word element | Z0~Z7 |
| T | 512 point | Word element | T0~T511 |
| C | 200 point | 16-bit word element | C0~C199 |
| C(32 bit) | 56 point | 32-bit word element | C200~C255 |
| D | 8000 point | Word element | D0~D7999 |
| SD | 512 point | Word element | SD8000~SD8511 |
| R | 32768 point | Word element | R0~R32767 |
| Input interrupt | 8 point | 100*~107* | |
| Timer interrupt | 3 point | I6**~18** | |
| Counter interrupt | 6 point | 1010~1060 | |
| Master control with nesting | 8 point | N0~N7 | |
| Pointer P | 4096 point | P0~P4095 | |
| Constant K | 16 bit range:-32768~+32767 | ||
| 32 bit rang | |||
| -2147483648~+2147483647 | |||
| Constant H | 16 bit range:0~FFFF | ||
| 32 bit range:0~FFFFFFFF | |||
| Real number(E) | -3.40×10⁻³⁸~-1.17×10⁻³⁸, 1.17x10⁻³⁸~3.40×10³⁸ | ||
| Character string | A half-corner character framed by"", with a maximum of 32 characters |
X series high-speed counter
| Distribution Input |
Single-phase single counter | Single-phase double counter | AB Phase counter | |||||||||||||
| C235 | C236 | C237 | C238 | C239 | C240 | C243 | C244 | C246 | C247 | C248 | C249 | C251 | C252 | C253 | C254 | |
| XO | U/D | U/D | U | U | A | A | ||||||||||
| X1 | U/D | R | D | D | B | B | ||||||||||
| X2 | U/D | U/D | U | R | R | A | ||||||||||
| X3 | U/D | R | D | S | B | |||||||||||
| X4 | U/D | S | U | A | ||||||||||||
| X5 | U/D | D | B | |||||||||||||

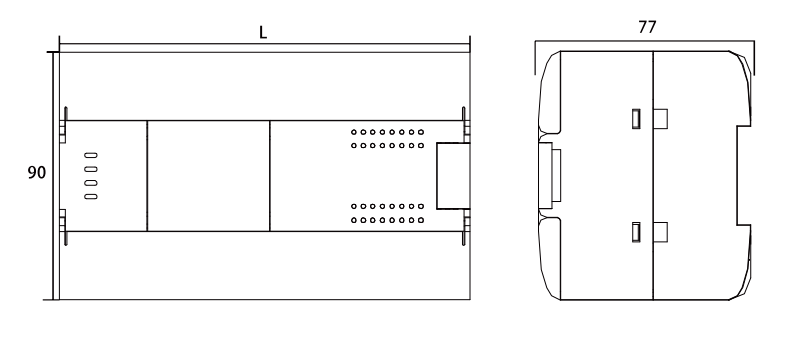

X series size
| PLC model | L |
| X-16RA-E0 | 104 |
| X-24RA-E0 | 132 |
| X-32RA-E0 | 150 |
| X-40RA-E0 | 165 |
| X-60RA-E0 | 210 |

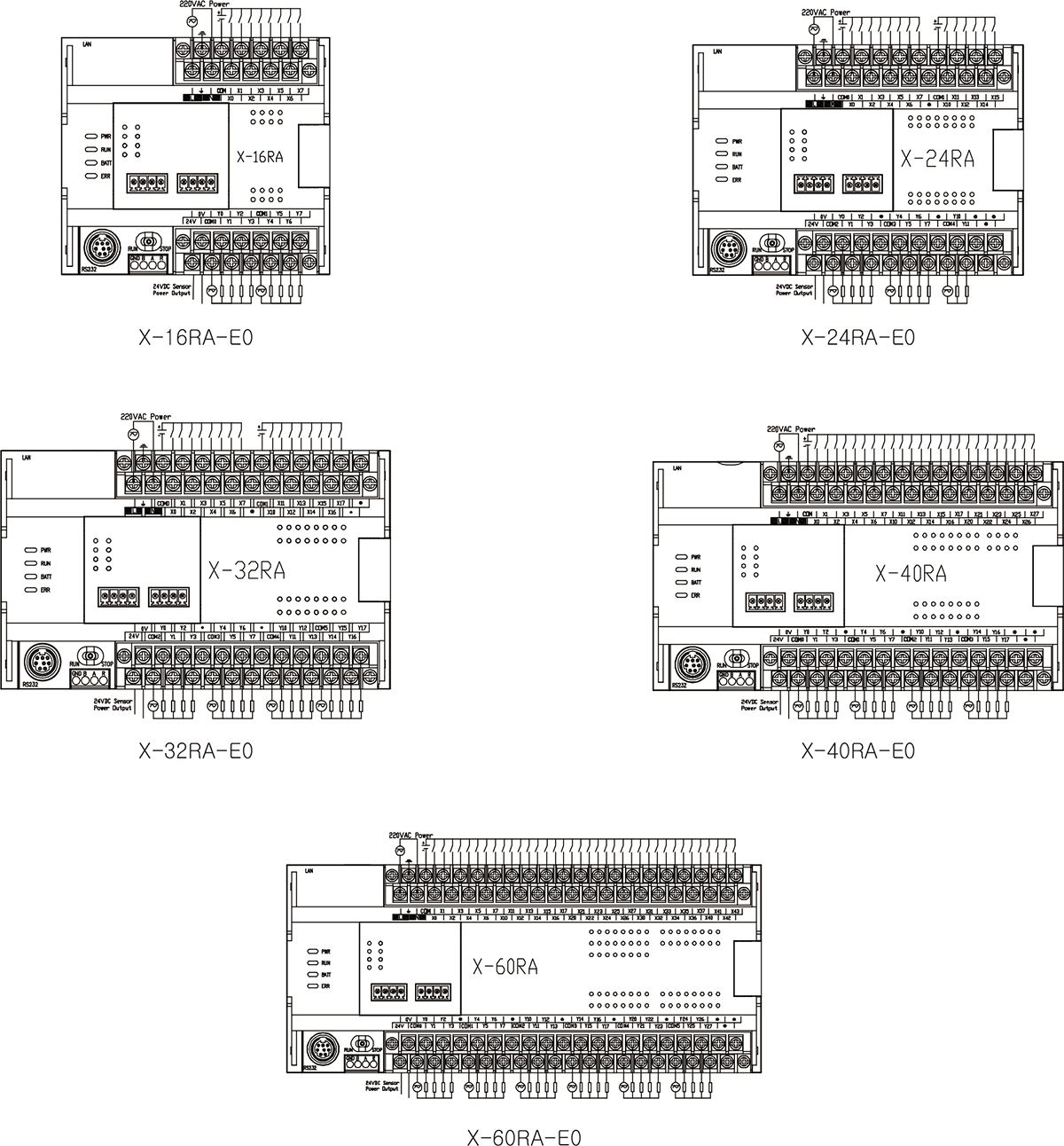

X series wire drawing
