Product Summary
|
|
|
Remote download of PLC program, serial port and network port |
|
|
Real-time data monitoring, group management |
|
|
|
Historical data cloud storage, continued transmission in case of disconnection |
|
|
|
Cloud configuration monitoring, mobile phone & PC |
|
|
|
Alarm information push, WeChat, phone, SMS APP |
|
|
|
Various transmission methods, MQTT/HTTP/OPC |
Field device layer
At the industrial equipment site, UBox can connect to Ruineng HMI, PLC, inverter and some instrument equipment, collect relevant equipment data, connect to the Internet through wired broadband, wifi, and 4G, and transmit the equipment data to the Ruineng cloud platform.
Cloud Data Layer
Raynen Cloud is hosted in Alibaba Cloud servers, which receive data from UBoxes on industrial sites. The on-site data is collected to the server, and data storage and transmission are realized, providing data interaction between on-site data and remote clients.
User Layer
End users can remotely access industrial field data through PC and mobile terminals and perform operation settings and equipment management. At the same time, cloud platform data records can provide data support for user equipment analysis.

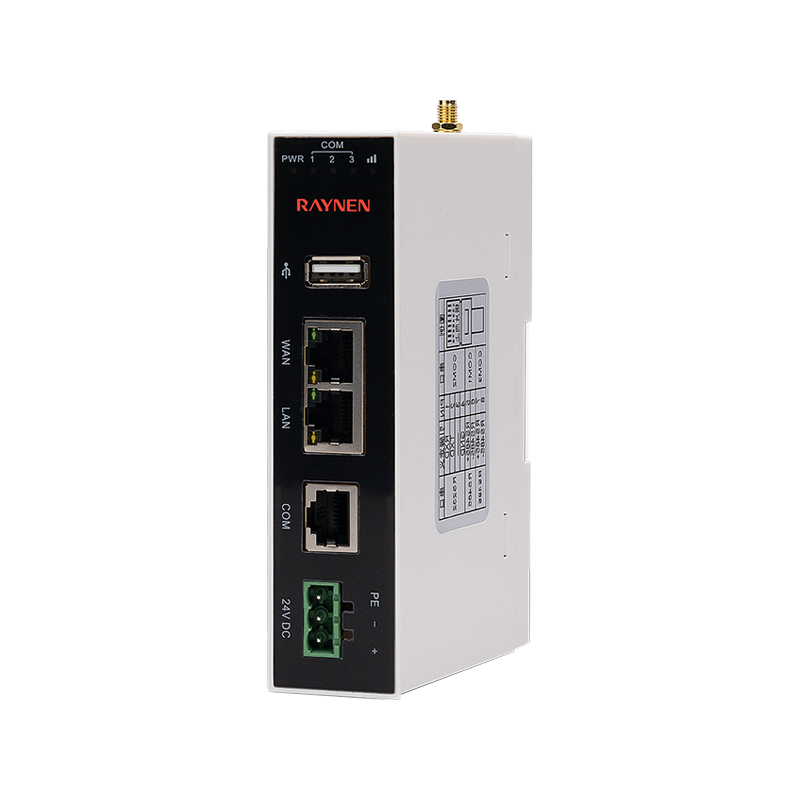

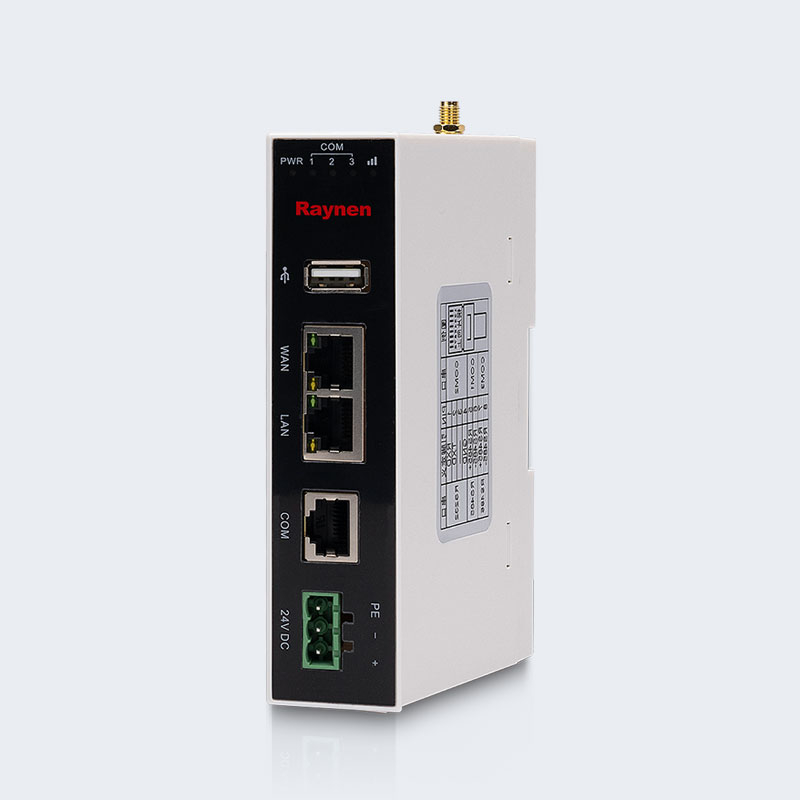

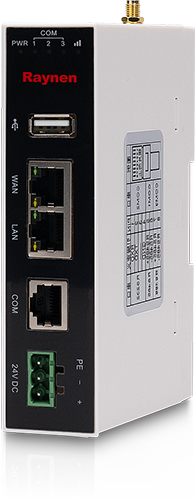

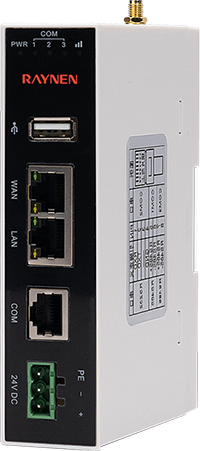

HD Introduction
Product size (unit: mm)
Specification
|
Mode |
UBoxE-WAN |
UBoxE-wifi |
UBoxE-4G |
UBoxE-4G-3L |
UBoxE-4G-GPS |
UBoxE-4G-DATA |
UBoxE-4G-VPN |
|
Order number |
UBoxE-WAN |
UBoxE-wifi |
UBoxE-4G |
UBoxE-4G-3L |
UBoxE-4G-GPS |
UBoxE-4G-DATA |
UBoxE-4G-VPN |
|
Performance specifications |
|||||||
|
Processor |
A8, 600MHz |
A8, 600MHz |
A8, 600MHz |
R16, 1GHz |
A8, 600MHz |
A8, 600MHz |
A8, 600MHz |
|
Storage |
256MB FLASH+128MB DDR3 |
||||||
|
USB Host |
USB2.0 × 1, Type A (USB) |
N/A |
|||||
|
Serial interface |
RJ45 COM1: RS485 COM2: RS232 COM3: RS485 |
N/A |
RS485/RS232/RS485 |
RS485/RS232 |
RS485/RS232 |
||
|
Serial port isolation |
Not support isolation |
||||||
|
Network port |
10/100M adaptive, dual network ports×2 |
10/100M adaptiv×3 |
10/100M adaptiv×2 |
||||
|
4G |
N/A |
N/A |
All Network Access |
N/A |
N/A |
N/A |
N/A |
|
wifi |
N/A |
Support |
N/A |
N/A |
N/A |
N/A |
N/A |
|
Antenna |
N/A |
Support (3m sucker antenna) |
Support (3m sucker antenna) |
Support (3m sucker antenna) |
4G antenna +GPS antenna, 3 meters |
Support (3m sucker antenna) |
Support (3m sucker antenna) |
|
Electrical specifications |
|||||||
|
VPN remote download |
Support |
Support |
Support |
N/A |
Support |
||
|
Remote data monitoring |
- |
Support 500 live data |
N/A |
||||
|
Alarm push |
- |
SMS/WeChat/Phone/APP |
N/A |
||||
|
GPS |
- |
N/A |
Support |
N/A |
N/A |
||
|
Electrical specifications |
|||||||
|
Power supply |
24V DC |
||||||
|
Input range |
10 ~ 28V DC |
||||||
|
Power isolation |
Supports isolation |
||||||
|
Allow power failure |
10ms |
||||||
|
Insulation resistance |
Over 50MΩ@500VDC |
||||||
|
Voltage resistance |
500V AC 1 minute |
||||||
|
Structural characteristics |
|||||||
|
Shell color |
White, black |
White shell + black mirror |
Black shell + black mirror |
||||
|
Shell material |
ABS+PC plastic |
||||||
|
Dimensions |
130 × 95 × 30 (mm) |
||||||
|
Installation method |
Standard rail installation (35mm) |
||||||
|
Weight |
About 175g |
About 180g |
About 195g |
About 195g |
About 195g |
About 185g |
About 185g |
|
Environmental specifications |
|||||||
|
Operating temperature |
0 ~ 50℃ |
||||||
|
Operating humidity |
10 ~ 90%RH (no condensation) |
||||||
|
Storage temperature |
-20 ~ 60℃ |
||||||
|
Storage humidity |
10 ~ 90%RH (no condensation) |
||||||
|
Seismic performance |
10 ~ 25Hz (X, Y, Z directions 2G/30 minutes) |
||||||
|
Cooling method |
Natural air cooling |
||||||
