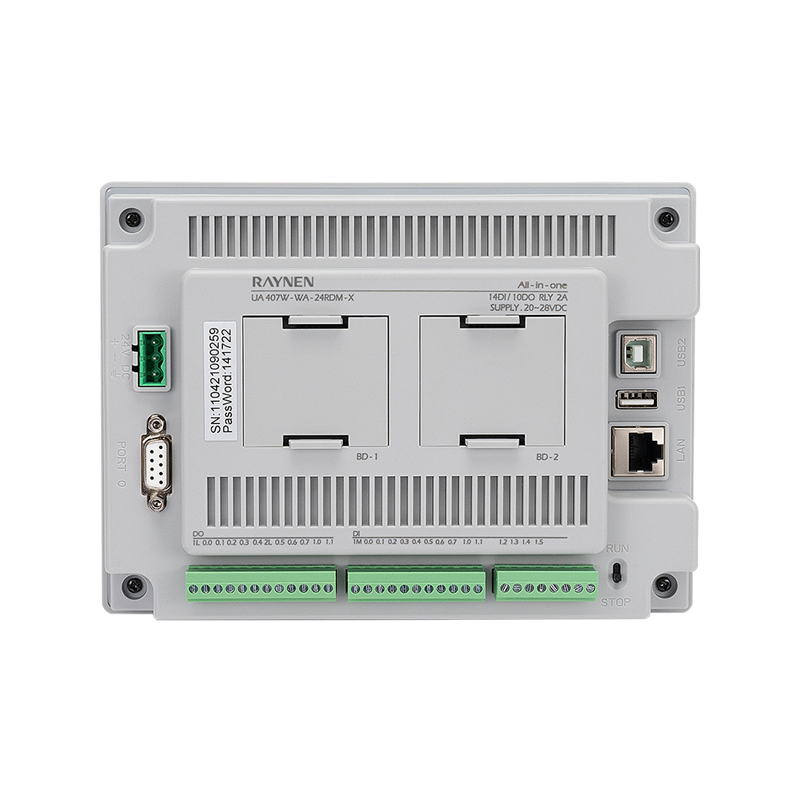

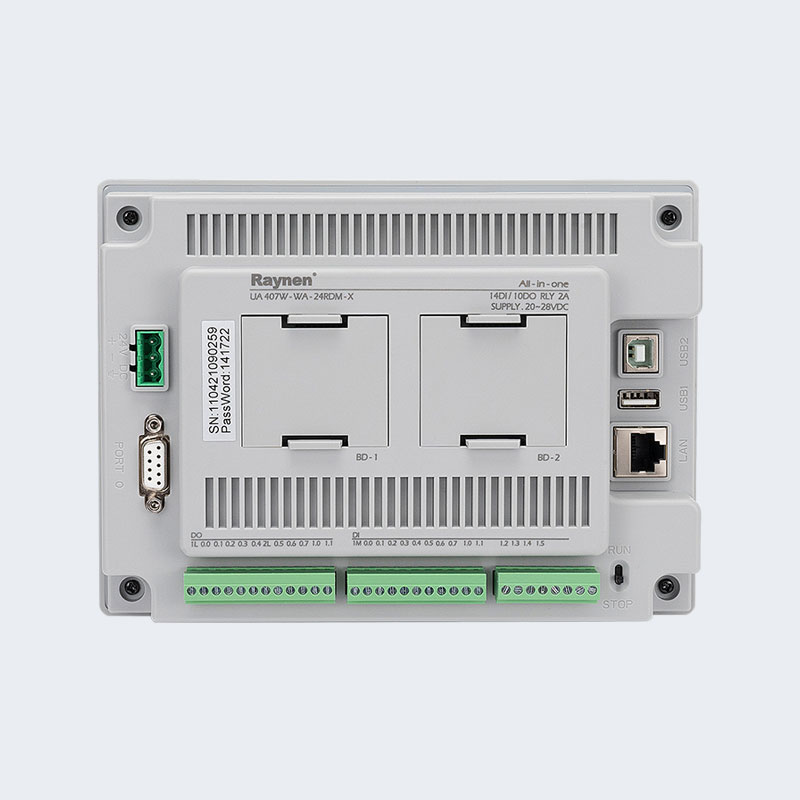

Product Summary
|
|
• Supports industrial Internet functions and can be operated remotely; • The network port can directly download HMI and PLC programs for easy download; • The main body supports digital and analog quantities, which can be selected accordingly; • Supports 2 BD expansion versions to flexibly adapt to different on-site needs; • The PLC part uses Japanese-style programming |

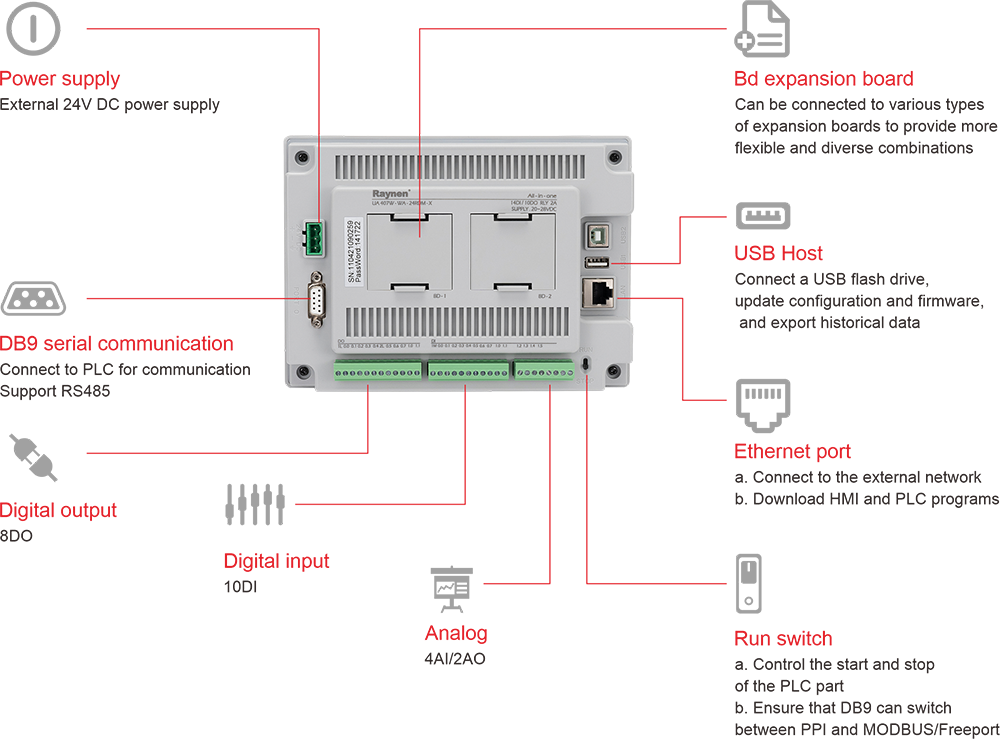

Advantage
|
|
|
|
|
1GHz |
BD Extension |
RAM 256M/FLASH 256M |
|
High speed, smooth use |
Various BD board combinations |
Large capacity, storage of massive data |
|
|
|
|
|
|
|
|
|
Network port download |
RS485 |
Diverse programming environments |
|
Network port can download PLC and HMI programs |
Support external serial device |
Support Japanese programming |
|
|
|
|
|
|
 |
|
|
USB HOST |
Lua Script |
IoT |
|
Update HMI programs and store data |
Support scripts, more diverse operations |
Support industrial Internet of Things, remote monitoring |
Product size (unit: mm)
Specification
|
Order number |
UAE 407W WA-24RDM-X |
UAE 407W WA-18RAM-X |
UAE 407W WA-24TDM-X |
UAE 407W WA-18TAM-X |
|
|
HMI specifications |
|||||
|
LCD screen |
7″ TFT |
||||
|
Display color |
65535 colors |
||||
|
Resolution |
1024×600 |
||||
|
Backlight type |
IPS |
||||
|
Display brightness |
400cd/㎡ |
||||
|
Backlight life |
>20000 hours |
||||
|
Touch type |
4-wire resistive type |
||||
|
Processor |
R16, 1GHz |
||||
|
Storage |
256MB FLASH+256MB DDR3 |
||||
|
USB Host |
USB2.0 × 1, Type A (USB1), supports U disk firmware and configuration update |
||||
|
USB Slave |
N/A |
||||
|
Ethernet |
10/100M adaptive |
||||
|
Programming software |
Uniface |
||||
|
PLC Part |
|||||
|
Memory |
UN Series |
Program 16K Data 10K |
|||
|
X Series |
Program 32K |
||||
|
Total number of timers |
UN Series |
Total 256, 4 1ms, 16 10ms, 236 100ms |
|||
|
X Series |
Total 512, 260 1ms, 46 10ms, 206 100ms |
||||
|
Total counters |
256 |
||||
|
Clock |
Built-in |
||||
|
Power-off retention |
Support |
||||
|
Communication interface |
PORT0: PPI/MODBUS/Freeport (3-RS485+, 8-RS485-) PORT1: Support PPI (Built-in) |
||||
|
Local integrated digital input |
14 Input 24VDC |
10 Input 24VDC |
14 Input 24VDC |
10 Input 24VDC |
|
|
Input type |
PNP/NPN |
||||
|
High-speed counting |
Supports 2-way 20KHz single-phase input, or 1-way 20KHz AB phase input |
||||
|
Local integrated digital output |
10 Output, relay |
8 Output, relay |
10 outputs, transistor NPN |
8 outputs, transistor NPN |
|
|
Rated current per point [maximum] |
1Hz |
1Hz |
50Hz ×2 |
50Hz ×2 |
|
|
Pulse output |
- |
4AI |
- |
4AI |
|
|
Local integrated analog input |
- |
12 bits |
- |
12 bits |
|
|
Resolution |
- |
0-20mA |
- |
0-20mA |
|
|
Current input |
- |
0 to +32000 |
- |
0 to +32000 |
|
|
Data word format full-scale range |
- |
2AO |
- |
2AO |
|
|
Local integrated analog output |
- |
12 bits |
- |
12 bits |
|
|
Resolution full-scale range |
- |
Voltage 0-10V Current 0-20mA |
- |
Voltage 0-10V Current 0-20mA |
|
|
Signal range |
- |
0 to +32000 |
- |
0 to +32000 |
|
|
Data word format full-scale range |
|
|
|
|
|
|
BD board expansion |
Supports up to 2 BD boards |
||||
|
Platform service |
|||||
|
VPN remote download |
Support |
||||
|
Remote data monitoring |
Support 500 real-time data |
||||
|
Alarm push |
SMS/WeChat/Phone/APP |
||||
|
Electrical specifications |
|||||
|
Power supply |
24V DC |
||||
|
Power |
8W |
9W |
8W |
9W |
|
|
Structural characteristics |
|||||
|
Casing color |
Gray |
||||
|
Casing material |
ABS+PC plastic |
||||
|
Dimensions |
203 × 149 × 60 (mm) |
||||
|
Opening size |
192 x 138 (mm) |
||||
|
Weight |
About 1.2kg |
||||
|
Operating temperature |
0 ~ 50℃ |
||||
|
Protection level |
Front panel IP65 |
||||
Wiring Diagram
