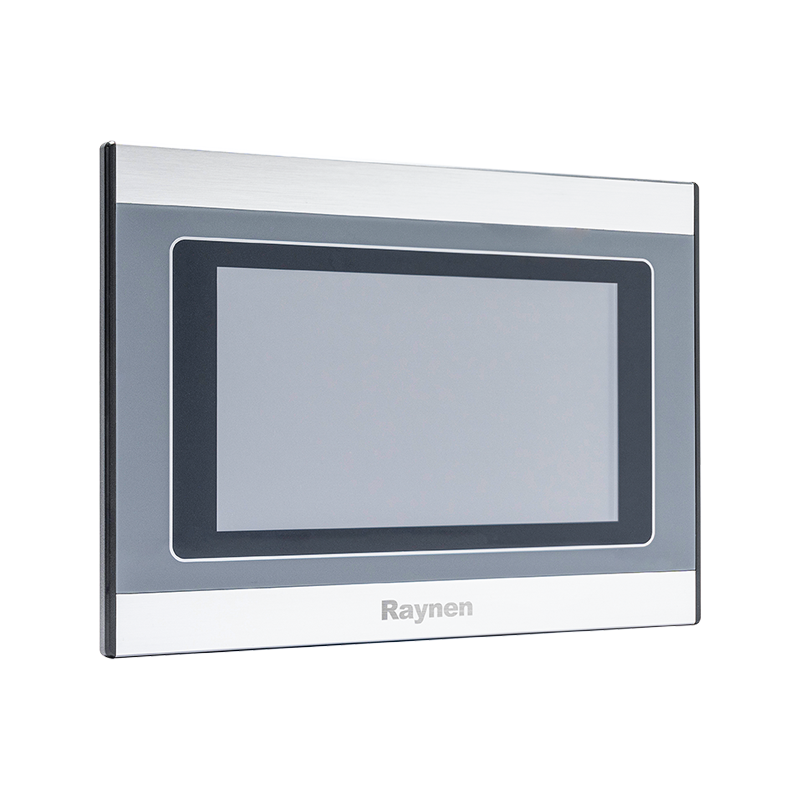

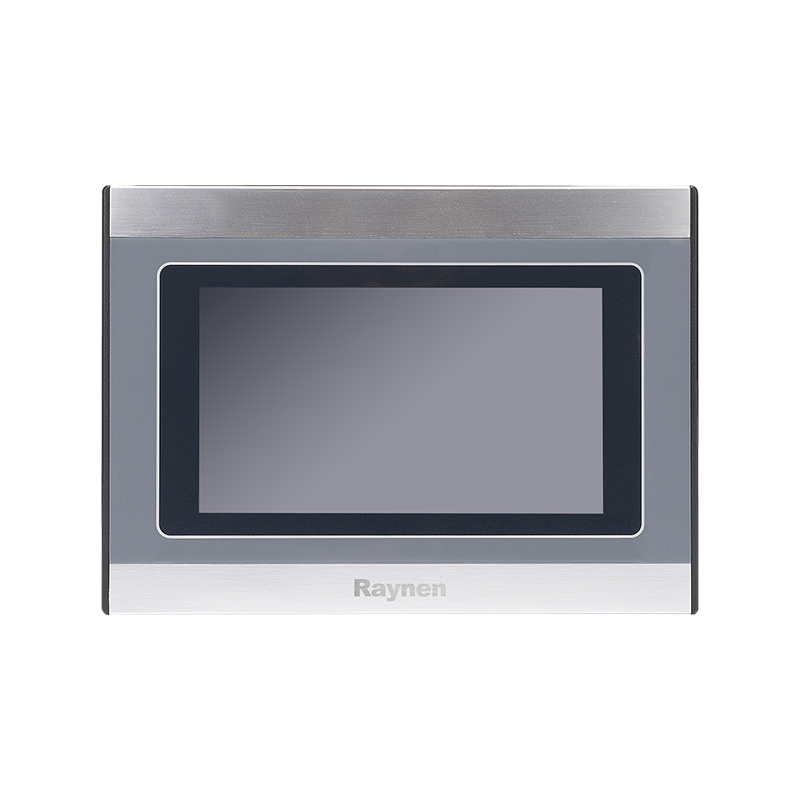

UH500W Series Overview
The UH500W series Human Machine Interface (HMI) is a newly launched IoT-enabled HMI from Ruineng. This series supports IoT functions, enabling remote monitoring of equipment and providing high-quality solutions for smart industry.

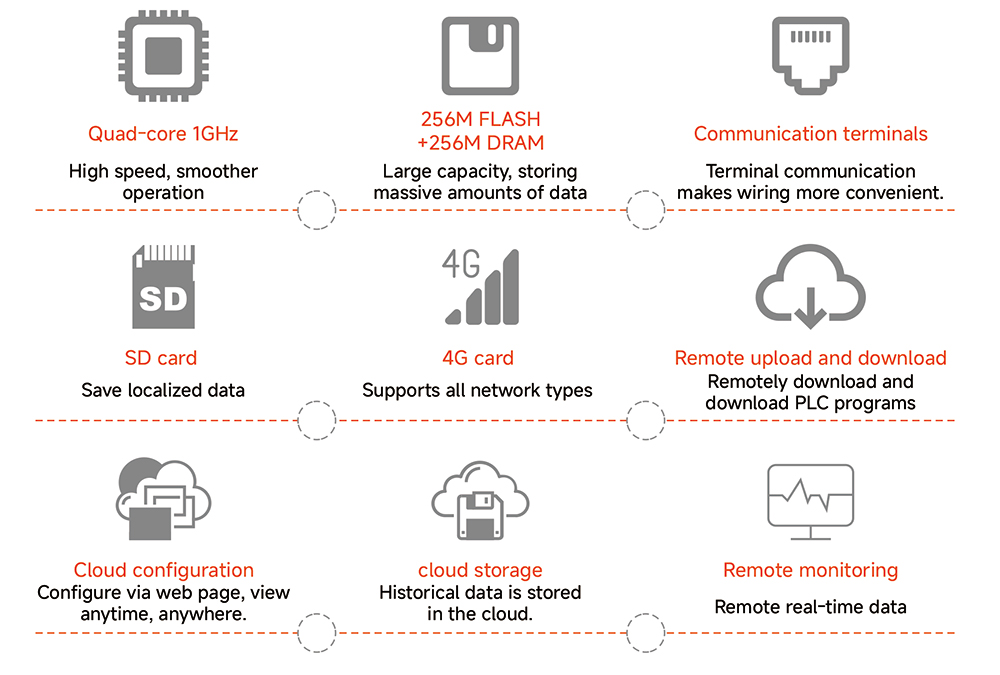

Product Advantages

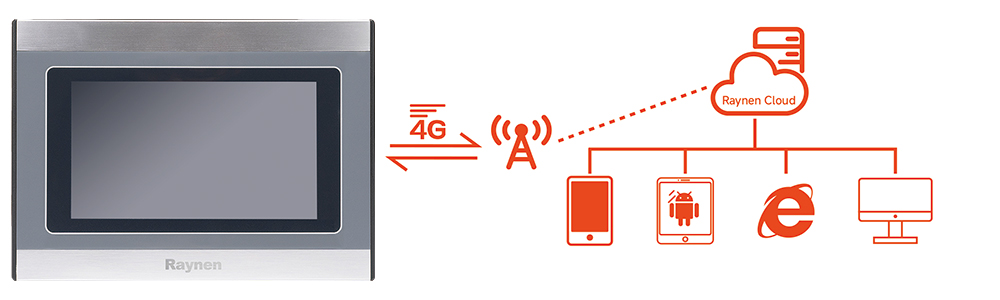

Remote control for timely prevention
Remote upload/download: Supports remote upload/download of device programs, eliminating the need for on-site debugging.
Timely alarm notifications: Fault information is pushed to multiple platforms in a timely manner, and comprehensive analysis of fault points provides a basis for prevention.
Data visibility and secure storage
Dynamic data visualization: View cloud configuration visuals anytime, anywhere on mobile devices and web browsers.
Ensuring data security: Historical data is automatically uploaded and saved, ensuring data collection and analysis.
Better network setup, lower costs
MQTT data transmission: Using MQTT data transmission method saves bandwidth.
Compatible with all 4G IoT cards: Users can configure data cards from the three major carriers and choose the optimal network connection method.

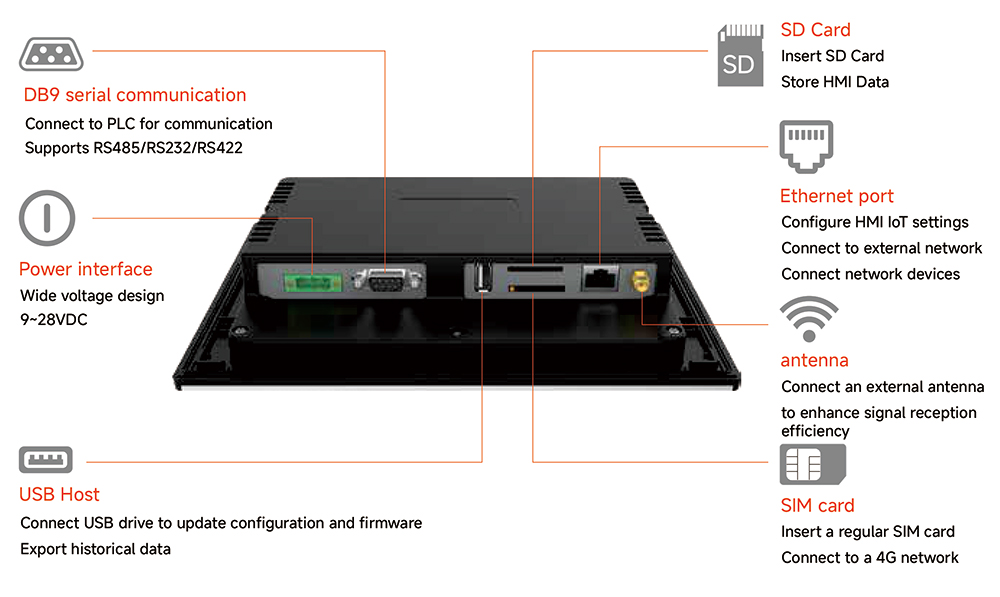

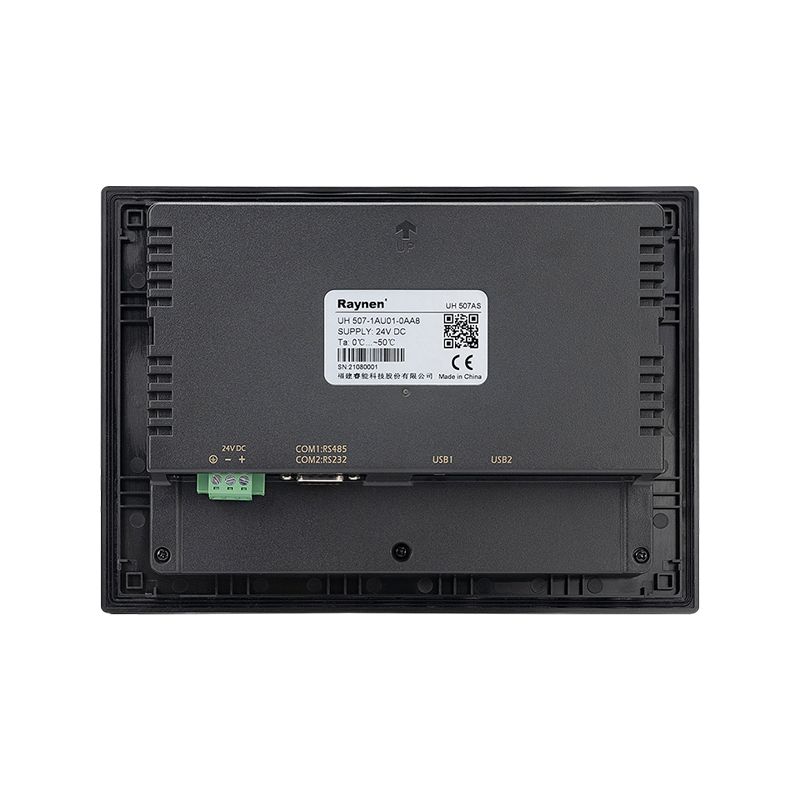

UH500W Series Hardware Introduction

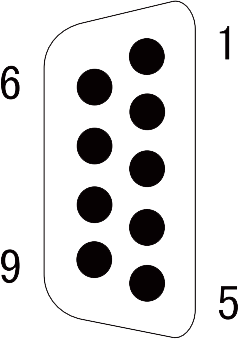

UH500W Series Communication Port Definition
|
Legend |
Interface |
PIN |
Pin Definitions |
Serial port type |
|
|
male head |
COM2 |
1 |
- |
RS232 |
|
|
2 |
RXD |
||||
|
3 |
TXD |
||||
|
4 |
- |
||||
|
5 |
GND |
||||
|
COM1 |
6 |
TX+ |
RS422 |
||
|
7 |
RX+(RS485+) |
RS485 |
|||
|
8 |
RX-(RS485-) |
||||
|
9 |
TX- |
||||
UH500W Series Specifications
|
Model |
UH507W-WAN |
UH 507W-wifi |
UH 507W-4G |
UH510W-WAN |
UH 510W-wifi |
UH 510W-4G |
|
Order number |
UH507W-3WA01-0AAO |
UH 507W-3WF01-0AA0 |
UH 507W-34G01-0AAO |
UH 510W-3WA01-0AA0 |
UH 510W-3WF01-0AA0 |
UH 510W-34G01-0AA0 |
|
Performance Specifications |
||||||
|
LCD Screen |
7"TFT |
10"TFT |
||||
|
Display Colors |
65535 colors |
|||||
|
Resolution |
800×480 |
1024×600 |
||||
|
Backlight Type |
LED |
|||||
|
Display Brightness |
350cd/m² |
|||||
|
LCD Lifespan |
30000 hours |
|||||
|
Touch Type |
4-wire resistive |
|||||
|
Processor |
Quad-core 1GHz |
|||||
|
Storage |
256MB FLASH+256MB DDR3 |
|||||
|
USB Host |
USB 2.0×1, Type A(USB1), supports USB flash drive firmware updates, configuration updates, and data storage. |
|||||
|
Serial Interface |
Male connector COM1:RS485/RS422 COM2:RS232 |
|||||
|
SD Card |
Supported, maximum 32GB |
|||||
|
Ethernet |
10M/100M adaptive |
|||||
|
Wi-Fi |
N/A |
support |
N/A |
N/A |
support |
N/A |
|
4G |
N/A |
N/A |
Supports all network types |
N/A |
N/A |
Supports all network types |
|
Electrical Specifications |
||||||
|
Rated Power |
7.2W |
|||||
|
Power Supply |
24V DC |
|||||
|
Input Range |
9～28V DC |
|||||
|
Permissible Power Loss |
10ms |
|||||
|
Insulation Resistance |
Over 50MΩ@500VDC |
|||||
|
Withstand Voltage |
500V AC for1 minute |
|||||
|
Structural characteristics |
||||||
|
Case color |
Dark gray +silver |
|||||
|
Case material |
ABS+PC plastic, aluminum sheet |
|||||
|
Dimensions |
230×166×39mm272×212×39mm |
|||||
|
Opening size |
192x138mm 260×200mm |
|||||
|
Weight |
0.75kg 1.0kg |
|||||
|
Environmental Specifications |
||||||
|
Operating temperature |
0～50℃ |
|||||
|
Operating humidity |
10～90%RH(non-condensing) |
|||||
|
Storage temperature |
-20～60℃ |
|||||
|
Storage humidity |
10～90%RH(non-condensing) |
|||||
|
Shock resistance |
10～25Hz(2G/30 minutes inX,Y,Z directions) |
|||||
|
Cooling method |
Natural air cooling |
|||||
|
Product Certification |
||||||
|
Front panel protection rating |
Compliant with IP65 certification (4208-93) |
|||||
|
CE certification |
Compliant with CE certification (EN61000-6-2:2005/EN61000-6-4:2007) |
|||||
