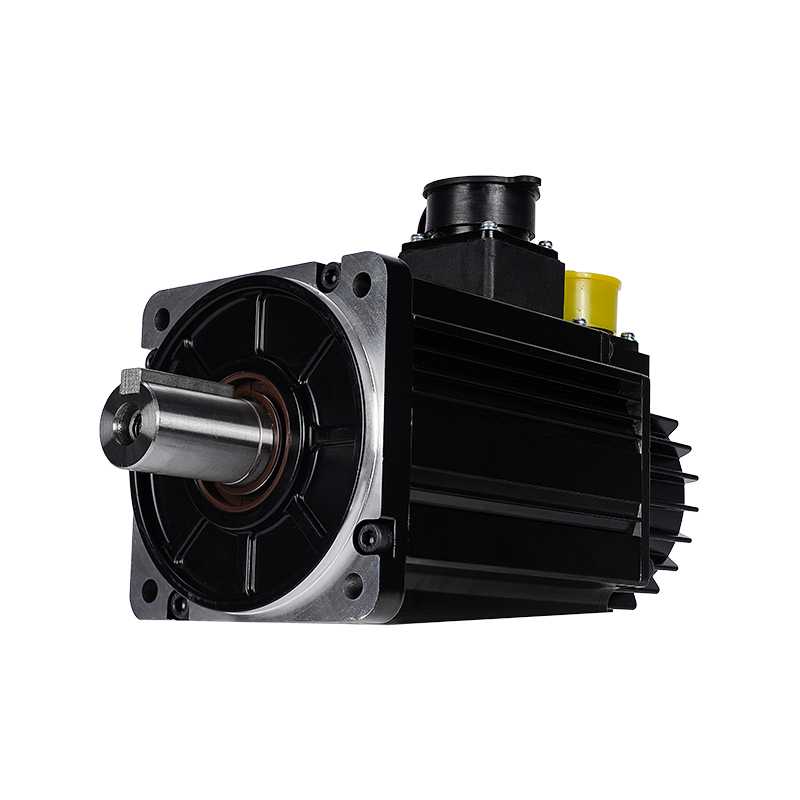

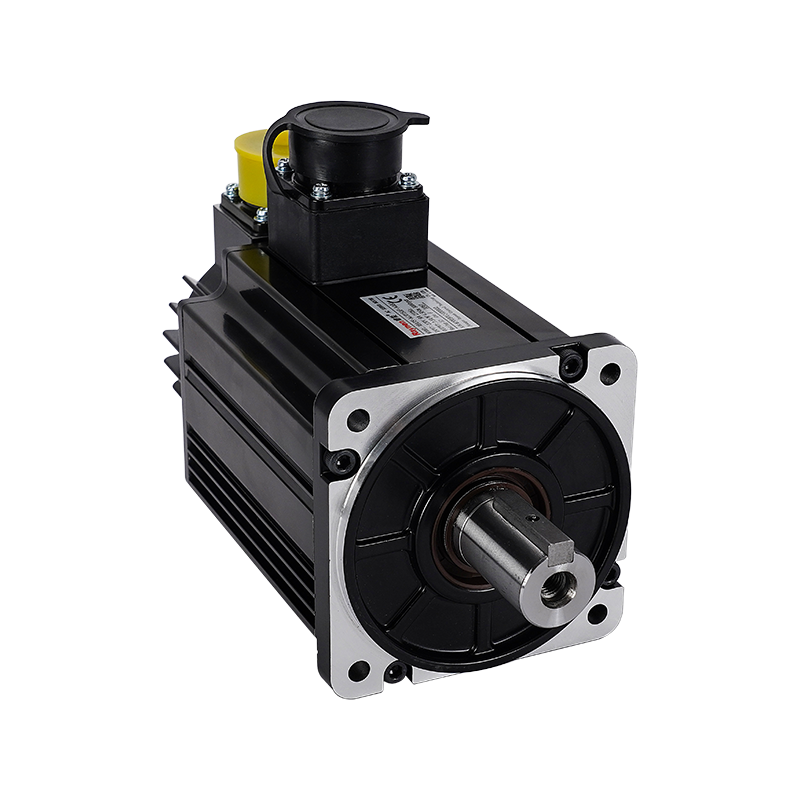

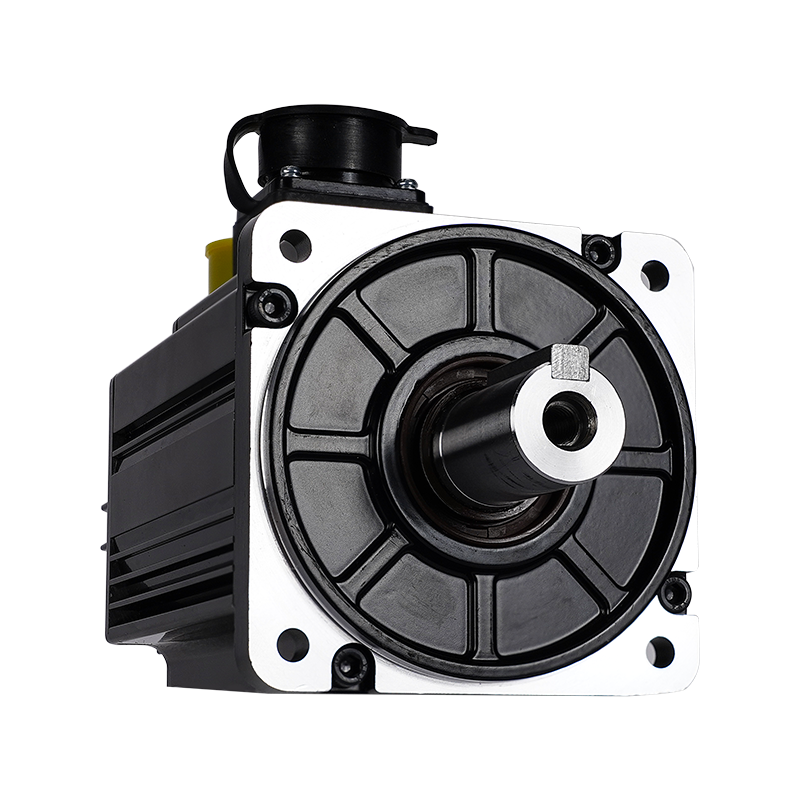

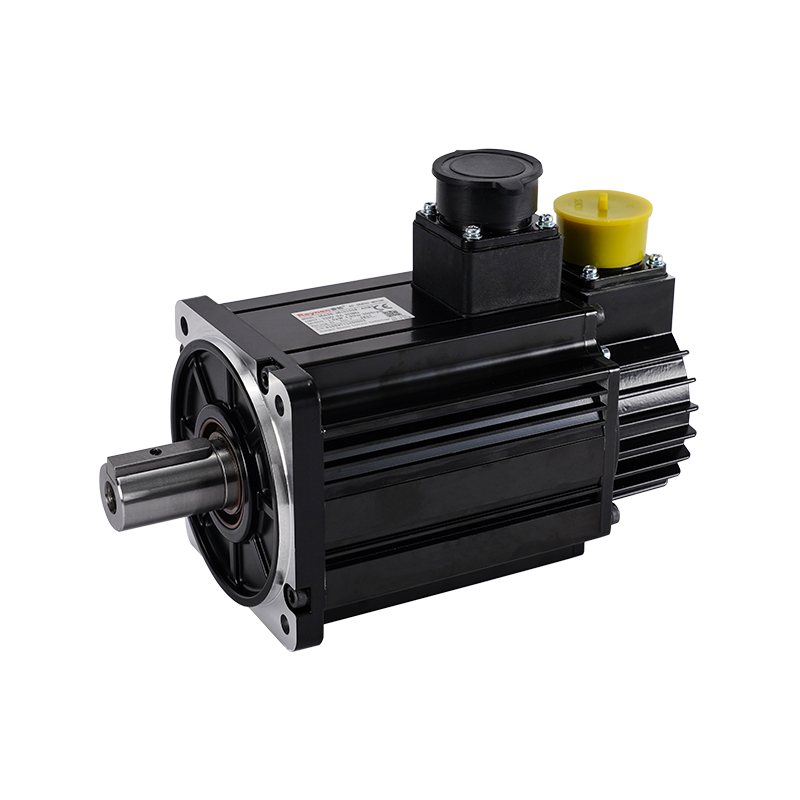

MA3S

Get A Quote Download

PREV：No previous article NEXT：MA3H

Parameter
Contact Us

Naming convention for the MA3 series

MA3 series servo motor -40 flange

Project	Motor parameters
Motor model	MA3S-M04010F-□□□□
Inertia level	low
Voltage (V)	220
Flange (mm)	40
Wiring type	Terminal type
Rated power (kW)	0.1
Rated torque (N · m)	0.32
Instantaneous maximum torque (N · m)	1.28
Rated current (Arms)	1.2
Instantaneous maximum current (Arms)	4.5
Rated speed (rpm)	3000
Maximum speed (rpm)	7000
Moment of inertia (kg · cm ²)	0.0368(0.0374)

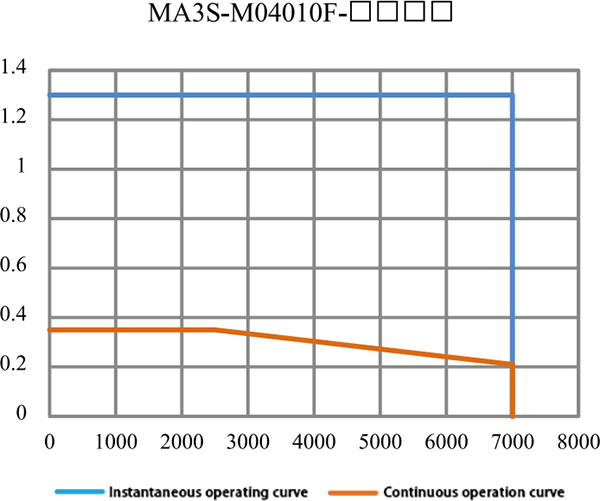

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)

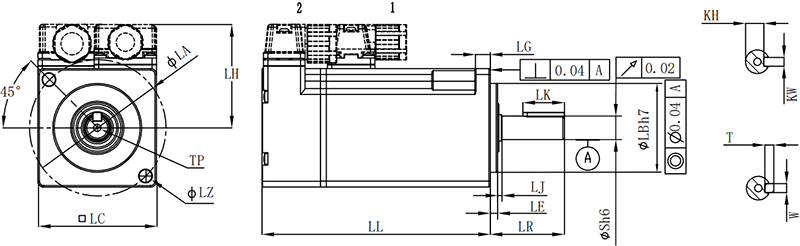

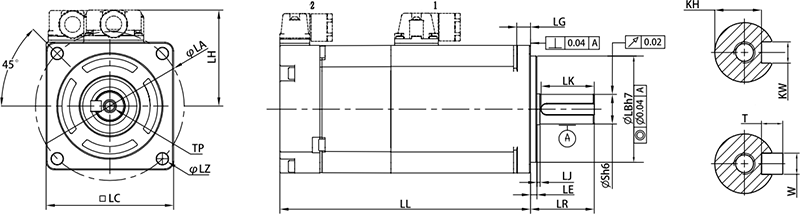

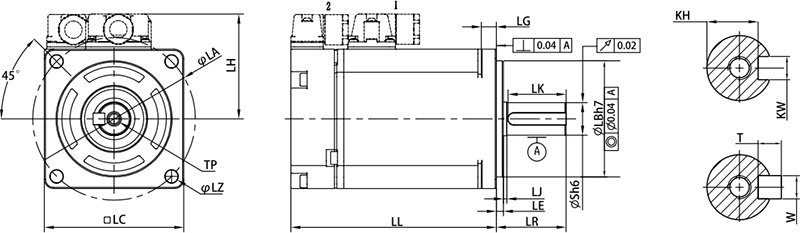

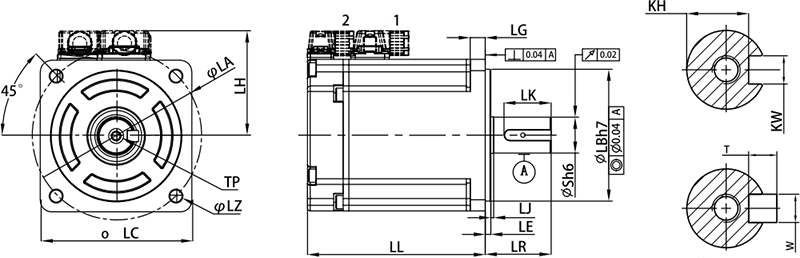

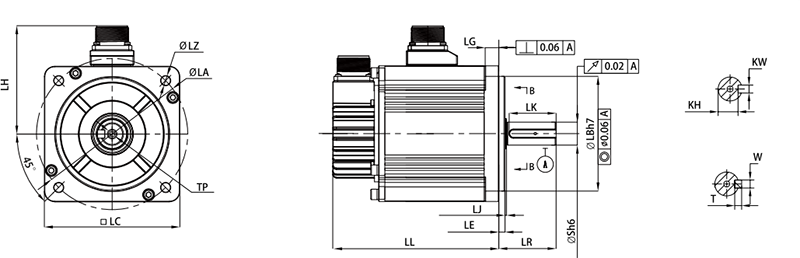

LL	77(110)
LR	25
LA	46
LZ	2-Φ4.3
LH	34.9
LC	40
LE	2.5
S	8
LB	30
TP	M3×10
LK	14
KH	6.2
KW	3
W	3
T	3
LG	5
LJ	1.5
No holding brake
With brake

MA3 series servo motor -60 flange

Project	Motor parameters
Motor model	MA3S-M06020F-□□□□	MA3S-M06040F-□□□□
Inertia level	low	low
Voltage (V)	220	220
Flange (mm)	60	60
Wiring type	Terminal type	Terminal type
Rated power (kW)	0.2	0.4
Rated torque (N · m)	0.64	1.27
Instantaneous maximum torque (N · m)	2.23	4.46
Rated current (Arms)	1.6	2.5
Instantaneous maximum current (Arms)	5.8	10.1
Rated speed (rpm)	3000	3000
Maximum speed (rpm)	7000	7000
Moment of inertia (kg · cm ²)	0.17(0.18)	0.32(0.33)

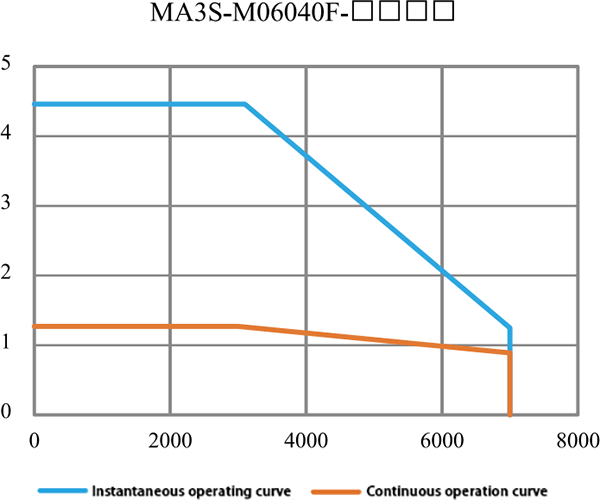

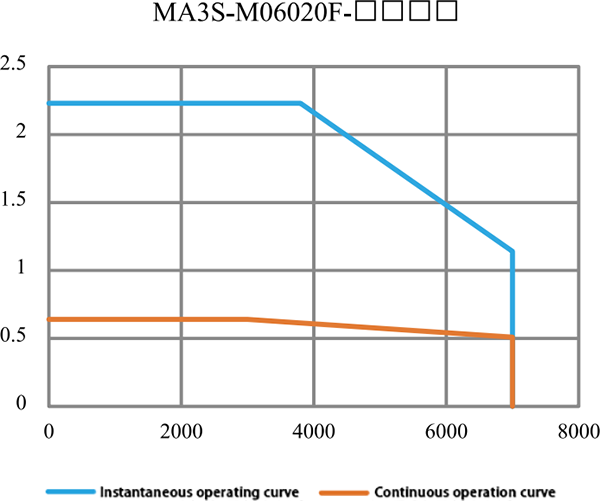

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)

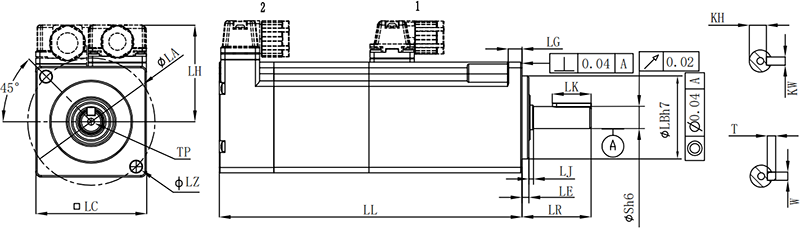

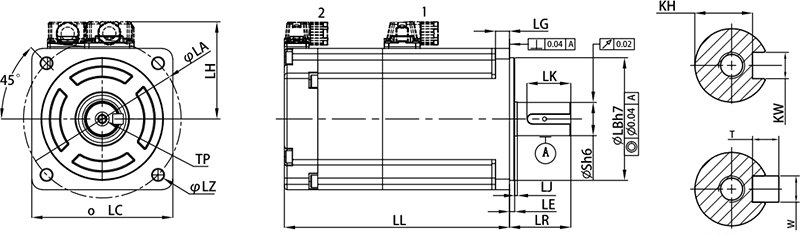

LL	70.5(100)	88.5(118)
LR	30	30
LA	70	70
LZ	4-Φ5.5	4-Φ5.5
LH	45.3	45.3
LC	60	60
LE	3	3
S	14	14
LB	50	50
TP	M5×10	M5×10
LK	25	25
KH	11	11
KW	5	5
W	5	5
T	5	5
LG	6.5	6.5
LJ	1.5	1.5
No holding brake
With brake

MA3 series servo motor -80 flange

Project	Motor parameters
Motor model	MA3S-M08075F-□□□□	MA3S-M08100F-□□□□
Inertia level	low	low
Voltage (V)	220	220
Flange (mm)	80	80
Wiring type	Terminal type	Terminal type
Rated power (kW)	0.75	1
Rated torque (N · m)	2.39	3.18
Instantaneous maximum torque (N · m)	8.36	11.14
Rated current (Arms)	5.1	6.5
Instantaneous maximum current (Arms)	16.9	23
Rated speed (rpm)	3000	3000
Maximum speed (rpm)	7000	7000
Moment of inertia (kg · cm ²)	0.92(1.02)	1.2(1. 3)

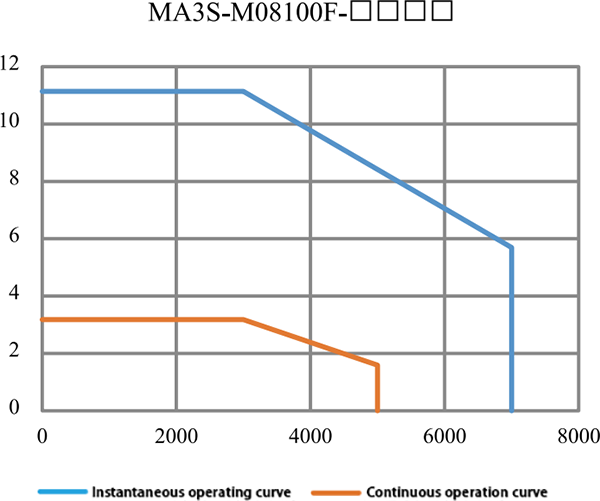

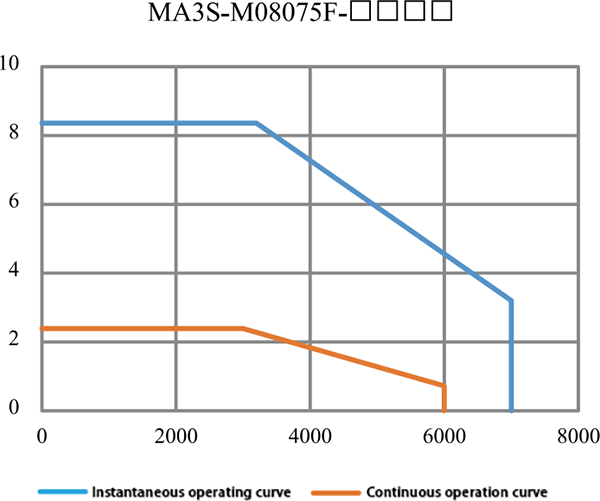

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)
LL	94.5(128.5)	106.5(140.5)
LR	35	35
LA	90	90
LZ	4-Φ6.5	4-Φ6.5
LH	55.7	55.7
LC	80	80
LE	3	3
S	19	19
LB	70	70
TP	M5×10	M5×10
LK	25	25
KH	15.5	15.5
KW	6	6
W	6	6
T	6	6
LG	8	8
LJ	1.5	1.5
No holding brake
With brake

MA3 series servo motor -100 flange

Project	Motor parameters
Motor model	MA3S-M10100F-□□□□	MA3S-M10150F-□□□□	MA3S-M10200F-□□□□
Inertia level	low	low	low
Voltage (V)	220	220	220
Flange (mm)	100	100	100
Wiring type	Aviation plug-in type	Aviation plug-in type	Aviation plug-in type
Rated power (kW)	1	1.5	2
Rated torque (N · m)	3.18	4.9	6.37
Instantaneous maximum torque (N · m)	11.2	16.6	19.1
Rated current (Arms)	6.3	8.6	10.7
Instantaneous maximum current (Arms)	23	32	32
Rated speed (rpm)	3000	3000	3000
Maximum speed (rpm)	6500	6500	6500
Moment of inertia (kg · cm ²)	1.75(2.95)	2.5(3.7)	3.1 (3.4)

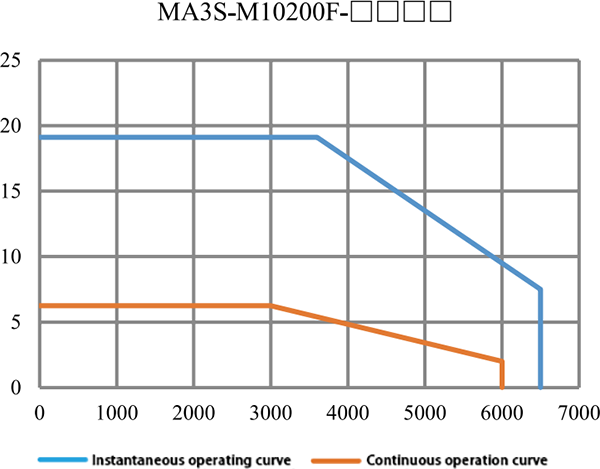

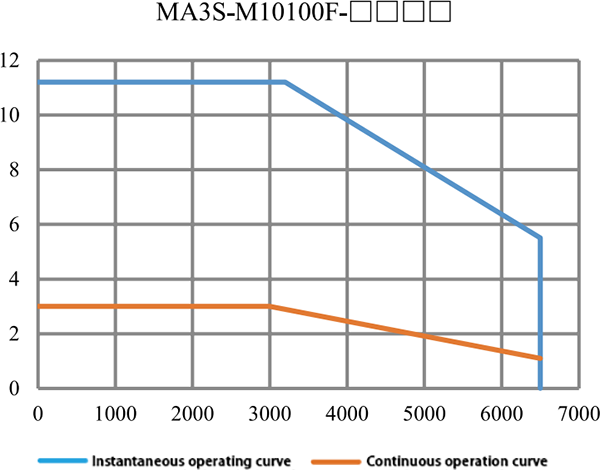

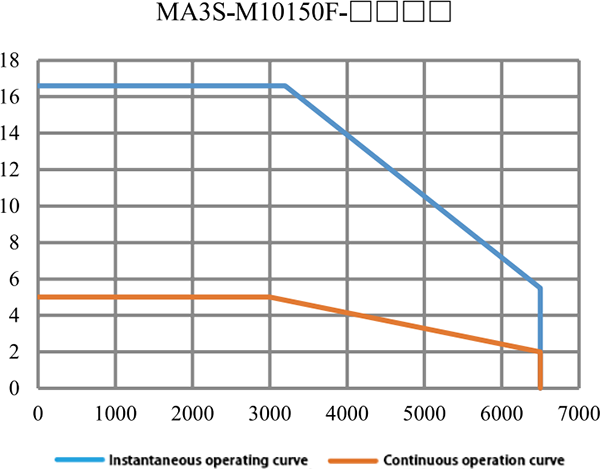

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)

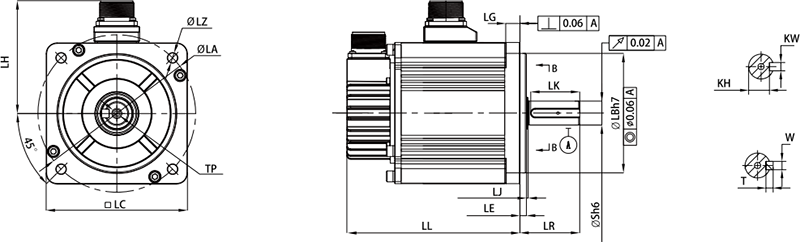

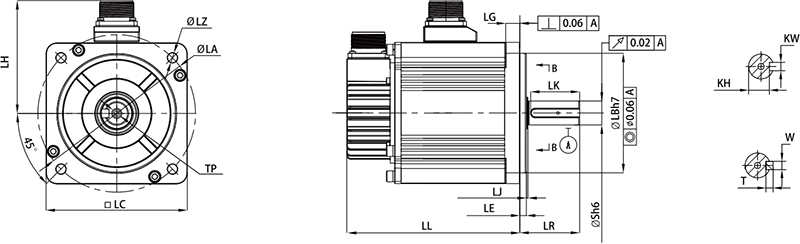

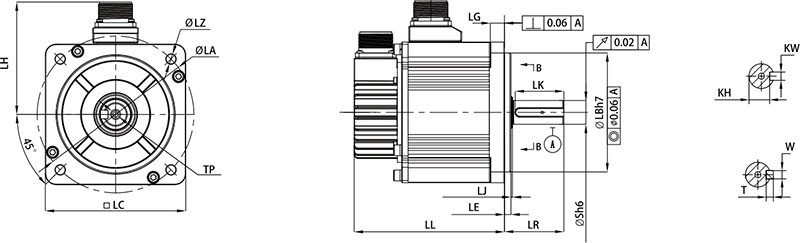

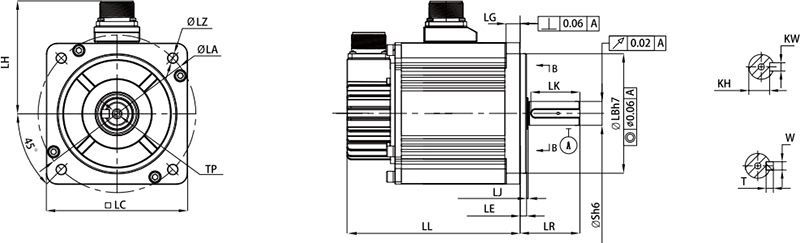

LL	152(177)	171(196)	190(215)
LR	45	45	45
LA	115	115	115
LZ	4-Φ7	4-Φ7	4-Φ7
LH	88	88	88
LC	100	100	100
LE	5	5	5
S	24	24	24
LB	95	95	95
TP	M8×22	M8×22	M8×22
LK	36	36	36
KH	20	20	20
KW	8	8	8
W	8	8	8
T	7	7	7
LG	10	10	10
LJ	2.5	2.5	2.5
No holding brake
With brake

Project	Motor parameters
Motor model	MA3S-T10100F-□□□□	MA3S-T10150F-□□□□	MA3S-T10200F-□□□□	MA3S-T10250F-□□□□
Inertia level	low	low	low	low
Voltage (V)	380	380	380	380
Flange (mm)	100	100	100	100
Wiring type	Aviation plug-in type	Aviation plug-in type	Aviation plug-in type	Aviation plug-in type
Rated power (kW)	1	1.5	2	2.5
Rated torque (N · m)	3.18	4.9	6.37	7.96
Instantaneous maximum torque (N · m)	11	17.15	22.3	27.9
Rated current (Arms)	3.1	4.7	6	8.1
Instantaneous maximum current (Arms)	11	20	24.5	29.7
Rated speed (rpm)	3000	3000	3000	3000
Maximum speed (rpm)	6500	6500	6500	6500
Moment of inertia (kg · cm ²)	1.75(2.95)	2.5(3.7)	3.1(4.3)	4(5.2)

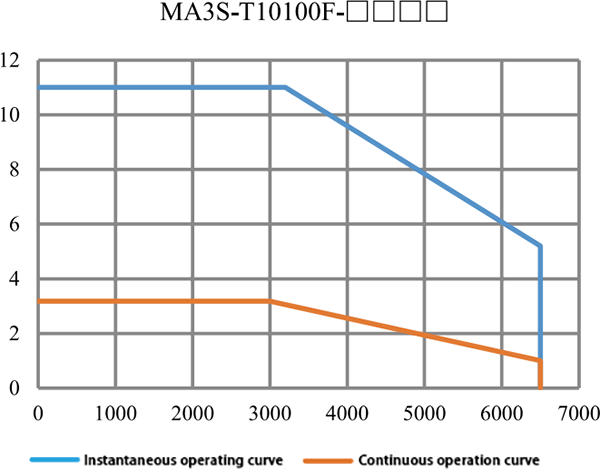

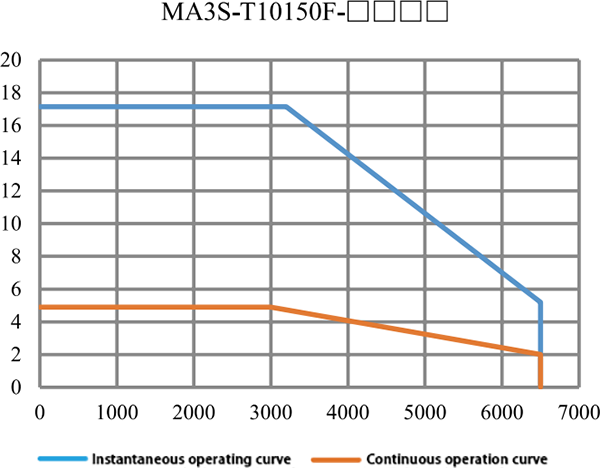

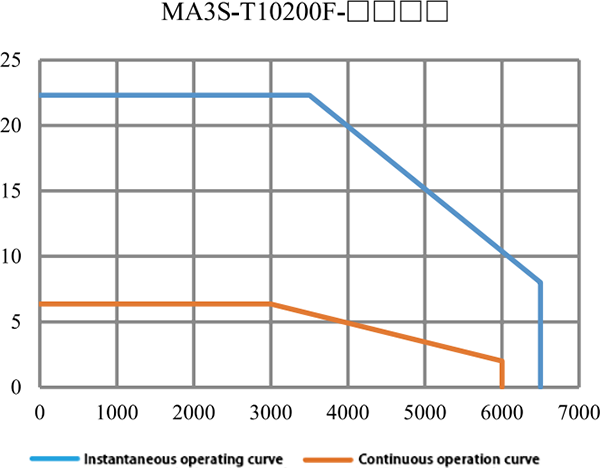

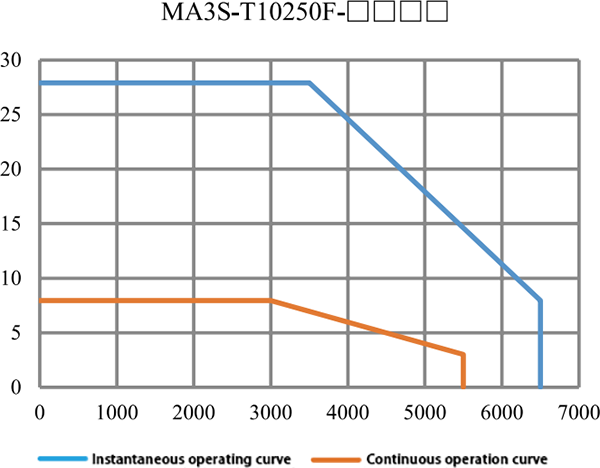

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)
LL	152( 177)	171( 196)	190( 215)	214(239)
LR	45	45	45	45
LA	115	115	115	115
LZ	4-Φ7	4-Φ7	4-Φ7	4-Φ7
LH	88	88	88	88
LC	100	100	100	100
LE	5	5	5	5
S	24	24	24	24
LB	95	95	95	95
TP	M8×22	M8×22	M8×22	M8×22
LK	36	36	36	36
KH	20	20	20	20
KW	8	8	8	8
W	8	8	8	8
T	7	7	7	7
LG	10	10	10	10
LJ	2.5	2.5	2.5	2.5
No holding brake
With brake

MA3 series servo motor -130 flange

Project	Motor parameters
Motor model	MA3S-M13300F-□□□□	MA3S-M13400F-□□□□	MA3S-M13500F-□□□□
Inertia level	low	low	low
Voltage (V)	220	220	220
Flange (mm)	130	130	130
Wiring type	Aviation plug-in type	Aviation plug-in type	Aviation plug-in type
Rated power (kW)	3	4	5
Rated torque (N · m)	9.55	12.7	15.92
Instantaneous maximum torque (N · m)	28.65	38.2	42.97
Rated current (Arms)	16.6	21.4	26.2
Instantaneous maximum current (Arms)	52.7	65.7	65.54
Rated speed (rpm)	3000	3000	3000
Maximum speed (rpm)	6500	6500	6500
Moment of inertia (kg · cm ²)	6.2(8. 1)	10.59(12.49)	13.15(15.05)

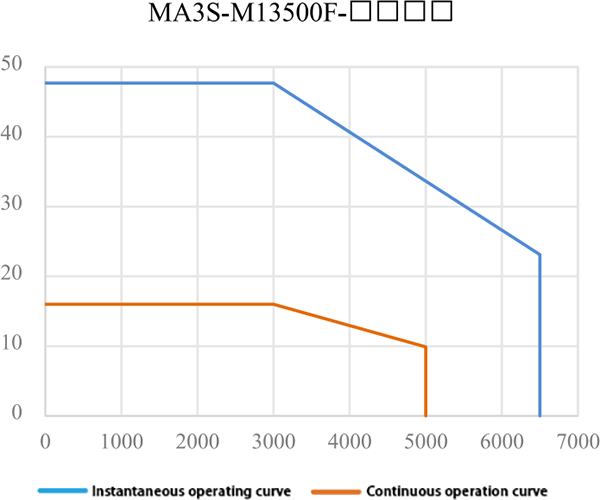

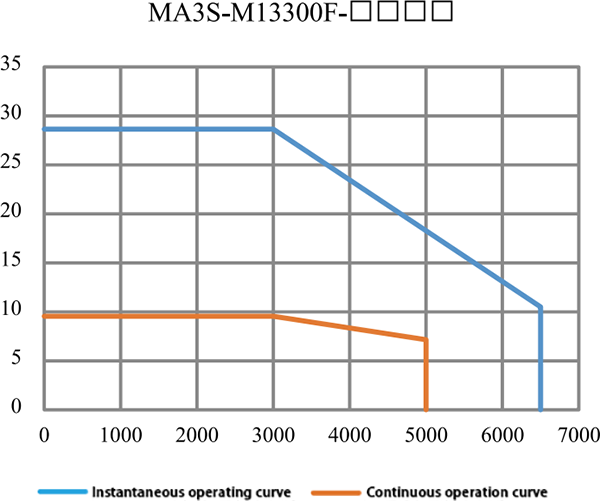

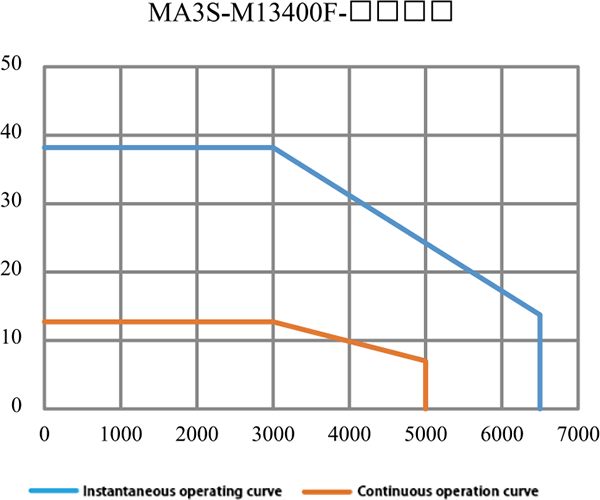

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)
LL	183(203)	231(251)	259(279)
LR	63±1	63±1	63±1
LA	145	145	145
LZ	4-Φ9	4-Φ9	4-Φ9
LH	104	104	104
LC	130	130	130
LE	6	6	6
S	28	28	28
LB	110	110	110
TP	M8×20	M8×20	M8×20
LK	54	54	54
KH	24	24	24
KW	8	8	8
W	8	8	8
T	7	7	7
LG	14	14	14
LJ	1.5±0.75	1.5±0.75	1.5±0.75
No holding brake
With brake

Project	Motor parameters
Motor model	MA3S-T13300F-□□□□	MA3S-T13400F-□□□□	MA3S-T13500F-□□□□
Inertia level	low	low	low
Voltage (V)	380	380	380
Flange (mm)	130	130	130
Wiring type	Aviation plug-in type	Aviation plug-in type	Aviation plug-in type
Rated power (kW)	3	4	5
Rated torque (N · m)	9.55	12.7	15.9
Instantaneous maximum torque (N · m)	28.65	38.2	47.7
Rated current (Arms)	9.1	12.4	16
Instantaneous maximum current (Arms)	29.7	38.3	49.2
Rated speed (rpm)	3000	3000	3000
Maximum speed (rpm)	6500	6500	6500
Moment of inertia (kg · cm ²)	6.2(8. 1)	10.59(12.49)	13.15(15.05)

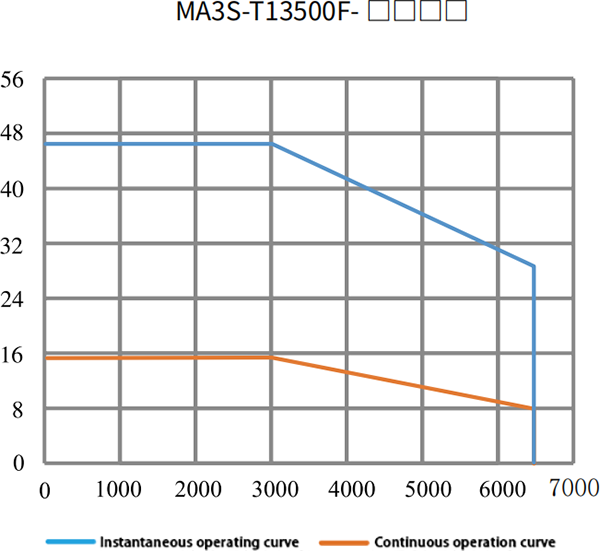

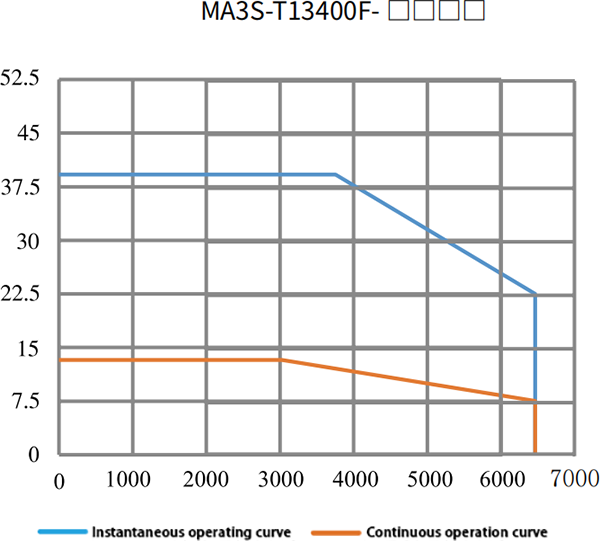

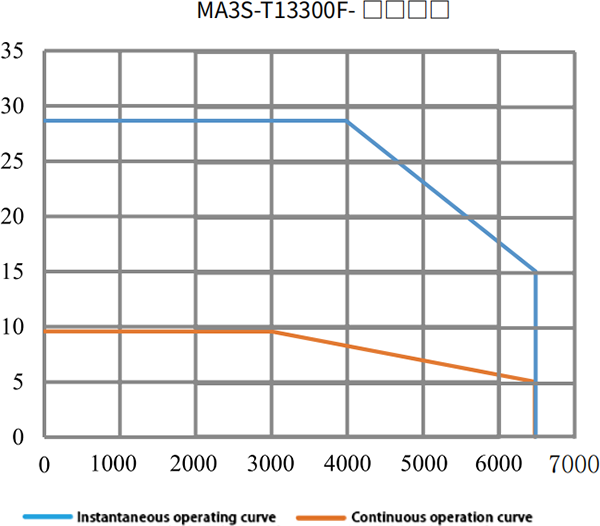

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m)
LL	183(203)	231(251)	259(279)
LR	63±1	63±1	63±1
LA	145	145	145
LZ	4-Φ9	4-Φ9	4-Φ9
LH	104	104	104
LC	130	130	130
LE	6	6	6
S	28	28	28
LB	110	110	110
TP	M8×20	M8×20	M8×20
LK	54	54	54
KH	24	24	24
KW	8	8	8
W	8	8	8
T	7	7	7
LG	14	14	14
LJ	1.5±0.75	1.5±0.75	1.5±0.75
No holding brake
With brake
