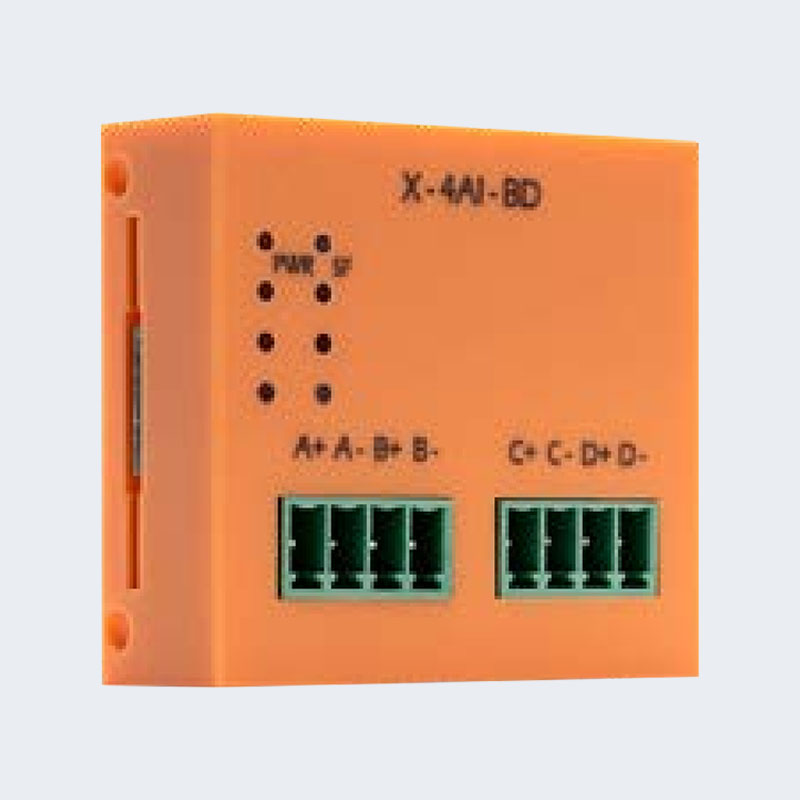

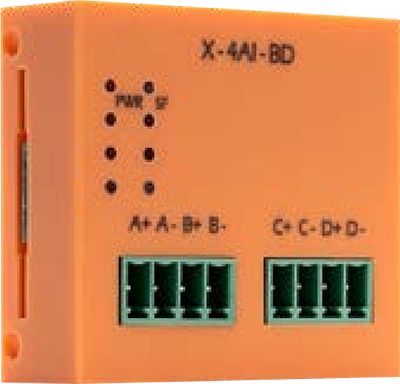

BD expansion board
BD expansion board

BD expansion board

All X series PLCs support 1 BD expansion board, with an empty slot cover by default. The product can meet the special needs of customers with slightly insufficient body points and insufficient installation space. The BD board is flexible to develop and small in size. It can support a variety of BD board expansion types.
Get A Quote Download
PREV：No previous articleNEXT：X Series expansion modules
  • Parameter
  • Contact Us

  • Product Summary

    • X series PLC supports 1 BD expansion board, with an empty slot cover by default. The product can meet the special needs of customers with slightly insufficient body points and insufficient installation space.

    • BD board development is flexible and small in size.

    Model Nomenclature

    Parameter

    No

    Optional Types

    Parameters

    Instructions for use

    1

    XE-2DI4DOT-BDO1

    2DI/4DO transistor, 24VDC

    digital inputs ×2 & transistor outputs ×4

    2

    XE-4AI-BDO1

    4AI, 15bit current type

    analog current inputs ×4

    3

    XE-6DI-BDO1

    6DI, 24VDC

    digital inputs ×6

    4

    XE-6DOT-BDO1

    6DO, transistor

    digital transistor outputs ×6

    5

    XE-2RTD-BD

    Thermal resistors ×2, support PT100

    RTD inputs×2

    6

    XE-RS485-BD

    485 communication ×1

    485 communication ×1

    7

    XE-2AI1AO-BD01

    2AI, 12 bit voltage type;

    1AO, 12-bit voltage output/11-bit current output

    analog inputs ×2, analog output ×1

    8

    XE-1AI1RTD-BD

    1AI, 16-bit current type;

    1-way thermal resistor, support PT100

    analog input ×2, RTD input ×1

    9

    XE-2AO-BDO1

    2AO, 12-bit voltage output/11-bit current output

    analog outputs ×2



    BD board wiring diagram
