Product Summary
|
|
|
X series PLC not only has powerful logic processing, data calculation, high-speed processing and other functions, but also has rich and diverse expansion modules, A/D, D/A conversion functions, input and output modules, analog modules, temperature modules, etc., making X series PLC widely used in process control systems such as temperature, flow, liquid level, and pressure. |

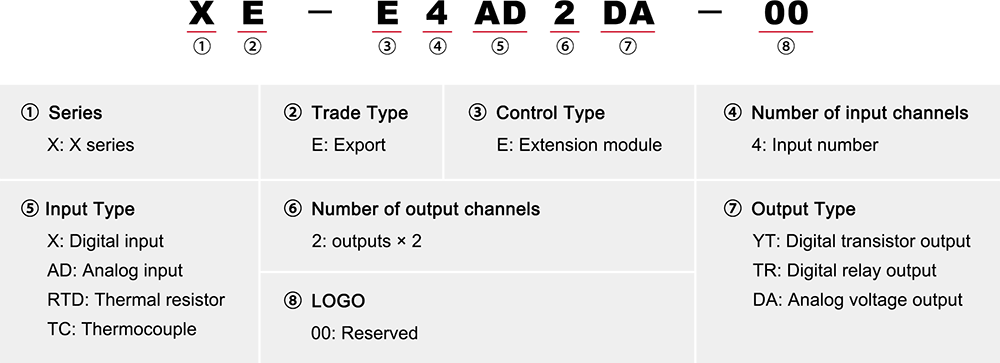

Model Nomenclature

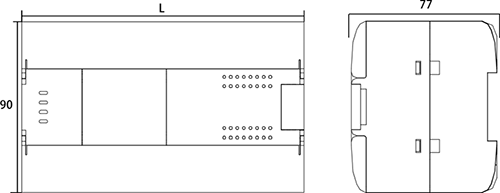

Product size (unit: mm)
|
|
|
Parameter
|
No |
Order number |
Product Description |
|
X series digital modules |
||
|
1 |
XE-E16X-00 |
X series universal digital input expansion module, 16DI, 24VDC |
|
2 |
XE-E32X-00 |
X series universal digital input expansion module, 32DI, 24VDC |
|
3 |
XE-E16YT-00 |
X series universal digital output expansion module, 16DO, transistor |
|
4 |
XE-E16YR-00 |
X series universal digital output expansion module, 16DO, relay |
|
5 |
XE-E32YT-00 |
X series universal digital output expansion module, 32DO, transistor |
|
6 |
XE-E8X8YT-00 |
X series universal digital hybrid expansion module, 8DI/8DO, transistor |
|
7 |
XE-E8X8YR-00 |
X series universal digital hybrid expansion module, 8DI/8DO, relay |
|
8 |
XE-E16X16YT-00 |
X series universal digital hybrid expansion module, 16DI/16DO, transistor |
|
9 |
XE-E16X16YR-00 |
X series universal digital hybrid expansion module, 16DI/16DO, relay |
|
X Series Analog Modules |
||
|
1 |
X-E4AD-01 |
X series universal analog input expansion module, 4AI, 16bit |
|
2 |
X-E4AD2DA-01 |
X series universal analog mixed expansion module, 4AI, 16bit; 2AO, 16bit voltage output/15bit current output |
|
3 |
X-E8AD-00 |
X series universal analog input expansion module, 8AI, 16bit |
|
4 |
X-E4DA-01 |
X series universal analog output expansion module, 4AO, 16bit voltage output/15bit current output |
|
5 |
X-E4RTD-00 |
X series universal temperature control expansion module, channel thermal resistor×4, 16bit |
|
6 |
X-E4TC-00 |
X series universal temperature control expansion module, channel thermocouple×4, 16bit |
|
7 |
X-E8TC-00 |
X series universal temperature control expansion module, channel thermocouple×8, 16bit |
