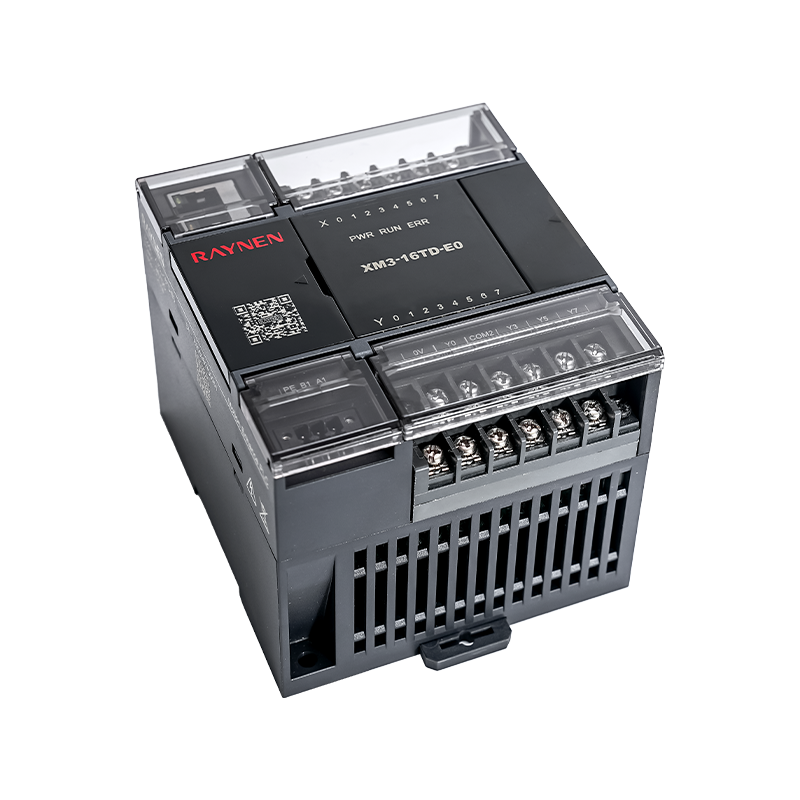

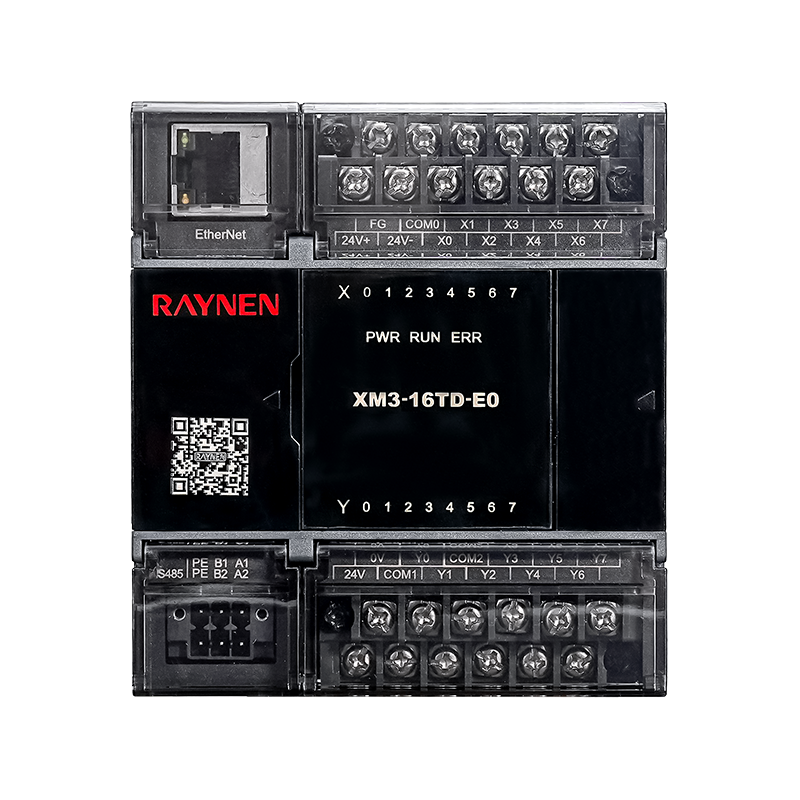

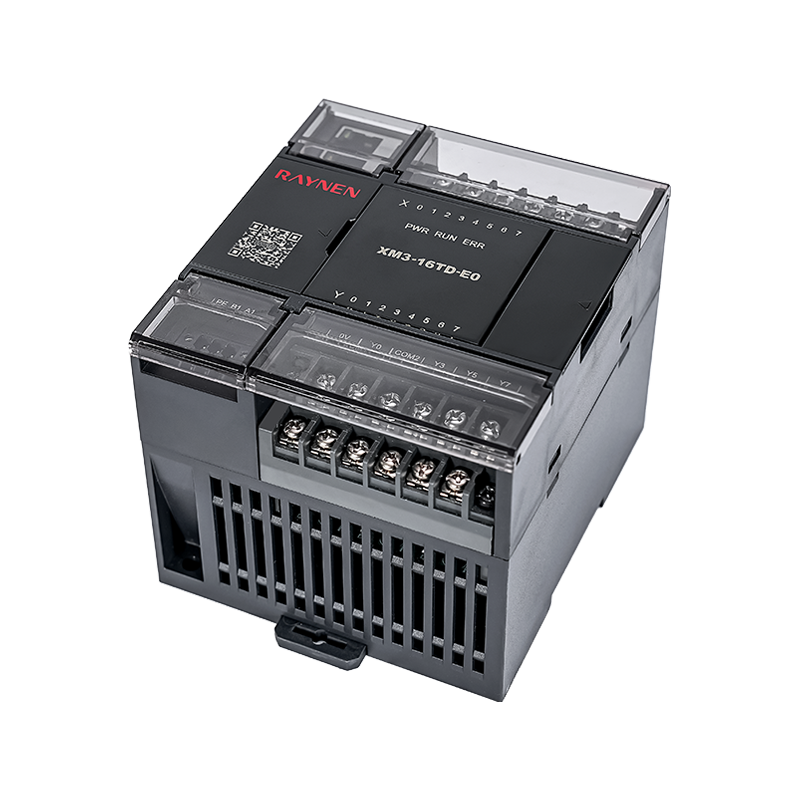

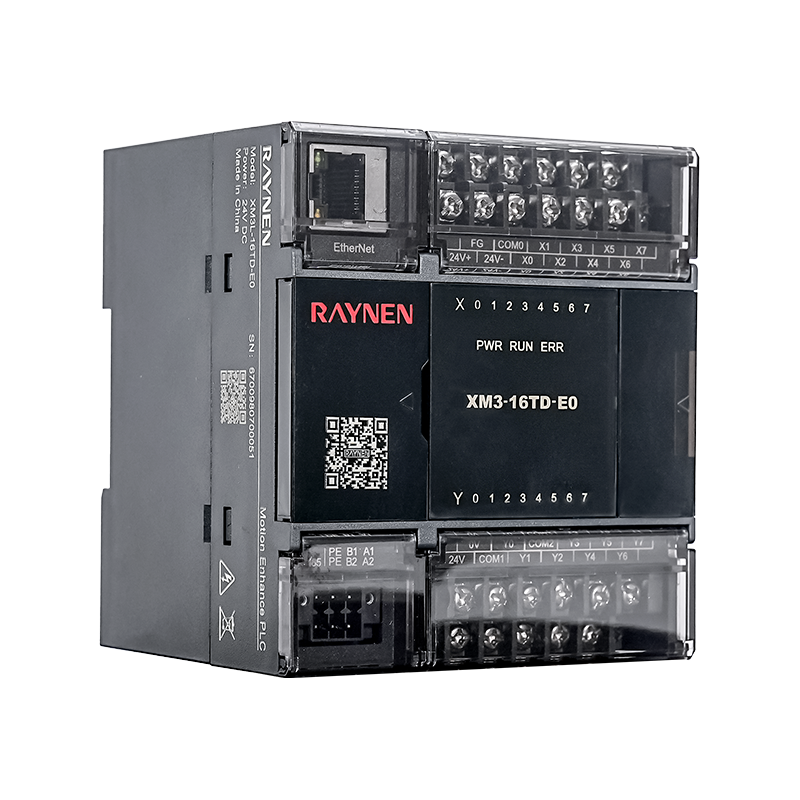

XM3-16TD-E0

The XM series small PLCs are upgraded iterations of Ruineng Technology's existing X series small PLCs. They are available in the XM3L standard series and the XM3 enhanced series. They are designed to meet the growing market demand for small PLCs, enhancing functionality, improving performance, reducing costs, and reducing space. All XM series small PLCs are equipped with one RJ45 network port (pluggable terminal block) and two RS485 ports (external terminal blocks), providing enhanced convenience and flexibility.

Get A Quote Download

PREV：XM3-32TD-E0 NEXT：XM-E4AD2DA-00

Parameter
Contact Us

Model description

XM series size and structure diagram

	PLC model	L
	XM3L-16TD-E0	90
	XM3L-32TD-E0	135.5
	XM3L-60TD-E0	196
	XM3-16TD-E0	90
	XM3-32TD-E0	135.5
	XM3-60TD-E0	196

Unit: mm

XM3 Enhanced series key technical indicators

Specifcations	XM3-16TD-E0
Number of controlled axes	2 axes(200KHz)
Speed planning	T-type speed planning
Control functions	Point motion, return to zero motion, high-speed counting, linear interpolation, circular interpolation
Programming language	Ladder diagram (LD), instruction list (IL), SFC
Digital input	8(NPN/PNP)
Input impedance	X0-X5:3.3K, X6-X7:5.6K
ON input sense current	X0-X5:5mA or more, X6-X7:4mA or more
OFF input sense current	Under 1mA
Input response time	No more than 4.5ms
Digital output	8(NPN)
Resistive maximum load	0.5A/channel
Inductive maximum load	12W/DC24V
Lamp maximum load	5W/DC24V
Minimum load	5mA(DC5~24V)
High-speed IO	OFF→ON:5μs or less/10mA or more(DC5~24V) ON→OFF:5μs or less/10mA or more(DC5~24V)
Normal IO	OFF→ON:0.2ms or less/200mA or more(DC24V) ON→OFF:0.2ms or less/200mA or more(DC24V)
Number of interrupts	12 external IO interrupts/3 timing interrupts/6 high-speed counting interrupts
High-speed counter	1-phase:200KHz(3 channels) AB phase:100KHz(3 channels)
Ethernet port	1 channel 100M;support ModBUS_TCP;TCP/IP
RS485	2-way;support ModBUS_RTU protocol;free serial port protocol
BD expansion	Not supported
Right expansion	Support 7
Power supply	DC24V±5%
