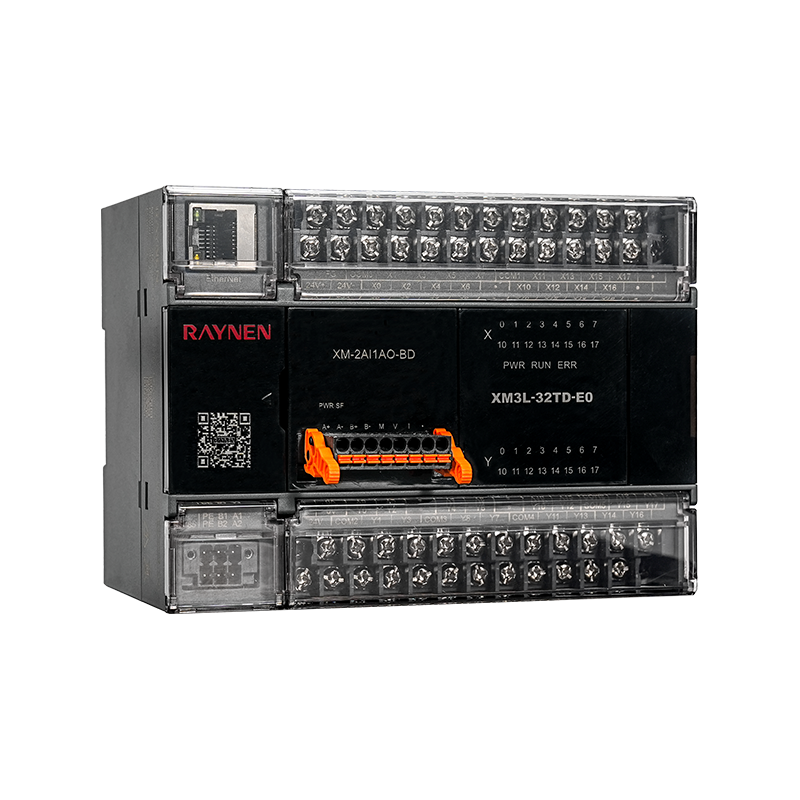

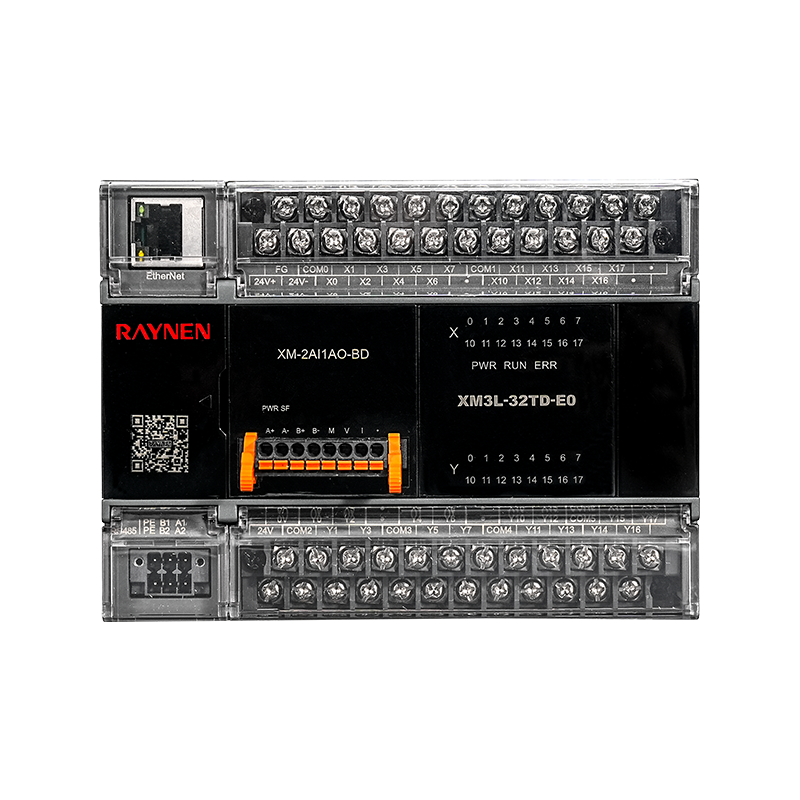

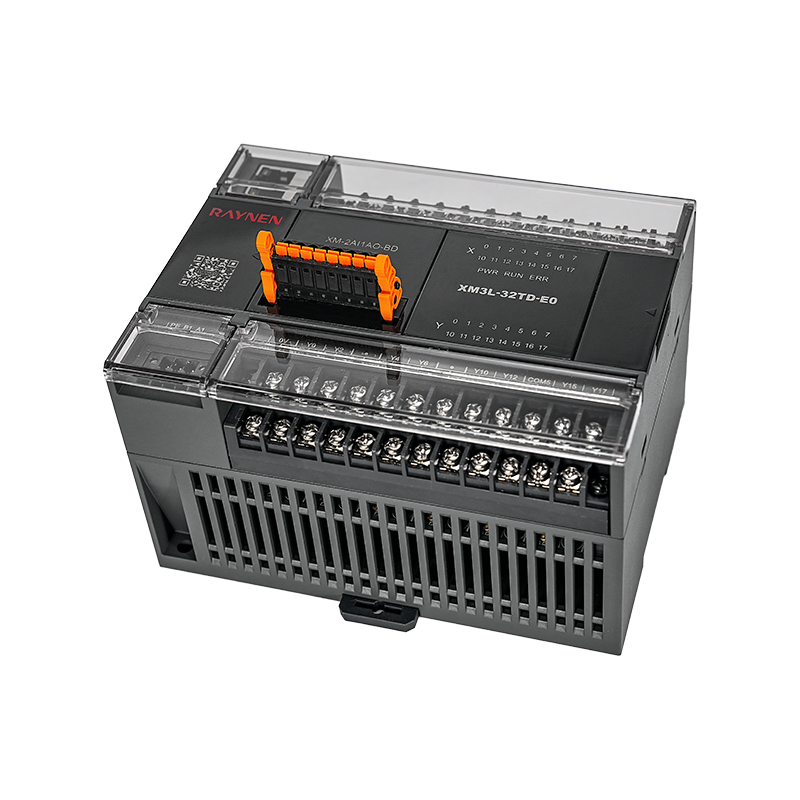

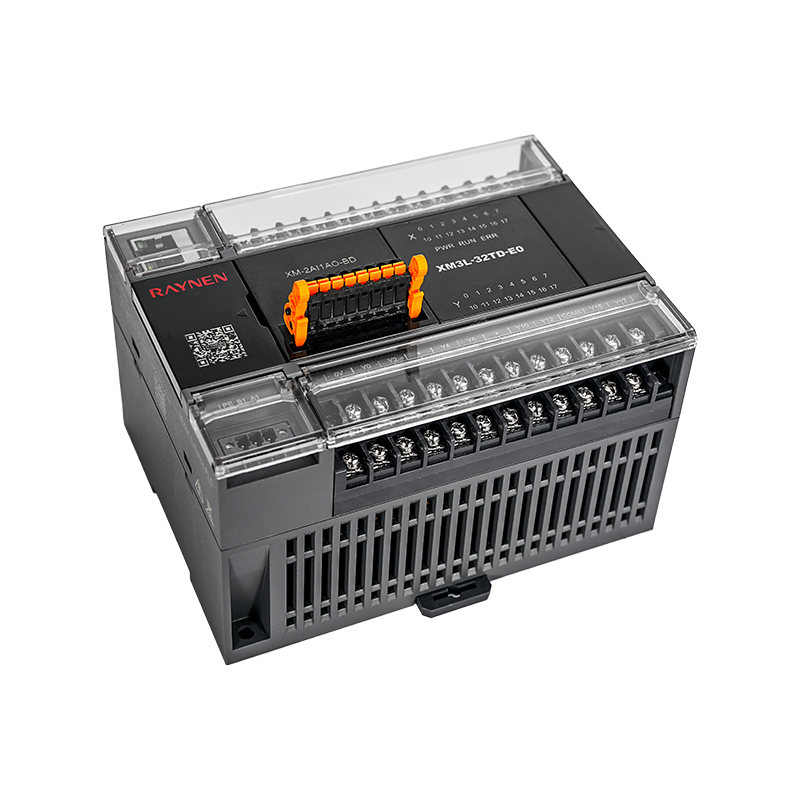

XM3L-32TD-E0

The XM series small PLCs are upgraded iterations of Ruineng Technology's existing X series small PLCs. They are available in the XM3L standard series and the XM3 enhanced series. They are designed to meet the growing market demand for small PLCs, enhancing functionality, improving performance, reducing costs, and reducing space. All XM series small PLCs are equipped with one RJ45 network port (pluggable terminal block) and two RS485 ports (external terminal blocks), providing enhanced convenience and flexibility.

Get A Quote Download

PREV：XM3L-60TD-E0 NEXT：XM3L-16TD-E0

Parameter
Contact Us

Model description

XM series size and structure diagram

	PLC model	L
	XM3L-16TD-E0	90
	XM3L-32TD-E0	135.5
	XM3L-60TD-E0	196
	XM3-16TD-E0	90
	XM3-32TD-E0	135.5
	XM3-60TD-E0	196

Unit: mm

XM3L Standard series key technical indicators

Specifications	XM3L-32TD-E0
Number of controlled axes	4 axes(200KHz)
Speed planning	T-type speed planning
Control functions	Point motion, return to zero motion, high-speed counting
Programming language	Ladder diagram(LD), instruction list (IL), SFC
Digital input	16(NPN/PNP)
Input impedance	X0-X2: 2.4K; ×3 and above: 5.6K
ON input sense current	XO-X2: 5mA or more; X3 and above: 2.4mA or more
OFF input sense current	1mA or less
Input response time	No more than 4.5ms
Digital output	16(NPN)
Resistive maximum load	0.5A/single point; 0.8A/4 points
Inductive maximum load	12W/DC24V
Lamp maximum load	High-speed: 2W/DC24V, Normal: 5W/DC24V
Minimum load	5mA( DC5~24V)
Open circuit leakage current	0.1mA or less/DC30V
On resistance	High-speed point: 0.3Q typical(0.68 maximum)
Number of interrupts	12 external I/O interrupts/3 timer interrupts/6 high-speed counter interrupts
High-speed counter	1-phase: 200KHz(4 channels) AB phase: 100KHz(4 channels)
Ethemet port	1100M channel; supports ModBUS TCP/IP
RS485	2 channels; supports ModBUS RTU protocol; free serial port protocol
BD expansion	Support 1
Right expansion	Not supported
Power supply	DC24V±5%
