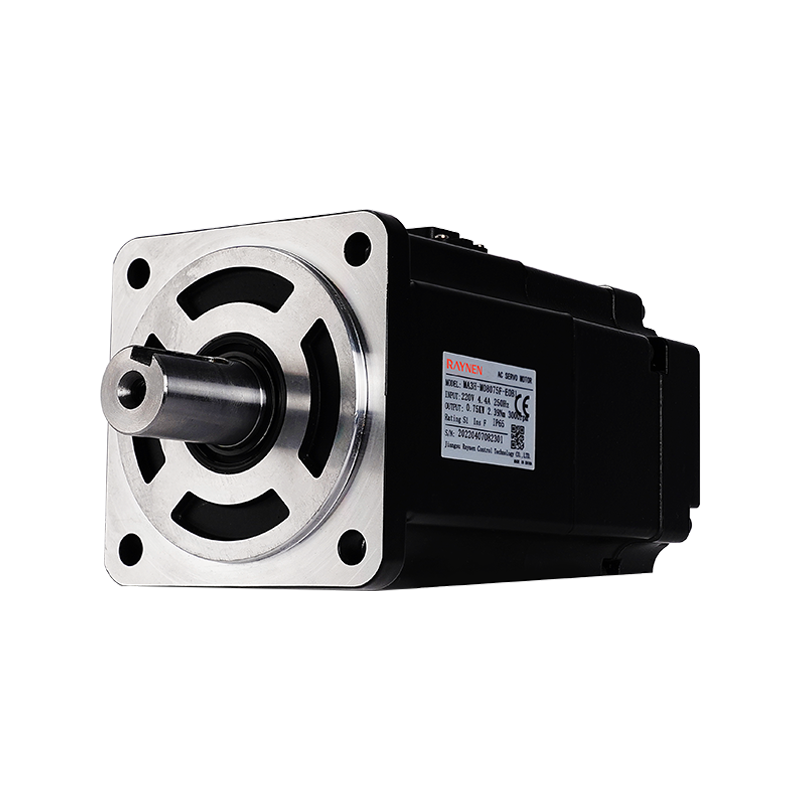

Product Summary
Advantage
• Speed Up
4 times peak torque / 7000rpm peak speed / 23-bit high-precision optical encoder / 30% lower temperature rise
• Increased safety
Integrated housing design / IP67 protection level
• Easy to use
20% shorter fuselage length

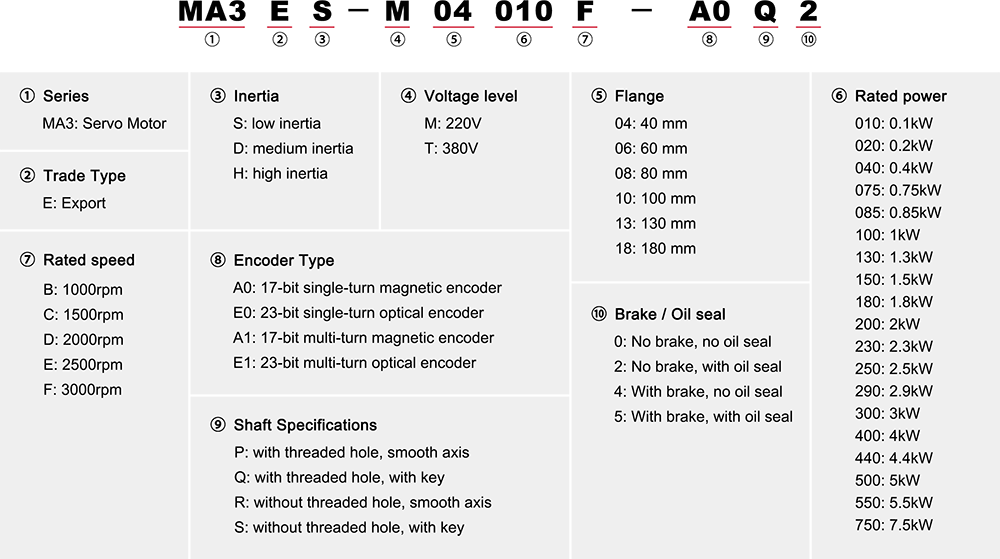

Model Nomenclature
Parameter
|
MA3 Series Servo Motors - 60 Flange* |
|
|
Item |
Motor parameters |
|
Motor model |
MA3ED-M06040F- □□□□ |
|
Inertia level |
Medium |
|
Voltage (V) |
220 |
|
Flange (mm) |
60 |
|
Wiring type |
Terminal type |
|
P rated (kW) |
0.4 |
|
Rated torque (N·m) |
1.27 |
|
Instantaneous maximum torque (N·m) |
5.08 |
|
Rated current (Arms) |
2.5 |
|
Instantaneous maximum current (Arms) |
10.1 |
|
Rated speed (rpm) |
3000 |
|
Maximum speed (rpm) |
7000 |
|
Moment of inertia (kg·cm2) |
0.54 (0.55) |
|

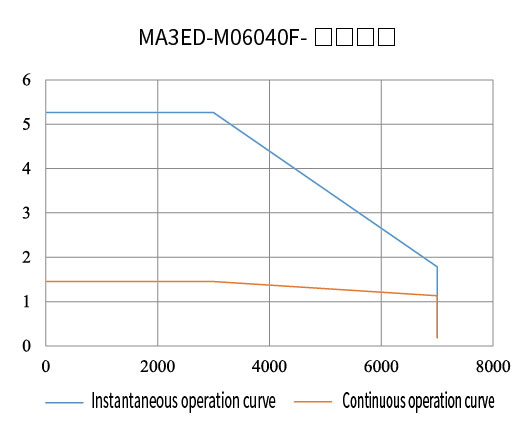

T-N curve (Y-axis: torque N·m) (X-axis: speed rpm) |
|
|

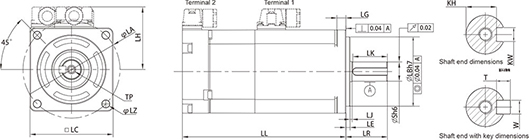

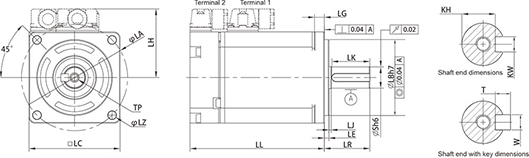

LL |
88.5 (118) |
|
LR |
30 |
|
LA |
70 |
|
LZ |
4-φ5.5 |
|
LH |
45.3 |
|
LC |
60 |
|
LE |
3 |
|
S |
14 |
|
LB |
50 |
|
TP |
M5×10 |
|
LK |
25 |
|
KH |
11 |
|
KW |
5 |
|
W |
5 |
|
T |
5 |
|
LG |
6.5 |
|
LJ |
1.5 |
|
Without brake |
|
|
With brake |
|
*For details on other model parameters, please refer to the selection manual or consult customer service.
