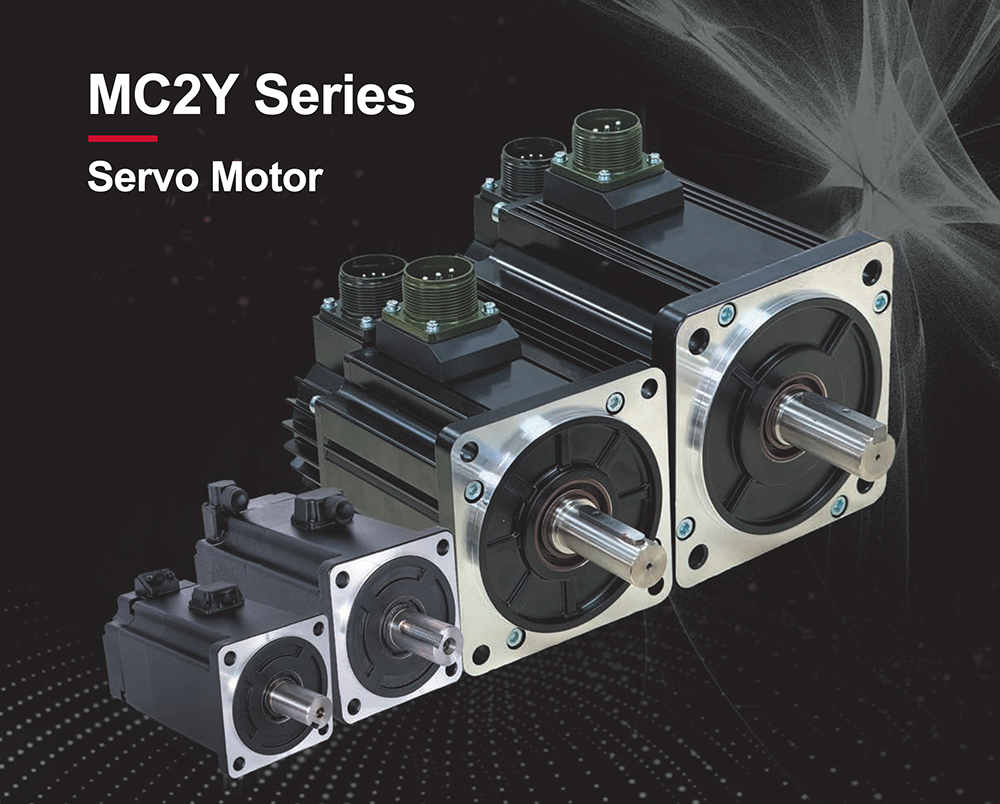

Product Summary
Advantage
• 7.5kW
Maximum power
• 5-pole motor
Smooth start, higher torque coefficient
• 6000rpm
High-speed, stable operation
• 23-bit
High-precision absolute optical encoder, more accurate

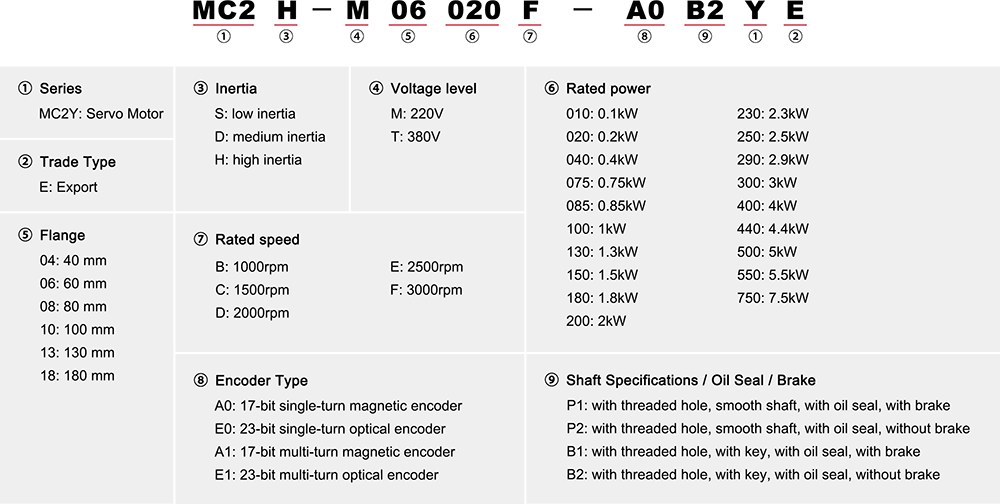

Model Nomenclature
Parameter
|
MC2Y Series Servo Motors - 180 Flange* |
|
|
Item |
Motor parameters |
|
Motor model |
MC2D-T18750- □□□□ YE |
|
Inertia level |
Medium |
|
Voltage (V) |
380 |
|
Flange (mm) |
180 |
|
Wiring type |
Aviation plug type |
|
P rated (kW) |
7.5 |
|
Rated torque (N·m) |
47.75 |
|
Instantaneous maximum torque (N·m) |
119.37 |
|
Rated current (Arms) |
17.7 |
|
Instantaneous maximum current (Arms) |
47.7 |
|
Rated speed (rpm) |
1500 |
|
Maximum speed (rpm) |
2000 |
|
Moment of inertia (kg·cm2) |
119.6 (124.6) |
|
T-N curve (Y-axis: torque N·m) (X-axis: speed rpm) |
|
|
LL |
256 (306) |
|
LR |
113 |
|
LA |
200 |
|
LZ |
4-φ13.5 |
|
LH |
129 |
|
LC |
180 |
|
LE |
3.2 |
|
S |
42 |
|
LB |
114.3 |
|
TP |
M16×32 |
|
LK |
96 |
|
KH |
37 |
|
KW |
12 |
|
W |
12 |
|
T |
8 |
|
LG |
17.4 |
|
Without brake |
|
|
With brake |
|
*For details on other model parameters, please refer to the selection manual or consult customer service.
