UH404 Human Machine Interface
UH404 Human Machine Interface
UH404 Human Machine Interface
UH404 Human Machine Interface

UH404 Human Machine Interface

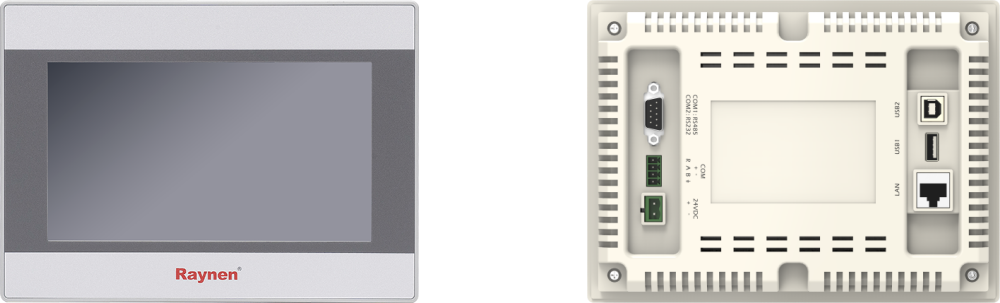

UH404S/UH404E adopts compact and durable design with 4.3-inch touch screen panel. It has high-quality insulation and safety features, with insulation resistance exceeding 50MΩ@500VDC and can withstand 500V AC for 1 minute.
Get A Quote Download
PREV：UH407 Human Machine InterfaceNEXT：No next article
  • Parameter
  • Contact Us

  • Product Summary

    Model Nomenclature

    Product size (unit: mm)

    Parameter

    Model

    UHE 404S

    UHE 404E

    Order number

    UHE 404-2AU01-0AA0

    UHE 404-2EU01-0AA0

    Performance Specifications

    LCD

    4.3' TFT

    Dispaly Color

    65535 color

    Resolution

    480×272

    Blacklight Type

    LED

    Brightness

    350cd/m2

    LCD Life

    30000 hours

    Touch type

    4 wires restance type

    CPU

    1GHz Quad-core main frequency

    Storage

    256MB FLASH+128MB DDR3

    USB Host

    USB2.0 ×1, Type A (USB1), Suport USB updated firmware, configuration and storage data

    USB Slave

    Type-C, Support power, program up/download

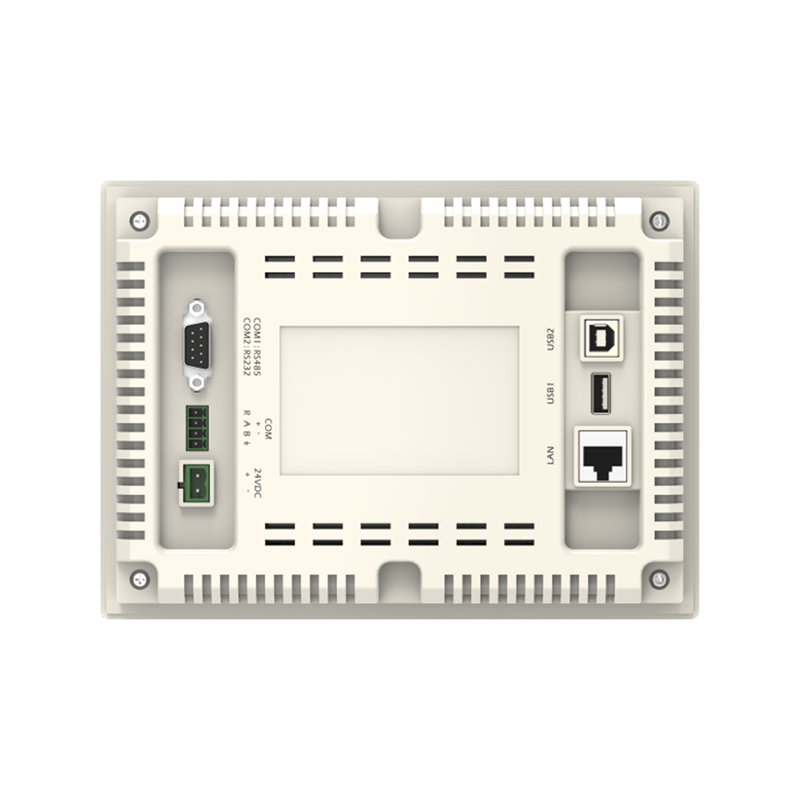

    Serial Interface

    COM1: RS485 COM2: RS232

    Ethernet

    Not supported

    10M/100M self-adaption

    DB9

    Male connector

    Electrical Specification

    Rated power

    3w

    Power supply

    24V DC

    input range

    20.4~28.8V DC

    Permissive Voltage loss

    10ms

    Insulation Resistor

    over 50MΩ@500VDC

    Withstand voltage

    500V AC 1 min

    Structure

    Appearance

    Off white

    Shell material

    ABS+PC plastics, Al sheet

    Appearance Size

    138×102×32mm

    Hole Size

    129×93mm

    Weight

    0.4kg

    Environment Specification

    Work Temperature

    0~50℃

    Work Humidity

    10~90%RH (non-condensing)

    Storage Temperature

    -20~60℃

    Storage Humidity

    10~90%RH (non-condensing)

    Seismic performance

    10~25Hz (X、Y、Z direction 2G/30 min)

    Cooling

    Natural air cooling

    Product Certificate

    Front panel protection level

    Conform to IP65 certificate (4208-93)

    CE Certificate

    Conform to CE certificate (EN61000-6-2:2005/EN61000-6-4:2007)
