All-in-one PC Overview

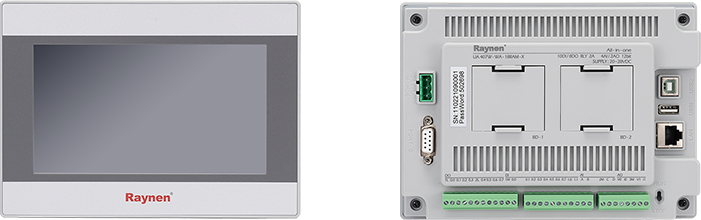

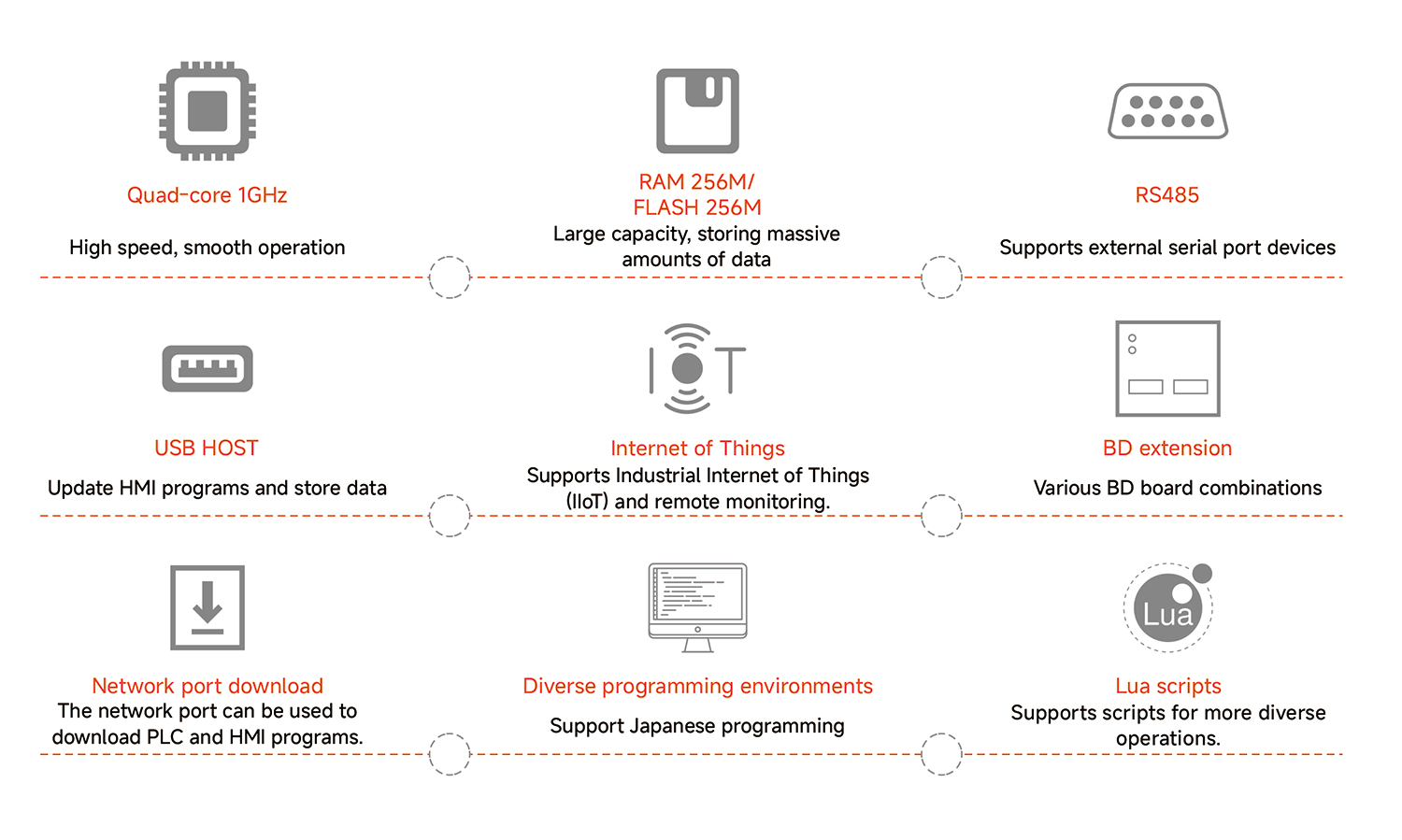

A comprehensive solution integrating PLC, HMI, and Industrial IoT:
① Supports Industrial Internet functions for remote operation;
② Ethernet port allows direct download of HMI and PLC programs for convenient operation;
③ Supports both digital and analog inputs, with selectable options;
④ Supports two BD expansion boards for flexible adaptation to different field needs;
⑤ PLC uses a Japanese-style programming method.
All-in-one PC Hardware Introduction

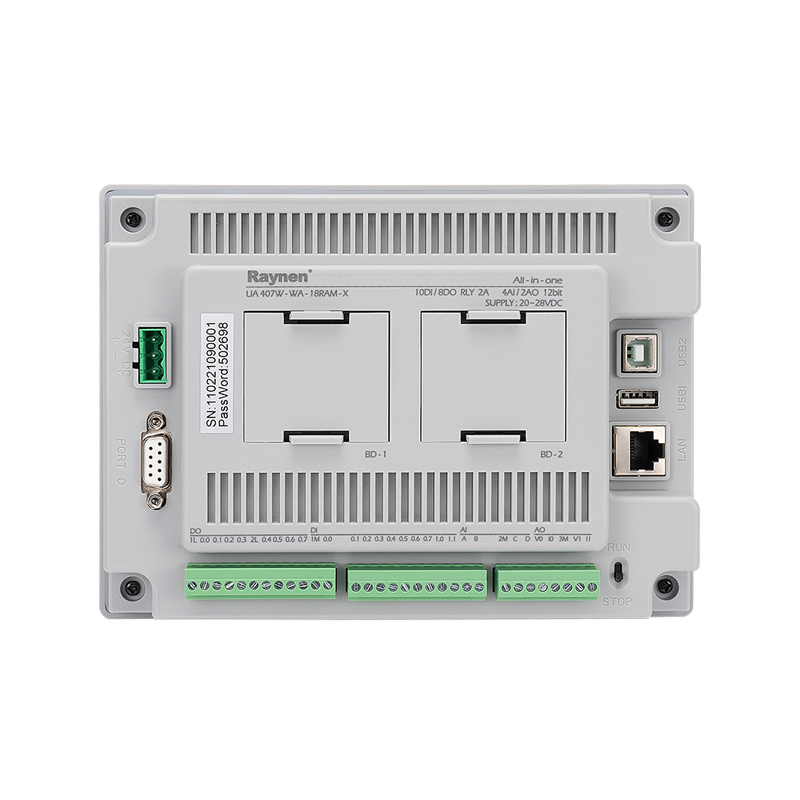

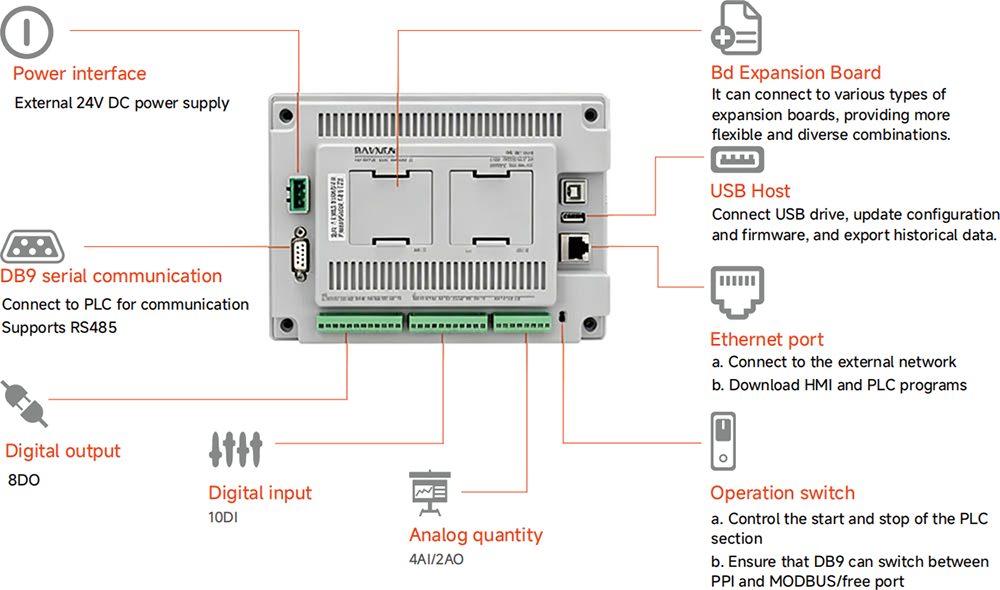

All-in-one machine communication port definition
|
9-pin D-type connector(DB9 female) |
PIN number |
Pin Definitions |
 |
1 |
The chassis is connected to the connector housing |
|
2 |
24V return (same as terminal M) |
|
|
3 |
RS485+ |
|
|
4 |
Send Request(TTL) |
|
|
5 |
+5V return |
|
|
6 |
+5V(maximum 90mA) |
|
|
7 |
+24V(maximum 120mA,with reverse voltage protection diode) |
|
|
8 |
RS485- |
|
|
9 |
Not connected |
All-in-one machine specifications
|
Model |
UA407W-WA-24RDM-X |
UA407W-WA-18RAM-X |
UA407W-WA-24TDM-X |
UA 407W-WA-18TAM-X |
|
|
HMI Specifications |
|||||
|
LCD Screen |
7''TFT |
||||
|
Display Colors |
65535 colors |
||||
|
Resolution |
1024×600 |
||||
|
Backlight Type |
IPS |
||||
|
Display Brightness |
400cd/m² |
||||
|
Backlight Lifespan |
>20,000 hours |
||||
|
Touch Type |
4-wire resistive |
||||
|
Processor |
Quad-core 1GHz |
||||
|
Storage |
256MBFLASH+256MBDDR3 |
||||
|
USB Host |
USB 2.0×1, Type A(USB1), supports firmware and configuration updates via USB flash drive. |
||||
|
USB Slave |
N/A |
||||
|
Ethernet |
10/100M adaptive |
||||
|
Programming Software |
Uniface |
||||
|
PLC section |
|||||
|
Memory |
UN series |
Program 16K, Data 10K |
|||
|
X series |
Program 32K |
||||
|
Total number of timers |
UN series |
A total of 256,4 at 1ms,16 at 10ms,and 236 at 100ms. |
|||
|
X series |
A total of 512,260 at 1ms,46 at 10ms,and 206 at 100ms. |
||||
|
Total Counter Count |
256 |
||||
|
Clock |
Built-in |
||||
|
Power-Off Retention |
Support |
||||
|
Communication Interface |
PORTO:PPI/MODBUS/Free Port(3-RS485+,8-RS485-)PORT1:Supports PPI(Built-in) |
||||
|
Integrated Digital Input |
14 inputs 24VDC |
10 inputs 24VDC |
14 inputs 24VDC |
10 inputs 24VDC |
|
|
Input Type |
PNP/NPN |
||||
|
High-Speed Counting |
Supports two 20kHz single-phase inputs or one 20kHz AB-phase input. |
||||
|
Integrated Digital Output |
10 outputs, relays |
8 outputs, relays |
10 outputs, transistor NPN |
8 outputs, transistor NPN |
|
|
Rated Current per Point [Max] |
1Hz |
1Hz |
2-channel 50kHz |
2-channel 50kHz |
|
|
Pulse Output |
4Al |
4Al |
|||
|
Integrated Analog Input |
12-digit |
12-digit |
|||
|
Resolution |
0-20mA |
0-20mA |
|||
|
Current Input |
0 to +32000 |
0 to+32000 |
|||
|
Data Word Format Full-Scale Range |
2AO |
2AO |
|||
|
Integrated Analog Output |
12-digit |
12-digit |
|||
|
Resolution Full-Scale Range |
Voltage 0-10V,Current 0-20mA |
Voltage 0-10V,Current 0-20mA |
|||
|
Signal Range |
0 to +32000 |
0 to+32000 |
|||
|
Data Word Format Full-Scale Range |
|||||
|
BD Board Expansion |
Supports up to 2 Blu-ray discs |
||||
|
Platform services |
|||||
|
VPN remote download |
Support |
||||
|
Remote data monitoring |
Supports 500 real-time data points |
||||
|
Alarm push notifications |
SMS/WeChat/Phone/APP |
||||
|
Electrical Specifications |
|||||
|
Power supply |
24V DC |
||||
|
Power |
8W |
9W |
8W |
||
|
Structural characteristics |
|||||
|
Housing color |
Grey |
||||
|
Housing material |
ABS+PC plastic |
||||
|
Dimensions |
203×149×60(mm) |
||||
|
Opening size |
192×138(mm) |
||||
|
Weight |
Approximately 1.2kg |
||||
|
Operating temperature |
0～50℃ |
||||
|
Protection rating |
Front panel IP65 |
||||
