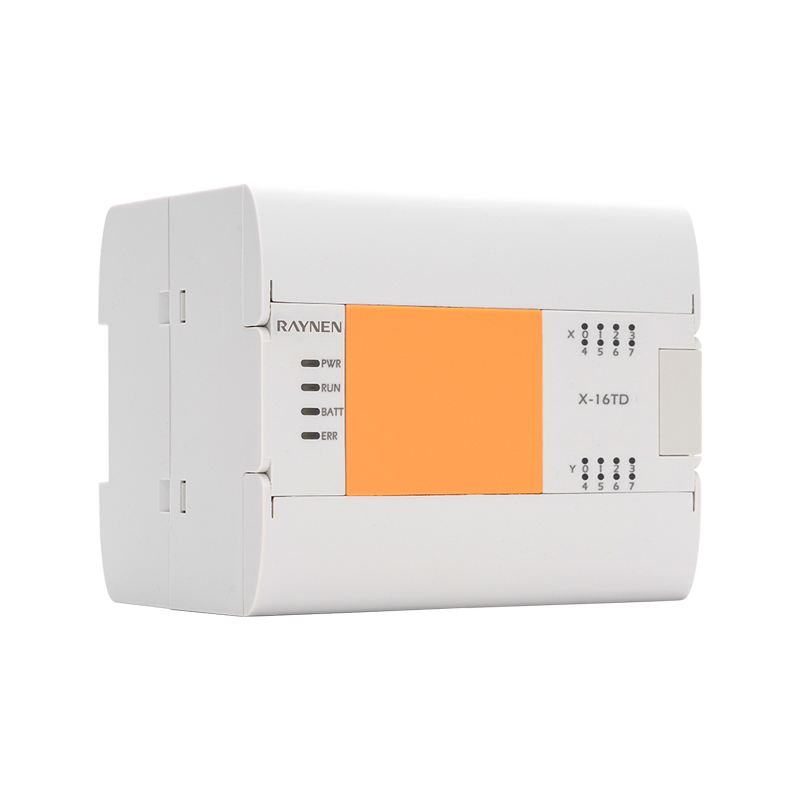

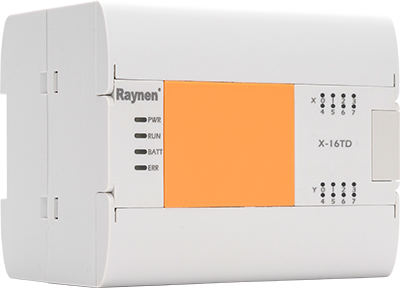

X Relay programmable logic controller

• With efficient data processing, three high-speed counting and other functions

• Real-time clock, power data permanently saved

• Support one BD board and max expand up to 7 modules

Interface

Input/output

Expansion Card

BD board

Integrated network port RS232/485

3-way high-speed counter

Expanded Max 7 modules

Support 1 BD board

Item

Power Specifications

XE-16RA

XE-24RA

XE-32RA

XE-40RA

XE-60RA

Power consumption

10W

12W

12W

113W

14W

Working voltage

Minimum value

100VAC

Middle value

220VAC

Maximum value

240VAC

Limit input voltage

AC 85V~AC100V, AC 240V~AC264V

Allow instantaneous power outage time

For transient power outages below 5ms, the operation will continue

Power fuse

60V 2A

Impulse current

12A, 0.5ms below/28.8V DC

DC24V given power

300mA below

DC5V build-in power

800mA below

Item

Power Specifications

XE-16RA

XE-24RA

XE-32RA

XE-40RA

XE-60RA

Input number

8

14

16

24

36

High-speed counter

single phase 200KHz [3 pc]; AB phase 100KHz [3 pc]

Input type

PNP/NPN

Input signal voltage

DC source type: DC20.4V~28.8V

Input impedance

X0-X5

3.3K

X6-X7

5.6K

3.3K

X10 above

-

5.6K

On input inductance current

X0-X5

5mA above

X6-X7

4mA

5mA above

X10 above

-

4 mA above

OFF Input inductance current

1mA above

Input response time

＜4.5ms

Input signal form

No voltage contact input

Sink input: NPN open-collector transistor

Source input: PNP open-collector transistor

Input loop isolation

Optocoupler isolation

Display of input actions

The LED on the panel lights up when the optocoupler is driven

Item

Power Specifications

XE-16RA

XE-24RA

XE-32RA

XE-40RA

XE-60RA

Output number

8

10

16

16

24

Output type

Dry contact

Rated voltage

220VAC

Voltage range

5~30VDC 5~250VAC

Surge current (Max)

5A 4s 10% Duty cycle

Rated current per point (Max)

2A

Lamp Load [max]

30W DC/200W AC

Response time (24V,2K load)

10ms

on-resistance [connect point]

0.22 (Max when new)

Pulse frequency [Max]

1HZ

Mechanical life cycle

10000000 (No load)

Contact life

100000(Rated load)

shield

500m (Normal output)

un-shield

150m (Normal output)

Name

Content

Soft component type

Content

X

256 point

Bit element

X0~X377

Y

256 point

Bit element

Y0~Y377

M

7680 point

Bit element

M0~M7679

SM

512 point

Bit element

SM8000~SM8511

S

4096 point

Bit element

S0~S4095

V

8 point

Word element

V0~V7

Z

8 point

Word element

Z0~Z7

T

512 point

Word element

T0~T511

C

200 point

16 bit word element

C0~C199

C(32 bit)

56 point

32-bit word element

C200~C255

D

8000 point

Word element

D0~D7999

SD

512 point

Word element

SD8000~SD8511

R

32768 point

Word element

R0~R32767

Input interrupt

8 point

I00*~I07*

Timer interrupt

3 point

I6**~I8**

Counter interrupt

6 point

I010~I060

Master control with nesting

8 point

N0~N7

Pointer P

4096 point

P0~P4095

Constant K

16-bit range: -32768~+32767

32 bit rang

-2147483648~+2147483647

Constant H

16-bit range: 0~FFFF

32 bit range: 0~FFFFFFFF

Real number(E)

-3.40×10-38~ -1.17×10-38 , 1.17x10-38~3.40×1038

Character string

A half-corner character framed by " " , with a maximum of 32 characters

Input

   Distribution

Single phase single counter

AB Phase counter

AB Phase counter

C235

C236

C237

C238

C239

C240

C243

C244

C246

C247

C248

C249

C251

C252

C253

C254

X0

U/D

U/D

U

U

A

A

X1

U/D

R

D

D

B

B

X2

U/D

U/D

U

R

R

A

X3

U/D

R

D

S

B

X4

U/D

S

U

A

X5

U/D

D

B
