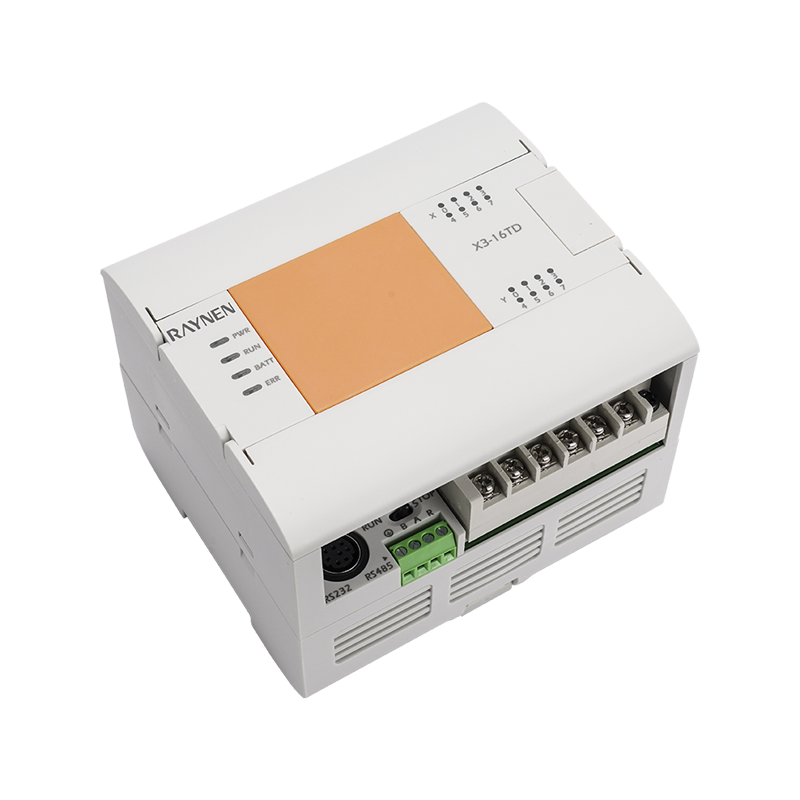

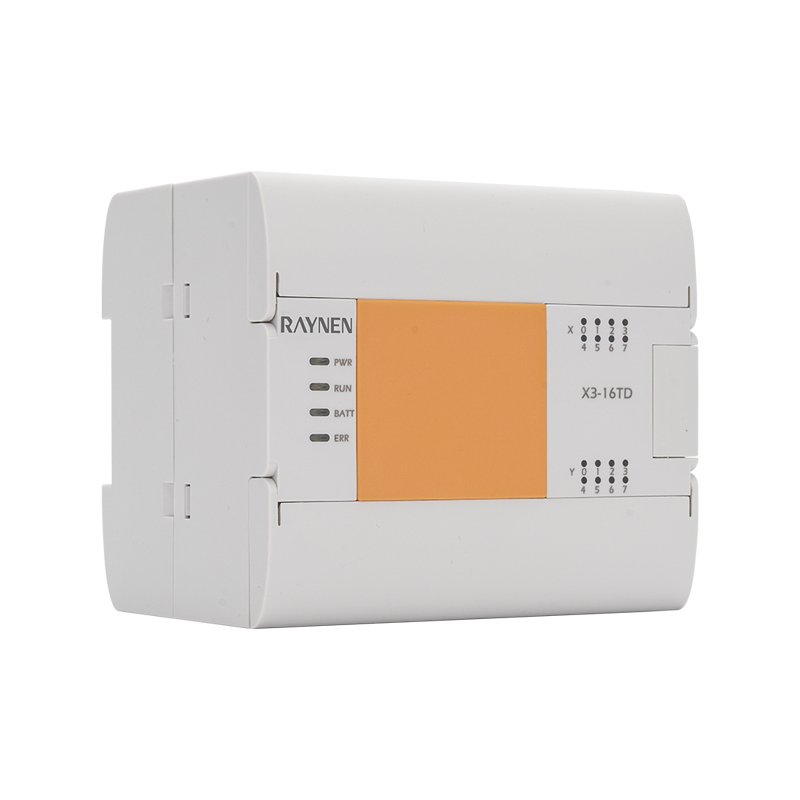

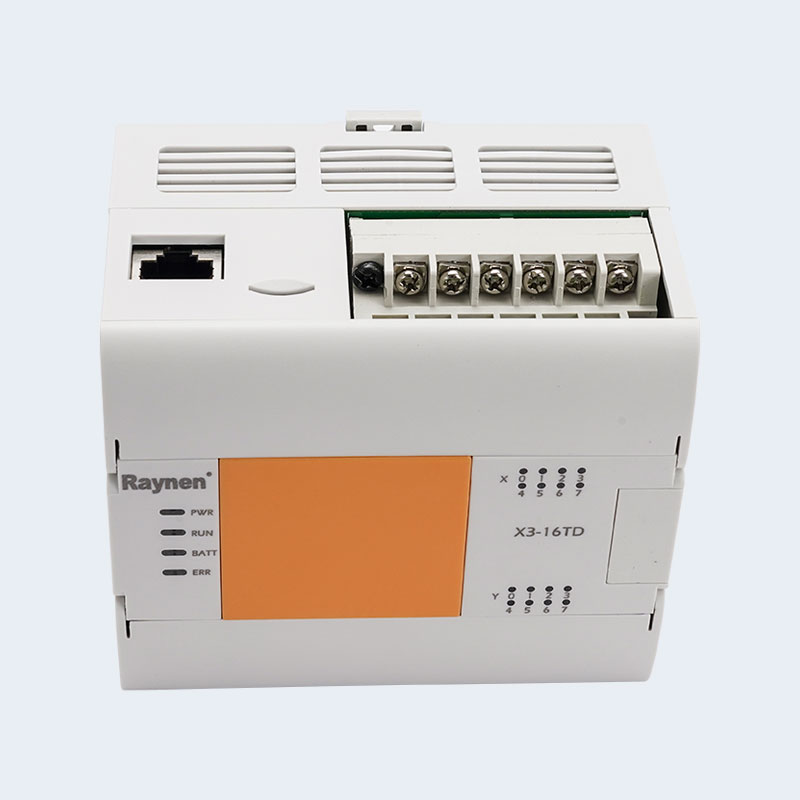

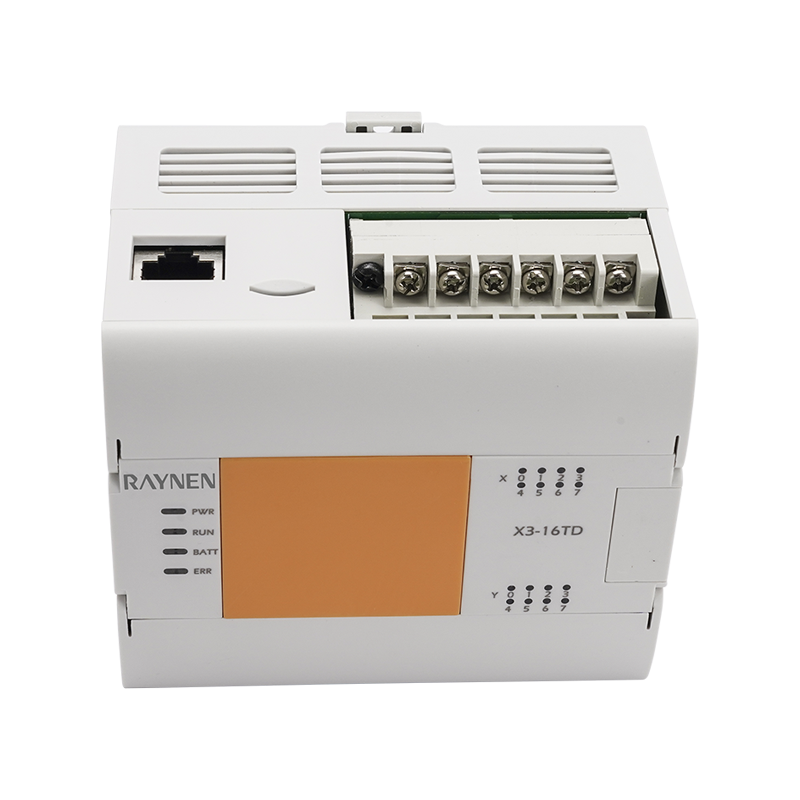

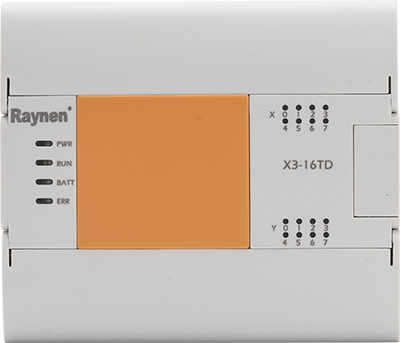

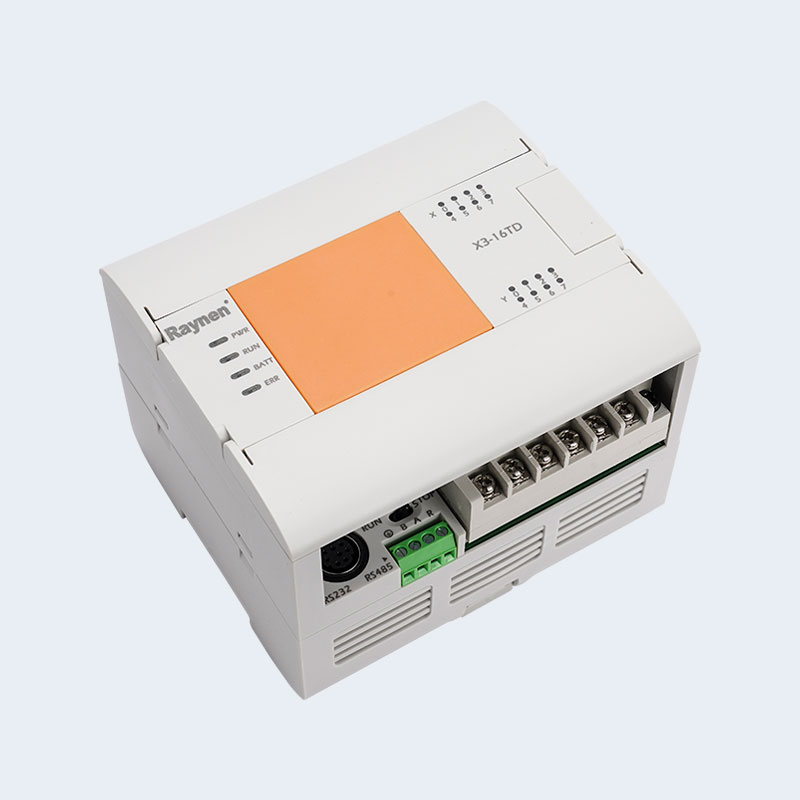

Product Summary
|
|
• With 2-6 axis high-speed pulse output, high-speed counting, linear interpolation and arc interpolation and other motion control functions; • Real-time clock, power data permanently saved; • Max 7 modules can be expanded. |
Advantage
|
|
|
|
|
|
Interface |
Input/output |
Expansion Card |
BD board |
|
Integrated network port RS232/485 |
3-8 channel high-speed counter 2-6 axis 200K high-speed pulse |
Expanded Max 7 modules |
Support 1 BD board |
Model Nomenclature
Product size (unit: mm)
|
|
|
Parameter
|
Item |
Power Specifications |
||||
|
X3E-16TD |
X3E-24TD |
X3E-32TD |
X3E-40TD |
X3E-60TD |
|
|
Power consumption |
10W |
12W |
12W |
13W |
14W |
|
Power Voltage |
DC24V |
||||
|
Voltage range |
DC 20.4~28.8V |
||||
|
Allow instantaneous power outage time |
For transient power outages below 5ms, the operation will continue |
||||
|
Power fuse |
60V 2A |
||||
|
Impulse current |
12A, 0.5ms below/28.8V DC |
||||
|
DC24V given power |
300mA below |
||||
|
DC5V build-in power |
800mA below |
||||
|
Item |
Power Specifications |
|||||
|
X3E-16TD |
X3E-24TD |
X3E-32TD |
X3E-40TD |
X3E-60TD |
||
|
Input number |
8 |
14 |
16 |
24 |
36 |
|
|
High-speed number |
Single phase 200KHz [3 pcs] AB phase 100KHz[3 pcs] |
Single phase 200KHz[4 pcs], AB phase 100KHz[4 pcs] |
Single phase 200KHz [8 pcs] AB phase 100KHz[4 pcs] |
|||
|
Input type |
Sink type/source type |
|||||
|
Input signal voltage |
DC source type: DC20.4V~28.8V |
|||||
|
Input impedance |
X0-X5 |
3.3K |
||||
|
X6-X7 |
5.6K |
3.3K |
||||
|
X10 above |
- |
5.6K |
||||
|
On input inductance current |
X0-X5 |
5mA above |
||||
|
X6-X7 |
4mA |
5mA above |
||||
|
X10 above |
- |
4mA above |
||||
|
OFF Input inductance current |
1mA above |
|||||
|
Input response time |
＜4.5ms |
|||||
|
Input signal form |
No voltage contact input |
|||||
|
Sink input: NPN open-collector transistor |
||||||
|
Source input: PNP open-collector transistor |
||||||
|
Input loop isolation |
Optocoupler isolation |
|||||
|
Display of input actions |
The LED on the panel lights up when the optocoupler is driven |
|||||
|
Item |
Power Specifications |
|||||
|
X3E-16TD |
X3E-24TD |
X3E-32TD |
X3E-40TD |
X3E-60TD |
||
|
Output number |
8 |
10 |
16 |
16 |
24 |
|
|
Pulse frequency (Max) |
Single-ended 2 axis 200K |
Single-ended 4 axis 200K |
Single-ended 6 axis 200K |
|||
|
Output type |
Transistor/drain output |
|||||
|
External power supply |
DC5~30V |
|||||
|
Max load |
Resistive load |
0.5A/way |
||||
|
Inductive load |
12W/DC24V |
|||||
|
Lamp load |
5W/DC24V |
|||||
|
Mid load |
5mA (DC5~24V) |
|||||
|
Response time |
OFF→ON |
High speed: 5μs below/10mA above (DC5 ~24V) |
||||
|
Common: 0.2ms below/200mAabove (DC24V) |
||||||
|
ON→OFF |
High speed: 5μs below/10mA above (DC5 ~24V) |
|||||
|
Common: 0.2ms below/200mAabove(DC24V) |
||||||
|
Loop isolation |
Optocoupler isolation |
|||||
|
Display of output actions |
The LED on the panel lights up when the optocoupler is driven |
|||||
Software component resources
|
Item |
Performance |
|
|
Input relay X |
256 point |
X0~X377 |
|
Output relay Y |
256 point |
Y0~Y377 |
|
Auxiliary relay M |
7680 point |
M0~Latch start (Set the power off non-hold area) |
|
Latch start~latch end (Set power hold area, Max M1023) |
||
|
Latch End ~M7679 (Fixed power hold area) |
||
|
Special auxiliary relay SM |
512 point |
SM8000~SM8511 |
|
Status relay S |
4096 point |
S0~S4095 |
|
timer T |
200 point |
T0~T199 (100ms Time base) |
|
T192~T199 (Subroutine specialization ) |
||
|
46 point |
T200~T245(10ms time base) |
|
|
4 point |
T246~T249(1ms Cumulative type) |
|
|
6 point |
T250~T255(100ms Cumulative type) |
|
|
256 point |
T256~T511(1ms time base) |
|
|
Counter 16 bit |
200 point |
C0~C199 |
|
Counter 32 bit |
56 point |
C200~C234 |
|
High Speed counter |
- |
C235~C255 |
|
Data register D |
8000 point |
D0~D7999 |
|
Special data register SD |
512 point |
SD8000~SD8511 |
|
Index register |
16 point |
V0~V7, Z0~Z7 |
|
Expansion register |
32768 point |
R0~R32767 |
|
Pointer |
4096 point |
P0~P4095 |
|
Interrupted |
6 point |
I00*~I50* Input interrupt |
|
3 point |
I6**~I8** Timing interrupt |
|
|
6 point |
I010~I060 High speed counter interrupt |
|
|
Master control with nesting |
8 point |
N0~N7 |
|
constant K |
- |
16 bit range: -32768~+32767, 32 bit range: -2147483648~+2147483647 |
|
constant H |
- |
16 bit range: 0~FFFF, 32 bit range: 0~FFFFFFFF |
|
Real number(E) |
- |
-3.40×10-38~ -1.17×10-38 , 1.17x10-38~3.40×1038 |
|
Character string |
- |
The maximum length of a half-corner character framed by " " is 32 characters |
High-speed counter
|
Input Distribution |
Single phase single counter |
AB Phase counter |
AB Phase counter |
||||||||||||||||||
|
C235 |
C236 |
C237 |
C238 |
C239 |
C240 |
C241 |
C242 |
C243 |
C244 |
C245 |
C246 |
C247 |
C248 |
C249 |
C250 |
C251 |
C252 |
C253 |
C254 |
C255 |
|
|
X0 |
U/D |
|
|
|
|
|
|
|
U/D |
|
|
U |
|
|
U |
|
A |
A |
|
|
|
|
X1 |
|
U/D |
|
|
|
|
|
|
R |
|
|
D |
|
|
D |
|
B |
B |
|
|
|
|
X2 |
|
|
U/D |
|
|
|
|
|
|
U/D |
|
|
U |
|
R |
|
R |
|
A |
|
|
|
X3 |
|
|
|
U/D |
|
|
|
|
|
R |
|
|
D |
|
S |
|
|
|
B |
|
|
|
X4 |
|
|
|
|
U/D |
|
|
|
|
S |
|
|
|
U |
|
U |
|
|
|
A |
|
|
X5 |
|
|
|
|
|
U/D |
|
|
|
|
U/D |
|
|
D |
|
D |
|
|
|
B |
|
|
X6 |
|
|
|
|
|
|
U/D |
|
|
|
R |
|
|
|
|
R |
|
|
|
|
A |
|
X7 |
|
|
|
|
|
|
|
U/D |
|
|
S |
|
|
|
|
S |
|
|
|
|
B |
