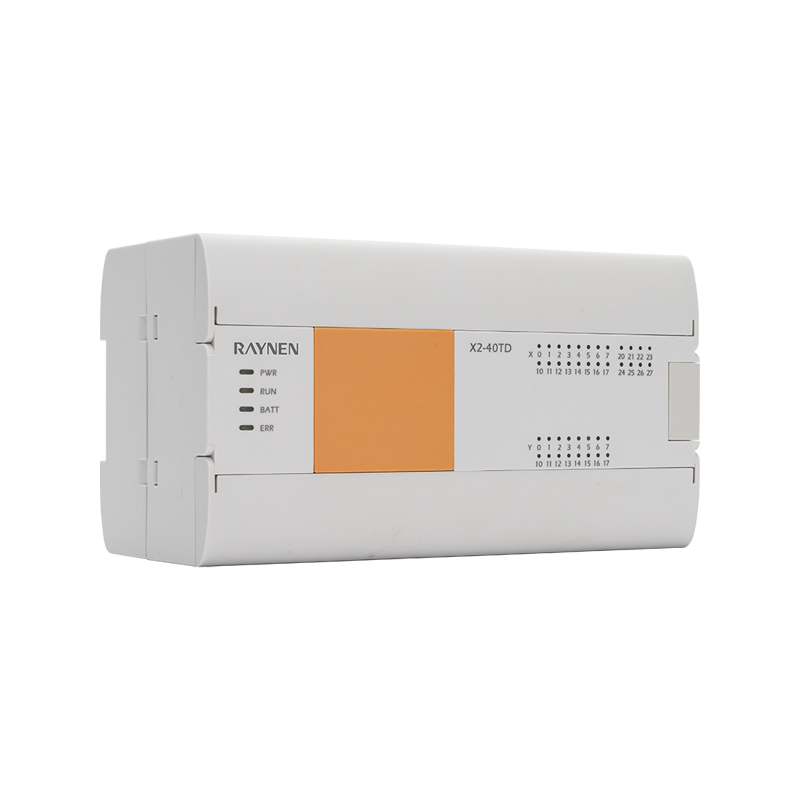

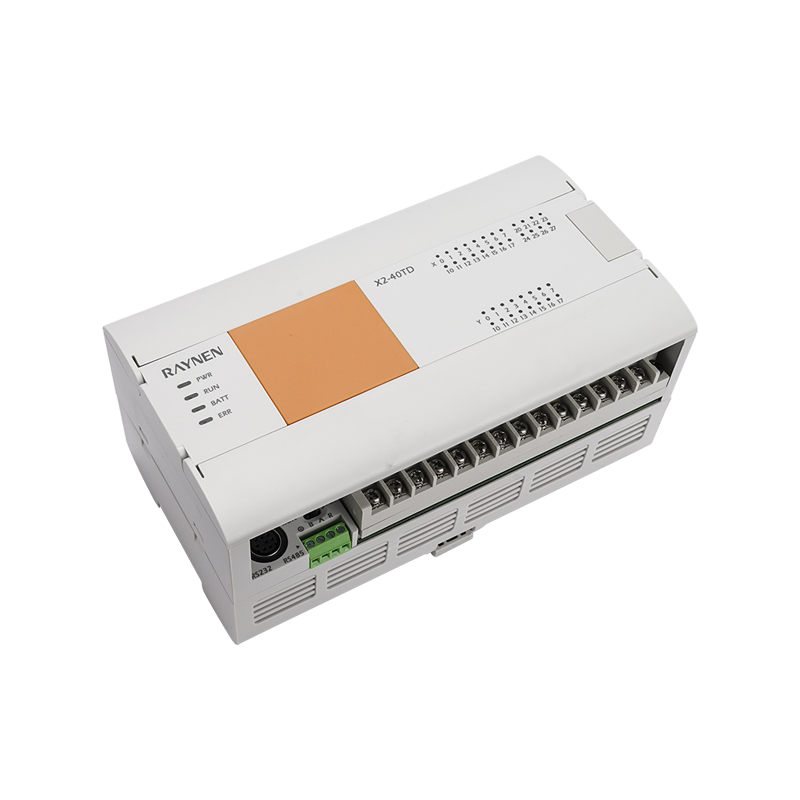

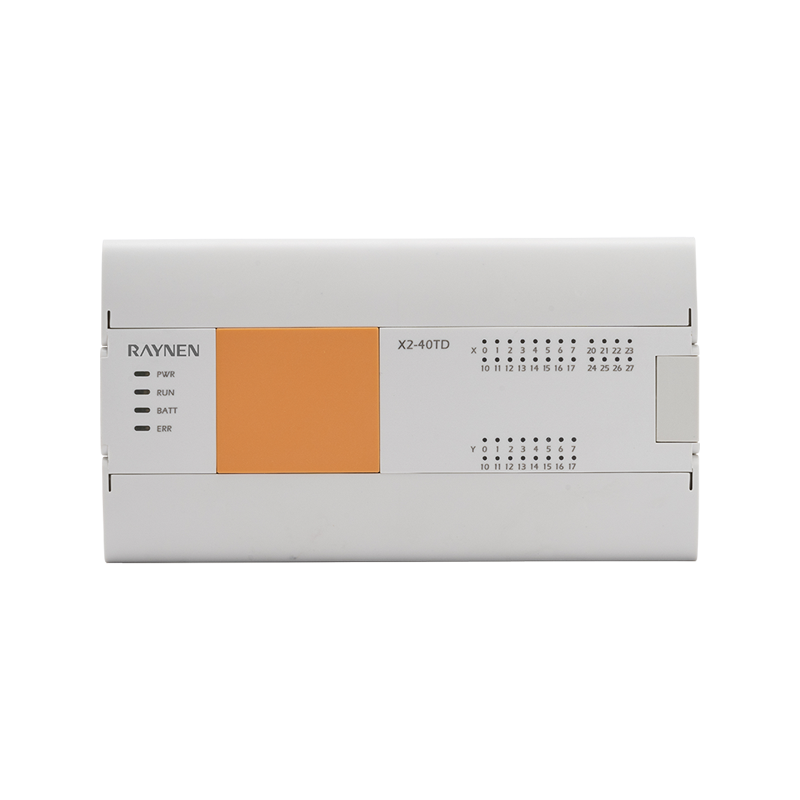

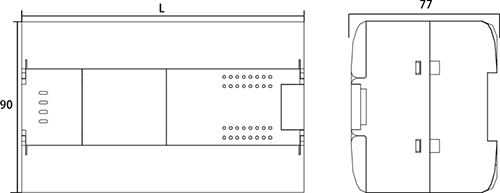

X2 Standard programmable logic controller

• With linear interpolation, two-axis high-speed pulse output high-speed counting and other motion control function

• Real-time clock, power outage data is permanently stored

• It supports a BD expansion board and can expand up to 7modules

Interface

Input/output

Expansion Card

BD board

Integrated network port RS232/485

2-channel high-speed counter

2-axis 60K high-speed pulse

Expanded Max 7 modules

Support 1 BD board

Item

Power Specifications

X2E-24TD

X2E-32TD

X2E-40TD

X2E-60TD

Power Voltage

10W

12W

12W

14W

Voltage range

DC24V

Allow instantaneous power outage time

DC 20.4~28.8V

Power fuse

For transient power outages below 5ms, the operation will continue

Impulse current

60V 2A

DC24V given power

12A, 0.5ms below/28.8V DC

DC5V build-in power

300mA below

Item

Power Specifications

X2E-24TD

X2E-32TD

X2E-40TD

X2E-60TD

Input number

14

16

24

36

High-speed counter

Single phase 200KHz[3 pcs], AB phase 100KHz[3 pcs]

Input type

Sink type/source type

Input signal voltage

DC source type: DC20.4V~28.8V

Input impedance

X0-X5

3.3K

X6-X7

5.6K

3.3K

X10 above

-

5.6K

On input inductance current

X0-X5

5mA above

X6-X7

4mA

5mA above

X10 above

-

4mA above

OFF Input inductance current

1mA below

Input response time

＜4.5ms

Input signal form

No voltage contact input

Sink input: NPN open-collector transistor

Source input: PNP open-collector transistor

Input loop isolation

Optocoupler isolation

Display of input actions

The LED on the panel lights up when the optocoupler is driven

Item

Power Specifications

X2E-24TD

X2E-32TD

X2E-40TD

X2E-60TD

Output number

10

16

16

24

Pulse frequency (Max)

Single-ended 2-axis 200K

Output type

Transistor/Leaky output

External power supply

DC5~30V

Max load

Resistive load

0.5A/way

Inductive load

12W/DC24V

Lamp load

5W/DC24V

Mid load

5mA (DC5~24V)

Response time

OFF→ON

High speed: 5μs below/10mA above (DC5 ~24V)

Common: 0.2ms below/200mAabove (DC24V)

ON→OFF

High speed: 5μs below/10mA above (DC5 ~24V)

Common: 0.2ms below/200mAabove(DC24V)

Loop isolation

Optocoupler isolation

Display of output actions

The LED on the panel lights up when the optocoupler is driven

Item

Performance

Input relay X

256 point

X0~X377

Output relay Y

256 point

Y0~Y377

Auxiliary relay M

7680 point

M0~Latch start (Set the power off non-hold area)

Latch start~latch end (Set power hold area, Max M1023)

Latch End ~M7679 (Fixed power hold area)

Special auxiliary relay SM

512 point

SM8000~SM8511

Status relay S

4096 point

S0~S4095

timer T

200 point

T0~T199 (100ms Time base)

T192~T199 (Subroutine specialization )

46 point

T200~T245(10ms time base)

4 point

T246~T249(1ms Cumulative type)

6 point

T250~T255(100ms Cumulative type)

256 point

T256~T511(1ms time base)

Counter 16 bit

200 point

C0~C199

Counter 32 bit

56 point

C200~C234

High-Speed counter

-

C235~C255

Data register D

8000 point

D0~D7999

Special data register SD

512 point

SD8000~SD8511

Index register

16 point

V0~V7, Z0~Z7

Expansion register

32768 point

R0~R32767

Pointer

4096 point

P0~P4095

Interrupted

6 point

I00*~I50* Input interrupt

3 point

I6**~I8** Timing interrupt

6 point

I010~I060 High-speed counter interrupt

Master control with nesting

8 point

N0~N7

constant K

-

16 bit range: -32768~+32767, 32 bit range: -2147483648~+2147483647

constant H

-

16 bit range: 0~FFFF, 32 bit range: 0~FFFFFFFF

Real number(E)

-

-3.40×10-38~ -1.17×10-38 , 1.17x10-38~3.40×1038

Character string

-

The maximum length of a half-corner character framed by " " is 32 characters

Input

   Distribution

Single phase single counter

AB Phase counter

AB Phase counter

C235

C236

C237

C238

C239

C240

C243

C244

C246

C247

C248

C249

C251

C252

C253

C254

X0

U/D

U/D

U

U

A

A

X1

U/D

R

D

D

B

B

X2

U/D

U/D

U

R

R

A

X3

U/D

R

D

S

B

X5

U/D

S

U

A

X6

U/D

D

B
