Home / Product / Programmable Logic Controller (PLC) / XM-E4AD-00

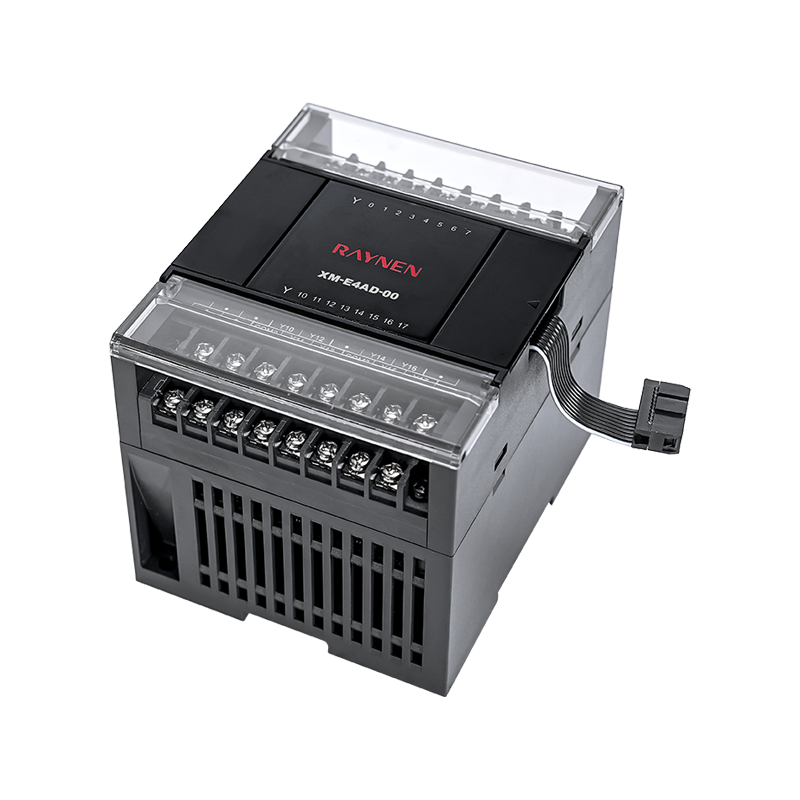

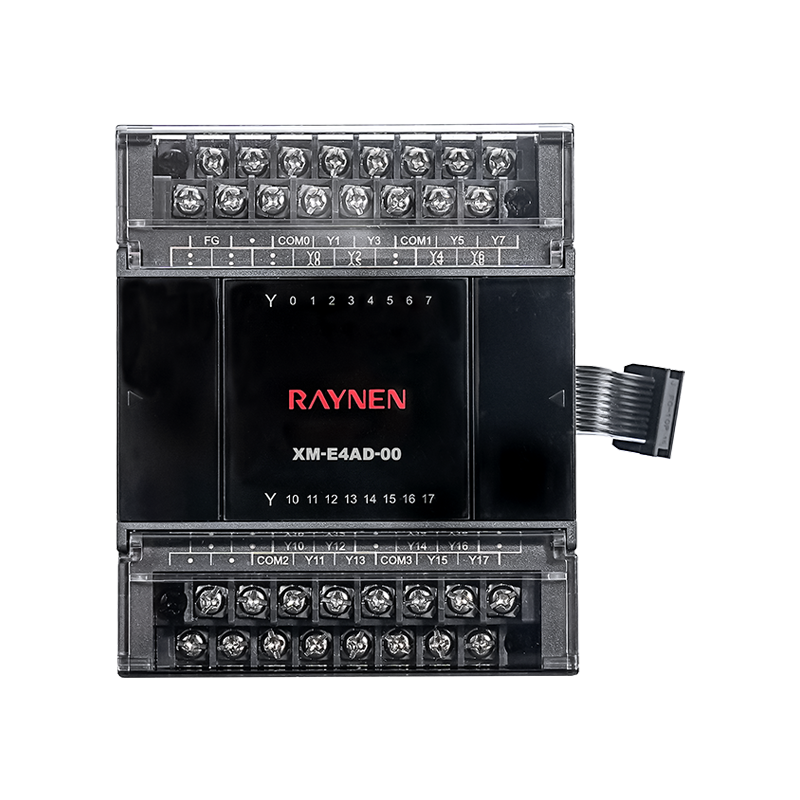

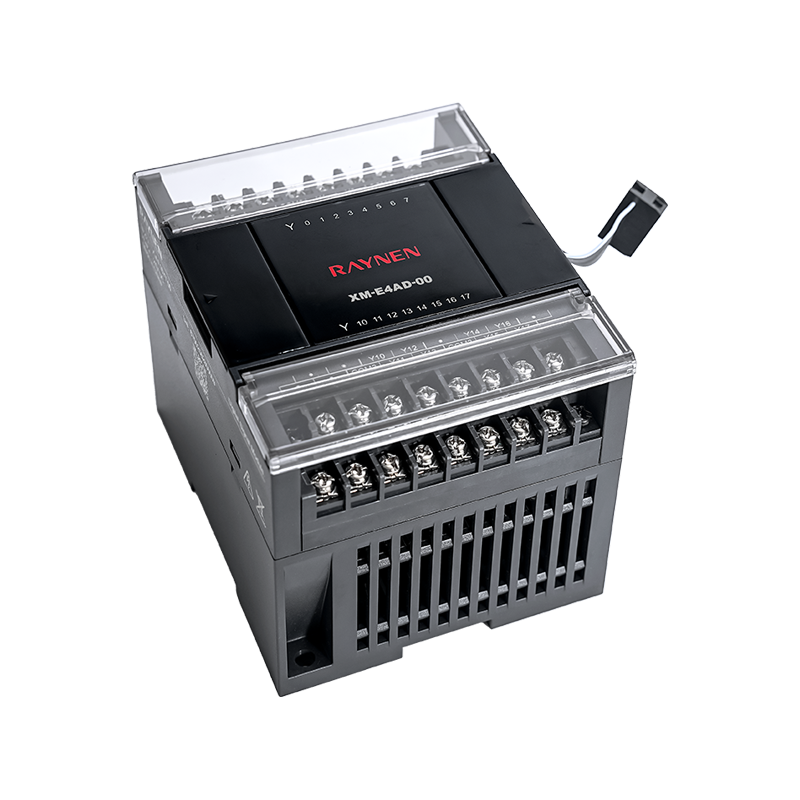

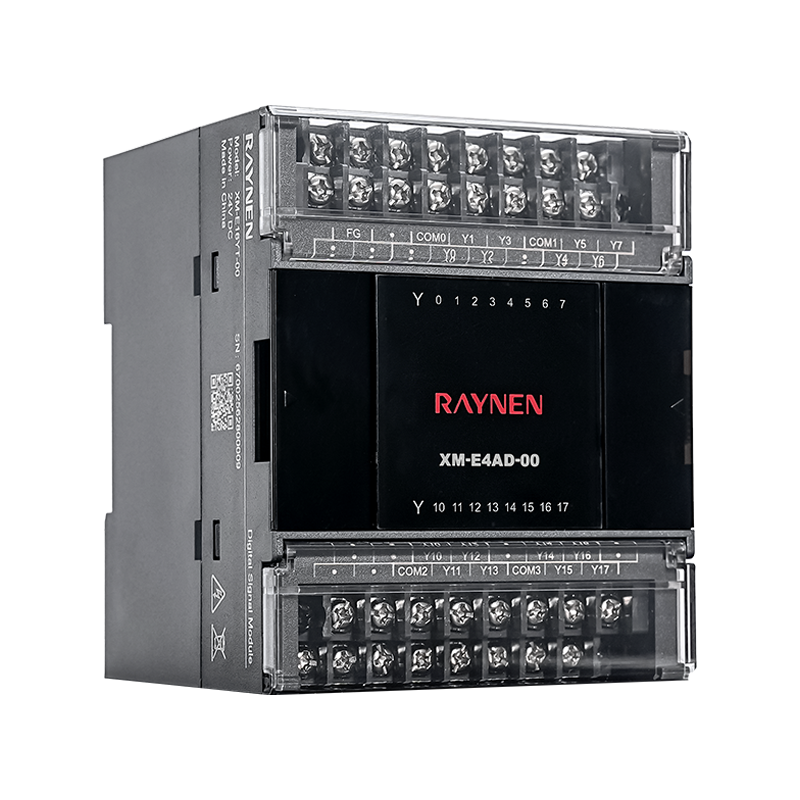

XM-E4AD-00

The XM series small PLCs are upgraded iterations of Ruineng Technology's existing X series small PLCs. They are available in the XM3L standard series and the XM3 enhanced series. They are designed to meet the growing market demand for small PLCs, enhancing functionality, improving performance, reducing costs, and reducing space. All XM series small PLCs are equipped with one RJ45 network port (pluggable terminal block) and two RS485 ports (external terminal blocks), providing enhanced convenience and flexibility.

Get A Quote Download

PREV：XM-E4DA-00 NEXT：XM-E8X8YT-00

Parameter
Contact Us

Model description

Right extension module size and structure diagram

	PLC model	L
	XM-E16X-00	83
	XM-E16YT-00	83
	XM-E8X8YT-00	83
	XM-E4AD-00	83
	XM-E4DA-00	83
	XM-4AD2DA-00	83

Unit: mm

Right expansion digital module basic technical specifications

Specifications	XM-E4AD-00
Module Description	4-channel input module
Input/Output	Voltage/current
Resolution	16-bit
Voltage Range	0~5V -2.5V~2.5V -5V~5V -10V~10V
Voltage Sampling Impedance	>5kΩ
Voltage Input Accuracy	±0.2%(25℃, fullscale)/±0.5%(full range, full scale)
Current Range	0~20mA
Current Sampling Impedance	<0.5kΩ
Current Input Accuracy	±0.2%(25℃, full scale)/±0.5%(full range, full scale)
Hot Swappable	Not supported
Dimensions	8310080mm
Ambient Temperature	-10℃~60℃(horizontal installation);-10℃~40℃(vertical installation)
Storage Temperature	-20℃~80℃
Ambient Humidity	5%～95%RH(non-condensing)
Noise Resistance	Noise suppression, compliant with IEC61000-6-2, IEC60068, Part 2-6/10 up 58Hz
