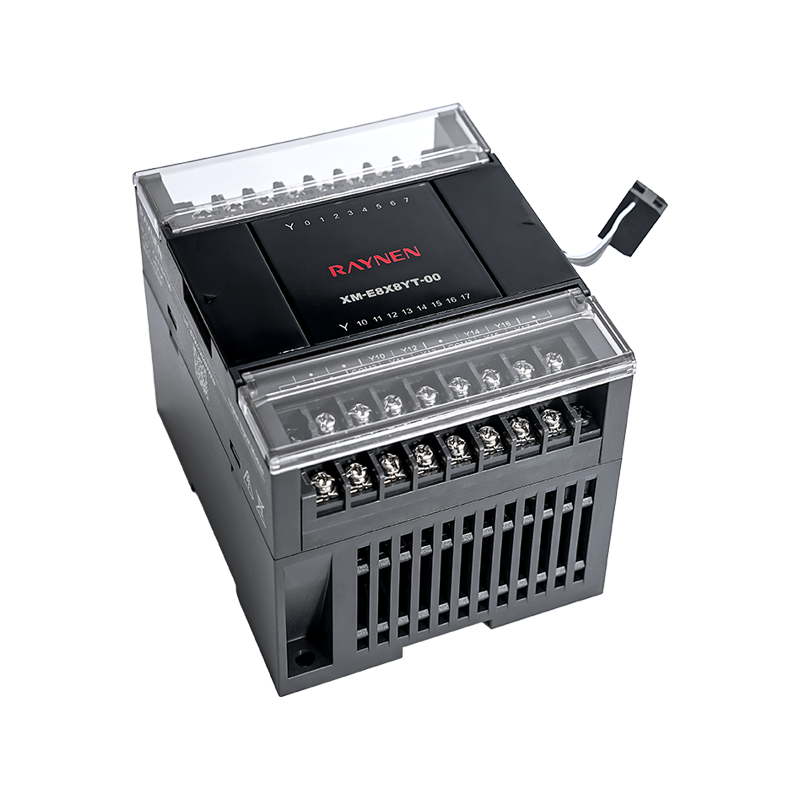

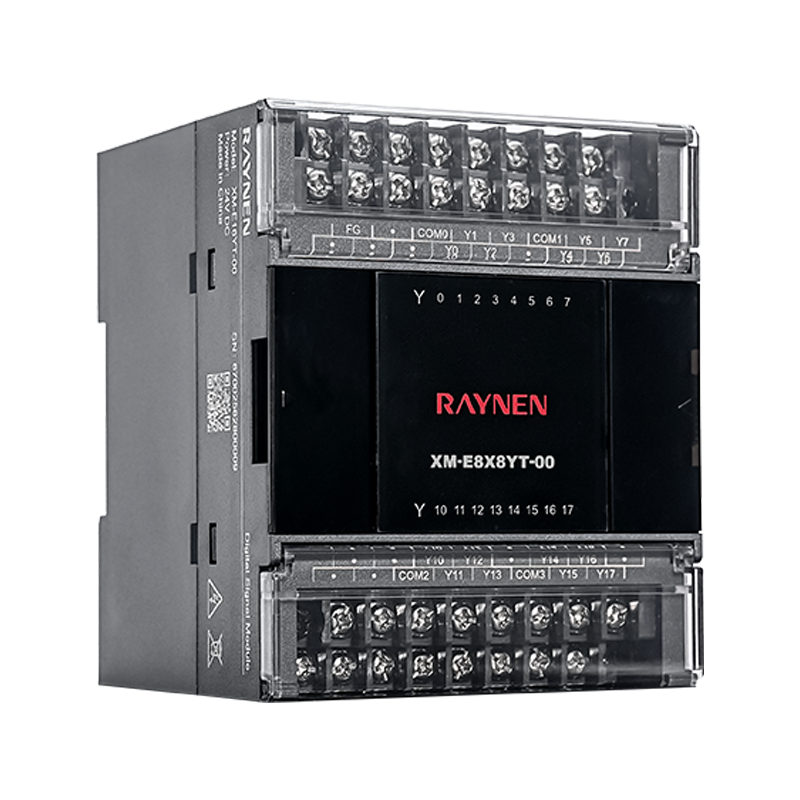

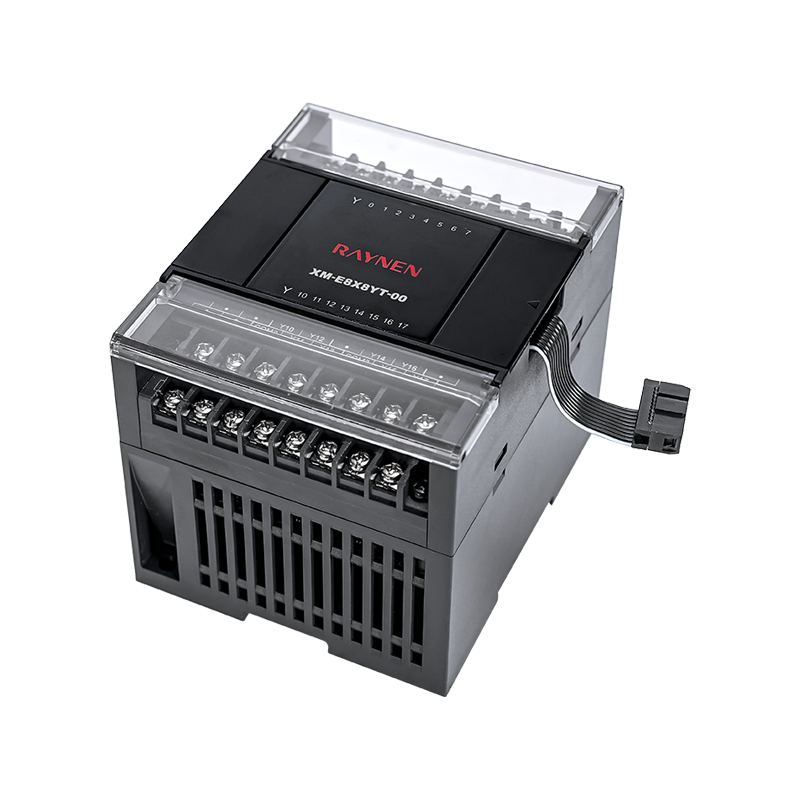

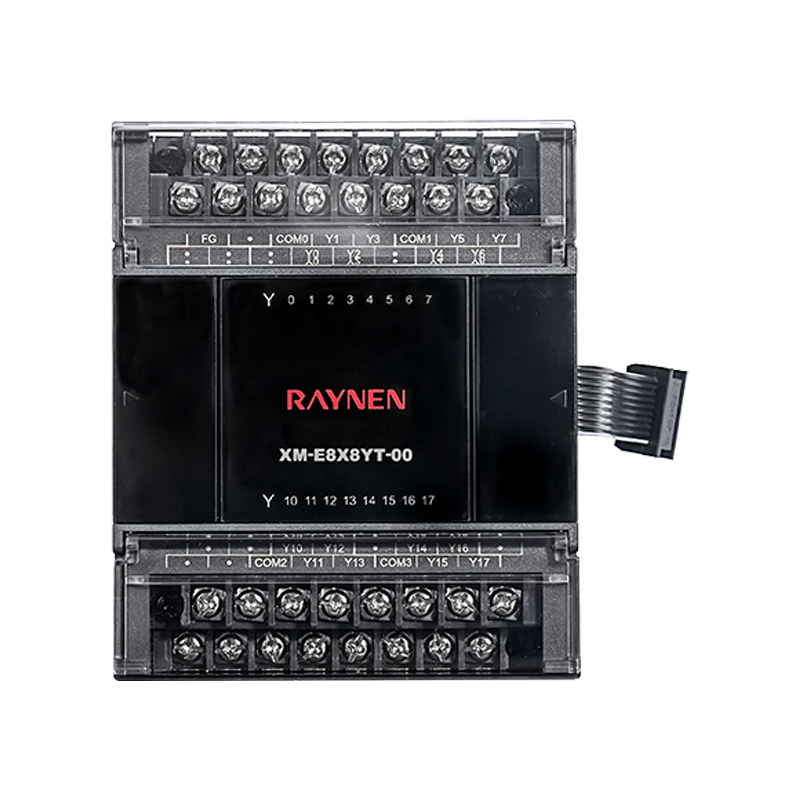

XM-E8X8YT-00

The XM series small PLCs are upgraded iterations of Ruineng Technology's existing X series small PLCs. They are available in the XM3L standard series and the XM3 enhanced series. They are designed to meet the growing market demand for small PLCs, enhancing functionality, improving performance, reducing costs, and reducing space. All XM series small PLCs are equipped with one RJ45 network port (pluggable terminal block) and two RS485 ports (external terminal blocks), providing enhanced convenience and flexibility.

Get A Quote Download

PREV：XM-E4AD-00 NEXT：XM-E16YT-00

Parameter
Contact Us

Model description

Right extension module size and structure diagram

	PLC model	L
	XM-E16X-00	83
	XM-E16YT-00	83
	XM-E8X8YT-00	83
	XM-E4AD-00	83
	XM-E4DA-00	83
	XM-4AD2DA-00	83

Unit: mm

Right expansion digital module basic technical specifications

Specifcations	XM-E8X8YT-00
Module Description	8-input/8-output hybrid module
Input Type	NPN
Output Type	NPN
Isolation Method	Optocoupler isolation
Response Frequency	10 kHz
Input Current	4 mA(typical at 24V)
Output Current	500 mA
Hot Swappable	Not supported
Dimensions	8310080mm
Ambient Temperature	-10℃~60℃(horizontally mounted);-10℃~40℃(vertically mounted)
Storage Temperature	-20℃~80℃
Ambient Humidity	5%～95%RH(non-condensing)
Noise Resistance	Noise suppression, compliant with IEC61000-6-2, IEC60068, Part 2-6/10 up 58Hz
