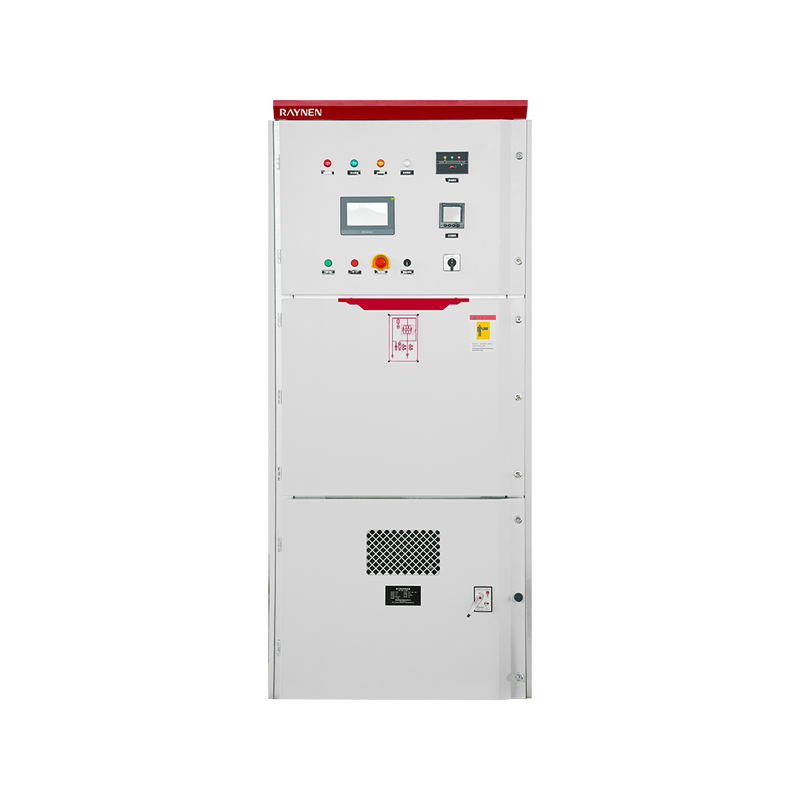

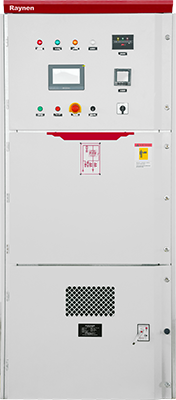

6KV 420-4150kW High reliability and safety RSE1000 medium voltage soft starter

6KV 420-4150kW Soft Starter

The product has high reliability, uses solid-state high-voltage and high-power components, provides BOD self-triggering protection function, and specially designed power failure memory and electronic overload protection functions. High safety, the electrical between high and low voltage uses optical fiber isolation box magnetic isolation, 380V motor can be used for pre-commissioning, and uses international standard high-voltage cabinet.

Get A Quote Download

PREV：6KV 5000kW Soft Starter NEXT：No next article

Parameter
Contact Us

Product Summary

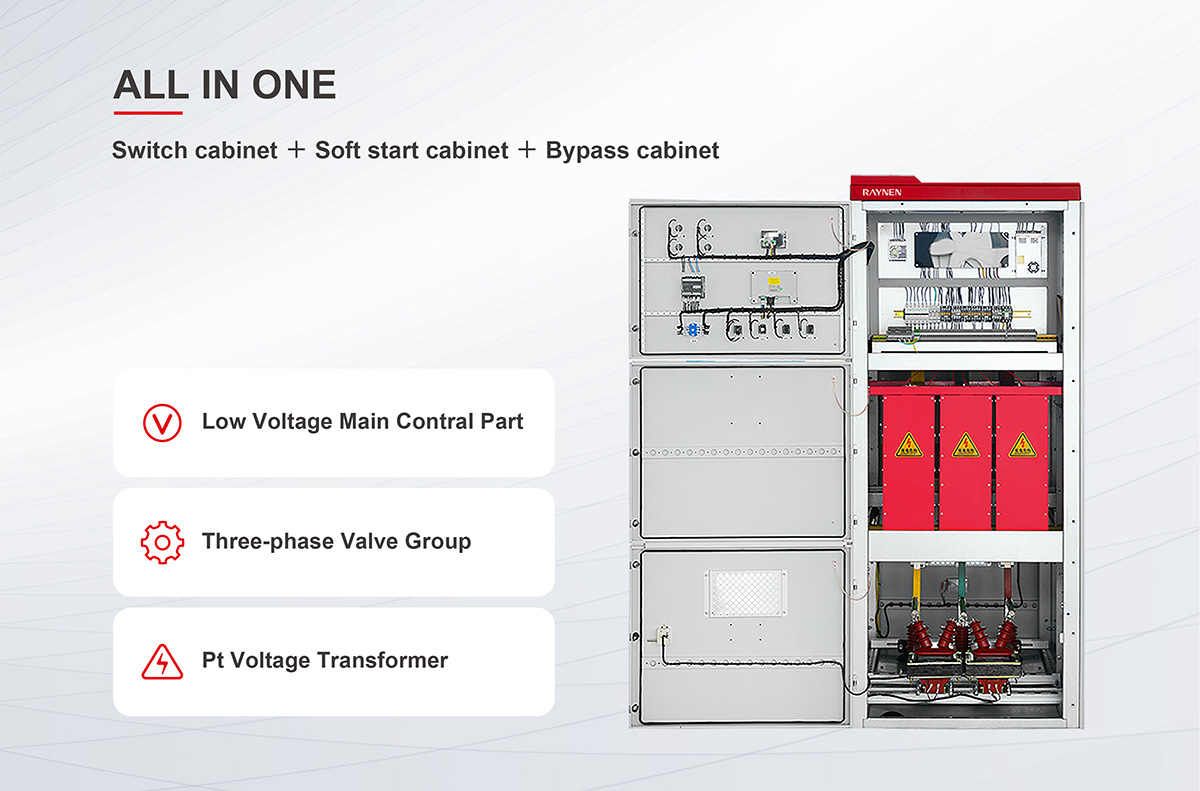

● Standard kyn28 cabinet, designed strictly In accordance with protection standards

● Fiber optic trigger

● PT acquisition mode, More stable than electronic mode

● Comply with international high Voltage electrical specifications

● High voltage part and low-voltage part are Completely isolated safe and reliable

● Scalable lot interface

Specifications

	Parametric
	Model	RSE1000-6-420 ~ RSE1000-6-4150
	Rated Voltage	6kV
	Prated (kW)	420/630/800/1250/1600/2500/3300/4150
	Rated current (A)	50/75/96/150/200/300/400/500
	Size (WHD mm)	100023001500

	Modular design for easy installation and maintenance. The insulation strength is furtherenhanced
	Easy to install, debug and use: RVS is a complete motorstarting control and protection system. Allows electrical testing of the entire system using low voltage before running at high voltage.
	7-inch touchscreen LCD panel is used to make programming and parameter adjustment more convenient. The fault and real-time monitoring are more intuitive and improve the work efficiency
	program encryption settings

Working Principle Diagram

Model Nomenclature

6kV Rated Voltage Medium Voltage Soft Starter Selection Table

Model	Rate voltage ( kV )	Rated power ( kW )	Rated current ( A )	Dimensions (WHD) mm
Model	Rate voltage ( kV )	Rated power ( kW )	Rated current ( A )	(-G) Genenal type	(-E) Integration Type
RSE1000-6-420	6	420	50	100023001500	100023001500
RSE1000-6-630	6	630	75	100023001500	100023001500
RRSE1000-6-800	6	800	96	100023001500	100023001500
RSE1000-6-1250	6	1250	150	100023001500	100023001500
RSE1000-6-1600	6	1600	200	100023001500	-
RSE1000-6-2500	6	2500	300	100023001500	-
RSE1000-6-3300	6	3300	400	100023001500	-
RSE1000-6-4150	6	4150	500	100023001500	-
RSE1000-6-5000	6	5000	600	Customizable	-

10kV Rated Voltage Medium Voltage Soft Starter Selection Table

Model	Rate voltage ( kV )	Rated power ( kW )	Rated current ( A )	Dimensions (WHD) mm
Model	Rate voltage ( kV )	Rated power ( kW )	Rated current ( A )	(-G) Genenal type	(-E) Integration Type
RSE1000-10-420	10	420	30	100023001500	100023001500
RSE1000-10-630	10	630	45	100023001500	100023001500
RSE1000-10-800	10	800	60	100023001500	100023001500
RSE1000-10-1250	10	1250	90	100023001500	100023001500
RSE1000-10-1600	10	1600	110	100023001500	100023001500
RSE1000-10-1800	10	1800	130	100023001500	100023001500
RSE1000-10-2250	10	2250	160	100023001500	-
RSE1000-10-2500	10	2500	180	100023001500	-
RSE1000-10-2800	10	2800	200	100023001500	-
RSE1000-10-3500	10	3500	250	100023001500	-
RSE1000-10-4000	10	4000	280	100023001500	-
RSE1000-10-4500	10	4500	320	100023001500	-
RSE1000-10-5500	10	5500	400	100023001500	-
RSE1000-10-6500	10	6000	430	100023001500	-
RSE1000-10-7000	10	7000	500	100023001500	-
RSE1000-10-8500	10	8500	600	Customizable	-
RSE1000-10-10000	10	10000	720	Customizable	-
RSE1000-10-15000	10	15000	1080	Customizable	-

Technical Data

Basic parameters
Load type	Three-phase medium voltage squirrel cage asynchronous motor, synchronous motor
Working frequency	50HZ/60Hz±2Hz
phase sequence	Allowed to work in any phase sequence (it can be set by parameters)
Bypass contactor	Contactor with direct starting capacity
Control power	AC220V±15%
Overvoltage protection	DV/DT absorption
Starting frequency	ambient temperature: -20℃~+50℃
Environment condition	1-6 times per hour
	Relative humidity: 5% - 95% non-condensing
	The altitude shall be less than 1500m

HMI
Language	English / Chinese / Russian

Instrument display
Voltmeter	Display three-phase main power supply voltage
Ammeter	Display three-phase main circuit current

Protection function
Phase failure protection	During startup or operation, disconnect any phase of the main power supply
Overcurrent protection	over current protection set: 100~500%
Phase current unbalance protection	20~100%
Overload protection	Overload protection level:10A,20A,30A
Undervoltage protection	Range：50~100%
	Action time：0~10S
Starting timeout	Starting time limit：10~120S
Overvoltage protection	When the main power supply voltage is higher than 120% of the rated value
Underload protection	When the main power supply voltage is lower than 70% of the rated value
Grounding protection	When the grounding current is greater than the set value

Communication
Protocol/interface	Modbus RTU
Network connections	Each RVS can communicate with 32 RVSs online
Function	Observe operation status and programming

Data record
Failure record	Record the fault information of the last 1000 times

Product Applications
