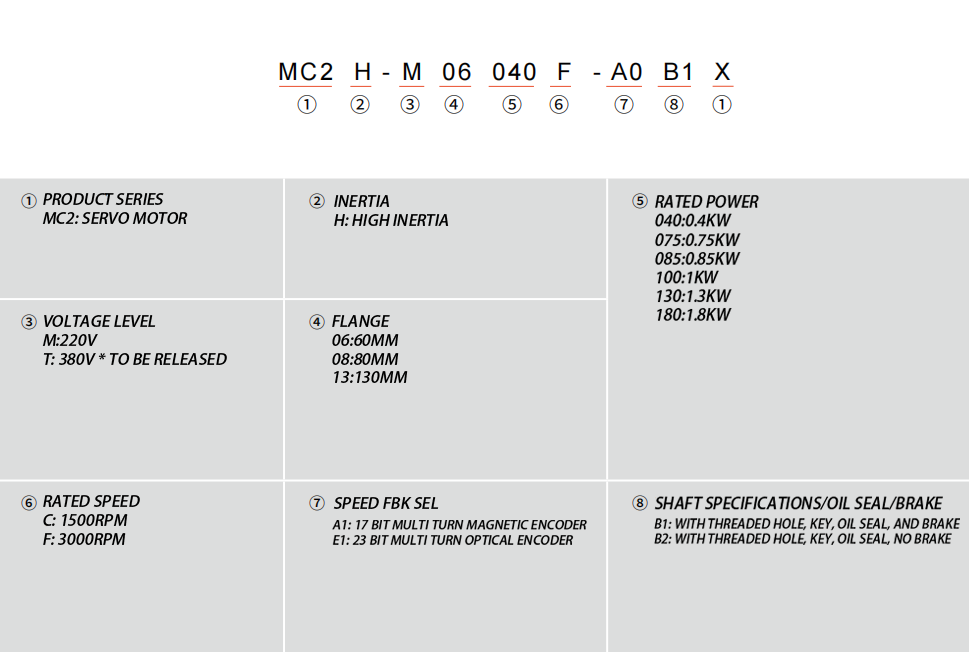

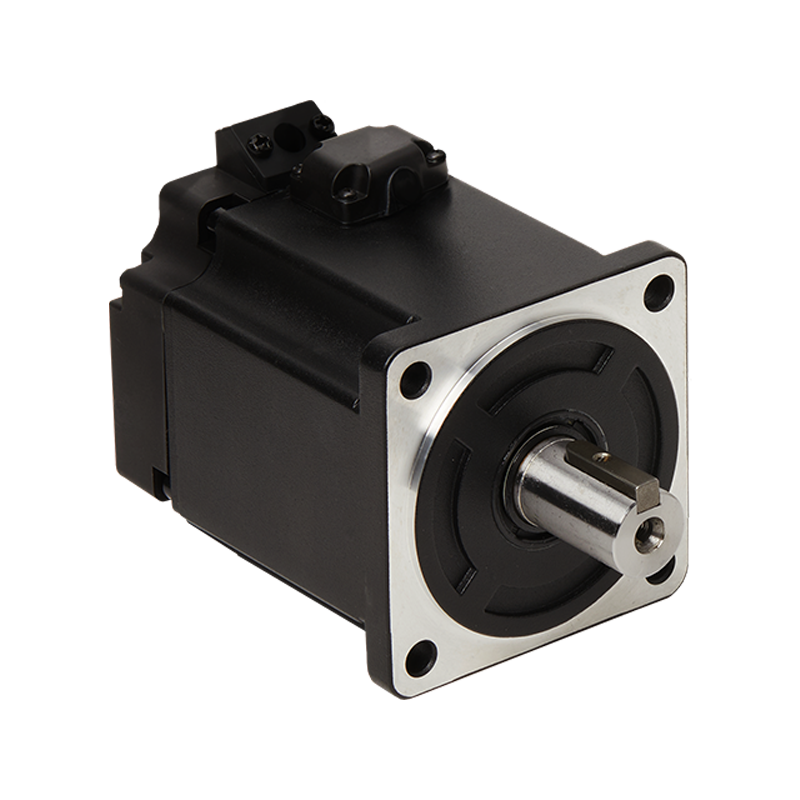

MC2Y Series Naming Rules

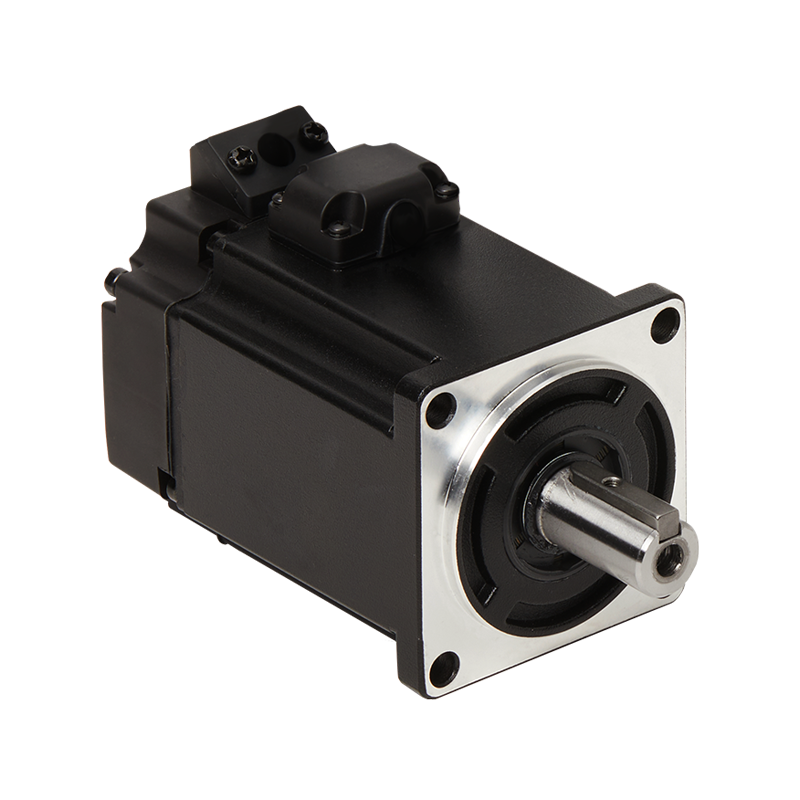

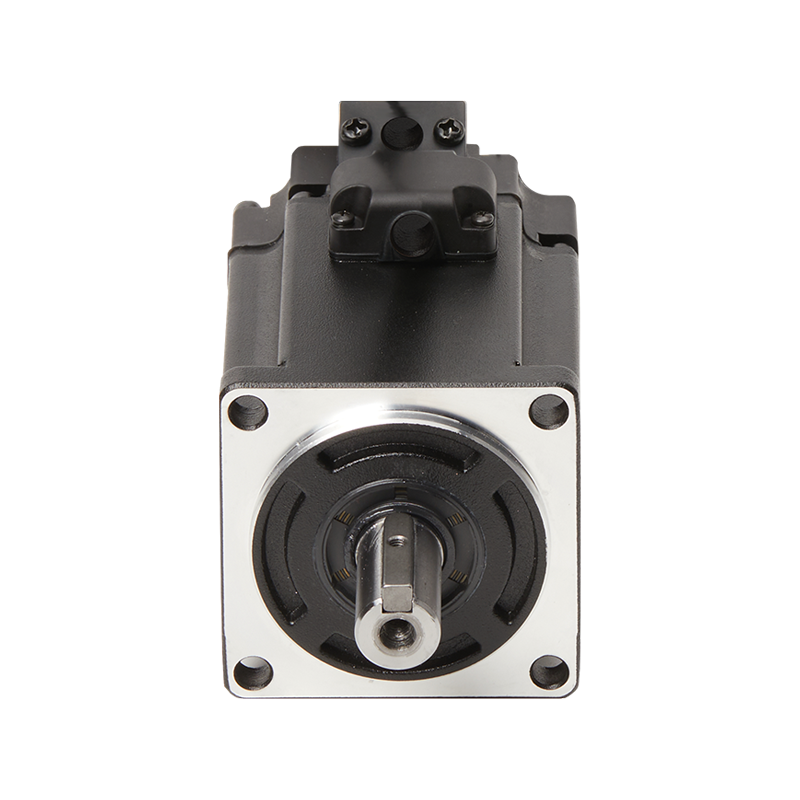

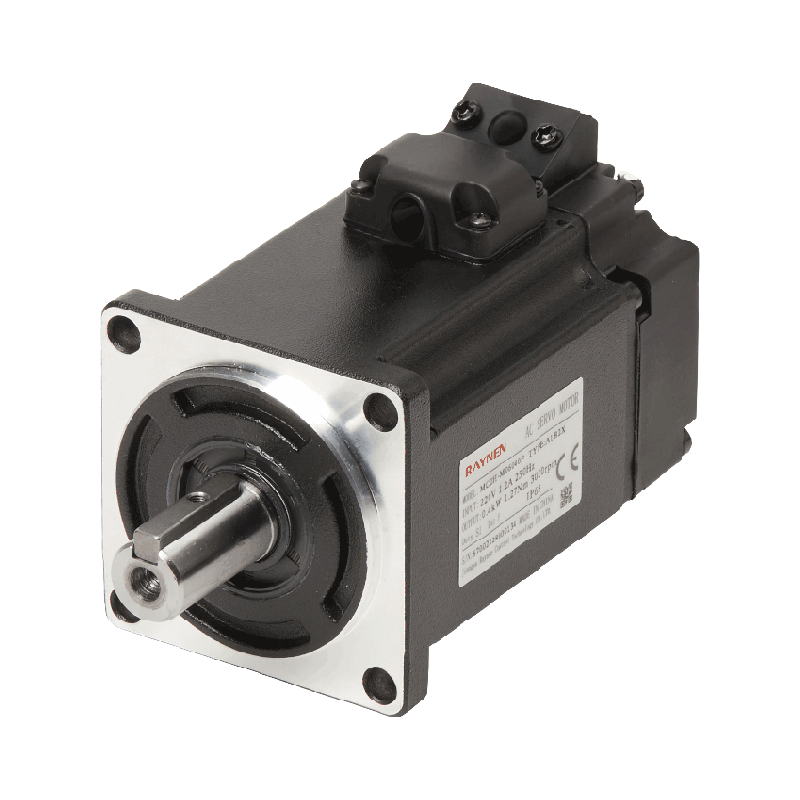

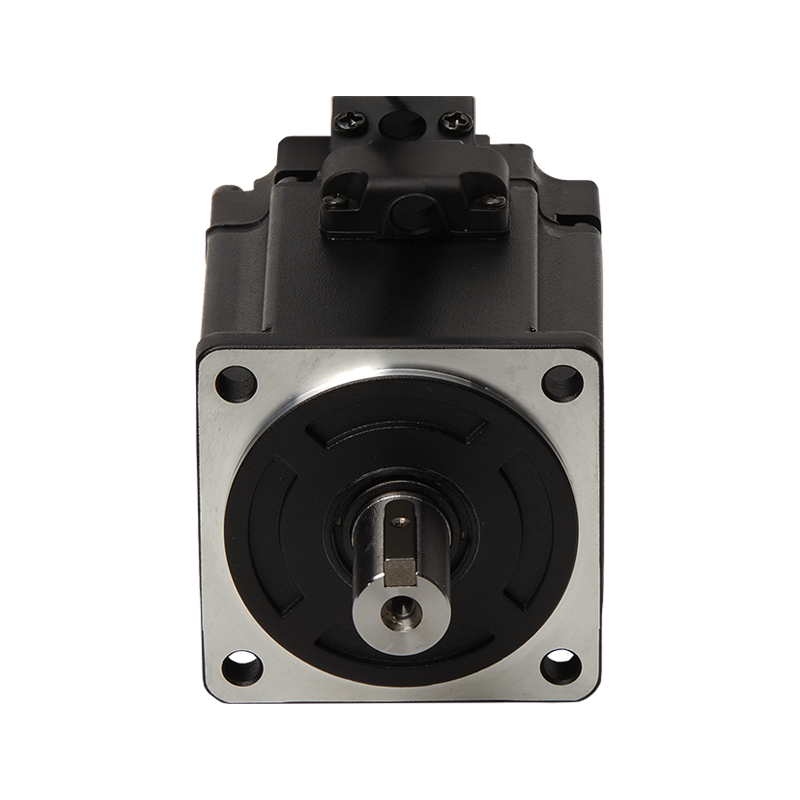

MC2X series servo motor-60 flange
| Project | Motor parameters | |
| Motor model | MC2H-M06040F-□□□□X | |
| Inertia level | tall | |
| Voltage (V) | 220 | |
| Flange (mm) | 60 | |
| Wiring type | Terminal type | |
| Rated power (kW) | 0.4 | |
| Rated torque (N · m) | 1.27 | |
| Instantaneous maximum torque (N · m) | 3.81 | |
| Rated current (Arms) | 2.2 | |
| Instantaneous maximum current (Arms) | 6.6 | |
| Rated speed (rpm) | 3000 | |
| Maximum speed (rpm) | 6000 | |
| Moment of inertia (kg · cm ²) | 0.49(0.50) | |
|

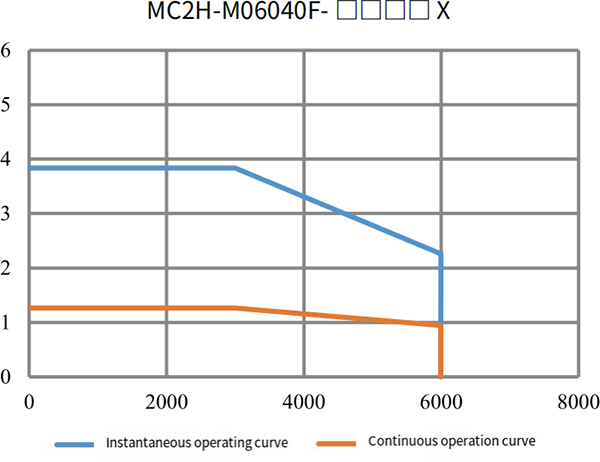

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m) |
 |
|

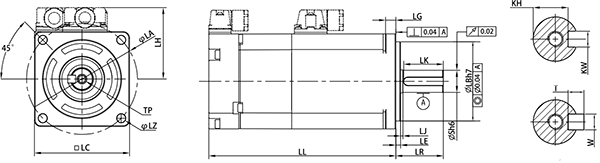

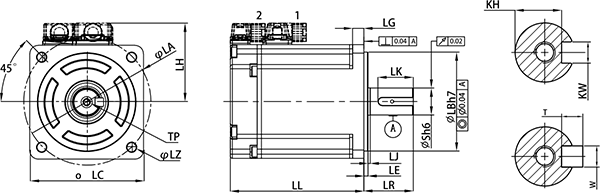

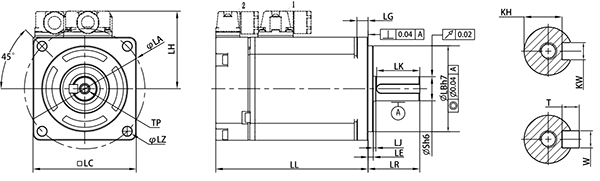

| LL | 89( 119) | |
| LR | 30 | |
| LA | 70 | |
| LZ | 4-φ5.5 | |
| LH | 45.3 | |
| LC | 60 | |
| LE | 3 | |
| S | 14 | |
| LB | 50 | |
| TP | M5×10 | |
| LK | 25 | |
| KH | 11 | |
| KW | 5 | |
| W | 5 | |
| T | 5 | |
| LG | 6.5 | |
| LJ | 1.5 | |
| No holding brake |  |
|
| With brake |  |
|

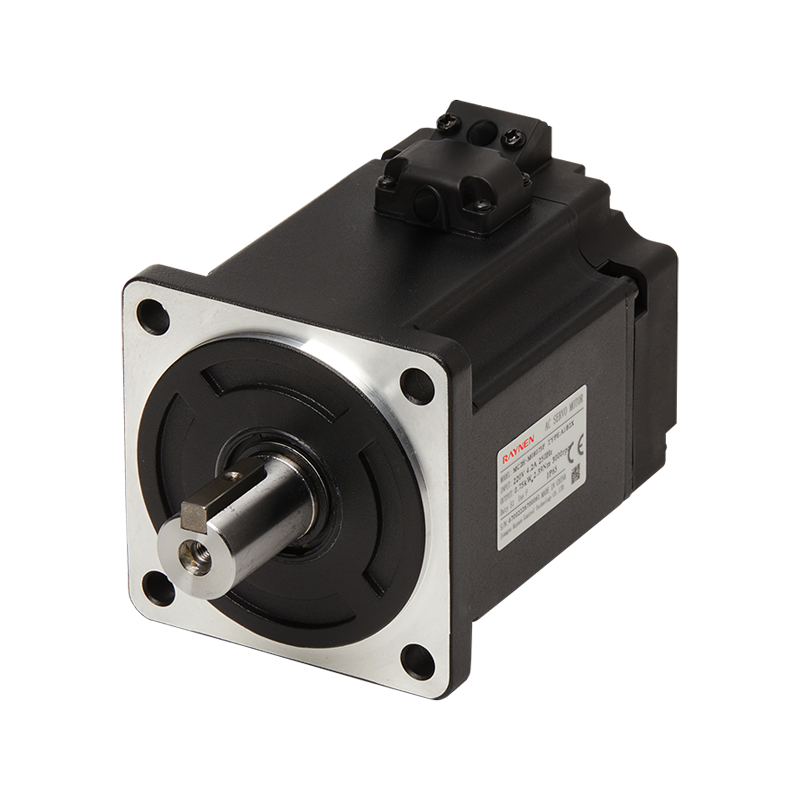

MC2X series servo motor-80 flange
| Project | Motor parameters | |
| Motor model | MC2H-M08075F-□□□□X | MC2H-M08100F-□□□□X |
| Inertia level | tall | tall |
| Voltage (V) | 220 | 220 |
| Flange (mm) | 80 | 80 |
| Wiring type | Terminal type | Terminal type |
| Rated power (kW) | 0.75 | 1 |
| Rated torque (N · m) | 2.39 | 3.18 |
| Instantaneous maximum torque (N · m) | 7.16 | 9.54 |
| Rated current (Arms) | 4.2 | 5.2 |
| Instantaneous maximum current (Arms) | 12.5 | 15.6 |
| Rated speed (rpm) | 3000 | 3000 |
| Maximum speed (rpm) | 6000 | 6000 |
| Moment of inertia (kg · cm ²) | 1.17(1.27) | 1.7( 1.8) |

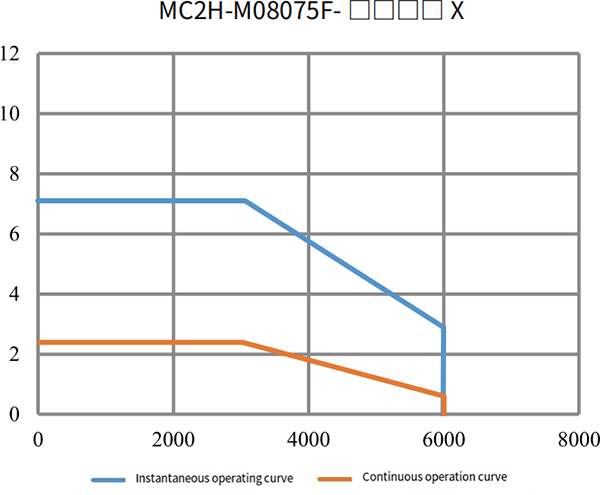

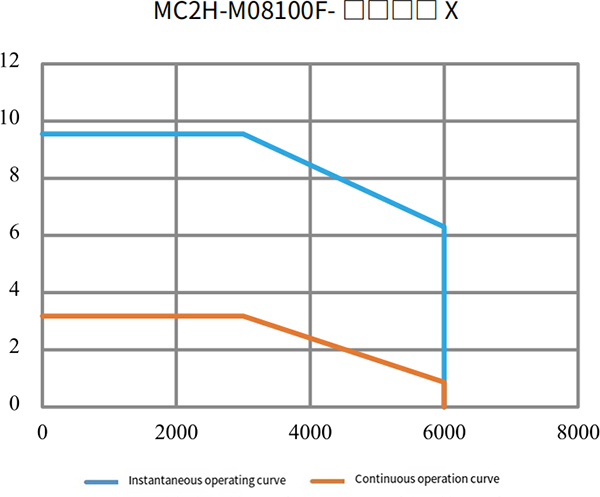

| T-N curve (X-axis: speed rpm) (Y-axis: torque N · m) |  |
 |

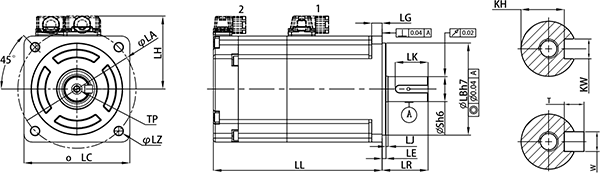

| LL | 96.5(131) | 109(143) |
| LR | 35 | 35 |
| LA | 90 | 90 |
| LZ | 4-φ6.5 | 4-φ6.5 |
| LH | 55.7 | 55.7 |
| LC | 80 | 80 |
| LE | 3 | 3 |
| S | 19 | 19 |
| LB | 70 | 70 |
| TP | M5×10 | M5×10 |
| LK | 25 | 25 |
| KH | 15.5 | 15.5 |
| KW | 6 | 6 |
| W | 6 | 6 |
| T | 6 | 6 |
| LG | 8 | 8 |
| LJ | 1.5 | 1.5 |
| No holding brake |  |
|
| With brake |  |
|

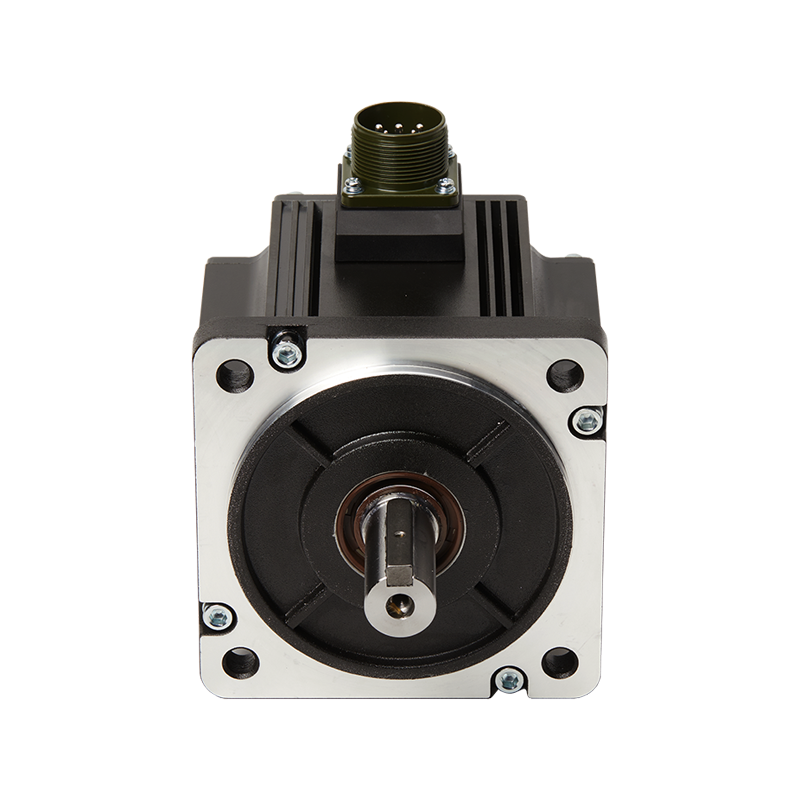

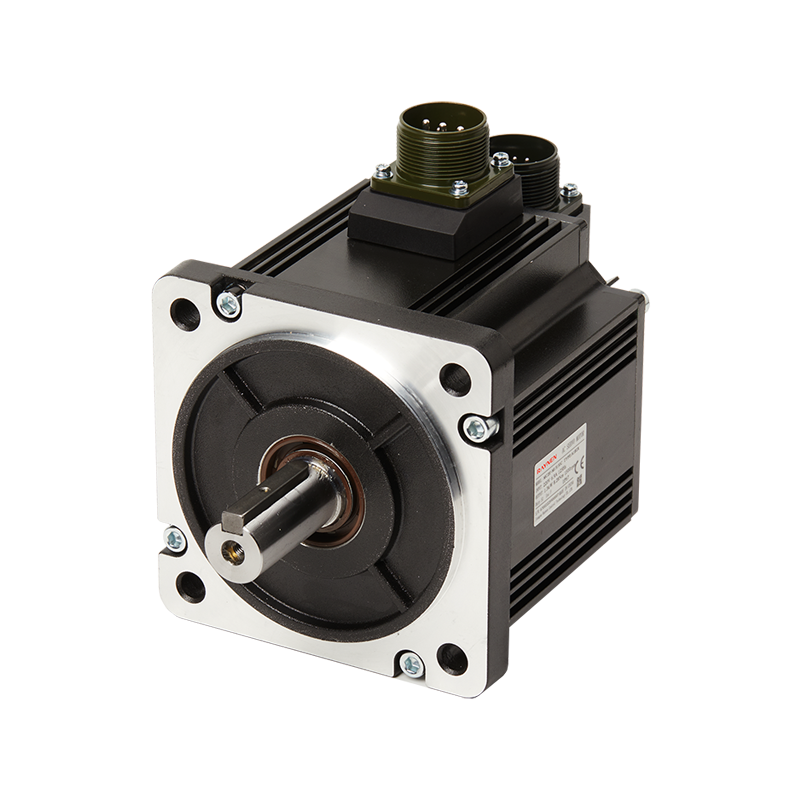

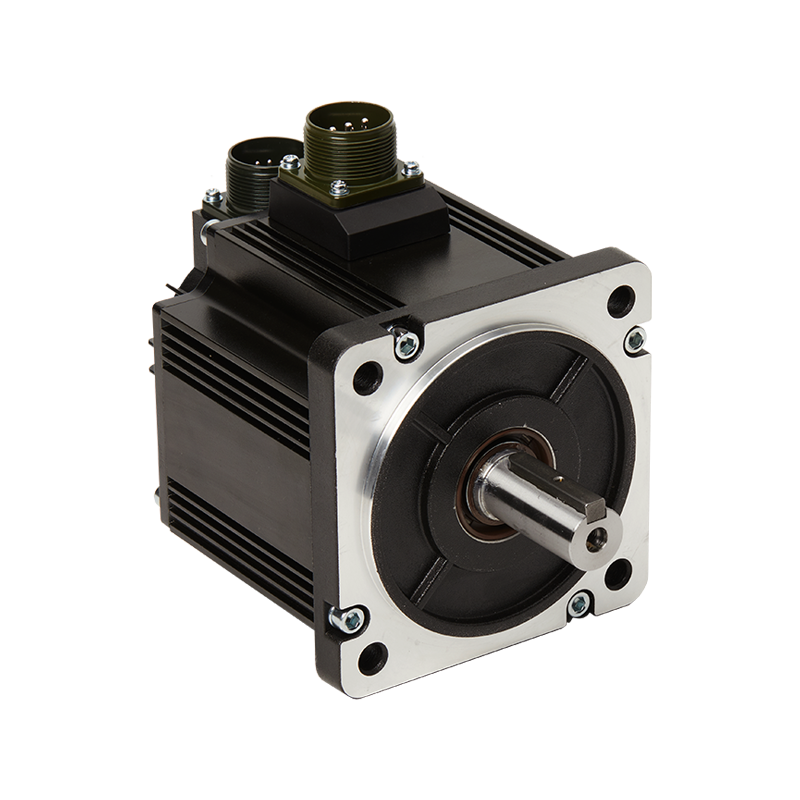

MC2X series servo motor-130 flange
| Project | Motor parameters | ||
| Motor model | MC2H-M13085C-□O□□X | MC2H-M13130C-□O0□X | MC2H-M13180C-□00□X |
| Inertia level | tall | tall | tall |
| Voltage (V) | 220 | 220 | 220 |
| Flange (mm) | 130 | 130 | 130 |
| Wiring type | Aviation plug-in type | Aviation plug-in type | Aviation plug-in type |
| Rated power (kW) | 0.85 | 1.3 | 1.8 |
| Rated torque (N · m) | 5.41 | 8.28 | 11.46 |
| Instantaneous maximum torque (N · m) | 16.23 | 24.83 | 34.38 |
| Rated current (Arms) | 5.4 | 6.9 | 10.2 |
| Instantaneous maximum current (Arms) | 16.2 | 20.7 | 30.6 |
| Rated speed (rpm) | 1500 | 1500 | 1500 |
| Maximum speed (rpm) | 3000 | 3000 | 3000 |
| Moment of inertia (kg · cm ²) | 8.73(10.83) | 14.13(16.23) | 19.14(21.24) |

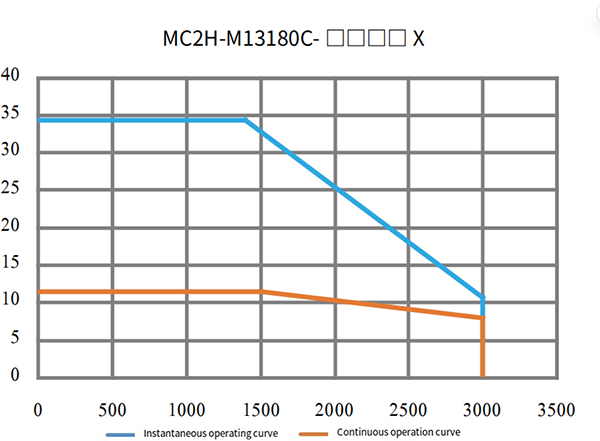

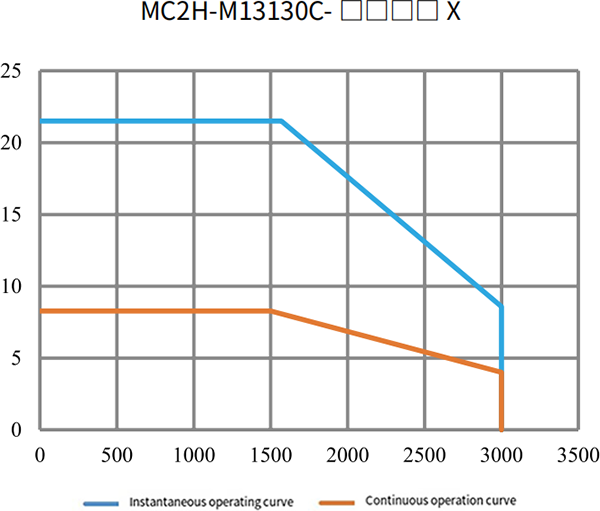

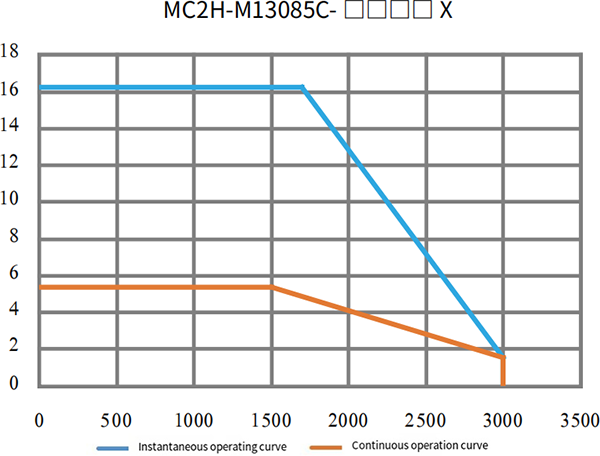

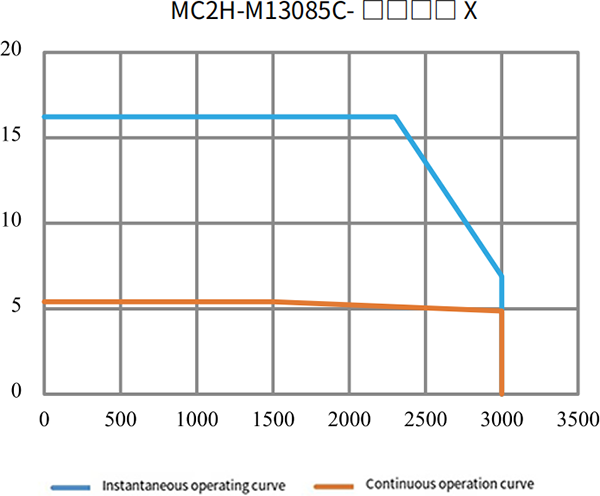

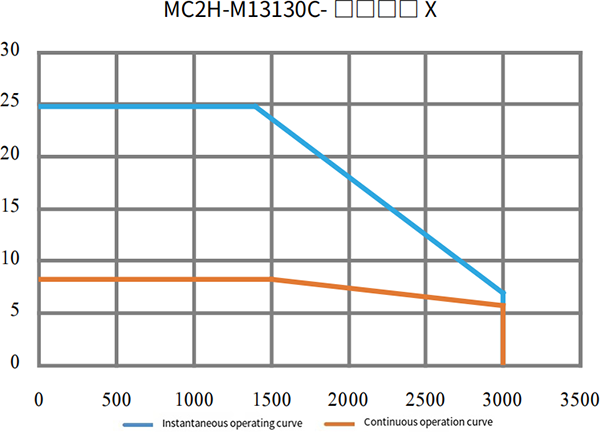

| T-N curve (X-axis: speed rpm) (Y-axis: torque N · m) |  |
 |
 |

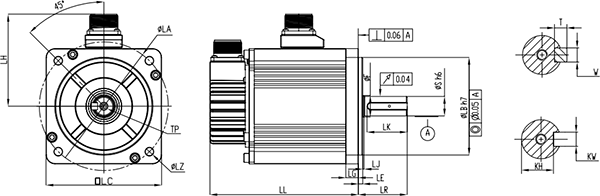

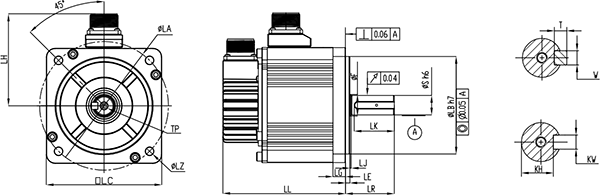

| LL | 138(167) | 151(171) | 161(181) |
| LR | 55±1 | 55 | 55 |
| LA | 145 | 145 | 145 |
| LZ | 4-φ9 | 4-φ9 | 4-φ9 |
| LH | 103 | 103 | 103 |
| LC | 130 | 130 | 130 |
| LE | 5 | 6 | 6 |
| S | 22 | 22 | 22 |
| LB | 110 | 110 | 110 |
| TP | M6×22 | M6×22 | M6×22 |
| LK | 45 | 45 | 45 |
| KH | 18 | 18 | 18 |
| KW | 8 | 8 | 8 |
| W | 8 | 8 | 8 |
| T | 7 | 7 | 7 |
| LG | 14 | 14 | 14 |
| LJ | 1.5±0.75 | 1.5 | 1.5 |
| F | 24.3 | 24.3 | 24.3 |
| No holding brake |  |
||
| With brake |  |
||
| Project | Motor parameters | ||
| Motor model | MC2H-T13085C-□□0□X | MC2H-T13130C-□00OX | MC2H-T13180C-□00OX |
| Inertia level | tall | tall | tall |
| Voltage (V) | 380 | 380 | 380 |
| Flange (mm) | 130 | 130 | 130 |
| Wiring type | Aviation plug-in type | Aviation plug-in type | Aviation plug-in type |
| Rated power (kW) | 0.85 | 1.3 | 1.8 |
| Rated torque (N · m) | 5.41 | 8.28 | 11.46 |
| Instantaneous maximum torque (N · m) | 16.23 | 24.83 | 34.38 |
| Rated current (Arms) | 3.3 | 3.5 | 5.1 |
| Instantaneous maximum current (Arms) | 9.9 | 10.5 | 15.3 |
| Rated speed (rpm) | 1500 | 1500 | 1500 |
| Maximum speed (rpm) | 3000 | 3000 | 3000 |
| Moment of inertia (kg · cm ²) | 8.73(10.83) | 14.13(16.23) | 19.14(21.24) |
|

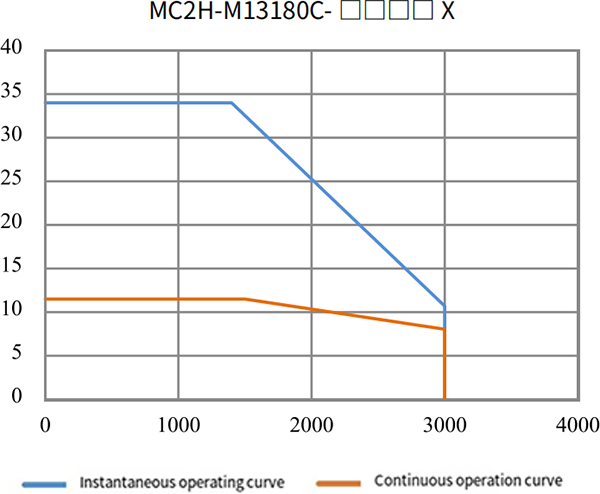

T-N curve (X-axis: speed rpm) (Y-axis: torque N · m) |
 |
 |
 |

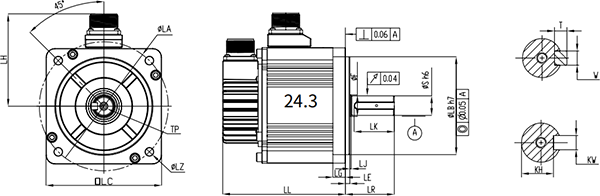

| LL | 138(167) | 154(183) | 170( 199) |
| LR | 55±1 | 55±1 | 55±1 |
| LA | 145 | 145 | 145 |
| LZ | 4-φ9 | 4-φ9 | 4-φ9 |
| LH | 103 | 103 | 103 |
| LC | 130 | 130 | 130 |
| LE | 5 | 5 | 5 |
| S | 22 | 22 | 22 |
| LB | 110 | 110 | 110 |
| TP | M6×22 | M6×22 | M6×22 |
| LK | 45 | 45 | 45 |
| KH | 18 | 18 | 18 |
| KW | 8 | 8 | 8 |
| W | 8 | 8 | 8 |
| T | 7 | 7 | 7 |
| LG | 14 | 14 | 14 |
| LJ | 1.5±0.75 | 1.5±0.75 | 1.5±0.75 |
| F | 24.3 | 24.3 | 24.3 |
| No holding brake |  |
||
| With brake |  |
||
*() with brake parameters inside
