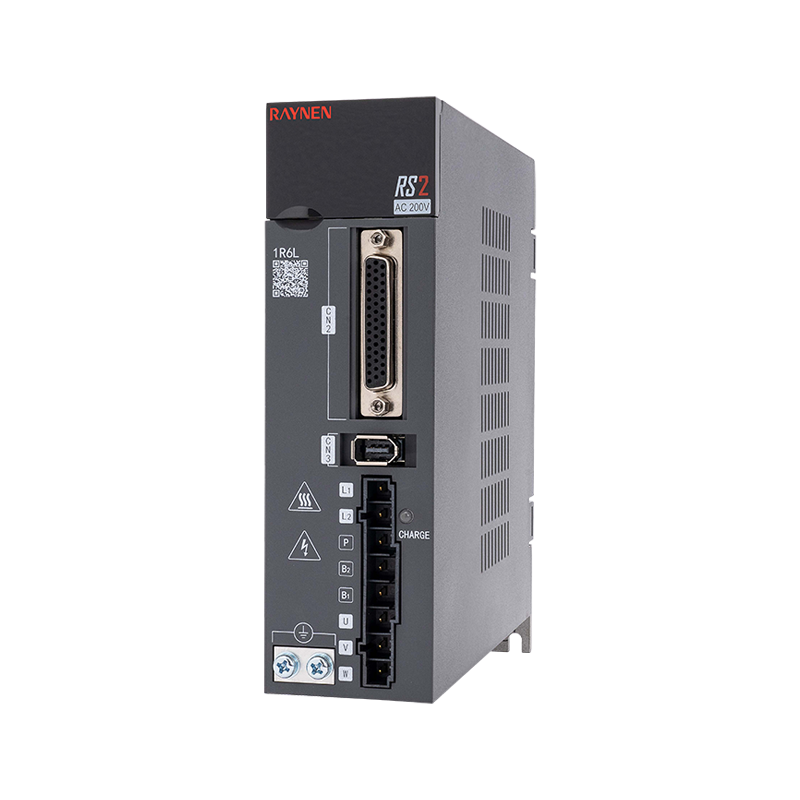

Product Summary
Model Nomenclature
Port Definition
|
|
|
||
|
Size A |
Size B |
||
|
No. |
Name |
No. |
Name |
|
1 |
- |
1 |
- |
|
2 |
Mini USB |
2 |
Mini USB |
|
3 |
CN2 |
3 |
CN2 |
|
4 |
CN3 |
4 |
CN3 |
|
5 |
L1、L2 |
5 |
L1、L2 |
|
6 |
Brake |
6 |
Brake |
|
7 |
U、V、W |
7 |
U、V、W |
|
8 |
Ground screw |
8 |
Ground screw |
|
9 |
CHARGE |
9 |
CHARGE |
|
10 |
CN4/CN5 |
10 |
CN4/CN5 |
|
Description: ① -: Seven-segment digital display ②mini USB: RS232 interface, connected to PC ③CN2: Output/input signal connector, connected to programmable controller (PLC) or control I/O ④CN3: Encoder interface, connected to the encoder on the servo motor ⑤L1, L2: Main circuit power supply, connected to single-phase power supply (200~240VAC, 50/60Hz power supply) ⑥Brake: Use external brake resistor ⑦U, V, W: Servo drive output, connected to motor power connector (U, V, W) ⑧Ground screw: Connect to power ground and motor ground ⑨CHARGE: Power indicator light ⑩CN4/CN5: 485 communication port |
|||
Electrical specifications
|
Single-phase 220V drive electrical specifications |
|||||
|
Item |
Size A |
Size B |
|||
|
Model |
1R6L |
2R8L |
5R5L |
6R6L |
|
|
Power supply capacity [kVA] |
0.5 |
1 |
1.7 |
2 |
|
|
Continuous output current [Arms] |
1.6 |
2.8 |
5.5 |
6.6 |
|
|
Instantaneous maximum output current [Arms] |
5.9 |
9.3 |
16.9 |
17 |
|
|
Main circuit |
Continuous input current [Arms] |
2.4 |
5 |
8.7 |
11 |
|
Main circuit power supply |
Single phase 200~240VAC, -15%~+10%, 50/60Hz |
||||
|
Control loop |
Control circuit power supply |
Busbar power supply, shared power supply input and rectification |
|||
|
Power loss |
Main circuit power loss [W] |
30.5 |
41 |
60.8 |
66.2 |
|
Control circuit power loss [W] |
|||||
|
Braking resistor |
Brake resistor function |
Optional |
|||
|
Resistance value [Ω] |
50 |
50 |
50 |
50 |
|
|
Capacity [W] |
30 |
30 |
50 |
50 |
|
|
External minimum allowable resistance value [Ω] |
50 |
45 |
40 |
40 |
|
|
Cooling method |
Natural cooling |
Air Cooling |
|||
|
Overvoltage level |
OVC III |
||||
Product size
|
Size A |
|||||||||||||||||
|
|
|
||||||||||||||||
|
Size B |
|||||||||||||||||
|
|
|
||||||||||||||||
Wiring Diagram
Note: The figure shows the wiring diagram of the RS2 series Single phase 220V Size A/B. For wiring diagrams of other models, please contact customer service.
