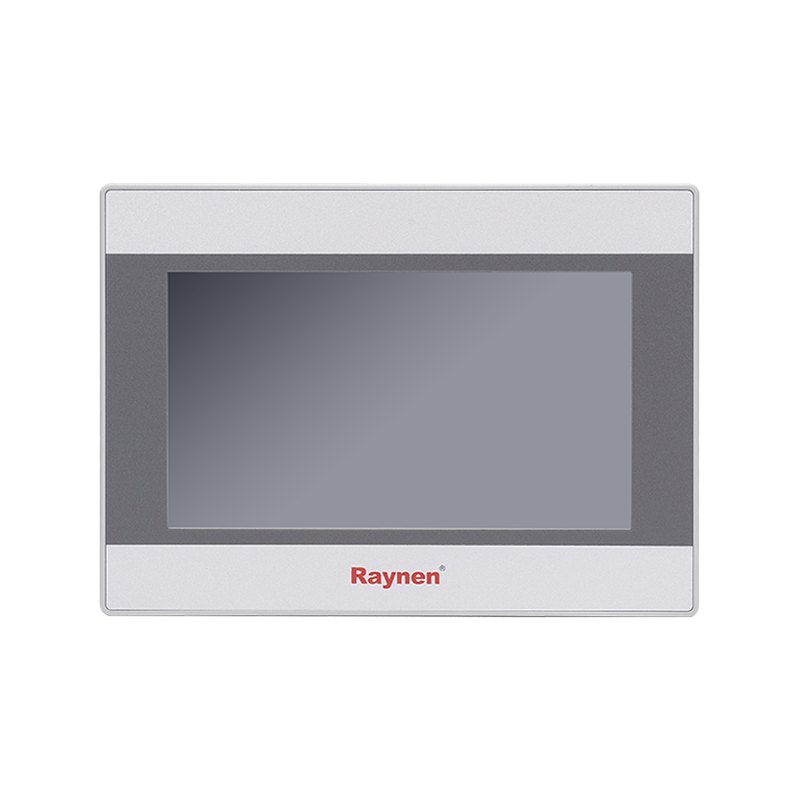

Product Summary
Model Nomenclature
Product size (unit: mm)
 |
 |
Parameter
|
Model |
UHE 410E |
|
|
Order number |
UHE 410-4EU01-0AA0 |
|
|
Performance Specifications |
||
|
LCD |
10" TFT |
|
|
Dispaly Color |
65535 color |
|
|
Resolution |
1024 × 600 |
|
|
Blacklight Type |
LED |
|
|
Brightness |
350cd/m2 |
|
|
LCD Life |
30000 hours |
|
|
Touch type |
4 wires restance type |
|
|
CPU |
1GHz Quad-core main frequency |
|
|
Storage |
256MB FLASH+128MB DDR3 |
|
|

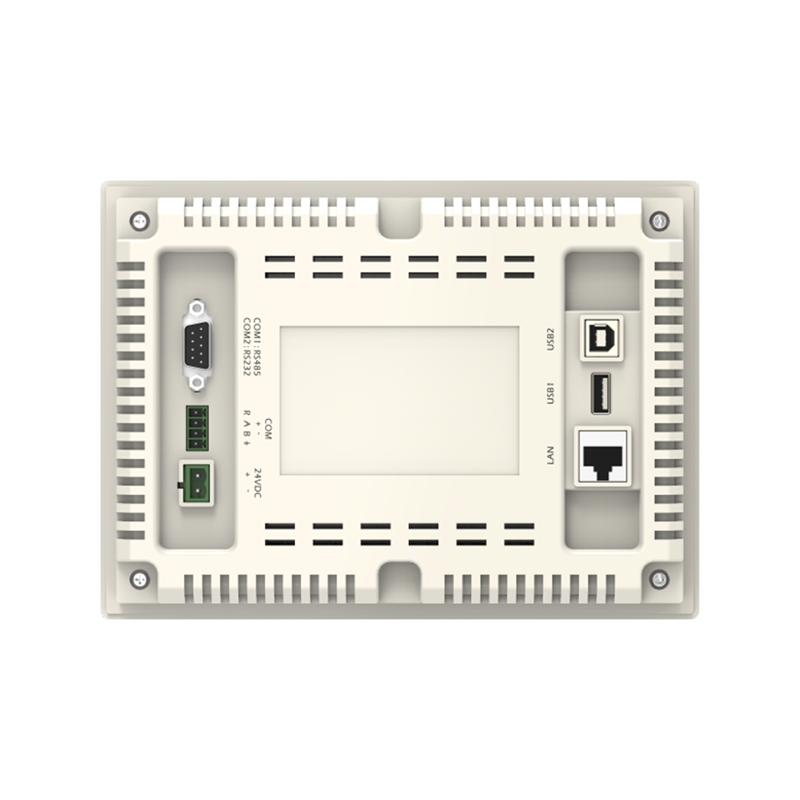

USB Host |
USB2.0 ×1, Type A (USB1), Suport USB updated firmware, configuration and storage data |
|
|
USB Slave |
USB 2.0 x 1，Type B (USB2), Support program up/down load |
|
|
Serial Interface |
COM1: RS485/RS422 COM2: RS232 COM3: RS485 |
|
|
Ethernet |
10M/100M self-adaption |
|
|
DB9 |
Male connector |
|
|
Electrical Specification |
||
|
Rated power |
7.2w |
|
|
Power supply |
24V DC |
|
|
input range |
20.4~28.8V DC |
|
|
Permissive Voltage loss |
10ms |
|
|
Insulation Resistor |
over 50MΩ@500VDC |
|
|
Withstand voltage |
500V AC 1 min |
|
|
Structure |
||
|
Appearance |
Off white |
|
|
Shell material |
ABS+PC plastics, Al sheet |
|
|
Appearance Size |
273x193x32mm |
|
|
Hole Size |
261×180mm |
|
|
Weight |
1.0kg |
|
|
Environment Specification |
||
|
Work Temperature |
0~50℃ |
|
|
Work Humidity |
10~90%RH (non-condensing) |
|
|
Storage Temperature |
-20~60℃ |
|
|
Storage Humidity |
10~90%RH (non-condensing) |
|
|
Seismic performance |
10~25Hz (X、Y、Z direction 2G/30 min) |
|
|
Cooling |
Natural air cooling |
|
|
Product Certificate |
||
|
Front panel protection level |
Conform to IP65 certificate (4208-93) |
|
|
CE Certificate |
Conform to CE certificate (EN61000-6-2:2005/EN61000-6-4:2007) |
|
