UH507 Human Machine Interface

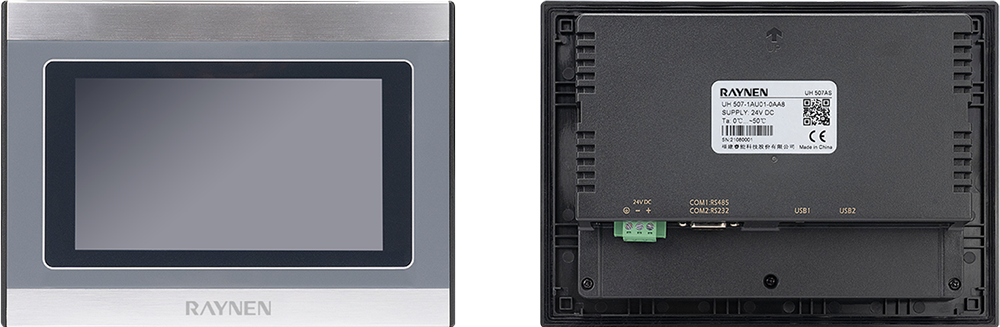

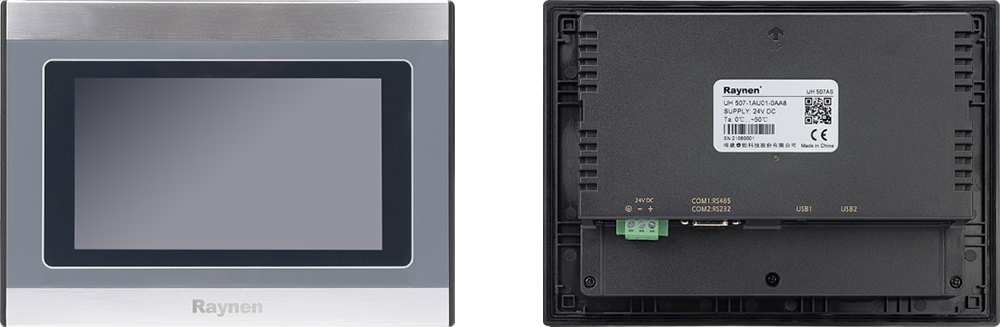

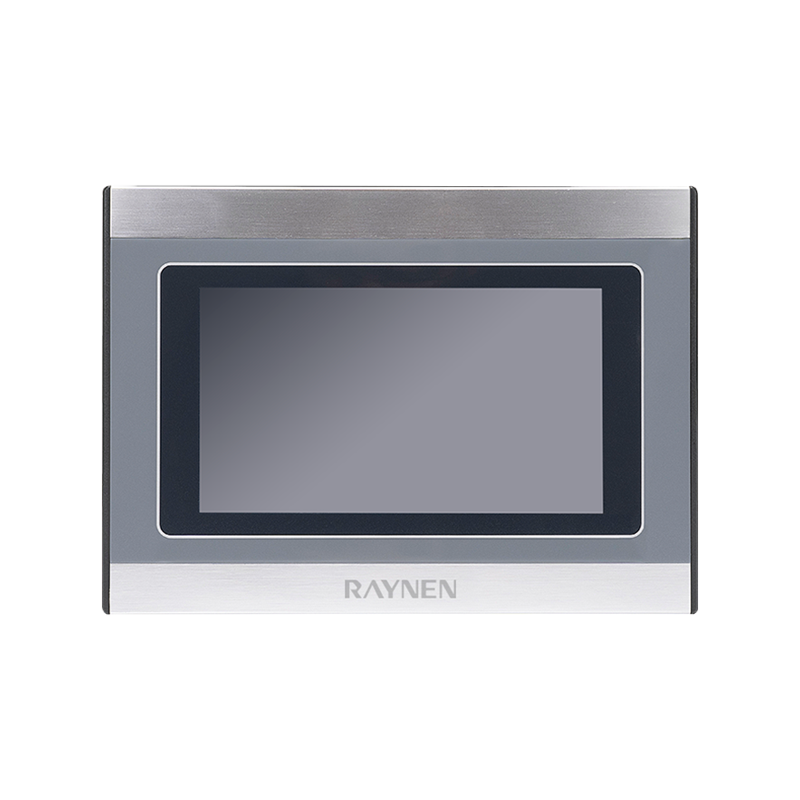

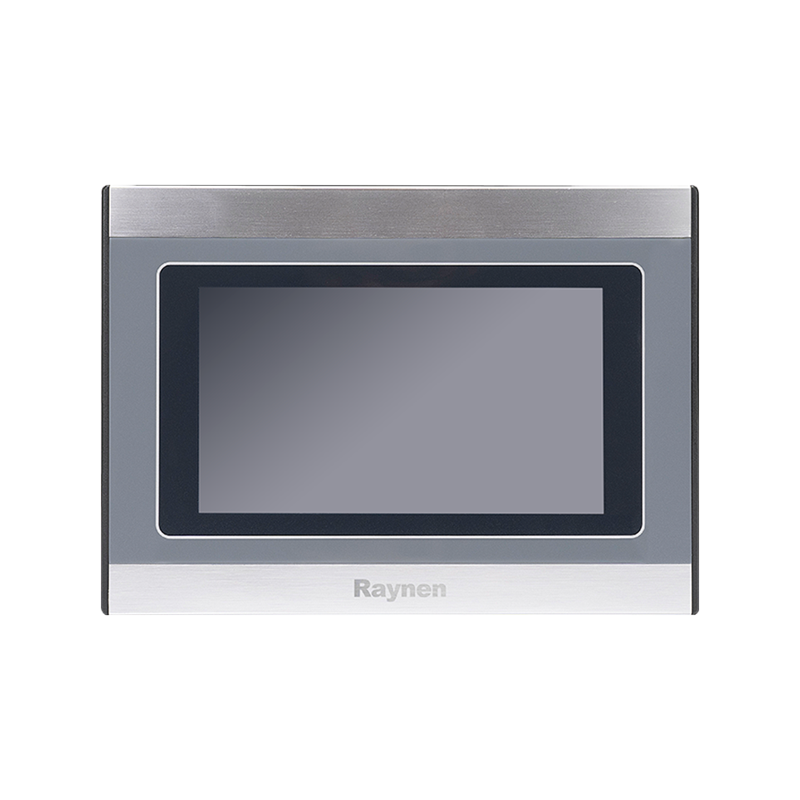

The UH507AS/UH507AE HMI touch panels feature a 7" display, natural air cooling and serial communications. Compliance with international standards, including CE, TUV, ISO 9001, RoHS and ISO 14001, ensures compliance with international safety and environmental standards.

Get A Quote Download

PREV：UH510 Human Machine Interface NEXT：No next article

Parameter
Contact Us

Product Summary

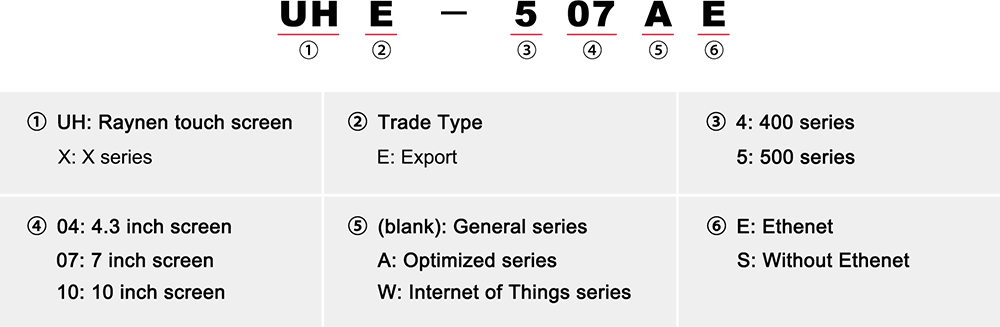

Model Nomenclature

Product size (unit: mm)

Parameter

Model	UHE 507AS		UHE 507AE
Order number	UHE 507-1AU01-0AA8		UHE 507-4AU01-0AA8
Performance Specifications
LCD	7' TFT
Display Color	24-bit color
Resolution	800 × 480
Blacklight Type	LED
Brightness	350cd/m2
LCD Life	30000 hours
Touch type	4 wires restance type
CPU	A8, 600MHz
Storage	256MB FLASH+128MB DDR3
USB Host	USB2.0 ×1, Type A (USB1), Support USB to updated firmware, configuration and data storage
USB Slave	USB2.0 ×1, Type A (USB1), Support USB to updated

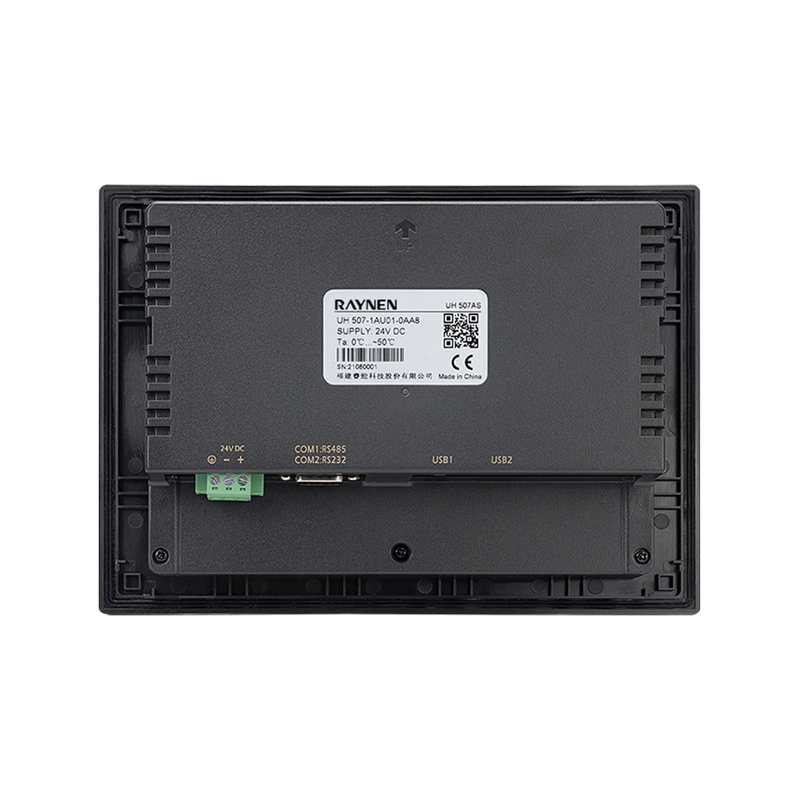

Serial Interface	COM1: RS485 COM2: RS232
Ethernet	Not supported		10M/100M self-adaption
DB9	Male head
Electrical Specification
Rated power		7.2W
Power supply		24V DC
input range		20.4~28.8V DC
Permissive Voltage loss		10ms
Insulation Resistor		over 50MΩ@500VDC
Withstand voltage		500V AC 1 min
Structure
Appearance		Dark grey + silver
Shell material		ABS+PC plastics, Al sheet
Appearance Size		230×166×39mm
Hole Size		192x138mm
Weight		0.75kg
Environment Specification
Work Temperature		0~50℃
Work Humidity		10~90%RH (non-condensing)
Storage Temperature		-20~60℃
Storage Humidity		10~90%RH (non-condensing)
Seismic performance		10~25Hz (X、Y、Z direction 2G/30 min)
Cooling		Natural air cooling
Product Certificate
Front panel protection level		Conform to IP65 certificate (4208-93)
CE Certificate		Conform to CE certificate (EN61000-6-2:2005/EN61000-6-4:2007)
