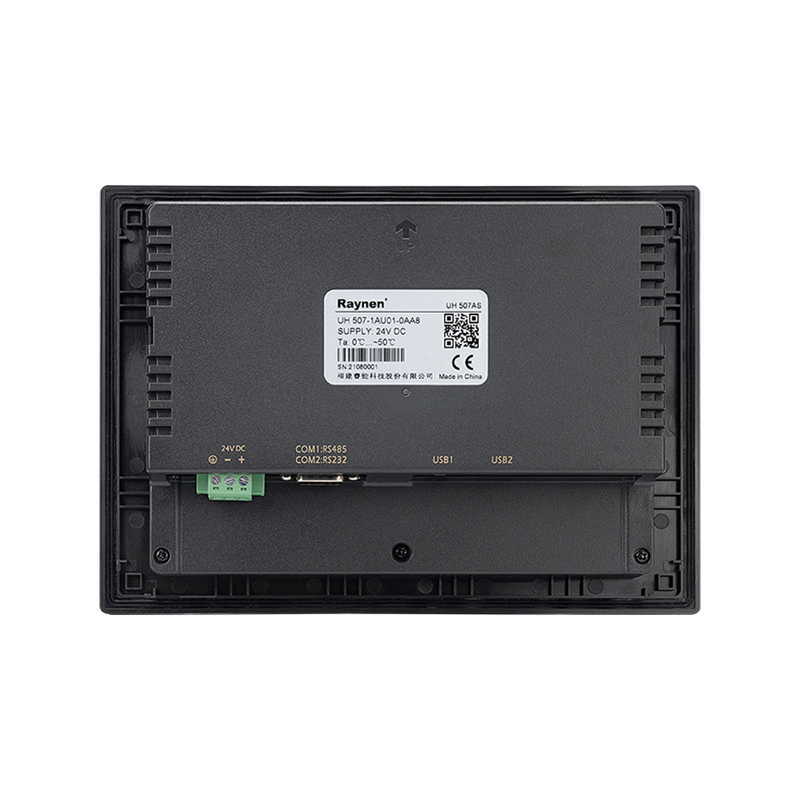

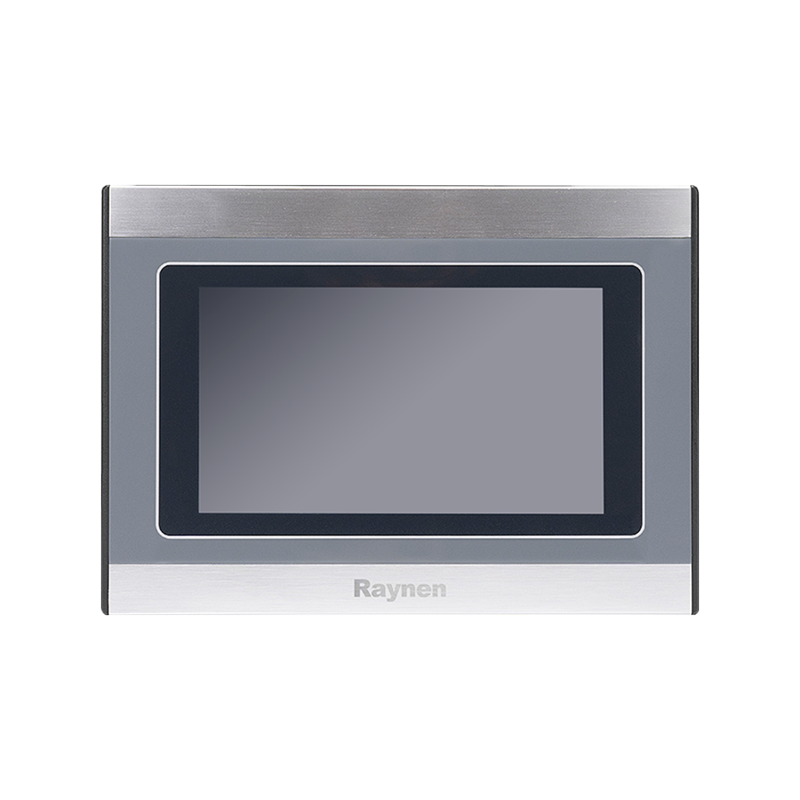

UH510 Human Machine Interface
UH510 Human Machine Interface
UH510 Human Machine Interface
UH510 Human Machine Interface

UH510 Human Machine Interface

UH510AS/UH510AE HMI has a 10-inch display and is suitable for environments with a temperature range of 0~50℃ and a humidity range of 10%~90%RH (non-condensing). It is a universal choice for various industrial environments. 4-wire resistive touch type, processor A8, 600MHz.
Get A Quote Download
PREV：No previous articleNEXT：UH507 Human Machine Interface
  • Parameter
  • Contact Us

  • Product Summary

    Model Nomenclature

    Product size (unit: mm)

    Parameter

    Model

    UHE 510AS

    UHE 510AE

    Order number

    UHE 510-1EU01-0AA8

    UHE 510-4EU01-0AA8

    Performance Specifications

    LCD

    10" TFT

    Display Color

    24-bit color

    Resolution

    1024 × 600

    Blacklight Type

    LED

    Brightness

    350cd/m2

    LCD Life

    30000 hours

    Touch type

    4 wires restance type

    CPU

    A8, 600MHz

    Storage

    256MB FLASH+128MB DDR3

    USB Host

    USB2.0 ×1, Type A (USB1), Support USB to updated firmware, configuration and data storage

    USB Slave

    USB2.0 ×1, Type A (USB1), Support USB to updated

    Serial Interface

    COM1: RS485 COM2: RS232

    Ethernet

    Not supported

    10M/100M self-adaption

    DB9

    Male head

    Electrical Specification

    Rated power

    7.2W

    Power supply

    24V DC

    input range

    20.4~28.8V DC

    Permissive Voltage loss

    10ms

    Insulation Resistor

    over 50MΩ@500VDC

    Withstand voltage

    500V AC 1 min

    Structure

    Appearance

    Dark grey + silver

    Shell material

    ABS+PC plastics, Al sheet

    Appearance Size

    272x212x39mm

    Hole Size

    260×200mm

    Weight

    1.0kg

    Environment Specification

    Work Temperature

    0~50℃

    Work Humidity

    10~90%RH (non-condensing)

    Storage Temperature

    -20~60℃

    Storage Humidity

    10~90%RH (non-condensing)

    Seismic performance

    10~25Hz (X、Y、Z direction 2G/30 min)

    Cooling

    Natural air cooling

    Product Certificate

    Front panel protection level

    Conform to IP65 certificate (4208-93)

    CE Certificate

    Conform to CE certificate (EN61000-6-2:2005/EN61000-6-4:2007)
