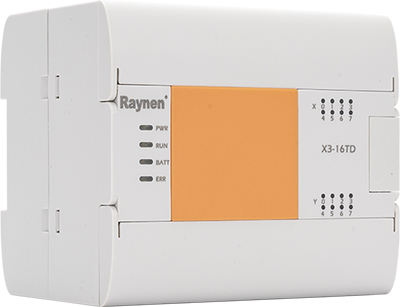

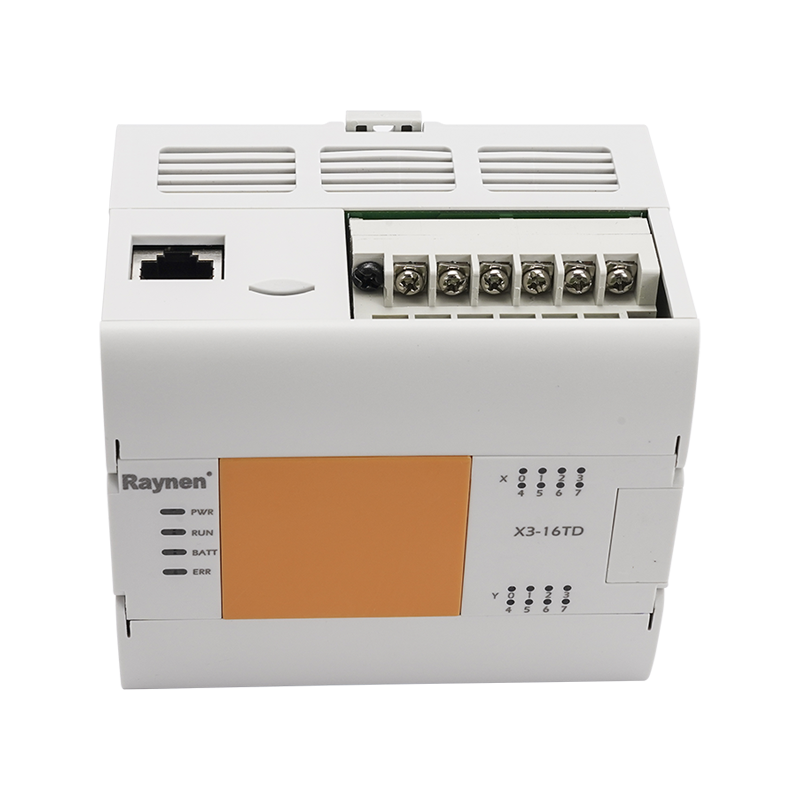

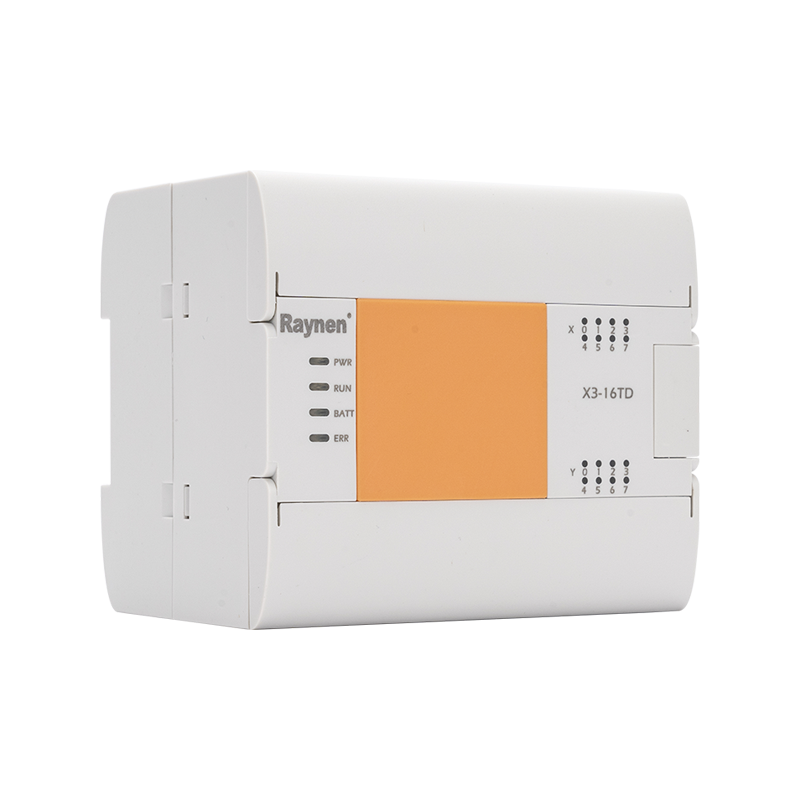

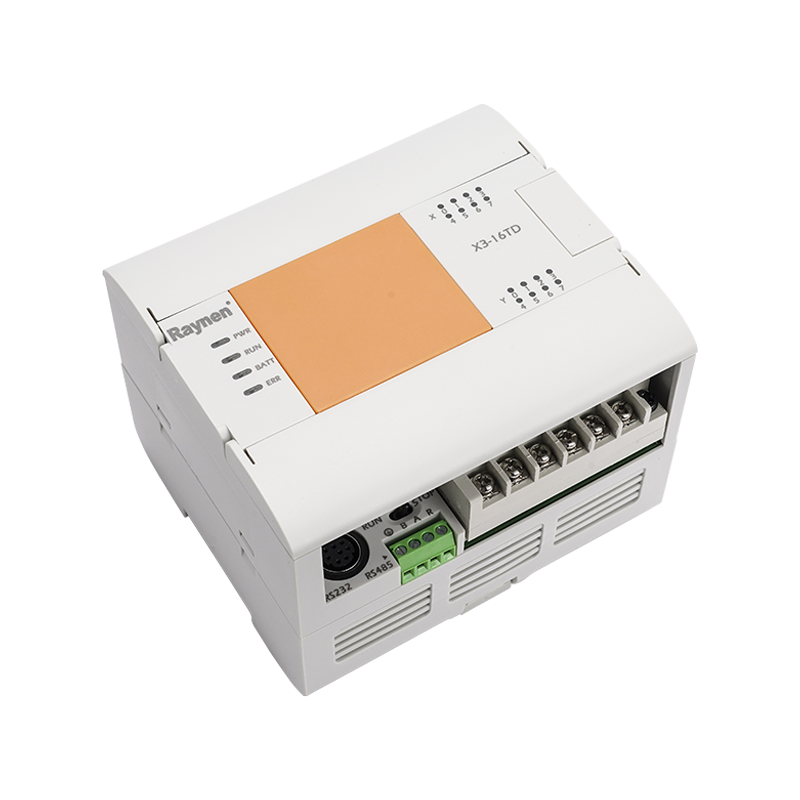

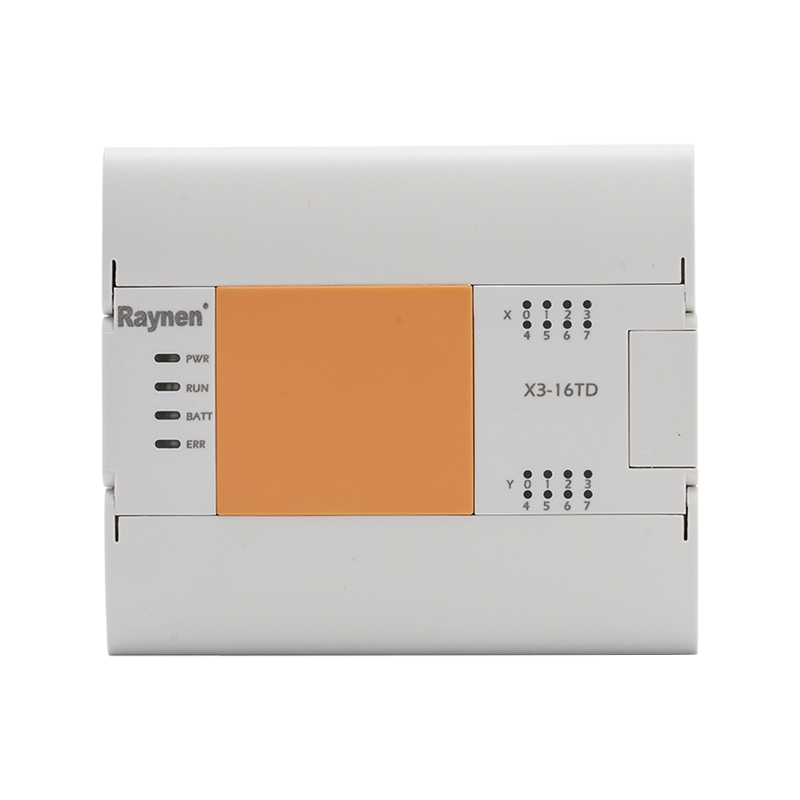

X3 Enhanced PLC

X series PLC is a powerful motion control functional PLC independently developed and designed. Including X1 economic PLC, X2 standard PLC, X3 enhanced PLC, X5 motion control PLC, X6 bus PLC, X relay PLC  and expansion module, BD board. The X series PLC integrates the needs of the industry, responds to the individual needs of customers, enhances the advantages of expansion capabilities, and is the choice for control systems such as OEM equipment, small projects, and Internet of Things smart devices.
Get A Quote Download
PREV：X5 Motion Control PLCNEXT：X2 Standard PLC
  • Parameter
  • Contact Us

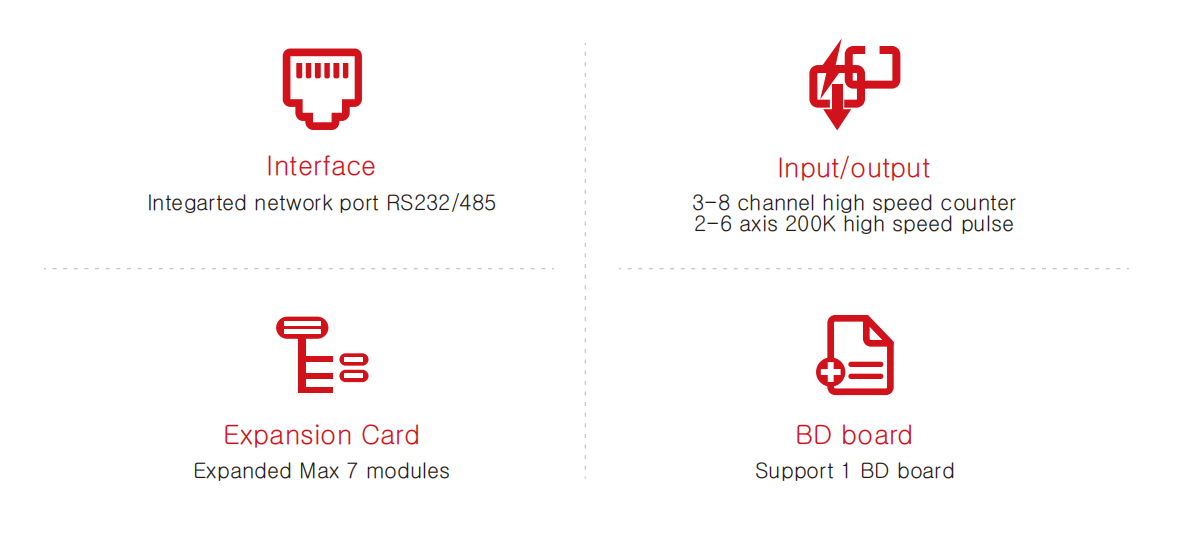

  • X3 series summary

    With 2-6 axis high-speed pulse output, high-speed counting, linear interpolation

    and arc interpolation and other motion control functions;

    Real-time clock, power data permanently saved;

    Max 7 modules can be expanded.

    Advantage

    X3 series parameter

    Item Power Specification
    X3-16TD X3-24TD X3-32TD X3-40TD X3-60TD
    Power consumption 10W 12W 12W 13W 14W
    Power Voltage DC24V
    Voltage range DC 20.4~28.8V
    Allow instantaneous power outage time For transient power outages below 5ms, the operation will continue
    Power fuse 60V 2A
    Impulse current 12A,0.5ms below/28.8V DC
    DC24V given power 300mA below
    DC5V built-in power 800mA below

    Item Input Specification
    X3-16TD X3-24TD X3-32TD X3-40TD X3-60TD
    Input number 8  14  16  24  36
    High-speed counter Single phase
    200KHz[3 pcs]
    AB phase
    100KHz[3 pcs]    		 Single phase 200KHz[4 pcs],
    AB phase 100KHz[4 pcs]    		 Single phase
    200KHz[8 pcs]
    AB phase
    100KHz[4 pcs]
    Input type Sink type/source type
    Input signal voltage DC source type: DC20.4V~28.8V
    Input
    impedance    		 X0-X5 3.3K
    X6-X7 5.6K 3.3K
    X10 above 一 5.6K
    ON input
    inductance
    current    		 X0-X5 5mA above
    X6-X7 4mA 5mA above
    X10 above 一 4mA above
    OFF Input induced current 1mA above
    Input response time <4.5ms
    Input signal form No voltage contact input
    Sink input: NPN open-collector transistor
    Source input: PNP open-collector transistor
    Input loop isolation Optocoupler isolation
    Display of input actions The LED on the panel lights up when the optocoupler is driven

    Item Transistor output specification
    X3-16TD X3-24TD X3-32TD X3-40TD X3-60TD
    Output number 8  10  16  16  24
    Pulse frequency( Max) Single-ended 2-axis 200K Single-ended 4-axis 200K Single-ended 6-axis 200K
    Output type Transistor/drain output
    External power supply DC5~30V
    Max load  Resistive load 0.5A/way
     Inductive load 12W/DC24V
    Lamp load 5W/DC24V
    Mid load 5mA(DC5~24V)
    Response
    time    		 OFF→ON High speed: 5μs below/10mA above(DC5~24V)
    Common: 0.2ms below/200mAabove(DC24V)
    ON→OFF High speed: 5μs below/10mA above(DC5～24V)
    Common: 0.2ms below/200mAabove(DC24V)
    Loop isolation Optocoupler isolation
    Display of output actions The LED on the panel lights up when the optocoupler is driven

    X3 series: software component resources

    Item Conten
    Input relay X 256 point X0~X377
    Output relay Y 256 point Y0~Y377
    Auxiliary relay M 7680 point MO~Latch start (Set the power off non-hold area)
    Latch start~latch end (Set power hold area, Max M1023)
    Latch End~M7679(Fixed power hold area)
    Special auxiliary relay SM 512 point SM8000~SM8511
    Status relay S 4096 point S0~S4095
    timer T 200 point T0~T199(100ms Time base)
    T192~T199(Subroutine specialization)
    46 point T200~T245(10ms time base)
    4 point T246~T249(1ms Cumulative type)
    6 point T250~T255(100ms Cumulative type)
    256 point T256~T511(1ms time base)
    Counter 16-bit 200 point C0~C199
    Counter 32-bit 56 point C200~C234
    High Speed counter - C235~C255
    Data register D 8000 point D0~D7999
    Special data register SD 512 point SD8000~SD8511
    Index register 16 point V0~V7,Z0~Z7
    Expansion register 32768 point R0~R32767
    Pointer 4096 point P0~P4095
    Interrupted 6 point 100*~150*Input interrupt
    3 point 16**~18**Timing interrupt
    6 point 1010~1060 High-speed counter interrupt
    Master control with nesting 8 point N0~N7
    constant K - 16 bit range:-32768~+32767,32 bit range:-2147483648~+2147483647
    constant H - 16 bit range:0~FFFF,32 bit range:0~FFFFFFFF
    Real number(E) - -3.40×10⁻³⁸~-1.17×10⁻³⁸,1.17x10⁻³⁸~3.40×10³⁸
    Character string -

    The maximum length of a half-corner character framed by""is 32 characters

    X3 series high-speed counter

     Distribution
    Input    		 Single-phase single counter Single-phase double counter AB Phase counter
    C235 C236 C237C 238| C239 C240 C241 C242 C243 C244 C245 C246 C247 C248 C249 C250 C25 C252 C253 C254 C255
    XO U/D U/D U U  A A
    X1 U/D R D D  B B
    X2 U/D U/D U R  R A
    X3 U/D R D S B
    X4 U/D S U U A
    X5 U/D U/D D D B
    X6 U/D R R A
    X7 U/D S S B

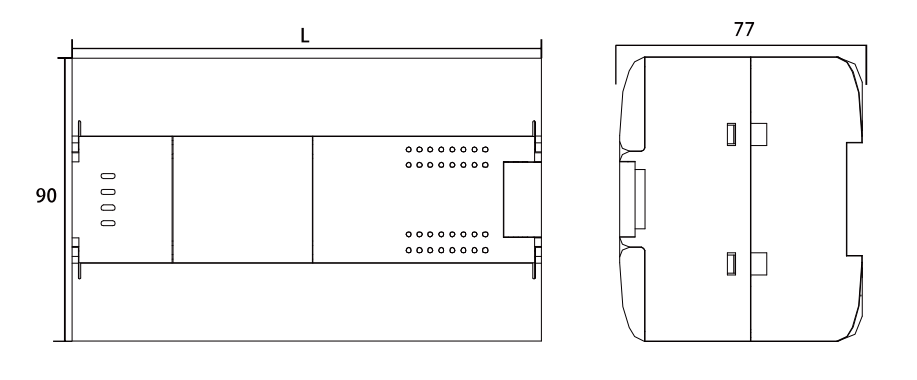

    X3 series size

    PLC model L
    X3-16TD-E0 104
    X3-24TD-E0 132
    X3-32TD-E0 150
    X3-40TD-E0 165
    X3-60TD-E0 210

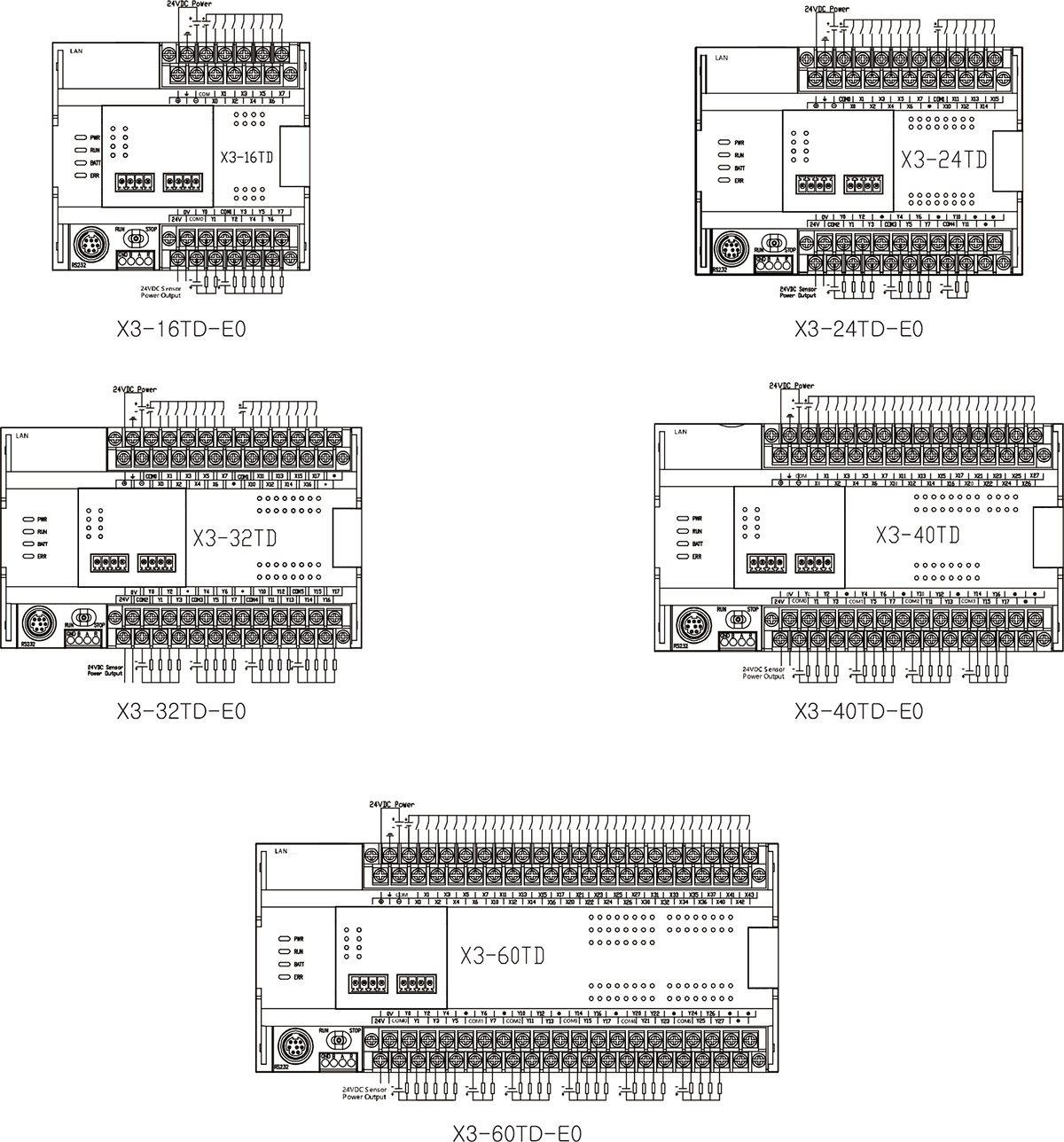

    X3 series wire drawing
