BD Expansion Module

The RTC battery circuit has been newly optimized and features a high-performance power supply solution and low-power circuit architecture, which greatly improves power supply life and stability, enabling long-term operation without battery replacement and providing a solid guarantee for the long-term reliable operation of the equipment.

Get A Quote Download

PREV：Expansion Module NEXT：XM3L Standard Series

Parameter
Contact Us

Product Summary

	• The XM series compact PLC s are widely used in high-speed, high-precision, and high-response scenarios such as photovoltaics, lithium batteries, 3C electronics, semiconductors, logistics, packaging, textiles, and special machine tools.
	• The RS485 serial port has high transmission stability

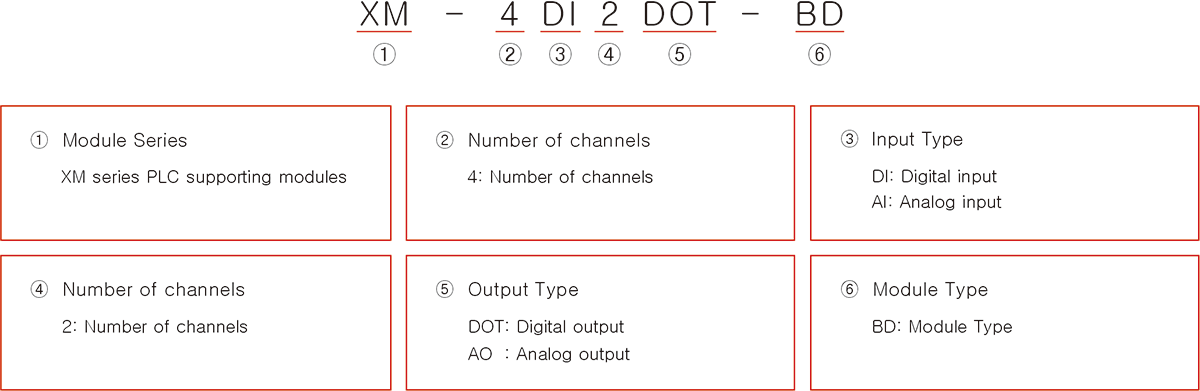

Model Nomenclature

Key Technical Indicators of BD Digital Module

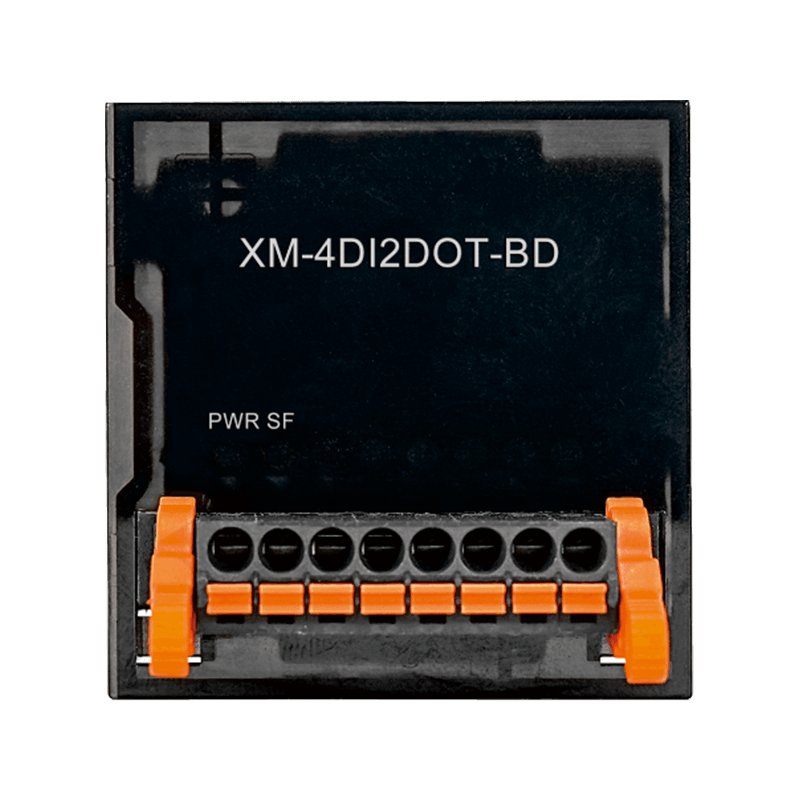

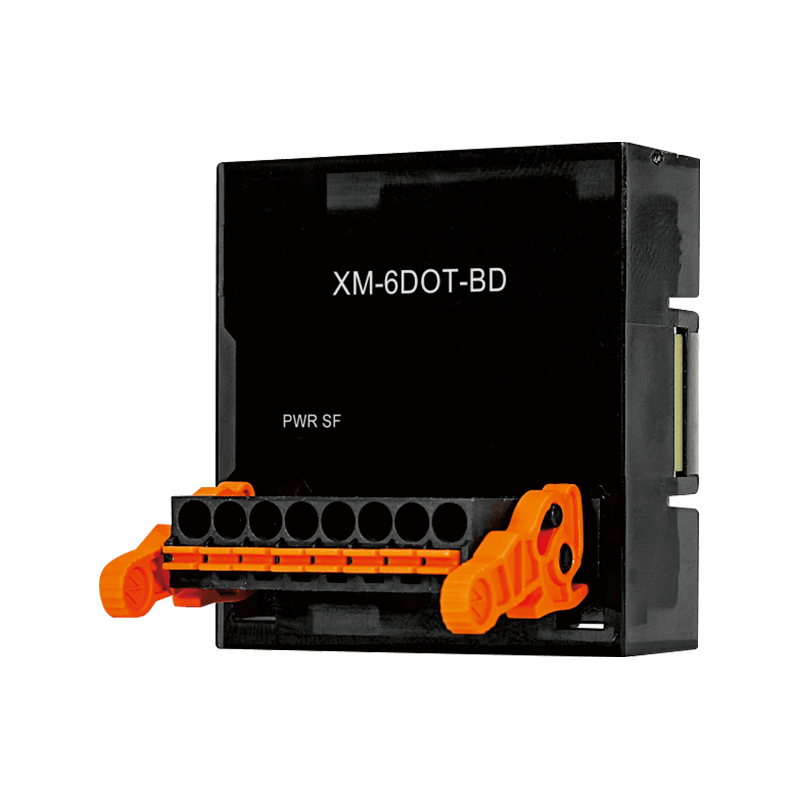

Specifications	XM-6DI-BD	XM-6DOT-BD	XM-4DI2DOT-BD
Module Description	6-point input module	6-point input module	4-input, 2-output hybrid module
Input Type	NPN/PNP	—	NPN/PNP
Output Type	—	NPN	NPN
Isolation Method	Optocoupler isolation	Optocoupler isolation	Optocoupler isolation
Response Frequency	200Hz	200Hz	200Hz
Input Current	4mA (24V typical)	—	4mA (24V typical)
Output Current	—	500mA (Max)	500mA (max)
Hot Swap	Not supported
Ambient Temperature	-10°C ~ 60°C (horizontally mounted) -10°C ~ 40°C (vertically mounted)
Storage Temperature	-20°C ~ 80°C
Ambient Humidity	5% ~ 95% RH (non-condensing)
Noise Resistance	Noise suppression, compliant with IEC61000-6-2, IEC60068, Part 2-6/10 up 58Hz

Key Technical Indicators of BD Analog Module

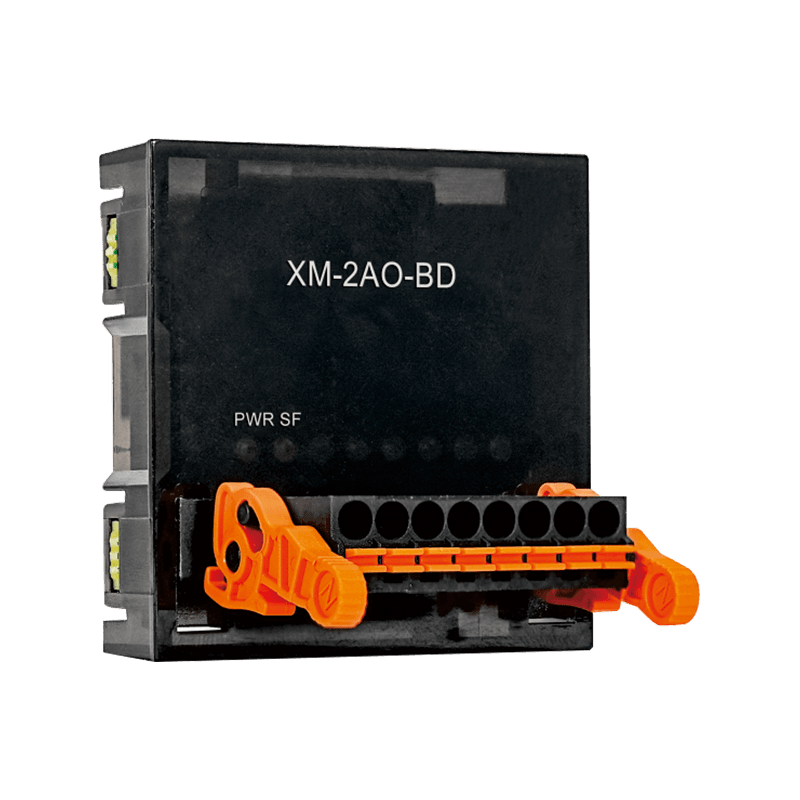

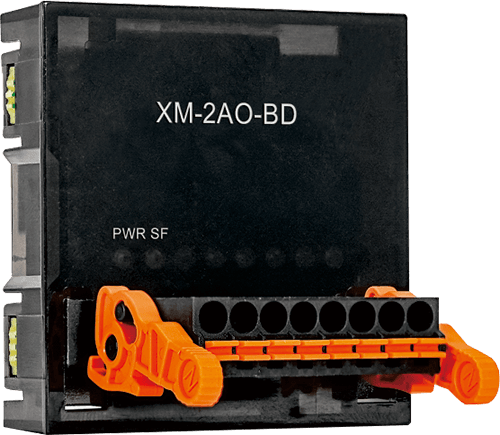

Specifications	XM-4AI-BD	XM-2AO-BD	XM-2AI1AO-BD
Input/Output Mode	Current	Voltage/Current	Voltage/Current
Resolution	12 bit	12 bit	12 bitt
Voltage Range	—	0~10	0~10V (output only) -10V~10V
Voltage Sampling Impedance	—	＞100KΩ	＞5KΩ
Voltage Accuracy	±1% (25°C, full scale) / ±2% (full temperature threshold, full scale)
Current Range	0~20mA		0~20mA (output only)
Current Sampling Impedance	＜0.5kΩ
Current Input Accuracy	±2% (25°C, full scale) / ±3% (full temperature threshold, full scale)
Hot Swappable	Not supported
Ambient Temperature	-10°C ~ 60°C (horizontal installation) -10°C ~ 40°C (vertical installation)
Storage Temperature	-20°C ~ 80°C
Ambient Humidity	5% ~ 95% RH (non-condensing)
Noise Resistance	Noise suppression, compliant with IEC61000-6-2, IEC60068, Part 2-6/10 up 58Hz
