Expansion Module

Expansion module equipped with high-precision linear/circular interpolation function, it can realize high-precision real-time interpolation of straight lines and arc trajectories under multi-axis linkage, ensuring the fitting accuracy of complex trajectories and the synchronization of axis linkage, and is suitable for high-precision control scenarios such as precision machining and high-end CNC.

Get A Quote Download

PREV：No previous article NEXT：BD Expansion Module

Parameter
Contact Us

Product Summary

	• It supports digital/analog expansion, is compatible with various expansion modules, flexibly connects to peripherals, and provides stable signal transmission and accurate conversion, greatly improving device compatibility and scenario adaptability.
	• 200KHz high-speed pulse output.

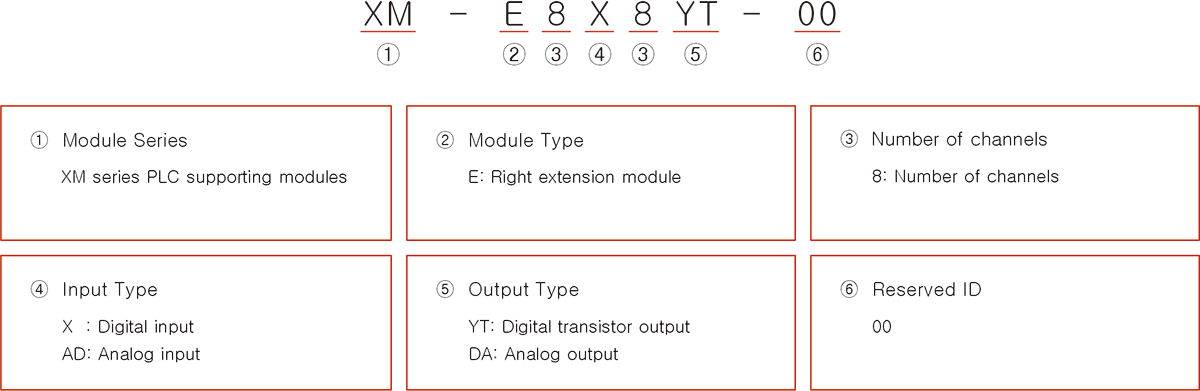

Model Nomenclature

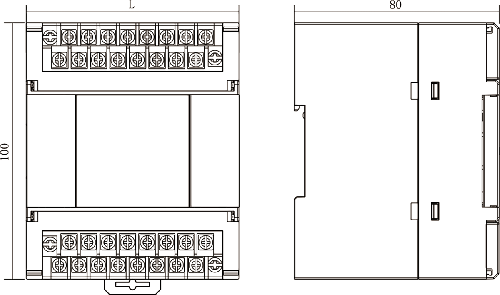

Product Size (unit: mm)

	PLC model	L
	XM-E16X-00	83
	XM-E16YT-00	83

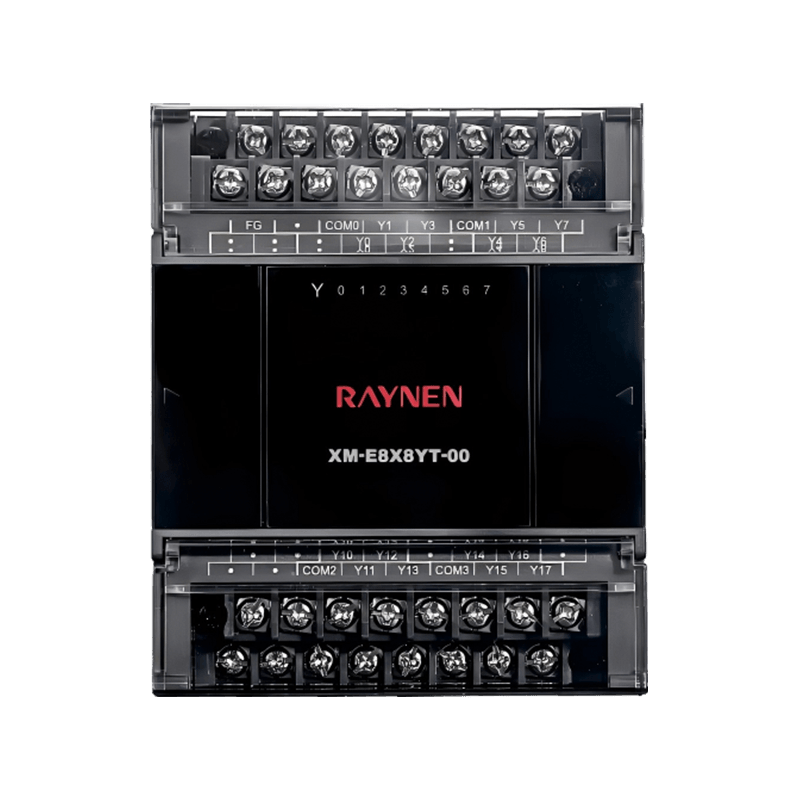

	XM-E8X8YT-00	83
	XM-E4AD-00	83
	XM-E4DA-00	83

Xpansion Digital Module Basic Technical Specifications

Specifications	XM-E16X-00	XM-E16YT-00	XM-E16YT-00
Module Description	16-point input module	16-point output module	8-input/8-output hybrid module
Input Type	NPN	—	NPN
Output Type	—	NPN	NPN
Isolation Method	Optocoupler isolation	Optocoupler isolation	Optocoupler isolation
Response Frequency	10 kHz	10 kHz	10 kHz
Input Current	4 mA (typical at 24V)	—	4 mA (typical at 24V)
Output Current	—	500 mA	500 mA
Hot Swappable	Not supported
Dimensions	8310080mm
Ambient Temperature	-10°C ~ 60°C (horizontally mounted); -10°C ~ 40°C (vertically mounted)
Storage Temperature	-20°C ~ 80°C
Ambient Humidity	5% ~ 95% RH (non-condensing)
Noise Resistance	Noise suppression, compliant with IEC61000-6-2, IEC60068, Part 2-6/10 up 58Hz
