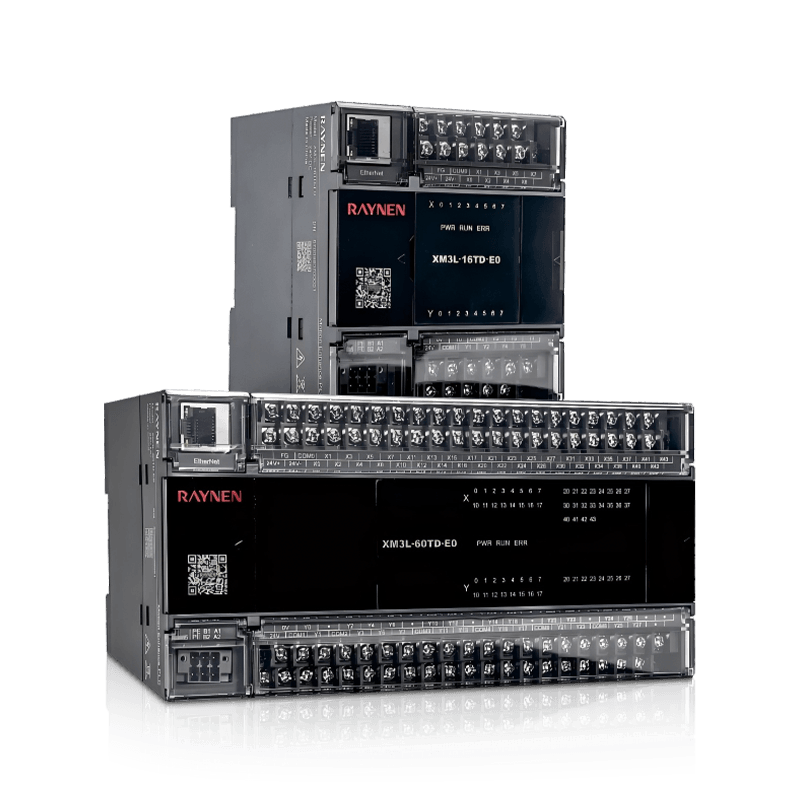

XM3L Standard Series

The XM3L standard series Ethernet ports are equipped with dedicated status indicator lights, which can intuitively reflect the port's working status and improve the convenience and accuracy of plugging and unplugging operations in the field. All I/O ports in the series are independently equipped with status indicator lights, making port operation, signal transmission and other working conditions clearly visible, which facilitates quick on-site troubleshooting and equipment operation status monitoring.

Get A Quote Download

PREV：BD Expansion Module NEXT：XM3 Enhanced Series

Parameter
Contact Us

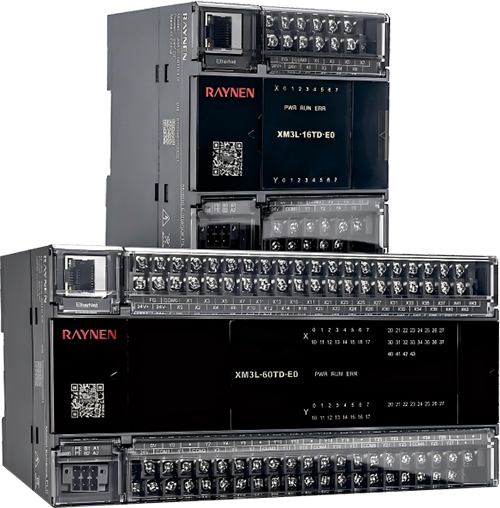

Product Summary

	• The I/O terminals feature a raised pin design, optimizing the heat dissipation contact area and airflow path, significantly improving heat dissipation performance and ensuring long-term stable operation of the terminals.
	• The electromagnetic compatibility design has been comprehensively optimized, resulting in a significant improvement in the overall EMC performance of the PLC.

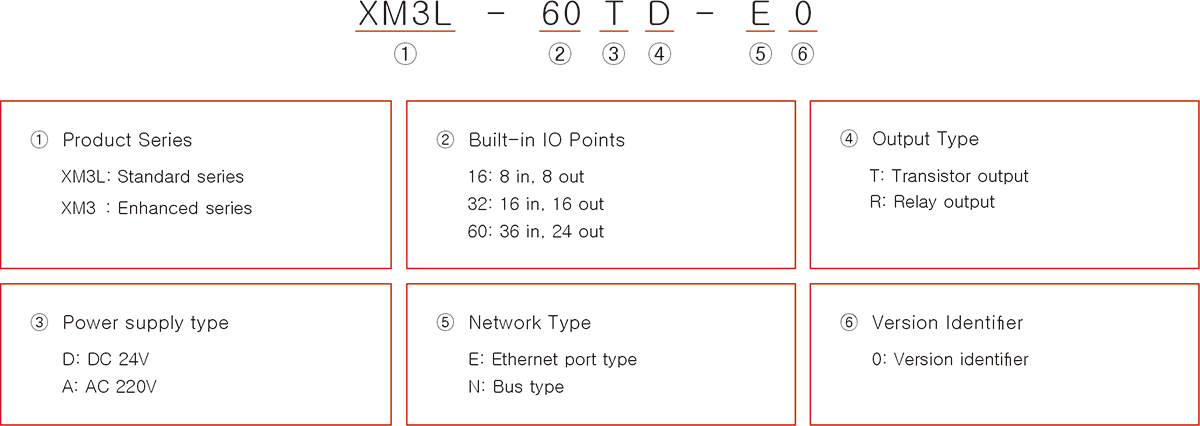

Model Nomenclature

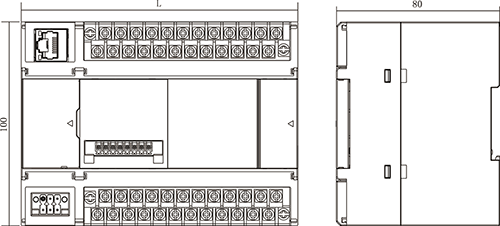

Product Size (unit: mm)

	PLC model	L
	XM3L-16TD-E0	90
	XM3L-32TD-E0	135.5
	XM3L-60TD-E0	196

Technical Specifications

Specifications	XM3L-16TD-E0	XM3L-32TD-E0	XM3L-60TD-E0
Number of controlled axes	2 axes (200KHz)	2 axes (200KHz)	2 axes (200KHz)
Speed planning	T-type speed planning
Control functions	Point motion, return to zero motion, high-speed counting
Programming language	Ladder diagram (LD), instruction list (IL), SFC
Digital input	8 (NPN/PNP)	16 (NPN/PNP	36 (NPN/PNP)
Input impedance	X0-X2: 2.4K; X3 and above: 5.6K
ON input sense current	X0-X2: 5mA or more; X3 and above: 2.4mA or more
OFF input sense current	1mA or less
Input response time	No more than 4.5ms
Digital output	8 (NPN	16 (NPN)	36 (NPN
Resistive maximum load	0.5A/single point; 0.8A/4 points
Inductive maximum load	12W/DC24V
Lamp maximum load	High-speed: 2W/DC24V, Normal: 5W/DC24V
Minimum load	5mA (DC5~24V)
Open circuit leakage current	0.1mA or less/DC30V
On resistance	High-speed point: 0.3Ω typical (0.6Ω maximum)
Number of interrupts	12 external I/O interrupts/3 timer interrupts/6 high-speed counter interrupts
Number of controlled axes	0.5A/single point; 0.8A/4 points
High-speed counter	1-phase: 200KHz (2 channels) AB phase: 200KHz (2 channels)	1-phase: 200KHz (4 channels) AB phase: 100KHz (4 channels)	1-phase: 200KHz (8 channels) AB phase: 100KHz (4 channels)
Ethernet port	1 100M channel; supports ModBUS TCP/IP
RS485	2 channels; supports ModBUS RTU protocol; free serial port protocol
BD expansion	Not supported	Support 1	Support 1
Right expansion	Not supported	Not supported	Not supported
Power supply	DC24V ±5%
