RN300 Series

RN300 Series PLC General Technical Specifications

Module transportation and storage conditions

-40℃ -70℃

Operating ambient temperature

Horizontal installation position: -10℃ to 70℃

Vertical installation position: -10℃ to 40℃

Ambient relative humidity

5%-95%, non-condensing

Protection level

The protection level of IEC60529 is IP20

Isolation

·24VDC circuit

·230VAC circuit

Test voltage 500VDC

Test voltage 1460VAC

Electromagnetic compatibility

NoisesuppressionmeetsEMCrequirementsandcomplieswith IEC61000-6-2testingstandards.AlsocomplieswithlEC61000-4-2, 61000-4-3, IEC61000-4-4, IEC61000-4-5, andlEC61000-4-6.

Mechanical grade

·Vibration, test conditions meet

IEC60068, Part2-6/10up58Hz; constantamplitude0.075mm;

58~150Hz; constantacceleration1g; vibrationperiod: 10ineach

direction of the three mutually perpendicular axes.

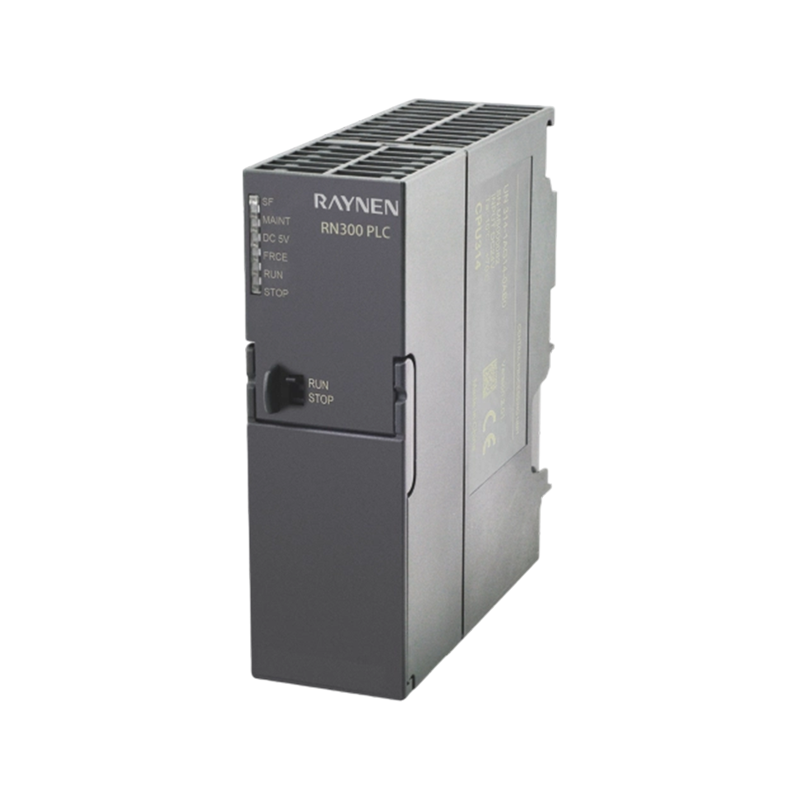

CPU 314-2PtP

High-speed, convenient, large-capacity

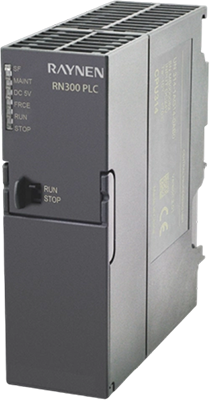

The CPU314-2PtP is the central processing unit module of the RN300 series PLC.

Developed based on an advanced technology platform and employing an innovative design concept, it boasts fast processing speed, ease of use, and excellent performance in terms of storage capacity and compatibility. Its small size and compact structure make it suitable for applications with medium program sizes and high requirements for processing power and response speed.

Features

● Leading processing speeds:

Bitprocessingspeed0.05μs, fixedpointarithmeticprocessingspeed0.06μs, floatingpointarithmeticprocessingspeed0.20μs

● Simpleandconvenienttouse

Standard Micro-USB interface, supports direct program download via USB, no need to purchase a separate adapter

● Larger storage capacity, more storage options

Built-in1MBprogram storage space, no need to purchase a separate MMC card; it also integrates a pluggable TF card interface, allowing firmware upgrades, supporting up to 4GBcapacity

● Excellent compatibility

Compatible with industry-standard products in software, hardware, and communication, achieving interconnectivity.

Model

CPU 314-2PtP

Memory/Backup

Working memory

Built-in

128 KB

Expandable

No

Load memory

Built-in(FLASH)

1MB

Removable(TF card)

Max 32GB

Backup

No battery required: Built-in FLASH guaranteed: Program and data

Interface Characteristics

Micro-USB

For direct PC connection to download user programs

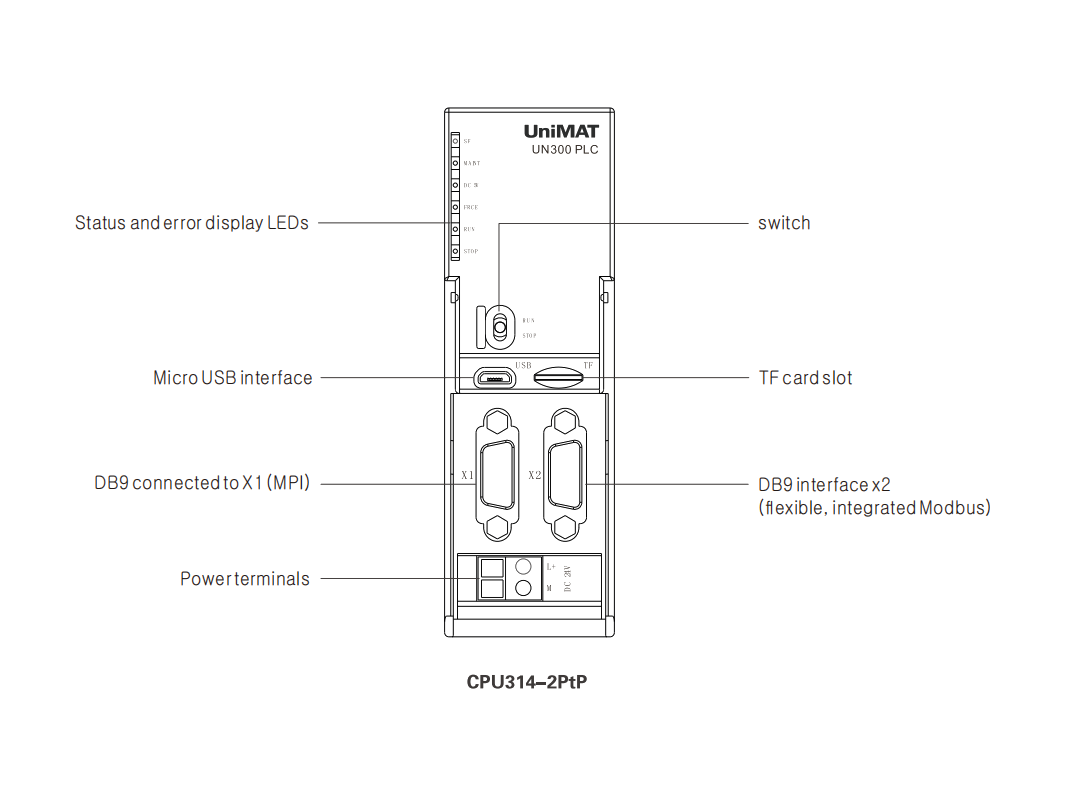

DB9(X1)

For MPI communication

DB9(X2)

For point-to-point R485 serial communication

TF

1.Firmware upgrade; 2.Used as load memory; 3.Data storage

CPU/Processing Time

Bit Instructions, Minimum

0.05us

Word Instructions, Minimum

0.06us

Integer Arithmetic, Minimum

0.06μs

Floating-Point Arithmetic, Minimum

0.20μs

Timer/Counter and Retention Characteristics

Counter

Quantity

256

Retention

Adjustable; Preset: C0~C7

Counting Range

Lower limit: 0; Upper limit: 999

IEC Counter

Availability

Yes

Type

SFB

Timer

Quantity

256

Retention

Adjustable; Preset: No retention

Timing Range

Lower limit: 10ms; Upper limit: 9990s

IEC Timer

Availability

Yes

Type

SFB; No quantity limit, only limited by working memory

Data Area and its Retention Characteristics

Flags

Quantity

256 bytes

Retention

Adjustable; Preset: MB0~MB15

Number of clock memories

8; 1 storage byte

Data Blocks

Quantity, maximum

1024; DB1～DB16000

Capacity, maximum

64 KB

Retention

Adjustable; via non-reserved features on DB

Local Data

Maximum per priority level

32 KB

CPU/Block

DB

Quantity, Maximum

1024, number range: 1~16000

Capacity, Maximum

64 KB

FB

Quantity, Maximum

1024, number range: 0~7999

Capacity, Maximum

64 KB

FC

Quantity, Maximum

1024, number range: 0~7999

Capacity, Maximum

64 KB

OB

Cyclic Block

OB1

Day Clock Interrupt Block

OB 10

Delay Interrupt Block

OB20, OB21

Cyclic Interrupt Block

0B32, 0B33, 0B34, 0B35

Hardware Interrupt Block

0B40

Diagnostic Interrupt Block

0B 82

Fault Response Block

0B 80, 0B85

Restart Block

OB 100

Synchronization Error Response Block

0B121, 0B122

Address Area(I/O)

Address Area

Input

1024 bytes

Output

1024 bytes

Process Image

Input

1024 bytes

Output

1024 bytes

Digital Channels

Input

1024

Output

1024

Analog Channels

Input

256

Output

256

Model

CPU 314-2PtP

Conhguration

Rack, Maximum

4

Number of 1/0 modules per rack, Maximum

8

Time

Clock

Hardware clock

Yes

Buffer

Yes

Daily error, maximum

10s

Running time counter

Quantity

1

Number

0

Value range

0~2"hours(when using SFC101)

Counting interval

1 hour

Retention

Yes; timer needs to reset after restarting

Synchronize with host computer time

Yes

Testing and debugging functions

Monitoring function

State/Control Variables

Yes Input, Output, Storage Bit, DB, Timer, Counter

Variables

Number of variables, maximum

30

Of which, state variables, maximum

30

Of which, modihable variables, maximum

14

Mandatory

Supported

Yes Input, Output

Variables

Number of enforced variables, maximum

10

Diagnostic buffer

Availability

Yes

Number of inputs, maximum

500

Adjustable

No

Basic communication

support

Yes

Interface 1

Interface Type

Built-in RS485 connector

lsolation

No

Interface Power

15~30VDC, maximum: 200mA

Functionality

MPI

Supported

Number of Connections

2

Transmission Rate, Maximum

187.5 KBit/s

Interface 2

Interface Type

Built-in RS485 connector

lsolation

Yes

Functionality

MPI

No

Point-to-Point

Yes

CPU/Programming

Programming Language

Compatible with EC61131-1

Nesting Level

8

User Program Protection/Password Protection

Yes

System Functions(SFC)

SFC(0, 1, 2, 3, 4, 5, 6, 20, 21, 28, 29, 30, 31, 32, 33, 34, 36, 37, 38, 39,

40, 41, 42, 43, 44, 46, 47, 49, 50, 52, 64, 65, 66, 67, 68, 69, 101)

System Functional Block(SFB)

SFB(0, 1, 2, 3, 4, 5)

Physical Characteristics

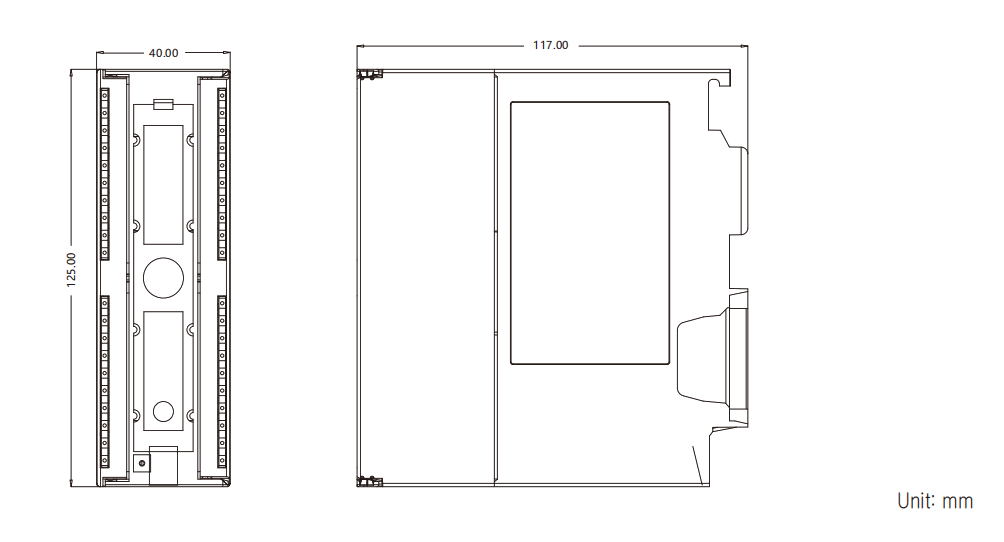

Dimensions(WxHx D)

40x125x120mm

Power Supply Characteristics

Rated Values(DC)

24V

Allowable Range, Lower Limit(DC)

18.0V

Allowable Range, Upper Limit(DC)

28.0V

Power Supply Protection: External Fuse(Recommended)

Minimum 3A

Inrush current, typical value

3.5A

Power supply from L+, maximum

650mA

Power consumption, typical value

4W

Order number

RN 314-2AG14-0AB0

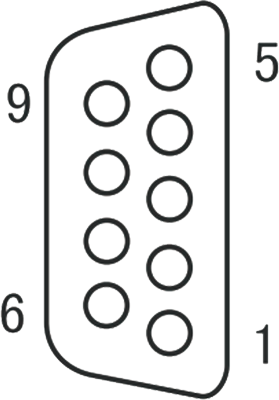

9-pin D-type connector (DB9 female)

PIN Number

X1 Pin Definition

X2 Pin Definition

1

-

-

2

24V Return(RS-485 Logic Ground)

-

3

RS-485 Signal B

RS-485 signal B

4

RTS(TTL Level)

-

5

5V Power Supply Ground

5V power supply ground

6

External 5V Power Supply Positive Terminal

External 5V power supply positive terminal

7

24V Power Supply

-

8

RS-485 Signal A

RS-485 signal A

9

Ground

-

Model

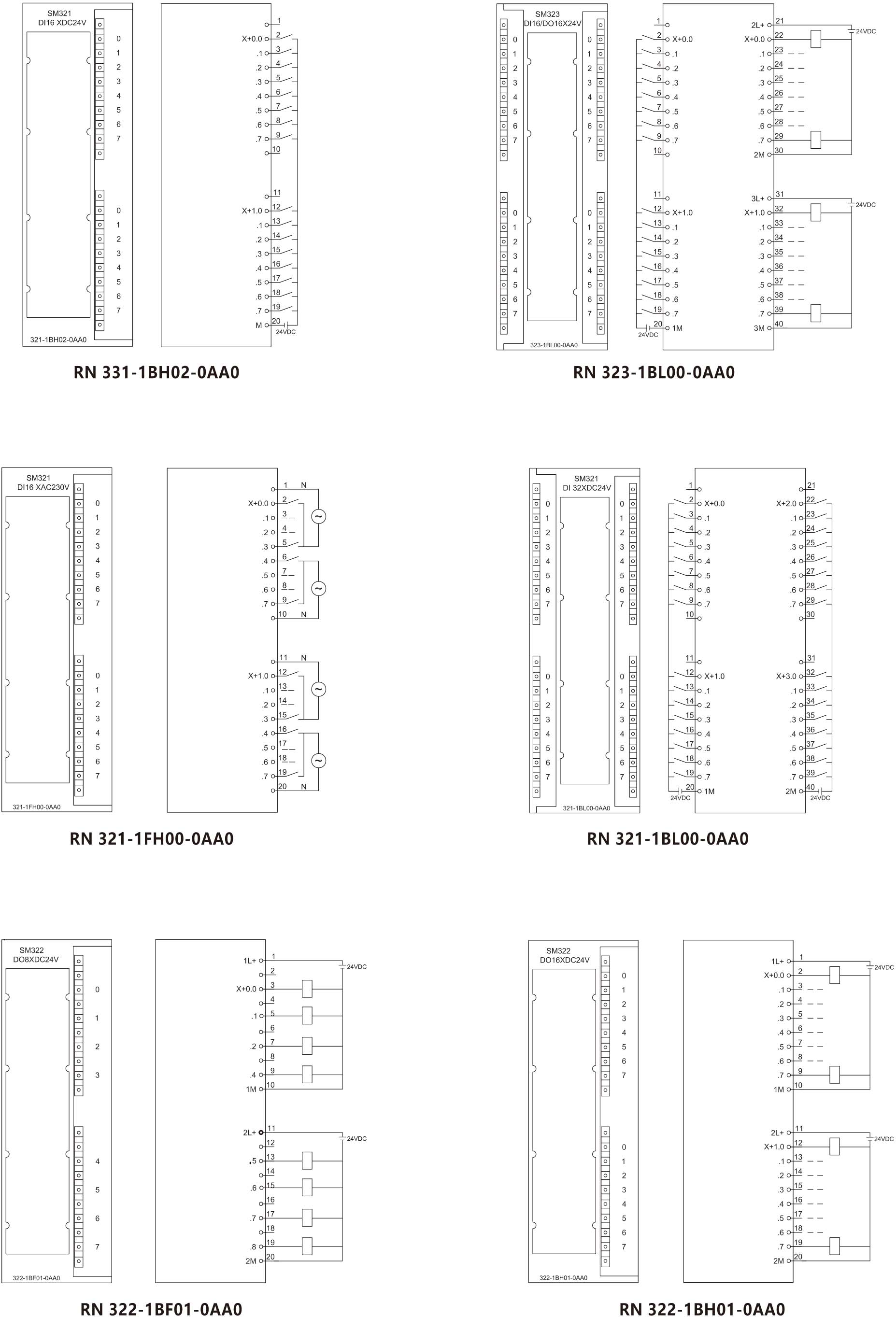

SM32116-point input, leak type

SM32116-point input

SM32132-point input

Product Images

Product Overview

·16 digital nputs, 24VDC;

· Strong anti-interference.

performance and stable performance;

· 16 digital inputs, 120V/230VAC;

·Strong anti-interference

 performance and stable performance;

·32-point digital input, 24VDC;

· Strong anti-interference

performance and stable performance

Technical Specifcations

Power loss

Bus current consumption

17mA

40mA

50mA

Total power consumption

3.5W

4.9W

6.5W

Number of digital input points

16

16

32

Cable length

1, 000m(shielded); 600m(unshielded)

Input Voltage

Rated value

24V DC

120/230V AC

24VDC

"0" signal

-30~5VDC

0~40V AC

-30~5V DC

"1" signal

13~30VDC

85~264V AC

13~30VDC

Frequency range

/

47~63HZ

I

Input current

7mA 16mA 7mA

Input delay

From Oto 1, minimum

1.2~4.8ms

25ms

1.2~4.8ms

From 1 to0, minimum

1.2~4.8ms

25ms

1.2~4.8ms

Front Connector

20-pin 20 pins 40-pin

Input Characteristics

Sinking type / Sinking type

2-Wire BERO Connection

Can be Available Yes

Allows Quiescent Current

1.5mA 2.0mA 1.5mA

Optoisolation

Between channels and the backplane bus

Yes

Between each group of channels

Yes

Status Display

Each channel has a green LED

Dimensions(WxHxD)

40x125x120 mm

Order Number

RN 321-1BH02-0AA0

RN 321-1FHO0-0AA0

RN 321-1BL00-0AA0

Model

SM 3228-point o Mtp3u2 16-point output

SM 32216-point output, relay

SM 32232-point output

Product Images

Product Overview

· 8digial outputs, 24VDC;

· Strong anti-interference

performance and stable performance;

· Transistor outputs, optocoupler isolation

· 16 digital outputs, 24VDC;

· Strong anti-interference

performance and stable performance;

· Transistor outputs, optocoupler isolation

· 16-pint dial output

· Optical solation, strong anti-interference

performance, and stable performance

· 32 digital outputs, 4VDC;

· Strong anti-reference
performance and stable performance;

· Transistor outputs, optocoupler isolation.

Technical Specifications

Power loss

Bus current consumption

50mA

80mA

100mA

90mA

Total power consumption

6.8W

4.9W

4.5W

6W

Number of digital input points

8

16

16, Relay

32

Cable length

1, 000m(shielded); 600m (unshielded)

Output shot-circuit protection

Yes, electronic

Yes, electronic type

/

Yes, electronic

Voltage limit causing circuit interruption

L+(-48V)

L+(-53V)

/

L+(-53V)

Maximum lamp load

10W

5W

Minimum L+(-0.8V)

200W

5W

Output voltage: "1"

Minimum L+(-0.8V)

/

Minimum L+(-0.8V)

Output current: "1"

2A

0.5A

2A

0.5A

Contact mechanical life

/

I

1, 000, 000

/

Contact electrical life (rated load voltage)

/

/

100, 000

Total output current (pe group)

4A

4A

8A

4A

lsolation

Between the channel and

the backplane bus

Yes, optocouplers.

Between each

channel group

Yes.

Switching

frequency

Resistive load, maximum

100HZ

100HZ

1HZ

100HZ

lhoductie load, maximum

0.5Hz

Lamplad, maximum

10HZ

10HZ

1HZ

10HZ

Mechanical load, maximum

/

/

10HZ

/

Status Display

Each aisle has a green LED.

Front Connector

20 stitches

20 stitches

20 stitches

40 stitches

Dimensions (WXHxD)

40x125x120 mm

Order Number

RN322-1BF01-0AA0

RN322-1BHO1-0AA0

RN 322-1HHO1-0AAO

RN 322-1BL00-0AAO

Model

SM 32316-point input/16-point output

Product Images

Product Overview

· 16 digital inputs/16 outputs, 24VDC;

· Transistor outputs, optocoupler isolated;

· Strong anti-interference performance, stable performance;

Power

loss

Current consumed from the bacolanebus

80mA

Total power consumption

6.5W

Input characteristics

Number of digital input points

16

Input voltage

Rated value

24V DC

"0" signal

-30~5V DC

"1" signal

13~30V DC

Input current

7mA

Input delay

Minimum from O to 1

1.2~4.8ms

Minimum from 1 to 0

1.2~4.8ms

Input Type

Sinking type

2-wire BERO connection

Can be

Allows quiescent current

1.5mA

Output characteristics

Number of digital output points

16

Output short-circuit protection

Yes, electronic

Voltage limit causing circuit interruption

L+(-53V)

Maximum lamp load

5W

Output voltage: "1" signal

Minimum L+(-0.8V)

Output current: "1" signal

0.5A

Isolation

Benwer tecereand te ecktanebus

Yes, optocoupled

Between each group

Yes

Cable Length: Shielded/Unshielded

1, 000m/600m

Status Display

Green LED per channel

Front Connector

40 pins

Dimensions (WxHxD)

40x125x120 mm

Order Number

RN 323-1BL00-0AA0

Model

SM3318-channel input

SM3318-channel input

SM3318 input, RTD

SM3318 input, thermocouple

Product Images

Product Overview

· 8-channel analog input,

current/voltage/RTD temperature

measurement module, 13-bit resolution;

· Optical isolation, stable performance.

· 8-channel analog input, full-function

femperalire measurement module, 16-bit rsoufoni

· External mechanical angle switch

greatly improves measurement stability;

· Strong. anti-interference,

capability and stable performance;

· Curet input with oeruret protection.

· 8-channel RTD temperature

measurement module with 16-bit resolution

· Supports multiple sensor types;

· Low power consumption,

low heat generation, and smooth operation

· 8-channel thermocouple temperature

measurement module with 16-bit resolution;

· Supports a voltage range of±150mV;

· Supports a wide ambient temperature range.

Power loss

Rated vales

/

24VDC

24V DC

24V DC

Bu urent comsumofon

90mA

100mA

50mA

100mA

L+curent consmpion

/

25mA

40mA

200mA

Tota powe Onsumpion

0.4W

1W

1W

3W

Transmitter power supply

Supply urent

/

Maximum 60mA per channel

/

/

Snotcicuitproteion

/

Available

/

/

 Analog input channel

8

8

8

8

Cable length(shielded)

Maximum 200m

200mA; Maximum 50mA at 80mV

Maximum 200m

Maximum 100m

Input type

and range

Voltage

1~5V、0~10V、±50mV、

±500mV、±1V、±5V、±10V

±80mV, ±250mV, ±500mV,±1V, ±2.5V, ±5V, 1~5V,±10V

/

±150mV(-27648~+27648)(This function isused when selecting U-type)

Four-wire current

±20mA、0~20mA、4~20mA

±3.2mA、±10mA、

±20mA、4~20mA

Pesitance

/

4~20mA

/

/

Temoul

6002、6kΩ

6002、3002、1502

1502、3002、 6002

estanoe Eempentur Detect

/

K、J、N、E、L

/

Types: T, E, JK, N, R, S, B

Resistance

Temperature Detector

Pt100 Standard/Climate

Type: Ni100 Standard/Climate

Type; Ni1000Standard/Climate

Type: LG-Ni1000 Standard/climate Type

Pt100、Ni100

Pt10、Pt50、 Pt100、Pt200、

Pt500、Pt1000、Ni100、

Ni120、Ni200、 Ni500、

Ni1000、Cu10(9.035)、Cu50、Cu100

A/D conversion accuracy

13-bit

16-bit

16-bit

16-bit

Basic conversion time per channel

66/55ms

0.5ms/12.5ms/25ms/100ms

190ms

190ms

Interference suppression frequency

50/60Hz

400/60/30/10Hz

400/60/50Hz

400/60/50Hz

Error

(operating limits)

acToss the entire

temperature range)-

Voltage

± 0.6%

± 0.6%

±0.6%

Curent

± 0.6%

±0.6%

/

Resistance

± 0.6%

±0.6%

± 0.1%

/

Temperature

± 1℃

±1℃

±1℃

±1℃

Interruption

Diagnostic interrupt

None

Yes, parameters can be set for each group

Yes, parameters can be set for each group

Yes, parameters can be set for each group

Limit Value Interrupt

None

Yes, parameters can be set

Yes, parameters can be set

Yes, parameters can be set

lsolation

Between channels

None

No

Yes

Yes

Between channels

and backplane bus

Yes

Yes

Yes

Yes

 Front Connector

40-pin

20-pin

40-pin

40-pin

 Dimensions(WxHxD)

40x125x120 mm

40x125x120 mm

40x125x120 mm

40x125x120 mm

Order Number

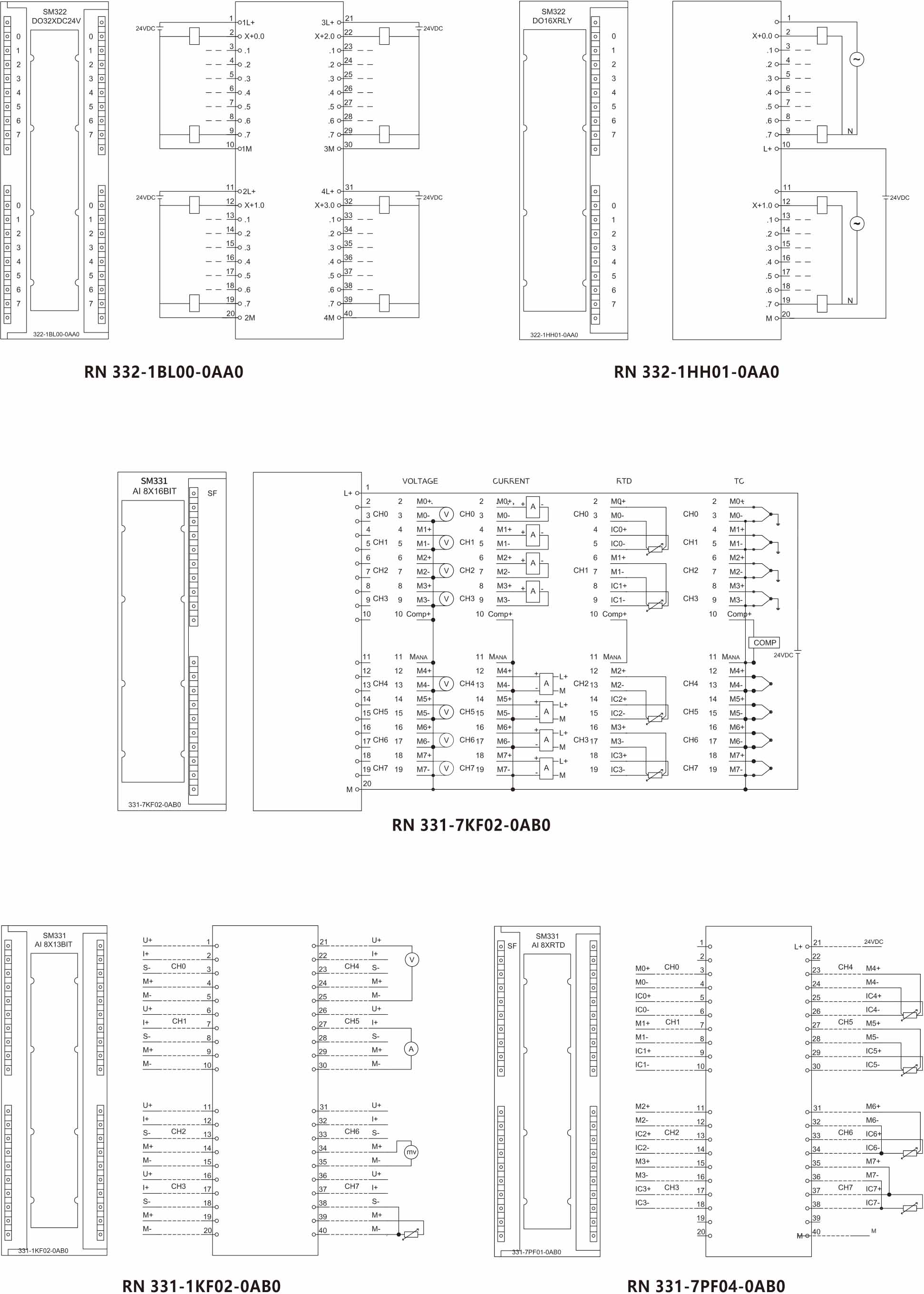

RN 331-1KF02-0AB0

RN 331-7KF02-0ABO

RN 331-7PF01-0AB0

RN 331-7PF11-0AB0

Model

SM 3324-channel output

SM 3328-channel output

Product Images

Product Overview

·4-channel analog output, 12-bit resolution, high precision;

·Supports a wide ambient temperature range

· 8-channel analog output, 12-bit resolution, high precision;

· Supports a wide ambient temperature range.

Power loss

Bus Curet onsumpfin

40mA

100mA

Current consumption to bad voltage l+(no la)

40mA

70mA

Poe Cnsmpion

3W

6W

About Chamel

4

8

Lad votag L+fated)

24V

24V

Shiede abl lengt, maximum

200mA

200m

Voltage utot shot-cicui urent protecion

Yes

Yes

Vdtage output, maximum shot-circuit current

25mA

25mA

Output, maximum operating circuit otag8

18V

18V

Load impedance

Minimum voltage output

1KΩ

1KΩ

Maximum current output

500Ω

500Ω

Output range

Voltage

±10V, 0~10V, 1~5V

±10V, 0~10V, 1~5V

Current

±20mA, 0~20mA, 4~20mA

±20mA, 0~20mA, 4~20mA

D/A Conversion Accuracy

12-bit

12-bit

Conversion Time(per channel)

Maximum 0.8ms

Maximum 0.8ms

Establishment time

Resistive load

0.1ms

0.1ms

Inductive load

3.3ms

3.3ms

Capacitive load

0.5ms

0.5ms

Output crostalk

>40dB

>40dB

Error (operating limits across the entire temperature range)

Voltage output: 0.5%; Current output: 0.6%

Voltage output: 0.5%; Current output: 0.6%

Diagnostic interrupts

None

None

Group error display

Red indicator light

Red indicator light

isolation

Between the channel and the backplane

Yes

Yes

Between the channel and the load voltage L+

Yes

Yes

Front Connector

20-pin

20-pin

Dimensions(WxHxD)

40x125x120 mm

40x125x120 mm

Order Number

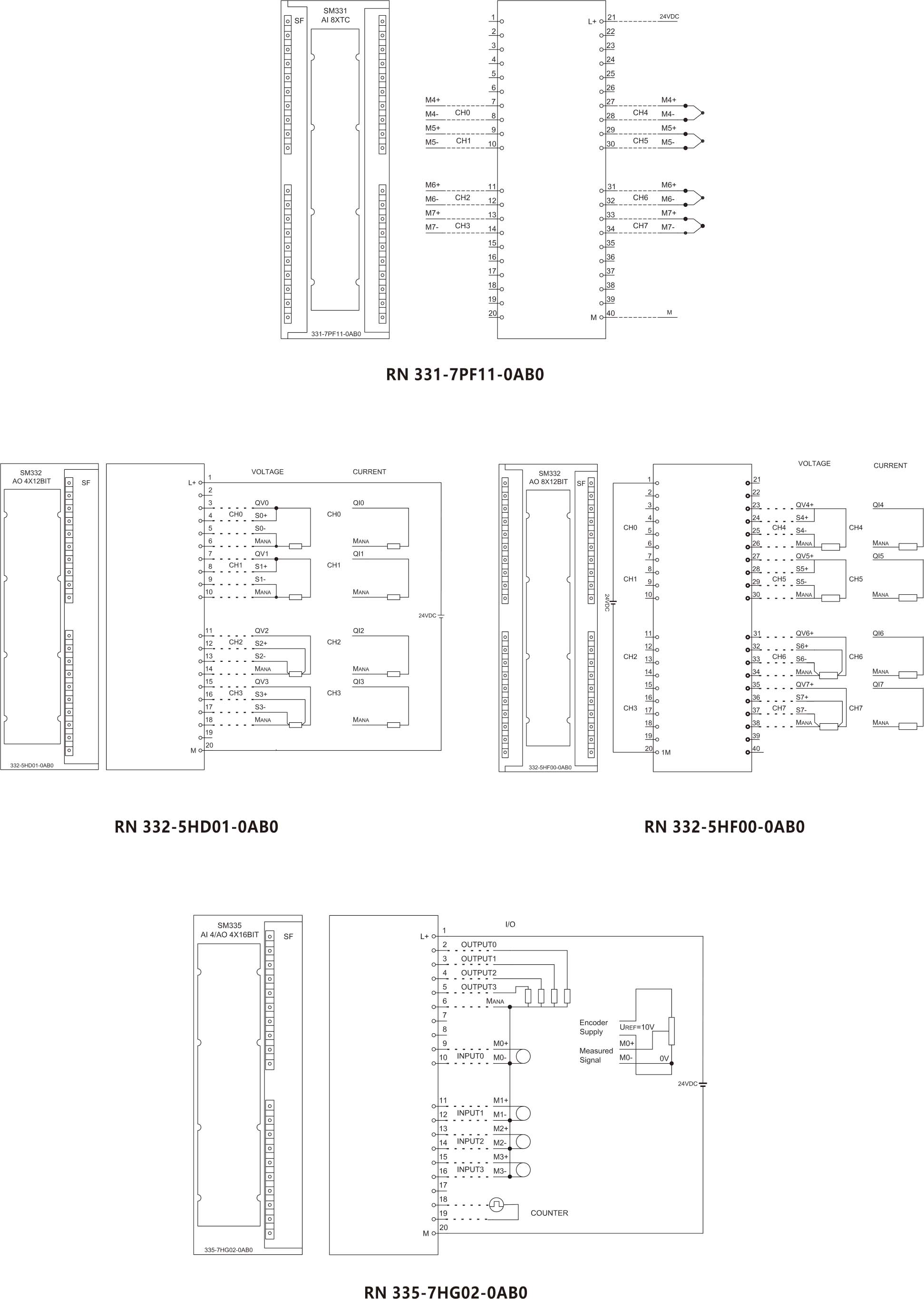

RN 332-5HD01-0AB0

RN 332-5HF00-0AB0

Module characteristic data

Input points

4

Shielded cable length

200m

Output points

4

Break detection range: 4 to 20m

30m

Voltage and current

Rated voltage

24VDC

Current loss

From backplane bus, maximum

75mA

Reverse plaityprotection

Yes

From L+, maximum

150mA

Electrical isolation

Yes

Power loss, maximum

3.6W

Status interruption diagnosis

· RN300 High-Speed Analog Input and Output Module

· 4 Fast Analog Inputs(maximum basic conversion time 200s perchannel)

· 4 Fast Analog Outputs(maximum conversion time 50us perchannel)

· Encoder power supply 10V/25mA; 1 Counter Input (24V/400Hz)

Interruption

Limit value interrupt

No

Diagnostic function

Group fault display

Yes, red LED

Loop end interrupt

Yes, parameters

can be set

Diagnostic information

can be read

No

Diagnosis inerupt

No

Analog Input Technical Specifications

Input range(rated)/Input impedance

Voltage

±1V 100MΩ

2.5V 100MΩ

10V 100MΩ

0-2V 100MΩ

0-10V 100MΩ

Current
(maximum 2 channels)

±10mA 1002

0-20mA 100Ω

4-20mA 1002

Voltage input, maximum(destructive limit)

± 30V 1008

Current input, maximum(destructive limit)

25mA 100Ω

Wiring of
signal sensor

For voltage measurement

Yes

For current
measurement

Two-wire sensor

Yes

Four-wire sensor

No

For resistance measurement

No

Input simulation
value generation

Measurement Principle

Successive approximation

Conversion Time per Channel

200μs

Basic Conversion Time for 4 Channels

1 ms

Resolution

Bipolar

13 bits +sign bit

Unipolar

14 bits

Sensor power
output data

Rated voltage

10V

Output urent (maximum)

25mA

Shot circuit protection

Yes

nputvoftage limit ero

0.2%

Common-mode interference (Vpo<3V)

>65dB

Analog Output Technical Specifications

Resolution (including
over-range measurement)

± 10V

11-bit+sign bit

0-10V

12-bit

Output delay, maximum

800 s

Establishment time

Resistive load

<0.8ms

Capacitive load

<3.3ms

Inductive load

<0.5ms

Response to CPUSTOP mode

OCV/KLV

Output crosstalk

40dB

Voltage output limit error

0.2%

Output range(rated value)

± 10V

0-10V

Load impedance

Resistive bad, minimum

3KΩ

Capacitance load, maximum

1μF

Inductive load, maximum

1mH

Voltage output

Shot-circuit protection maximum current

8mA

Actuator connection
for voltage output

Two-wire system

Yes

Four-wire system

No

Counter Technical Specifications

Number of input points

1

Rated load voltage

24VDC

Reverse polarity protection

Yes

Electrical isolation

Yes

Count value
generation

Measurement Principle

Detects two rising edges

Time Resolution

0.5μS

Maximum Frequency

400Hz

Dimensions(WxHxD)

40x125x120 mm

Order Number

RN 335-7HG02-0AB0

9-pin D-type connector

Pin

ldentiher

Input/Output

Meaning

1

2

-

-

-

3

R/T(B)+

Input

Receive Data(4-wire mode)

Input/Output

Receive/Transmit Data(2-wire mode)

4

T(B) +

Output

Transmit Data(4-wire mode)

5

GND

-

Ground isolation

6

5V

-

5V Isolation

7

-

-

-

8

R/T(A)-

Input

Receive Data(4-wire mode)

Input/Output

Receive/Transmit Data(2-wire mode)

9

T(A) -

Output

Transmit Data(4-wire mode)

Power Supply

5V from backplane, no external connection required

Current Consumption, Maximum

150mA

Power Loss, Typical

0.65W

Power Loss, Maximum

0.75W

Number of Communication Ports

1

Interface Type

RS 485/RS422

Communication Protocol

ASCII, MODBUS

Communication Rate

0.3(minimum), 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 76.8 and 115.2(max)Kbs

Communication frame format

Data length: 7-8 bits; Stop bits: 1-2 bits; Parity check: Parity check, No parity check

Maximum message length

2048 bytes

Dimensions (WxHxD)

40x125x120 mm

Name

Specifcations

Order Number

CP341

MODBUS Communication Module

RN341-1CHO2-0AE0

Model

IM 153 PROFIBUS-DP Slave

Product Images

Product Overview

·For distributed I/O systems with PROFIBUS-DP interfaces;

·Each slave station can connect to 8 RN300 expansion modules.

Module features

Connection Protocol

PROFIBUS-DP

Maximum Communication Rate

12Mbps Auto-adaptive

Maximum Address Space

128-byte Input/128-byte Output

Maximum Expansion Modules

8

Isolation Voltage

500V

Operating Voltage

24VDC

Current Consumption(24VDC)

625mA

Dimensions(WxHxD)

40X125X120mm

Order Number

RN 153-1AA03-0XB0

Model

PS307 power supply, 5A

PS307 power supply, 10A

Product Images

Product Overview

 Maximum output current 5A, output voltage

 24VDC, connects to single-phase AC system

(input voltage 120/230VAC, 50/60Hz), reliable

isolation characteristics make it suitable as a

load power supply.

Maximum output current 10A, output voltage

24VDC, connects to single-phase AC system

(input voltage 120/230VAC, 50/60Hz), reliable

isolation characteristics make it suitable as a

load power supply.

Input voltage rating

120/230

Voltage range

85 to 132VAC/170 to 264VAC

System Frequency

Rated values

50HZ~60HZ

Tolerances

47HZ~63HZ

Rated input current

At 230V

1.3A

1.8A

At 120V

2.1A

4.1A

Starting current

<45A, <3ms

<55A, <3ms

I't(at the starting current)

1.2A² s

3.3A²s

Output voltage

Rated value

24VDC

Tolerance

24V±3%

Increase value

<2s, typical value 60ms

Maximum 1.5s, typical value 80ms

Output current rating

5A, cannot be connected in parallel.

10A, cannot be connected in parallel.

Short circuit protection

Electronic shutdown, automatic cold start

Residual ripple

Maximum 150mVpp

Maximum 150mVpp

Discharge current

<3.5mA(typical 0.3mA)

<3.5mA(typical 0.5mA)

Efficiency

Approximately 87%

Power consumption

Typical value 18W

Typical value 34W

Output voltage valid indicator

When the 24V is normal, the green indicator light will illuminate.

Dimensions(WxHxD)

60x125x120 mm

120x125x120 mm

Weight

Approx. 600g

Approx. 1.1 kg

Order number

RN 307-1EA01-0AA0

RN307-1KA01-0AA0

Baud Rate

MPI

Profbus

DP

Standard

General

Custom

9.6Kbps

√

√

√

√

19.2 Kbps

√

√

√

√

√

45.45 Kbps

√

√

√

√

93.75 Kbps

√

√

√

√

187.5 Kbps

√

√

√

√

√

0.5 Mbps

√

√

√

√

1.5Mbps

√

√

√

Name

Specifcations

Order Number

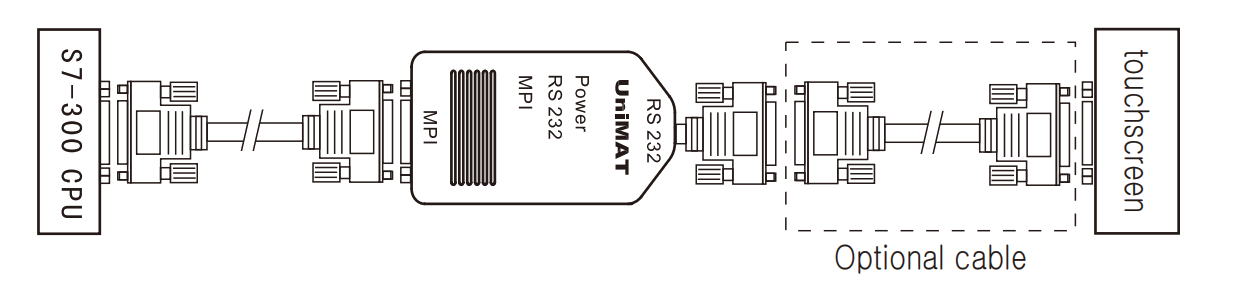

RS232-MPI Serial Port Screen Connector

24VDC, with opto-isolation, 3.5M

RN 972-0CA23-0XA0

RN300 CPU

Order number

CPU314-2PtP 1MB MODBUS/MPI/USB/TF

RN 314-2AG14-0AB0

RN300 Digital I/O Module

Order number

SM32116DI, 24VDC

RN 321-1BH02-0AA0

SM32116DI, AC 230V

RN 321-1FH00-0AA0

SM32132DI, 24VDC

RN 321-1BL00-0AA0

SM3228D0, 24VDC 2A

RN 322-1BF01-0AA0

SM32216D0, 24VDC0.5A

RN 322-1BH01-0AA0

SM32216DO, relay 2A

RN 322-1HH01-0AA0

SM32232D0, 24VDC 0.5A

RN 322-1BL00-0AA0

SM32316DI/16DO DC/DC 0.5A

RN 323-1BL00-0AA0

RN300 series

RN300 Analog Module

Order number

SM3318AI, Current/Voltage/RTD

RN 331-1KF02-0AB0

SM3318AI, Full-function

RN 331-7KF02-0AB0

SM3318RTD, RTD

RN 331-7PF01-0AB0

SM3318TC, Thermocouple

RN 331-7PF11-0AB0

SM3324AO, 12-bit

RN 332-5HD01-0AB0

SM3328AO, 12-bit

RN 332-5HF00-0AB0

SM3354AI/4AO, High-speed Analog Combination Module

RN 335-7HG02-0AB0

RN300 Communication Interface Module

Order number

ET200M, IM153-1

RN 153-1AA03-0XB0

CP341RS485/422MODBUS communication module

RN 341-1CH02-0XE0

RN300 Adapter

Order number

USB-MPI/DP Adapter

RN 972-0CB20-0XA0

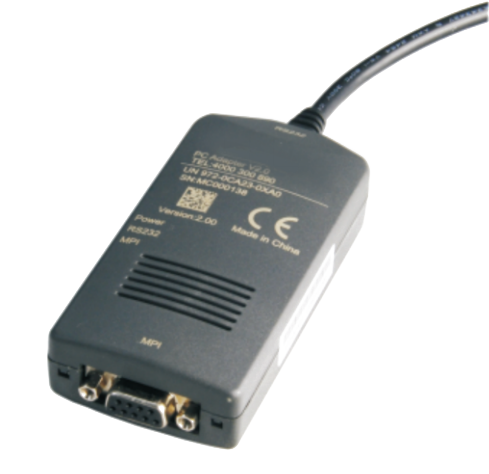

RS232-MPI Serial Port Screen Connector

RN 972-0CA23-0XA0

RN300 power supply

Order number

PS3075A Power Supply

RN 307-1EA01-0AA0

PS30710A Power Supply

RN 307-1KA01-0AA0
