XM3 Enhanced Series

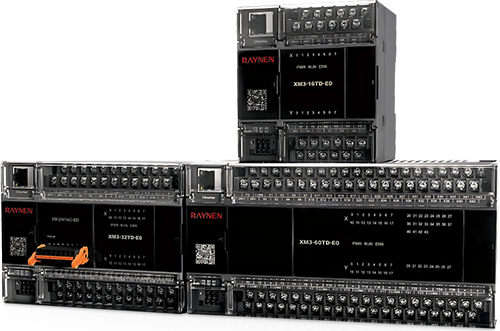

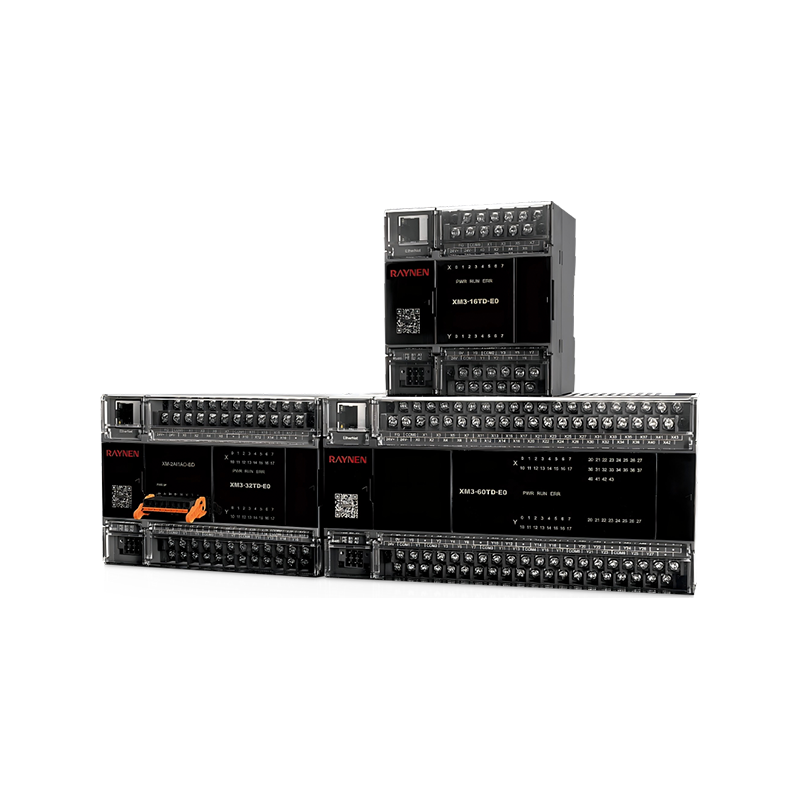

XM3 Enhanced PLC The device's network port circuit adopts a professional anti-interference architecture design, which has excellent anti-interference performance. It can effectively suppress external electromagnetic interference, signal noise and voltage fluctuations, ensuring the stability of network signal transmission and data integrity.

Get A Quote Download

PREV：XM3L Standard Series NEXT：BD expansion board

Parameter
Contact Us

Product Summary

	• All XM series small PLC s are equipped with one RJ45 network port (pluggable terminal block) and two RS485 ports (external terminal blocks), providing enhanced convenience and flexibility
	• The classic Raynen black that is elegant and timeless.

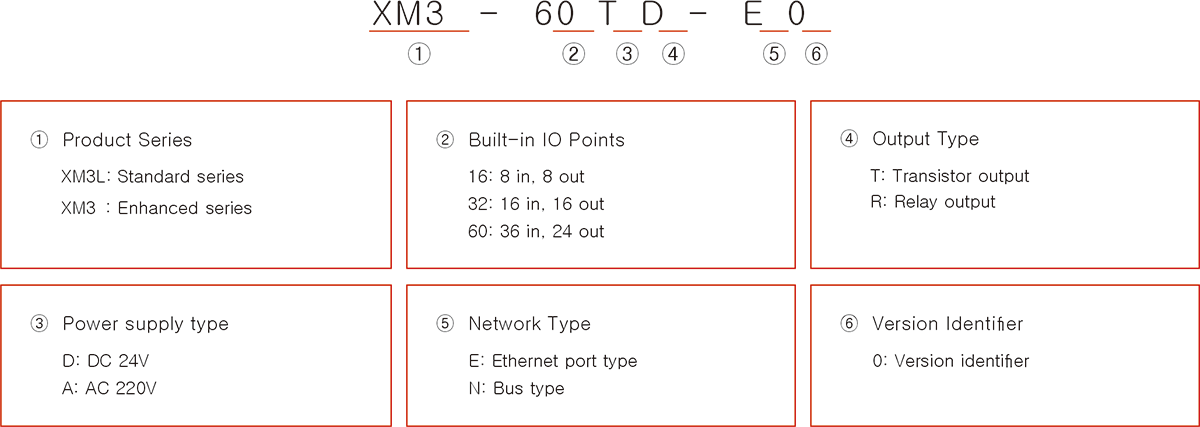

Model Nomenclature

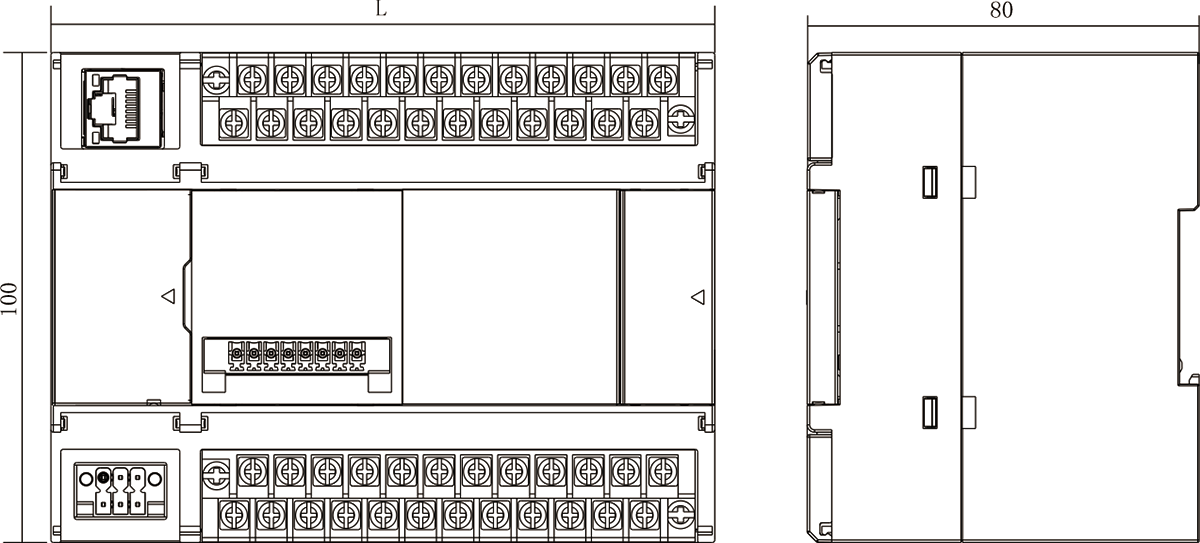

Product Size (unit: mm)

Technical Specifications

Specifications	XM3L-16TD-E0	XM3L-32TD-E0	XM3L-60TD-E0
Number of controlled axes	2 axes (200KHz)	4 axes (200KHz)	6 axes (200KHz)
Speed planning	T-type speed planning
Control functions	Point motion, return to zero motion, high-speed counting, linear interpolation, circular interpolation
Programming language	Ladder diagram (LD), instruction list (IL), SFC
Digital input	8 (NPN/PNP)	16 (NPN/PNP	36 (NPN/PNP)
Input impedance	X0-X2: 2.4K; X3 and above: 5.6K	X0-X7: 3.3K, X10 and above: 5.6K
ON input sense current	X0-X2: 5mA or more; X3 and above: 2.4mA or more	X0-X7: 5mA and above, X10 and above: 4mA and above
OFF input sense current	Under 1mA
Input response time	No more than 4.5ms
Digital output	8 (NPN	16 (NPN)	36 (NPN
Resistive maximum load	0.5A/channel
Inductive maximum load	12W/DC24V
Lamp maximum load	5W/DC24V
Minimum load	5mA (DC5~24V)
High-speed IO	OFF→ON: 5μs or less/10mA or more (DC5~24V) ON→OFF: 5μs or less/10mA or more (DC5~24V)
Normal IO	OFF→ON: 0.2ms or less/200mA or more (DC24V) ON→OFF: 0.2ms or less/200mA or more (DC24V)
Number of interrupts	12 external I/O interrupts/3 timer interrupts/6 high-speed counter interrupts
High-speed counter	1-phase: 200KHz (3 channels) AB phase: 100KHz (3 channels)	1-phase: 200KHz (4 channels) AB phase: 100KHz (4 channels)	1-phase: 200KHz (8 channels) AB phase: 100KHz (4 channels)
Ethernet port	1 channel 100M; support ModBUS_TCP; TCP/IP
RS485	2-way; support ModBUS_RTU protocol; free serial port protocol
BD expansion	Not supported	Support 1	Support 1
Right expansion	Support 7	Support 7	Support 7
Power supply	DC24V ±5%

Product Applications
